SAFETY PRECAUTIONS

For safe and dependable operation of this product, please comply with the following safety

precautions:

Before connecting power, verify that the equipment’s input voltage range and plug type are compatible

with the local AC mains power supply.

Do not position the equipment such that it is difficult to reach the power connection.

Only connect the power cord to a compatible grounded electrical outlet.

Only use a power cord with a rating that exceeds the specifications on the equipment label. (Only for i-

DT33P)

Make sure that the power cord does not pose a potential obstacle or tripping hazard.

Operate the equipment only under ambient conditions specified in these instructions.

The equipment is for indoor use only.

Do not operate the equipment in hazardous or unstable environments.

Do not allow liquids to enter the equipment.

Use only approved accessories and peripherals.

Disconnect the equipment from the power supply when cleaning.

Service should only be performed by authorized personnel.

WARNING: Never work in an environment subject to explosion hazards! The housing of the instrument is

not gas tight. (Explosion hazard due to spark formation, corrosion caused by the ingress of gases).

WARNING: Electrical shock hazards exist within the housing. The housing should only be opened by

authorized and qualified personnel. Remove all power connections to the unit before opening.

MENU NAVIGATION

Press and hold Menu until mM.E.N.U appears.

Use Yes, No, Back,and Exit to navigate:

-Yes allows entry into the displayed menu.

Accepts the displayed setting and advances to the next menu item.

-No skips by the displayed menu.

Rejects the displayed setting or menu item and advances to the next available item.

-Back moves backwards through the upper and middle level menus.

Backs out of a list of selectable items to the previous middle level menu.

-Exit exits from menu directly to the active weighing mode.

MENU SETUP

C.A.L

S.E.t.U.P

r.E.A.d

mM.O.d.E

U.n.I.t

R.s.2.3.2

P.r.I.N.t

U.S.B

E.t.H.N.E.t

P.r.I.N.t2

L.o.c.k

E.n.d

ZErO

SpaN

LINE

GEO

C.test

End

reset

C.UNIt

rANGE

CAP1

Grad1

CAP2

Grad2

P.ZerO

P.UNIt

A.tare

End

reset

Stable

ZErO

FIltEr

AZt

B.LIGHt

b.COLOr

SCrEEN

A.Off

P.SAuEr

CEC

End

reset

wWeIGH

COUNt

CHECK

tOtAL

tABLE

End

reset

lb:oz

End

reset

BAUd

PArItY

StOP

H.SHAKE

ALt.P

ALt.t

ALt.Z

End

reset

ASSIGN

Stable

mMODE

tImME

lINkto

C.SUmM

tEmMp

End

reset

BAUd

PArItY

StOP

H.SHAKE

ALt.P

ALt.t

ALt.Z

ENd

reset

IP.Addr

u.E.r.

ENd

reset

ASSIGN

Stable

mMODE

tImME

lINkto

C.SUmM

tEmMp

ENd

reset

L.ALL

L.OFF

L.ZErO

L.PrINt

L.UNIt

L.mModE

L.mMeNU

L.tArE

End

Defender™3000 Quick Start Guide

Defender™3000 ii Ohaus Corporation www.ohaus.com

Button

Primary Function

(Short Press)

On/Zero

If the terminal is

off, press to power

on;

If the terminal is

on, press to set the

zero point.

Sends the current

value to the RS232

port if the Print

Setup →

Assignment →

Demand menu is

enabled.

Function

Initiates an

application mode.

Tare

Performs a tare

operation.

Secondary

Function

(Long Press)

Off

If the terminal is

on, press to power

off.

Units

Changes the

weighing unit.

Mode

Changes the

application mode.

Enters the user menu.

Shows a tare value in

application modes.

Menu Function

(Short Press)

Yes

Accepts the

current setting on

the display or

selects a sub-

menu or menu

item.

Advances to the next

menu or menu item.

Rejects the current

setting on the display

and advances to the

next available one.

Back

Moves back to the

previous menu

item.

Exit

Exits the user menu.

Aborts a calibration in

progress.

Exits when displaying

totalization result or

under and over value

in check mode.

Notes:

Short Press: press less than 1 second.

Long Press: press and hold for more than 3 seconds.

i-DT33P Control Panel

i-DT33XW Control Panel

Quick Start Guide Defender™3000

Ohaus Corporation www.ohaus.com iii Defender™3000

OPERATION

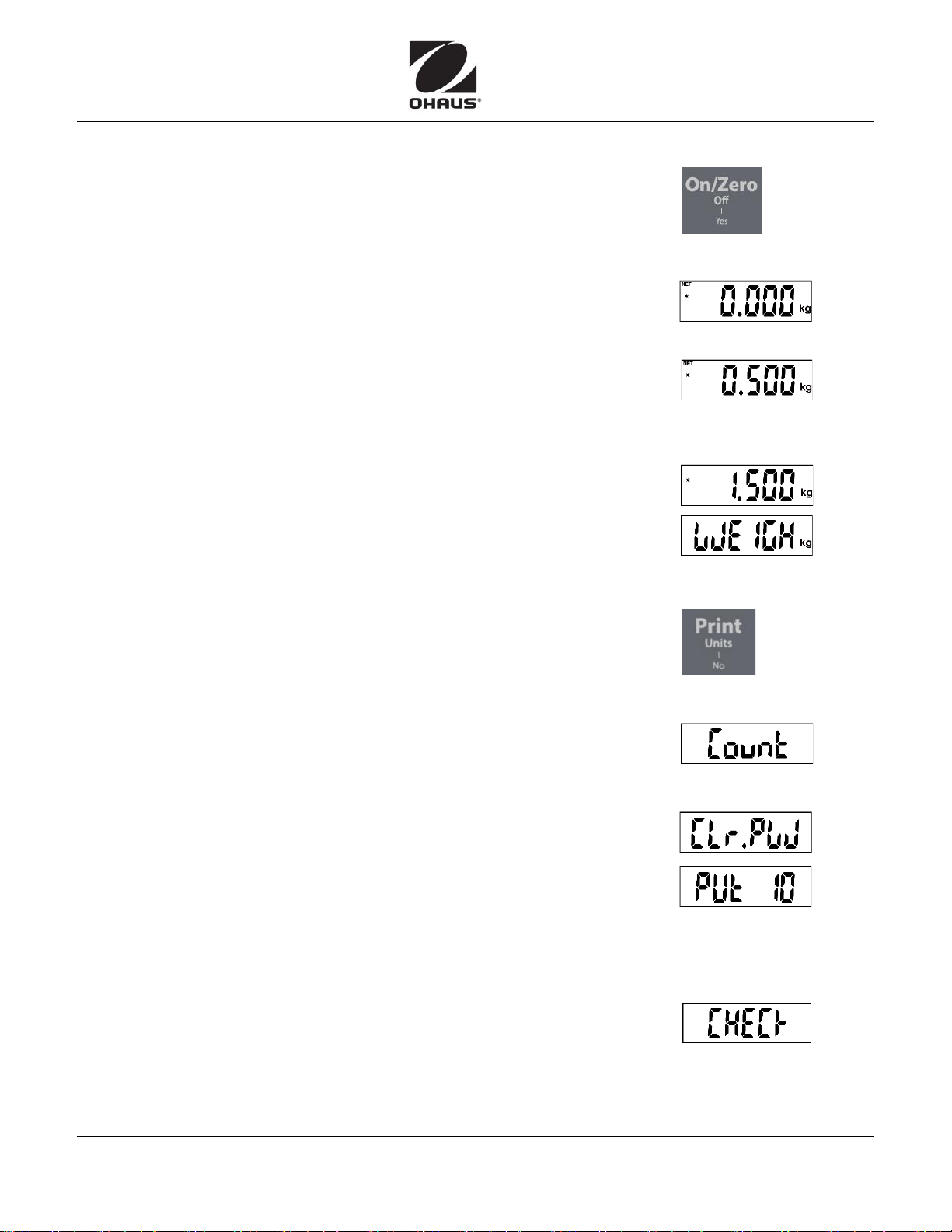

To turn the indicator on, press and hold ON for two seconds. The Indicator

performs a display test, shortly displays the software version, and then enters the

active weighing mode.

To turn the indicator off, press and hold Off until OFF appears.

Zero is set under the following conditions:

• Automatically zero at Power On (initial zero).

• Manually: press Zero. (Scale must be stable and within the zero range.)

Manual Tare:When weighing an item that must be held in a container, taring

stores the container weight in memory. Place the empty container on the scale

(example 0.5 kg) and press the Tare button.

The display will show the net weight.

To clear the Tare value, empty the scale and press Tare.

The display shows gross weight (zero if scale is empty).

Weighing:Place the item to be weighed on the scale.

(Sample shown: 1.5 kg, Gross weight.)

Note: To return to the Weighing mode from other modes, press and hold Mode

until wWeIGH appears.

Verify the indicator:place a known mass on the scale and check if the reading

is accurate. If not, calibrate. Please refer to the indicator's manual for calibration

method.

Changing Units of Measure: Press and hold Units until the desired measuring

unit appears. Only units enabled in the Unit Menu are displayed.

ADDITIONAL OPERATIONS

Parts Counting: Use this mode to count parts of uniform weight.

The indicator determines the quantity based on the average weight of a single part.

All parts must be uniform in weight for accurate measurements.

To enter this mode, press and hold Mode until Count appears.

Note: Count must first be enabled in the Mode menu.

Average Piece Weight (APW): When Mode is released, CLr.PwW appears.

Press Yes to clear the stored APW. Press No to recall the existing APW.

APW appears.

Place 10 pieces on the scale, or press No to increment the sample size. Choices

are 5, 10, 20, 50, 100 and 200.

Place the parts on the scale and read the count.

(If using a container, be sure to tare the empty container first.)

Press Mode while counting can display the APW value.

Check: Use this application to compare the weight of items to a target weight

range. The display color will change according to the comparing result: Red

indicates over the target; Green indicates within the target; Yellow indicates under

the target.

To enter this mode, press and hold Mode until CHECK appears.

Note: Check must first be enabled in the Mode menu.

Defender™3000 Quick Start Guide

Defender™3000 iv Ohaus Corporation www.ohaus.com

When the Mode button is released, the display shows CLr.CHK.

Press No to recall the existing check limits. Press Yes to clear the stored check

limits. Press Function while checking can display the check limits.

Totalization: Use this application to accumulate manually or automatically the

overall weights. Statistical data is stored in memory for review and printing.

To enter this mode, press and hold Mode until t0tal appears.

Note: Totalization must first be enabled in the Mode menu.

When the Mode button is released, the display shows CLr.ACC.

Press No to continue the totalization of the last time. Press Yes to clear the stored

totalization result. Press Function when Totalization is finished with no weight on

the pan can display the totalization result.

Manual totalization: Place the item on the pan and press the Function button

to add the weight to totalization.

Auto totalization: Place the item on the pan. The displayed value is totalized

automatically.

The flash of the Σ icon indicates the scale has totalized the weight successfully. It

will keep flashing until the weight is removed and the platform is stable.

For more detailed information about the indicator, please refer to the product

instruction manual. You can scan the QR code or go to the product page to

download it.

Product page: www.ohaus.com/i-DT33P
