RAIDER
ASSEMBLY
INSTRUCTIONS
Model Year: 2015
Model Engine Size Category
2 Door 800cc/1000cc Off-road
IMPORTANT INFORMATION
The assembly instructions in this guide are for the Raider models only. Please make sure a PDI was
performed on each unit before the assembly begins.
ALSO
• Do PDI with customer before unit leaves.
• Fill out proper warranty registration completely with customer (explain to them in detail what cover-
age they have.)
• Submit to ODES within 5 days.
• Go over maintenance charts with customer.
Uncrating/ Removing Parts
1-1
Carefully remove the tarp and plastic wrap
covering the crate.
Pop off all of the tabs from the crate bars.
Once all tabs are removed the crate bars
will fold open and you can begin removing
them.
Uncrating/ Removing Parts
1-2
Once you have fully uncrated your Raider,
you can begin to remove all loose parts.
There are loose parts on the inside, frame
and underneath the unit, please be sure to
remove everything.
The fender ares will be zip tied to the rear
fender area.
Bottom Plate Removal
Lift the Raider slighty off the ground to
begin unbolting the bottom plate of the
crate.
Unbolt the brackets on all 4 hubs to de-
tach the Raider from the bottom plate.
Once all hubs are unbolted, you can now
lift the Raider higher and begin putting on
the shocks.
Toolbox/ Bolt Bags
The bolt bag is located underneath the
passenger side seat plate.
Remove the plate and toolbox cover. Once
removed, you can begin removing the bolt
bags from the toolbox.
Be sure all bags are accounted for, a bolt
bag form should come with your UTV. If
you cannot locate the bolt bag form, you
can download it on our website www.
odesutvs.com underneath SUPPORT > My
Dealer Services.
Shocks 1-1
Once your UTV is raised off the ground
and all the nessacary bolts are accounted
for, you can begin to put the front and rear
shocks on.
When unboxing the shocks it is impor-
tant that you immediately identify which
shocks are the rear and front to pair them
accordingly.
Once you have the shocks paired with
their partner, we suggest laying the front
shocks down by the front hubs and rear
shocks down by the rear hubs.
Shocks 1-2
Once all of your shocks are in place you
can begin to place the shocks in the arms
and bolt them down.
Remember to bolt both the top and bottom
of the shocks into place.
Once you have bolted down all shocks be
sure to tighten the bolts to eliminate any
unwanted play.

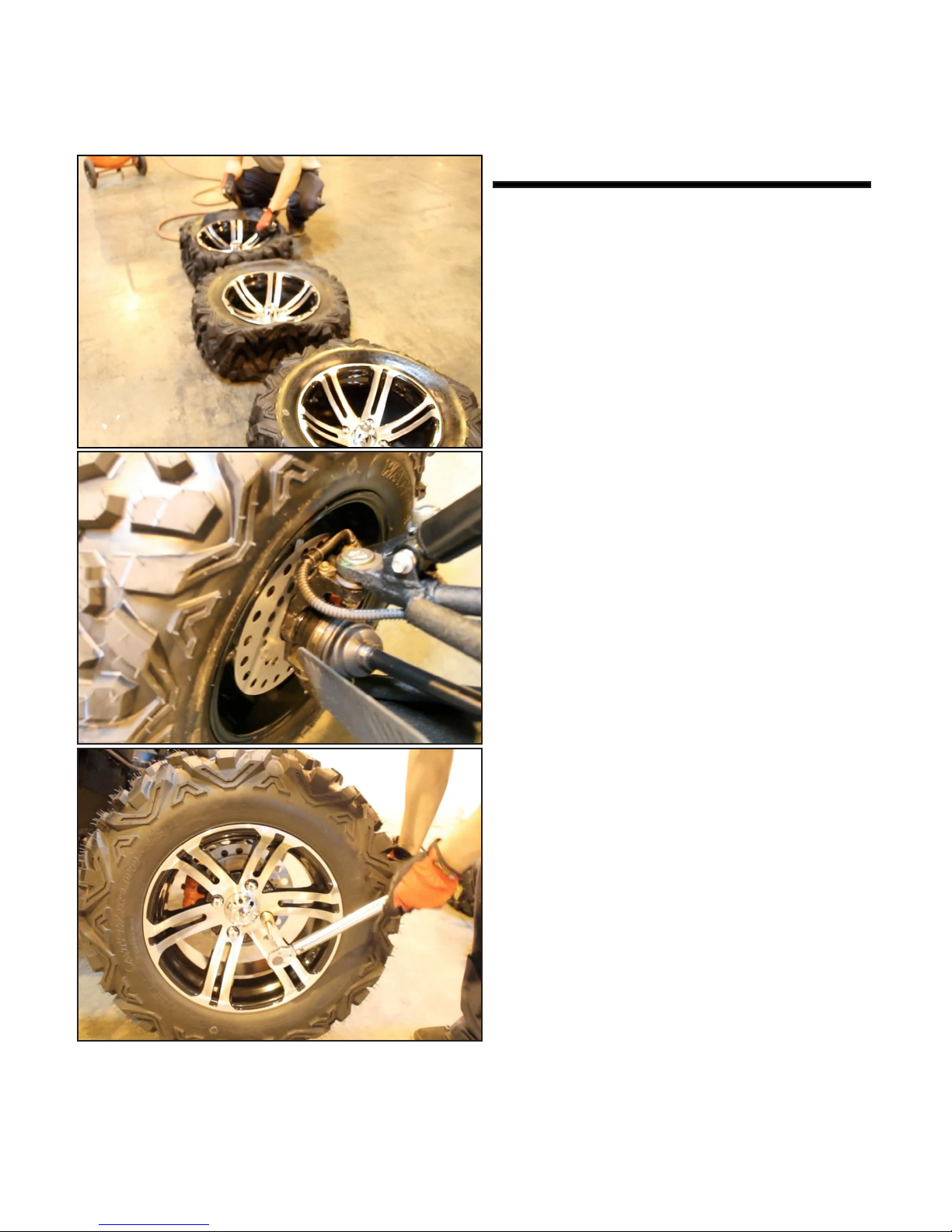

Tires
Once the shocks are securely attached to
the unit, you can now begin to put on the
tires. Please make sure to inate the tires
to 15psi before bolting onto the unit.
Once you have all 4 tires bolted on, you
will need to tighten all of the bolts with a
torque wrench.
Battery Box
Once the unit is back on the ground, you
can begin attaching the battery box to the
frame.
There are 4 bolts that connect the battery
box to the frame. Two on the left side and
two on the right side, be sure to bolt all 4
bolts down and tighten them.
Front Bumper 1-1
Once the battery box is bolted down you
can now attach the front bumper to the
frame.
Make sure all holes and brackets align in
their positions.
Bolt down the two bottom holes rst to
help keep the bumper in place.
