Ocean Matrix OMX-01HMBT0013 Manuel utilisateur
OMX-01HMBT0013
HDMI over HDBaseT 3.0 4K60 up to 328ft
Extender Set
HDMI 2.0b, HDCP 2.2 and HDBaseT 3.0 Compliant
Uncompressed 4K @ 60HZ 4:4:4 up to 18Gbps Video Bandwidth
HDR, HRD10, HDR10+, Dolby Vision, and HLG Pass Through
LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/24, DTS High
Res, DTS-HD Master Audio, DSD Pass Through
Transmission Distance up to 328ft (100m via a Single Cat 6a/7 Cable)
Supports eARC/ARC Function
Bi-Directional IR, RS-232, and 1G Ethernet Signal Pass Through
Supports USB2.0 Transmission, Host/Device is Configurable
Bi-Directional 24V POC Function
The Ocean Matrix OMX-01HMBT0013 is an HDBaseT 3.0 extender that can send
uncompressed HD/UHD video and audio signals, eARC/ARC, RS-232, bi-directional IR,
1GbE ethernet, and USB2.0 signals up to 100m/328ft via a single Cat6a/7 cable. This
extender is a convenient solution for extension of HDMI and other signals via a single
CAT cable over long distances, making it the perfect solution for most commercial
applications.
Description:
Features:

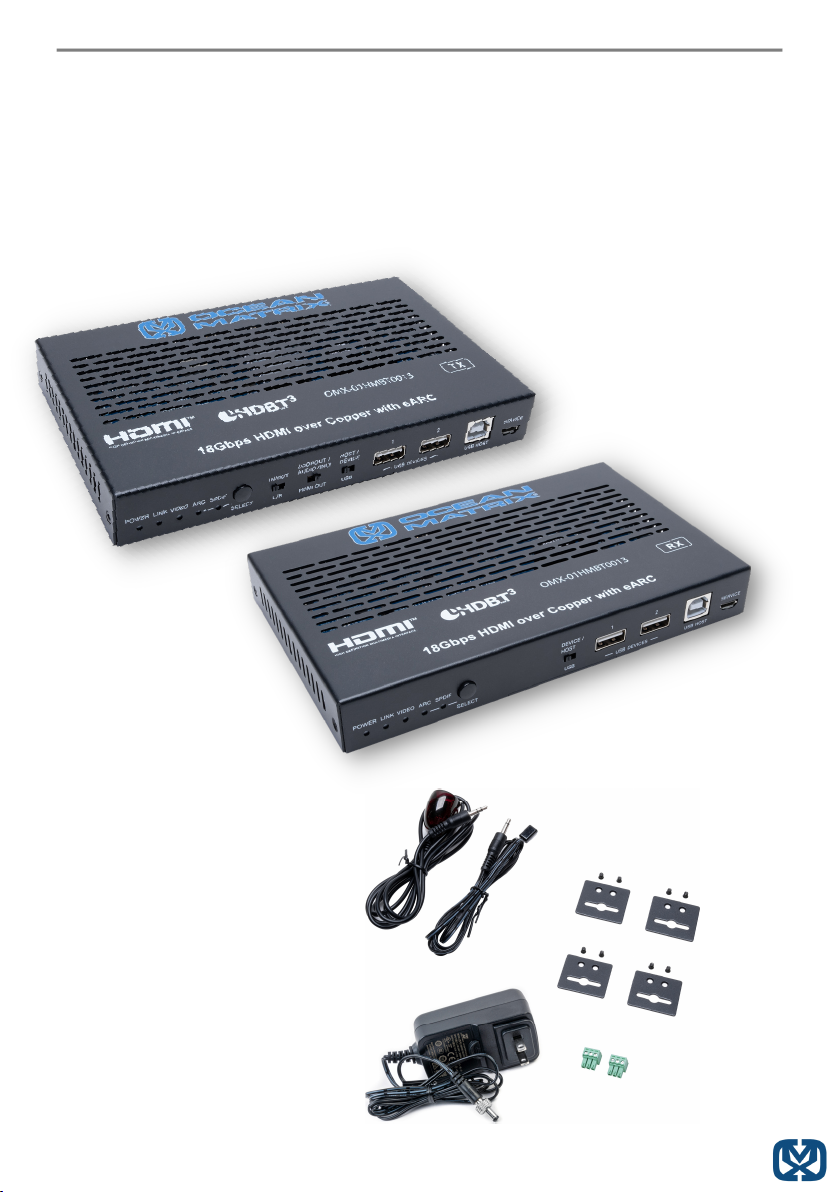

Item Includes:
IR Blaster Cable
IR Receiver Cable
Mounting Ears x 4
Machine Screws (KM3*4) x 8
3PIN-3.81mm Phoenix Connector x 2
24V/1A Locking Power Adapter
Specifications:
HDMI Compliance: HDMI 2.0b
HDCP Compliance: HDCP 2.2
Video Bandwidth: 18Gbps
Video Resolution: Up to 4K @ 60Hz 4:4:4
Transmission Distance: 328ft / 100m (via Single Cat 6a/7C Cable)
HDBaseT Bandwidth 16Gbps on Main and 2Gbps on Return Link
HDR: HDR, HDR10, HDR10+, Dolby Vision, HLG
Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth: 8/10/12-bit
Audio Formats: LPCM, Dolby Digital/Plus/EX, Dolby TrueHD, DTS, DTS-EX, DTS-96/94, DTS
High Res, DTS-HD Master Audio, DSD
L/R Audio Formats: PCM 2.0
SPDIF Audio Formats: LPCM 2.0, AC3 5.1, DTS 5.1
IR Level: 12Vp-p
IR Bandwidth: 20K-60KHz
USB Bandwidth: Up to 350Mbps
Ethernet: 1000Mbps
RS-232: Up to 921600bps
TX Inputs: 1 x HDMI In (Type A, 19-Pin Female)
TX Outputs: 1 x HDMI Out (Type A, 19-Pin Female), 1 x HDBaseT Out (RJ45, 8-Pin Female), 1
x SPDIF Out (S/PDIF), 1 x L/R Out (3.5mm Stereo Mini-Jack)
TX Controls: 1 x IR In (3.5mm Stereo Mini-Jack), 1 x IR Out (3.5mm Stereo Mini-Jack), 1 x RS-
232 (3-Pin-3.81 Phoenix Jack), 1 x Service (Mini-USB, Update Port), 1 x USB Host (USB Type
B), 2 x USB Devices (USB Type A), 1 x LAN (RJ45)
RX Inputs: 1 x HDBaseT In (RJ45, 8-Pin Female), 1 x SPDIF In (S/PDIF)
RX Outputs: 1 x HDMI Out (Type A, 19-Pin Female), 1 x L/R Out (3.5mm Stereo Mini-Jack)
Controls: 1 x IR In (3.5mm Stereo Mini-Jack), 1 x IR Out (3.5mm Stereo Mini-Jack), 1 x RS-232
(3-Pin- 3.81 Phoenix Jack), 1 x Service (Mini-USB, Update Port), 1 x USB Host (USB Type B), 2
x USB Devices (USB Type A), 1 x LAN (RJ45)
Dimensions (LxWxH): TX/RX 6.69 x 4.04 x 0.89in (170 x 102 x 22mm)
Weight: TX: 0.98lbs (425g) / RX: 0.96lbs (437g)
Power Supply: Input: AC 100-240V 50/60Hz / Output: DC 24V/1A (US/EU Standard,
CE/FCC/UL Certified)
Power Consumption: 15.36W (POC)
Operating Temperature: 32 - 104°F (0 - 40°C)
Storage Temperature: -4 - 140°F (-20 - 60°C)
Relative Humidity: 20 - 90% RH (No Condensation)
Operation Controls and Functions:
24
13 14
3
16
5
Transmitter:
78910 11 12
15 16 17 18 19 20 21 22
Power LED Indicator - Red light indicates that the TX is powered on
Link LED - Light on: TX and RX are in good connection status. Light Flashing: TX and RX are in low power mode. Light Off: TX and RX
are not connected.
Video LED - Light on: The video is encrypted. Light flashing: the video is not encrypted. Light Off: no HDMI input.
ARC LED - Light on: The device is switched to the ARC mode. Light off: the device is switched to the SPDIF mode.
SPDIF LED - Light on: The device is switch to SPDIF mode. Light off: the device is switched to ARC mode.
Select Button- Used for switching the ARC mode and the SPDIF mode.
L/R IN/OUT Switch - Switch to the left (loopout), the HDMI out port is the loopout port for the HDMI in port.
Loopout/Audio Only Switch - Switch to the left (loopout), the HDMI out port is the loopout port for the HDMI in port; switch to the right
(audio only) the HDMI out port outputs 720p black screen image, and the audio is from ARC or SPDIF.
Host/Device USB Switch - Switch to the left (host), the USB host mode is enabled; switch to the right (device), the USB device is enabled.
USB Devices - Two USB device ports. connected to UDISK, mouse or keyboard.
USB Host - USB extension host port, connected to PC.
Service - For factory use only.
DC 24V - DC 24V/1A power supply input port.
LAN - 1G network port.
HBDT Out - 10G network port, connected to the HDBT in port of receiver with a CAT6a/7 cable. It is used for various signals pass-through.
HDMI In - HDMI signal input port, connected to signal source device, supporting EARC/ARC amplifier.
HDMI Out - HDMI signal loopout port. It can choose to be a loopout or audio only port through the loopout/audio only switch.
L/R/In/Out - Audio embedding / de-embedding port. It can be used for audio embedding/de-embedding through the L/R in/out switch.
SPDIF Out - Optical output port.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
Operation Controls and Functions:
7
11 12
10
9
Receiver:
24
3
1568
13 15 16 17 18 1914
Power LED Indicator - Red light indicates that the TX is powered on
Link LED - Light on: TX and RX are in good connection status. Light Flashing: TX and RX are in low power mode. Light
Off: TX and RX are not connected.
Video LED - Light on: The video is encrypted. Light flashing: the video is not encrypted. Light Off: no HDMI input.
ARC LED - Light on: The device is switched to the ARC mode. Light off: the device is switched to the SPDIF mode.
SPDIF LED - Light on: The device is switch to SPDIF mode. Light off: the device is switched to ARC mode.
Select Button- Used for switching the ARC mode and the SPDIF mode.
Host/Device USB Switch - Switch to the left (host), the USB host mode is enables; switch to the right (device), the USB
device is enabled.
USB Devices - Two USB device ports. connected to UDISK, mouse or keyboard.
USB Host - USB extension host port, connected to PC.
Service - For factory use only.
DC 24V - DC 24V/1A power supply input port.
LAN - 1G network port.
HBDT In- 10G network port, connected to the HDBT out port of transmitter with a CAT6a/7 cable. It is used for various
signals pass-through.
HDMI Out - HDMI signal output port. It can choose to be a loopout or audio only port through the loopout/audio only switch.
L/R/In/Out - Audio de-embedding output port.
SPDIF In- Optical input port.
IR IN - IR signal input port, connected to the IR receiver cable.
IR Out - IR signal output port, connected to IR blaster cable.
RS-232 - RS-232 serial port, used for serial port command transmission.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
1) Connect the source to the transmitter
2) Connect the display to the receiver
3) Connect a CAT6a/7 cable between the units
4) Connect the included power supply to either the transmitter or the receiver.
Connection Instructions:
Input and Output Switching:
The Ocean Matrix OMX-01HMBT0013 can switch to ARC/SPDIF mode by pressing the
SELECT button on the front panel of both the transmitter and receiver. The HDMI OUT
port of the transmitter can turn to LOOP OUT or AUDIO ONLY through the LOOP
OUT/AUDIO ONLY switch. The input and output routing are different for different
scenarios, as shown in the diagrams below:
1) Set the Extender to SPDIF Mode. Then switch the LOOP OUT/AUDIO ONLY switch
to right, the HDMI OUT port of the transmitter is set to AUDIO ONLY.
2) Set the Extender to SPDIF Mode. Then switch the LOOP OUT/AUDIO ONLY switch to
left, the HDMI OUT port of the transmitter is set to LOOP OUT.
3) Set the Extender to ARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to
right, the HDMI OUT port of the transmitter is set to AUDIO ONLY.
Input and Output Switching:
4) Set the Extender to ARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to
left, the HDMI OUT port of the transmitter is set to LOOP OUT.
5) Set the Extender to eARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to
right, the HDMI OUT port of the transmitter is set to AUDIO ONLY.
6) Set the Extender to eARC Mode. Then switch the LOOP OUT/AUDIO ONLY switch to
left, the HDMI OUT port of the transmitter is set to LOOP OUT.
Audio Embedding and De-embedding:
The Transmitter supports audio embedding and de-embedding. The L/R IN/OUT port
can be used for audio embedding or de-embedding through the L/R IN/OUT switch.
TX Audio Embedding:
When the L/R IN/OUT switch is switched to left, the audio from external audio devices
will be embedded to the L/R IN/OUT port.
TX Audio De-embedding:
When the L/R IN/OUT switch is switched to right, The L/R IN/OUT port will output the
audio de-embedded from the HDMI IN port.
USB Mode Applications:
The Extender supports USB 2.0 transmission, and Host/Device is configurable.
Mode 1: USB forward from TX to RX
Switch the HOST/DEVICE USB switch to left, then power off and reboot the transmitter
to set to USB Host mode. Meanwhile, switch the DEVICE/HOST USB switch to left, then
power off and reboot the receiver to set to USB Device mode.
Mode 2: USB forward from RX to TX
Switch the HOST/DEVICE USB switch to right, then power off and reboot the transmitter
to set to USB Device mode. Meanwhile, switch the DEVICE/HOST USB switch to right,
then power off and reboot the receiver to set to USB Host mode.
