INSTALLATION
MASTER CONTROLLER & EXPANSION UNIT/S INSTALLATION
•Find a suitable location to mount the control box. Ideally, as with all pool equipment, it should
be installed out of direct weather and no closer than 3 meters from the water’s edge, at a
minimum 600mm above ground. The power cable is 1.8m long and should be plugged directly
into a general power outlet, not into an extension lead.
•Fix the mounting bracket to a solid structure via screws and wall plugs kit provided, and slide
the controller on, locking into place.
•To remove unit, lift and gently pull away from mounting bracket.
DO NOT TURN THE POWER ON TO THE MASTER CONTROLLER OR THE
EXPANSION UNITS UNTIL ALL THE FOLLOWING CRITERIA HAS BEEN MET.
•Install Pool sensor as per instructions on page 3 of the manual.
•Install Roof sensor (if option chosen) as per instructions on page 3 of the manual.
•If required, fit and install any Valves Actuators that are required to run the system. Plug the
cable from the Valve Actuator/s into the Valve sockets located beneath the Master Controller
(see diagram located on p4 of the manual for location). Up to 4 Valve Actuators can be
installed and controlled.
•If a Gas Heater or Heat Pump is installed, then connect either the Heater Interlock cable or
the Pump Call cable as per the instructions under HEATER CONTROL on p2 of the main
instruction booklet.
REMEMBER: If the heater’s flow or pressure switch circuit is 240Vac, an external relay can be
purchased separately and is to be installed (KIT09) by a licensed electrician.
•Plug the communication cable from Expansion Unit 1 (if optioned) beneath the Master
Controller. (see diagram on page 4]
•Plug the communication cable from Expansion Unit 2 (if fitted) beneath the Expansion Unit
1. (see diagram on p4)

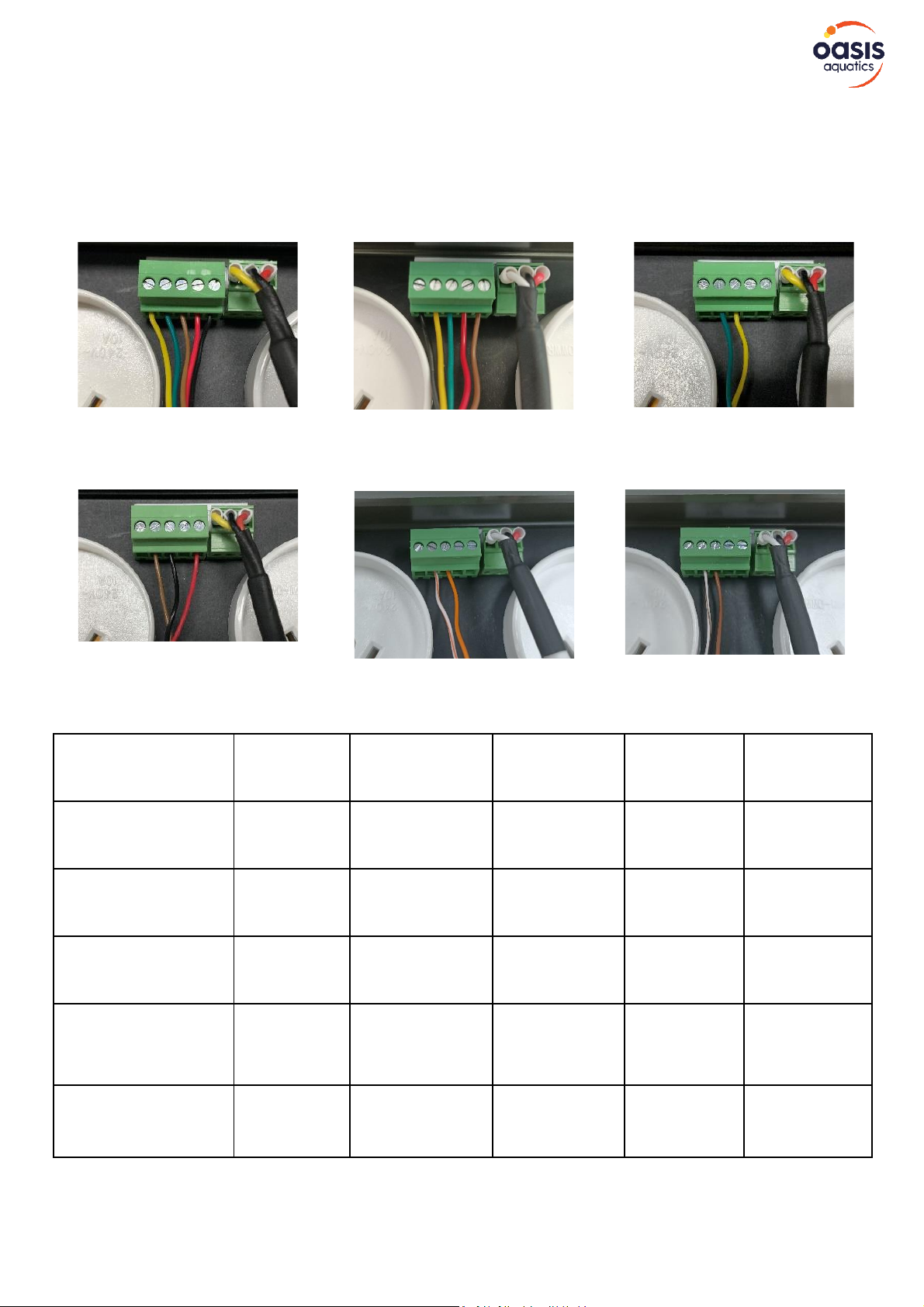

•Plug in the Filtration Pump. If you have a variable speed pump, go to the next page to see
the required wiring diagram for the brand/series of pump to be used.
If the pump installed is a Reltech or Insnrg, a motor cable will need to be purchased separately.
If the filtration pump is a single speed pump, plug directly into one of the power sockets located
on either the Master Controller or on an Expansion Unit. The pump may be plugged into the
Sanitiser outlet and the Sanitiser plugged into the controller power outlet.
•Plug all other appliance power cables that will be controlled by the OASIS SMART into the
power points located beneath the Controllers and ensure maximum current loads are not
exceeded.
