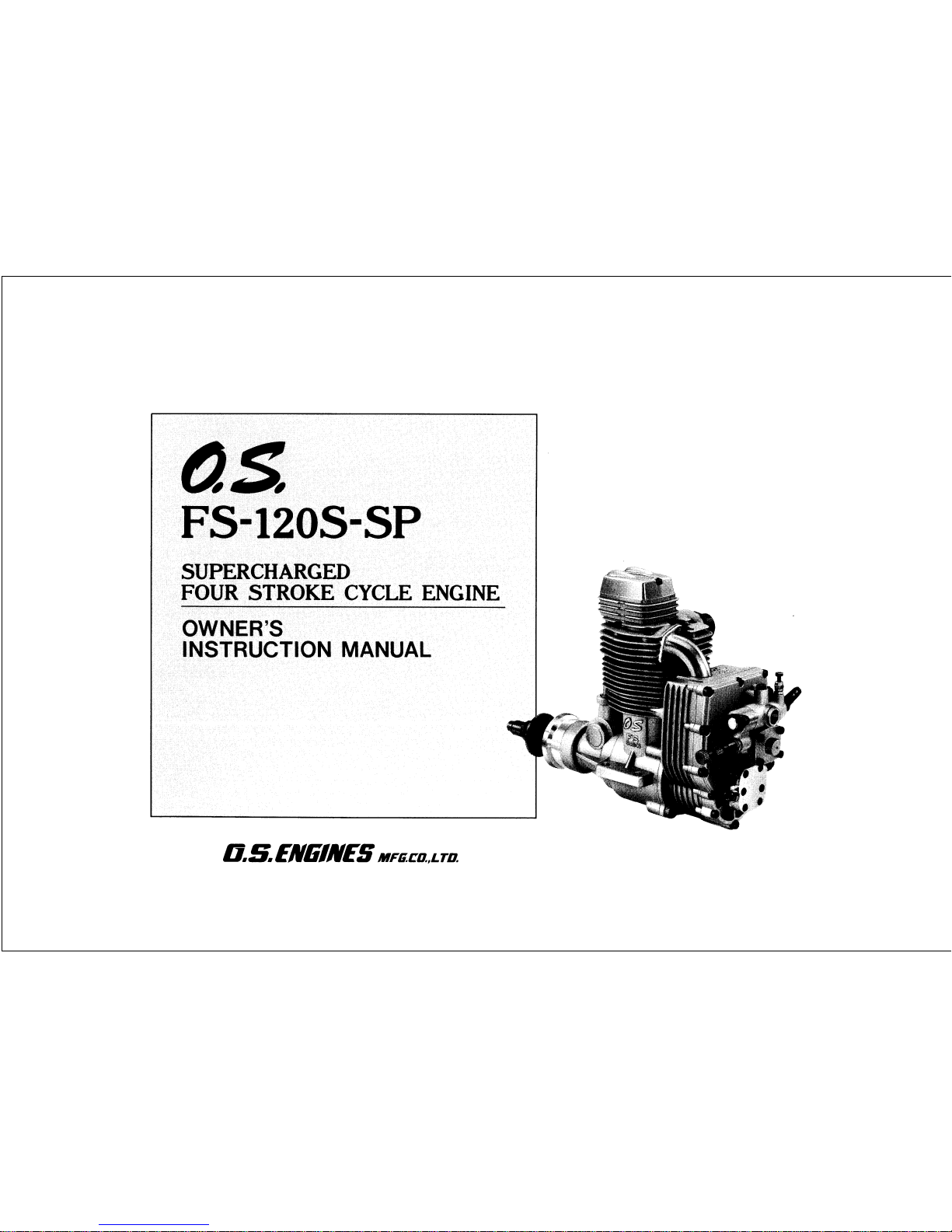

O.S. engine FS-120S-SP Guide de configuration

Remember that your engine is not a " toy ", but a highly

efficient internal-combustion machine whose power is

capable of harming you, or others, if it is misused or

abused. As owner, you, alone, are responsible for the safe

operation of your engine, so act with discretion and care at

all times.

If at some future date, your O.S. engine is acquired by

another person, we would respectfully request that these

instructions are also passed on to its new owner.

WARNINGS

These cover events which might involve serious (in

extreme circumstances, even fatal ) injury.

NOTES

These cover the many other possibilities, generally less

obvious sources of danger, but which, under certain

circumstances, may also cause damage or injury.

SAFETY INSTRUCTIONS AND

WARNINGS ABOUT YOUR

O.S. ENGINE

■The advice which follows is grouped under two headings

according to the degree of damage or danger which

might arise through misuse or neglect.

WARNINGS

Never touch, or allow any object to come into

contact with, the rotating propeller and do not

crouch over the engine when it is running.

A weakened or loose propeller may disintegrate or be thrown

off and, since propeller tip speeds with powerful engines may

exceed 600 feet(180 meters) per second, it will be understood

that such a failure could result in serious injury, (see 'NOTES'

section relating to propeller safety).

Model engine fuel is poisonous. Do not allow it to

come into contact with the eyes or mouth. Always

store it in a clearly marked container and out of

the reach of children.

Model engine fuel is also highly flammable. Keep it

away from open flame, excessive heat, sources of

sparks, or anything else which might ignite it.

Do not smoke or allow anyone else to smoke, near

to it.

Never operate your engine in an enclosed space. Model

engines, like automobile engines, exhaust deadly carbon-

monoxide. Run your engine only in an open area.

Model engines generate considerable heat. Do

not touch any part of your engine until it has

cooled. Contact with the muffler(silencer),

cylinder head or exhaust header pipe, in

particular, may result in a serious burn.

•

NOTES

This engine was designed for model aircraft. Do not attempt to use it for any other purpose.

Mount the engine in your model securely, following the manufacturers' recommendations, using appropriate

screws and locknuts.

Be sure to use the silencer (muffler) supplied with the engine. Frequent exposure to an open exhaust may

eventually impair your hearing.

Such noise is also likely to cause annoyance to others over a wide area.

Fit a top-quality propeller of the diameter and pitch specified for the engine and aircraft. Locate the propeller on the

shaft so that the curved face of the blades faces forward-i.e. in the direction of flight. Firmly tighten the propeller nut,

using the correct size wrench.

Always check the tightness of the propeller nut and retighten it, if necessary, before restarting the engine,

particularly in the case of four-stroke-cycle engines. A safety locknut assembly is provided. Always use it. This will

prevent the propeller from flying off in the event of a "backfire", even if it loosens.

If you install a spinner, make sure that it is a precision made product and that the slots for the propeller blades

do not cut into the blade roots and weaken them.

Discard any propeller which has become split, cracked, nicked or otherwise rendered unsafe. Never attempt to

repair such a propeller: destroy it. Do not modify a propeller in any way, unless you are highly experienced in tuning

propellers for specialized competition work such as pylon-racing.

Use an electric starter for this engine. The wearing of safety glasses is also strongly recommended.

•

Take care that the glow plug clip or battery leads do not come into contact with the propeller.

Also check the linkage to the throttle arm. A disconnected linkage could also foul the propeller.

After starting the engine, carry out any needle-valve readjustments from a safe position behind the rotating

propeller. Stop the engine before attempting to make other adjustments to the carburettor.

Adjust the throttle linkage so that the engine stops when the throttle stick and trim lever on the transmitter are fully

retarded. Alternatively, the engine may be stopped by cutting off the fuel supply. Never try to stop the engine

physically.

Take care that loose clothing (ties, shirt sleeves, scarves, etc.) do not come into contact with the propeller.

Do not carry loose objects (such as pencils, screwdrivers, etc.) in a shirt pocket from where they could fall through

the propeller arc.

Do not start your engine in an area containing loose gravel or sand. The propeller may throw such material in your

face and eyes and cause injury.

For their safety, keep all onlookers (especially small children) well back (at least 20 feet or 6 meters) when preparing

your model for flight. If you have to carry the model to the take-off point with the engine running, be especially

cautious. Keep the propeller pointed away from you and walk well clear of spectators.

Warning! Immediately after a glowplug-ignition engine has been run and is still warm, conditions sometimes exist

whereby it is just possible for the engine to abruptly restart if the propeller is casually flipped over compression

WITHOUT the glowplug battery being reconnected. Remember this if you wish to avoid the risk of a painfully rapped

knuckle!

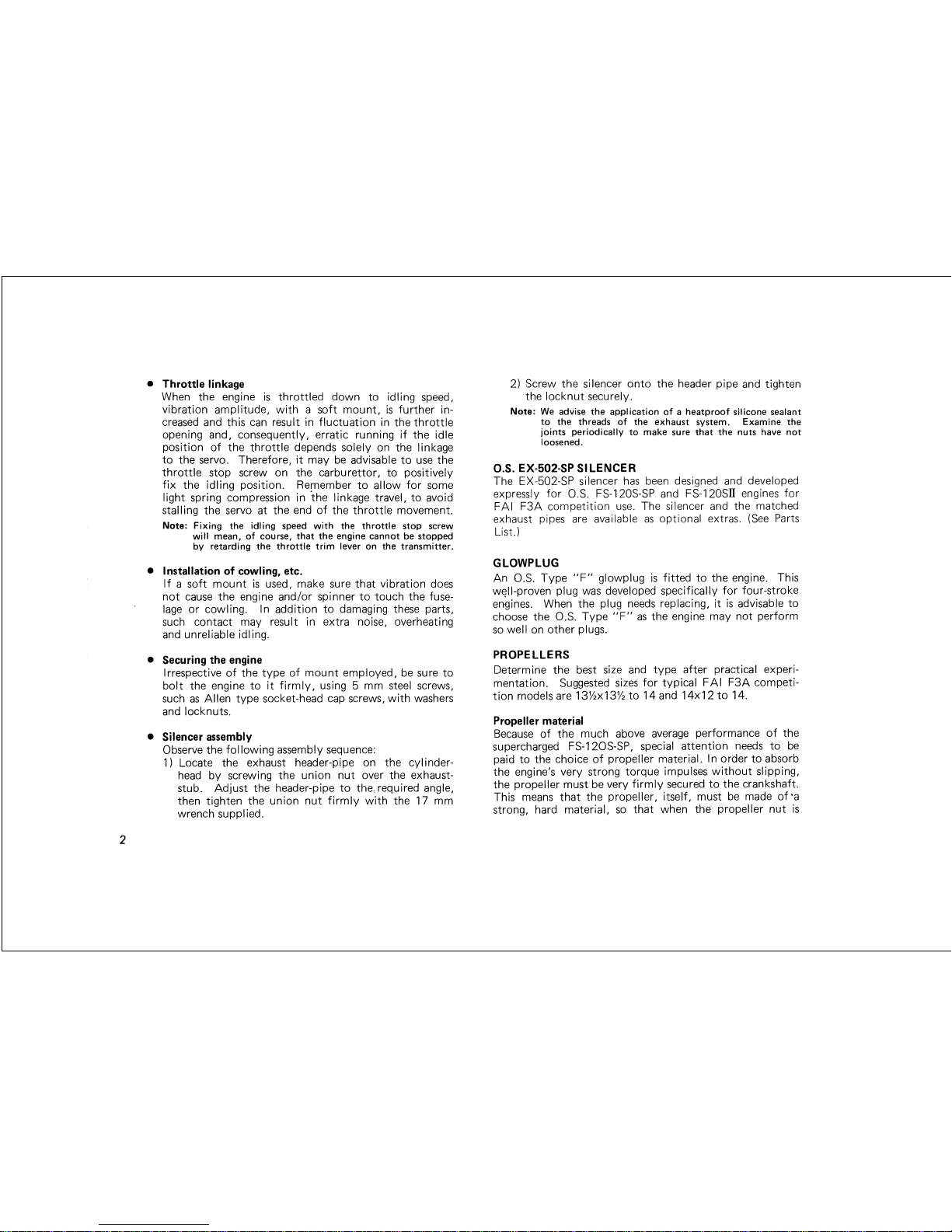

NOTES

•
