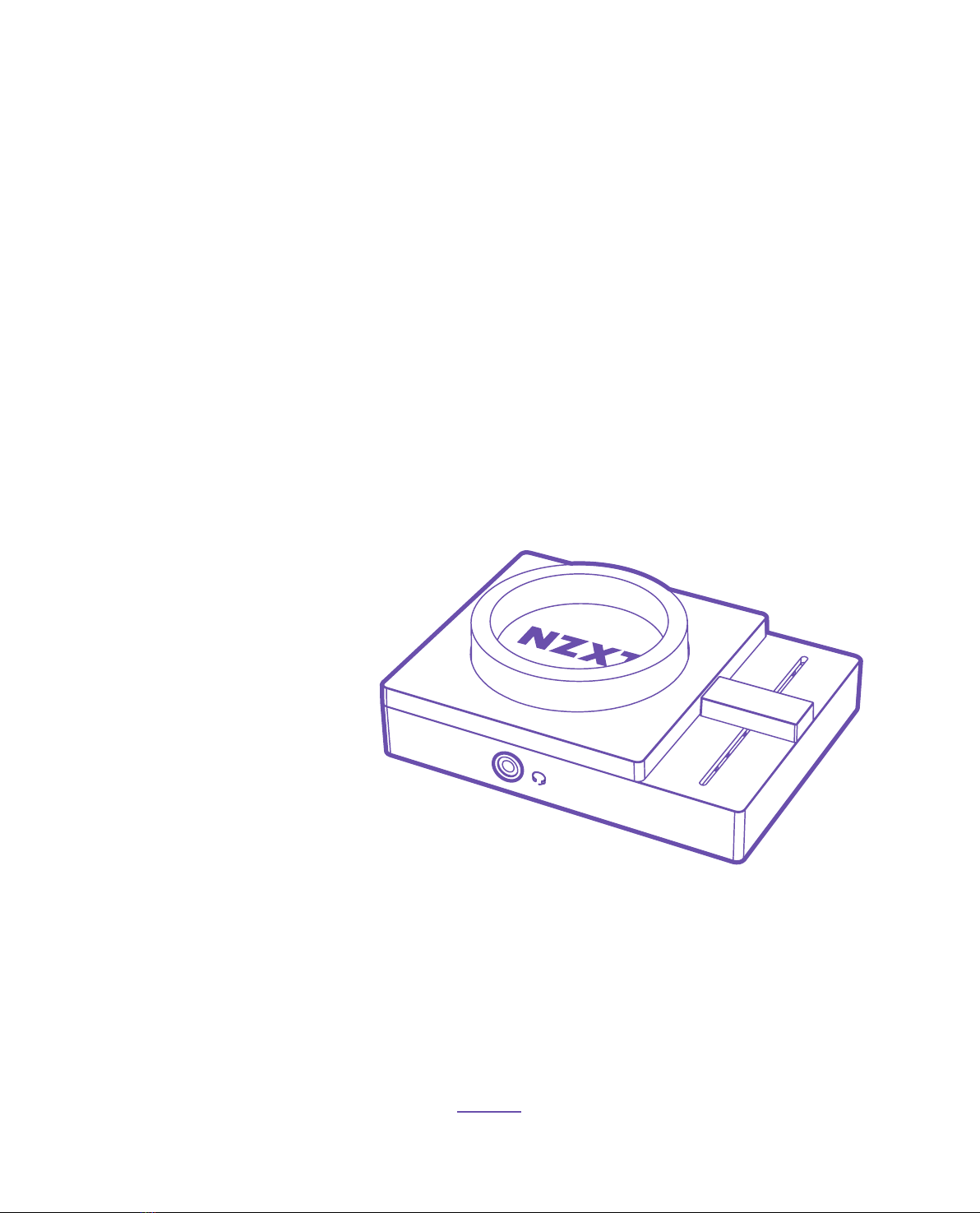

NZXT MXER Manuel utilisateur
MXER
AUDIO CONTROL STATION
CONTENTS
INTRODUCTION ...................................................................... 01
ABOUT THE NZXT MXER .......................................................... 02
MXER PACKAGE CONTENTS & DESCRIPTION............................. 03
SETTING UP THE MXER........................................................... 04
MAIN CONTROLS .................................................................... 08
SOFTWARE FEATURES ............................................................ 14
BASIC TROUBLESHOOTING...................................................... 15
HAZARDOUS SUBSTANCES ..................................................... 16
WARRANTY & SUPPORT .......................................................... 17
01
02
03
04
05
06
07
08
09
NZXT MXER
NZXT MXER
INTRODUCTION
Congratulations on your purchase of the NZXT MXER!
Whether you are a professional streamer, a casual player,
or a hardcore gamer; we’d like to welcome you to the
NZXT family of high-end gaming peripherals.
01
NZXT MXER
The NZXT MXER enables quick volume and voice/audio mixing while quickly
switching between connected headsets and speakers.
Powered by a studio-grade fader, Wolfson DAC, and Nahimic 7.1 surround,
the MXER delivers an ultra-wide soundstage. Complete your battlestation
with the AER Headsets, and STND.
ABOUT THE MXER
ABOUT USING THE MXER WITH THE
NZXT AUDIO SYSTEM
The complete NZXT Audio System consists of the NZXT AER Headset, the NZXT
MXER (described in this guide), and NZXT STND. All of the NZXT Audio System
components are high-end desktop PC gaming audio products by themselves,
but combined together, they unlock additional functionality and performance.
Learn more about the NZXT Audio System at NZXT.com
02
Volume
Fader
Connect to PC
Connect to MXER
NZXT MXER
NZXT MXER
PACKAGE CONTENTS &
DESCRIPTION
MXER ( CONTROLLER )
MICRO USB TO USB CABLE
B
D
A
A
D
B
C
C
03
NZXT MXER
SETTING UP THE MXER
CONNECT MICRO USB INTO THE USB INPUT ON YOUR PC
STEP 01
The MXER comes with a Micro USB cable that connects directly to the USB input on your PC.
This will utilize a Wolfson DAC to achieve high-quality digital to analog to conversion.
Plugging the cable into the PC will provide power to the unit. The unit will turn on and
automatically begin installing the MXER.
IMPORTANT: Keep the Micro USB fully inserted and seated into the
connector on the back of the MXER for proper operation.
Plug the cable into the PC
D
C
BACK OF MXER
04
CONNECT YOUR SPEAKERS AND/OR HEADSET
STEP 02
You'll find a 3.5mm audio output jack noted with a < > at the back of the MXER, and a < > on
the front of the MXER. Insert one end of the 3.5mm cable into these jacks and insert the other end
into the 3.5mm input on your speaker system or headset.
IMPORTANT: For proper performance
of the MXER, make sure that the cable
is FULLY SEATED in the speaker and/
or headset receptacle. Make sure
the speakers are turned off before
plugging connecting to the MXER.
F
F
E
Connect MXER to your Headset
Connect MXER to your Speakers
E
FRONT OF MXER
BACK OF MXER
05
CONNECT THE NZXT STND
STEP 03
Locate the 2.5mm cable at the bottom of STND. Lay the MXER on the base of the STND and insert
the cable into the 2.5mm input jack on the back of MXER indicated by < >.
When used in conjunction with STND, The MXER will intelligently sense when your gaming headset
is being actively used in a gaming session or is mounted on STND’s flat top surface.
( OPTIONAL )
G
G
Connect MXER to NZXT STND
BACK OF MXER
06
CHANGING THE AUDIO SETTINGS
STEP 04
Open your sound preferences or right-click the audio icon located at the bottom of the taskbar.
Click on the "Playback" (or output) selection.
Select "NZXT MXER GAME" and click "Set as Default."
Now select "Recording" (or input selection).
Select "NZXT MXER VOICE" and click "Set Default."
Click "OK."
1
2
3
4
5
6
07
NZXT MXER
MAIN CONTROLS
INCREASE / DECREASE
VOLUME KNOB 01
The front face of the MXER contains an LED display
to show various states of the device’s features.
The volume knob digitally controls the headset and speaker volume independently. The MXER can
store and recall levels individually so you can be rest assured your levels will maintain the same
volume between the headset, speaker, game, and voice.
A
A
Volume Increase
Volume Decrease
08
