Numatic CT 570 Manuel utilisateur

Owner Instructions

Original Instructions

Warning! Read instructions before using the machine

www.numatic.com

Operating Instructions

CT 570

CTD 570

CT 750

CTD 750

CT 900

CTD 900

244013 Page 2 of 16 04/13 (A03)

Kit A40AKit A42Kit A41A

Optional Extra’s (Wet Only)

Hepao Bags

Dry use only

570 Drum

NVM 3BH (604017) x10

Master Carton

10x10 (604817)

750 / 900 Drum

NVM 4BH (604019) x10

Master Carton

6x10 (604819)

Permatex Filter

Dry use only

NVM- 604116

Primary Permatex Filter

for 365mm Machine

Contents / Kits - A41A / A42 / A40A

Optional Extra’s (Dry Only)

Kit A44

244013 Page 3 of 16 04/13 (A03)

Handle Assembly Instructions.

CT 900 / CTD 900

X 4

244013 Page 4 of 16 04/13 (A03)

Wet - Assembling the Machine for Extraction Use

219847

NuChem 500 mls

910

11 12 13 14

15 16 17

244013 Page 5 of 16 04/13 (A03)

18 19

21 22

Pump

Wet - Assembling the Machine for Extraction Use

244013 Page 6 of 16 04/13 (A03)

Wet - Using the Machine

Vac

Pump

244013 Page 7 of 16 04/13 (A03)

Wet - Cleaning the Machine

CT 900 / CTD 900

CT 570 / CTD 570

244013 Page 8 of 16 04/13 (A03)

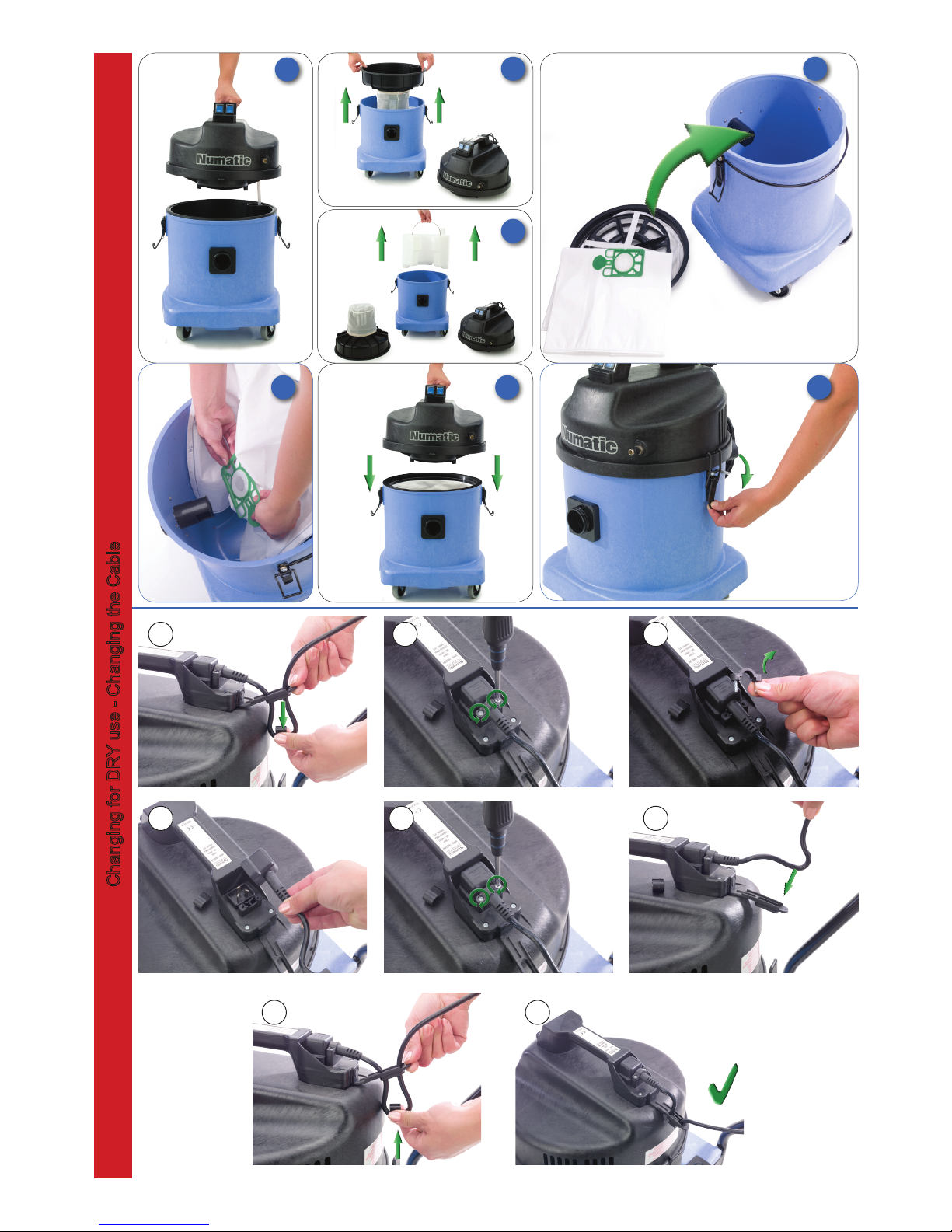

Changing for DRY use - Changing the Cable

1 3

4 5 6

7 8

5 6 7

244013 Page 9 of 16 04/13 (A03)

Motor AirFlo Suction Cleaning

Range

Class

CT 570

CTD 570

1200W

2400W

38 L/sec

76 L/sec

2400 mm

26.8m

Capacity

Dry

Capacity

Wet

Size Weight Sound Pressure

CT 570

CTD 570

23 Ltrs

15 Ltrs

680x550x940 16.2 Kgs

18.4 Kgs

73.6-79 dB

(IEC 60704-2-1)

Uncertainty: 0.2

dB (A)

Data

CT / CTD 570

Wet - Cleaning the Machine

Motor AirFlo Suction Cleaning

Range

Class

CT 750

CTD 750

1200W

2400W

38 L/sec

76 L/sec

2400 mm

26.8m

Capacity

Dry

Capacity

Wet

Size Weight Sound Pressure

CT 750

CTD 750

35 Ltrs

25 Ltrs

415x415x645 21.4 Kgs

23.9 Kgs

73.6-79 dB

(IEC 60704-2-1)

Uncertainty: 0.2

dB (A)

Data

CT / CTD 750

Motor AirFlo Suction Cleaning

Range

Class

CT 900

CTD 900

1200W

2400W

38 L/sec

76 L/sec

2400 mm

26.8m

Capacity

Dry

Capacity

Wet

Size Weight Sound Pressure

CT 900

CTD 900

40 Ltrs

32 Ltrs

800x490x880 23.0 Kgs

25.5 Kgs

73.6-79 dB

(IEC 60704-2-1)

Uncertainty: 0.2

dB (A)

Data

CT / CTD 900

244013 Page 10 of 16 04/13 (A03)

About the machine

Safety Critical Components

Mains lead

HO5VV-F x 10m x 2 x 1.00mm2

HO5VV-F x 10m x 3 x 1.50mm2

Filter Bag

NVM-3 BH >pp< construction 99.6%@0.3µm

NVM-4 BH >pp< construction 99.6%@0.3µm

Filter Permatex

NVM 604116 >pp< construction 96.0%@0.3µm

WEEE Legislation

(Waste, Electrical and Electronic Equipment)

Vacuum cleaner, accessories and

packaging should be sorted for

environmental-friendly recycling.

Only for EU countries:

Do not dispose of Vacuum cleaner into

household waste!

According to the European Directive

2002/96/EC on waste electrical and

electronic equipment and its incorporation

into national law.

Vacuum cleaners that are no longer

suitable for use must be separately

collected and sent for recovery in an

environmental-friendly manner.

Company name and address

Machine Description

WEEE Logo

Class 2 Symbol

Weight (Ready to use)

CE Mark

Voltage / Frequency

Power Rating

Yr / Wk / Serial Number

Ear Protection Safety Footwear Head Protection Safety Gloves Eye Protection Protective Clothing

PPE

Personal protective equipment that may be required for certain operations.

NOTE:

A risk assessment should be conducted to determine which PPE should be worn.

Caution Floorsign

Dust / Allergens Protection Hi Viz Jacket

Rating Label - WEEE - PPE - Safety Critical Components

Splash Proof Rating
