Nucraft Flow NT Manuel utilisateur

Flow NT Installation Instructions

ID:

Before Beginning Installation

•Read through the entire instruction thoroughly

•A minimum of 2 persons is required for this assembly

•These instructions reflect typical assemblies. They may not match your specific configuration.

Required Tools

•Drill Driver

•#2 and #3 Phillips Bit

•Phillips Head Screwdriver

•¼” Allen Wrench

•1/8” Allen Wrench

•5/32” Drill Bit

•Level

•Draw Tight Fastener Tool (included)

Required Hardware

•Bolt – 3/8” UNC x 5/8” L-HW2248

•Screw –10-12 x 1-1/4” PHIL

•Screw - #12 x 1” PAN-PHIL

•Draw-Tight Hardware

•Bolt –5/16 –18 x 5/8 Fit Socket Head Cap (Post Leg Base Only)

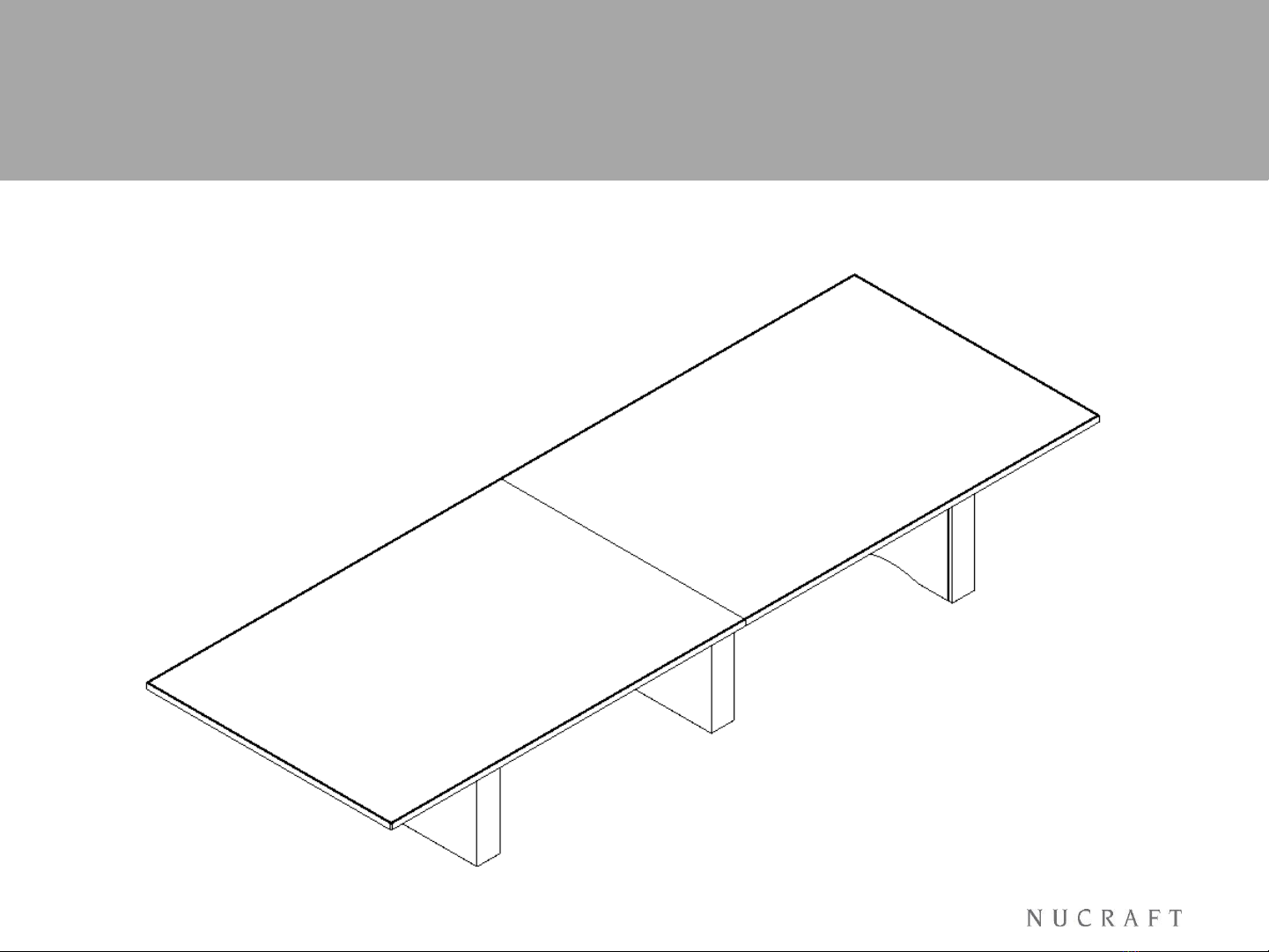

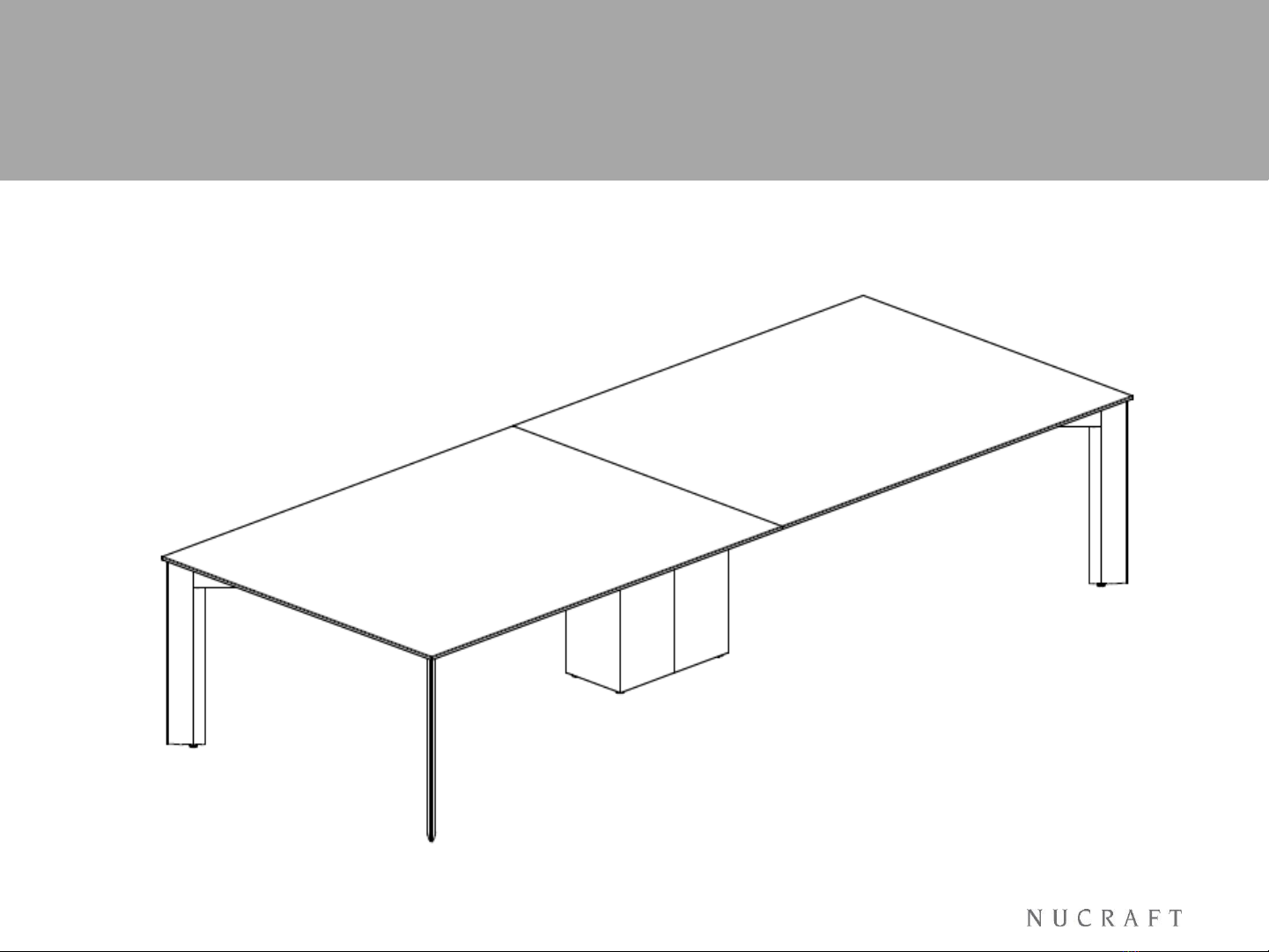

Flow NT Table

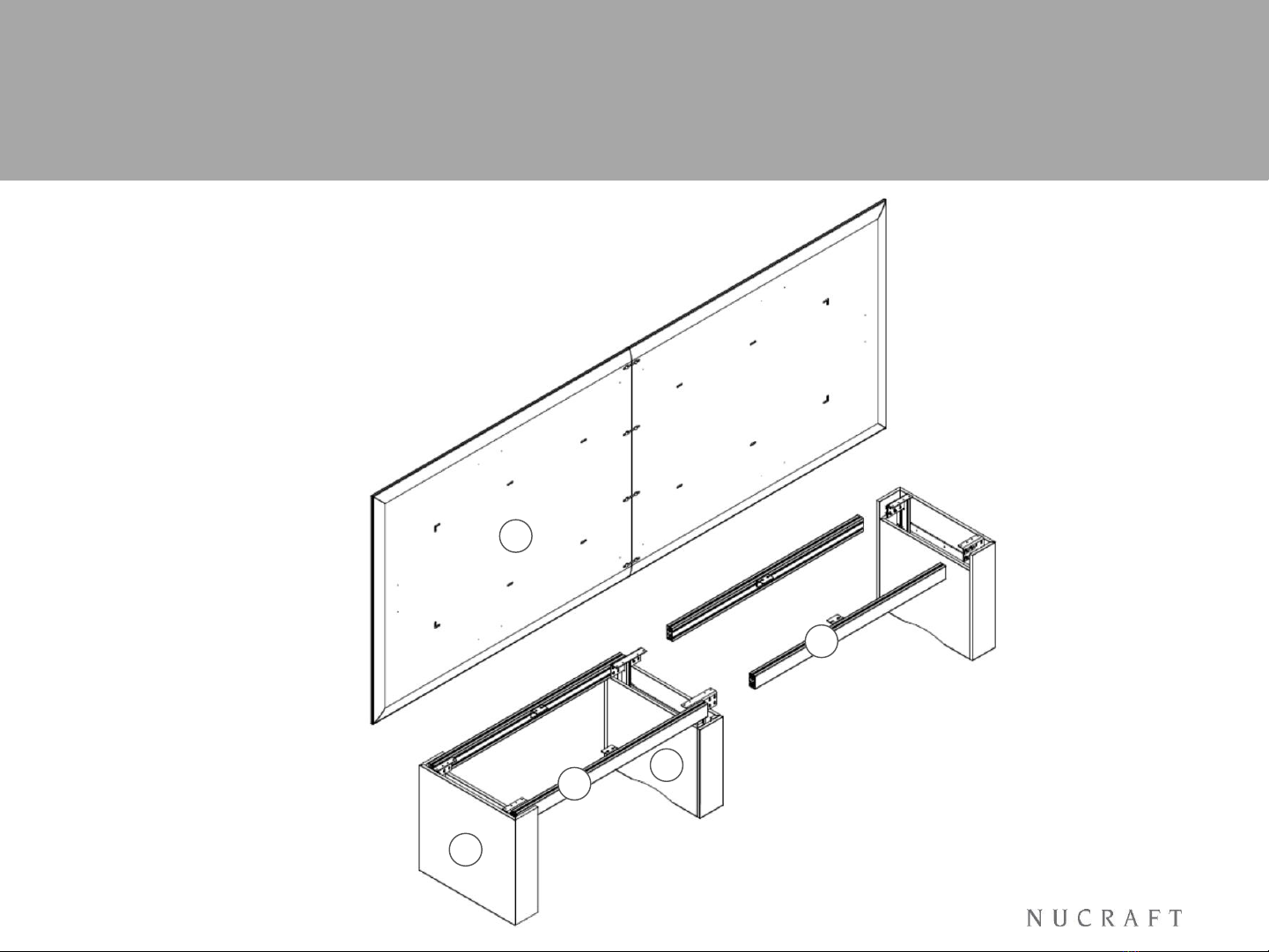

Flow NT Table Exploded

1. Top

2. End Base

3. Center Base

4. Main Beam

1

2

3

4

4

Installation Prep –3-Piece and 4-Piece Tops

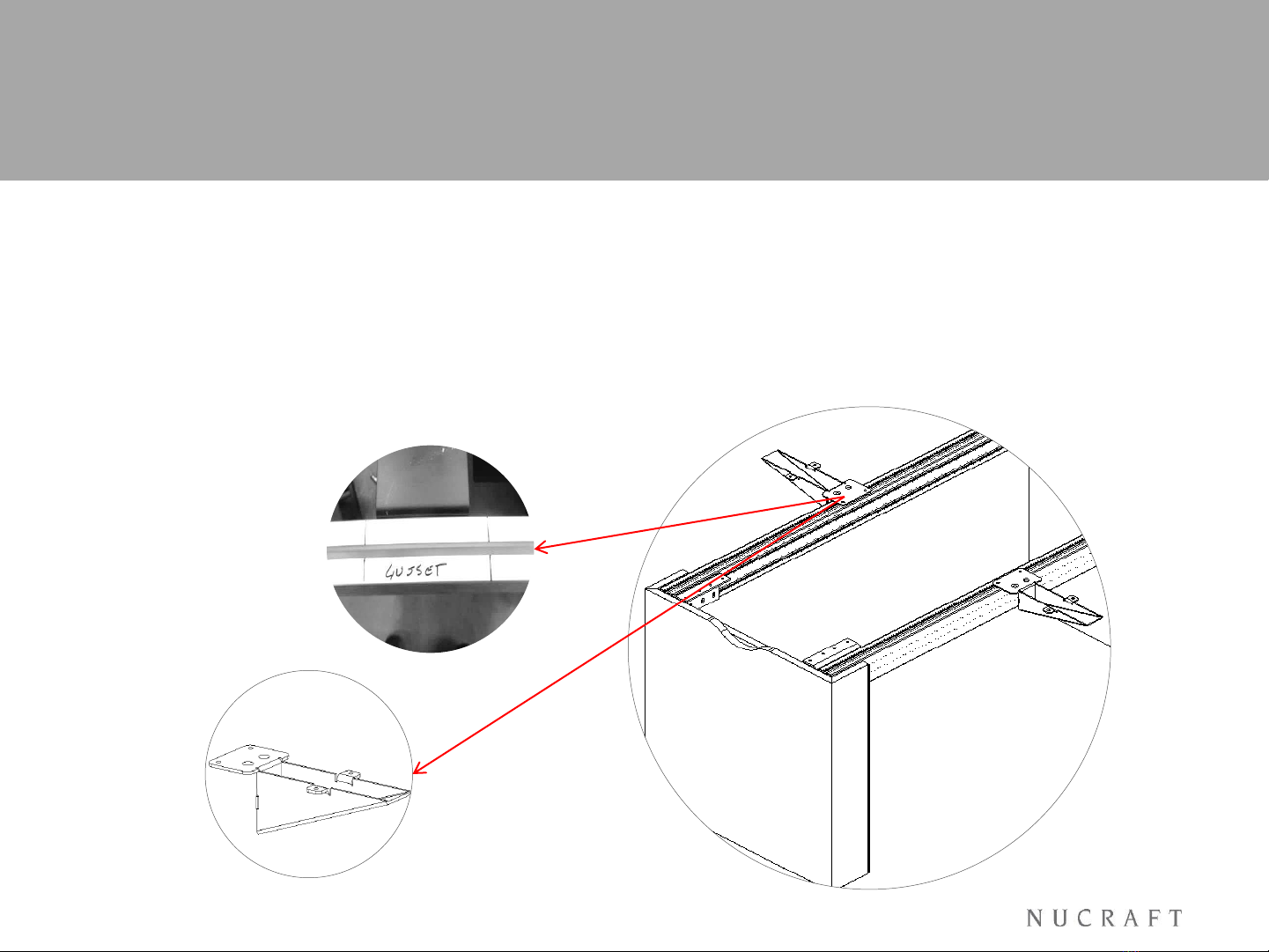

•3-Piece and 4-Piece tops include gussets for extra support.

–Locations are marked on the main beam.

•Slide the gusset’s clamp bar onto the main beam BEFORE attaching the beam to the bases (facing

outward).

•Tighten the 5/16 –18 hex bolts.

Step 1: Tables over 120”

•Locate beam labels and match for correct placement of bases.

•Loosen clamp bars from base.

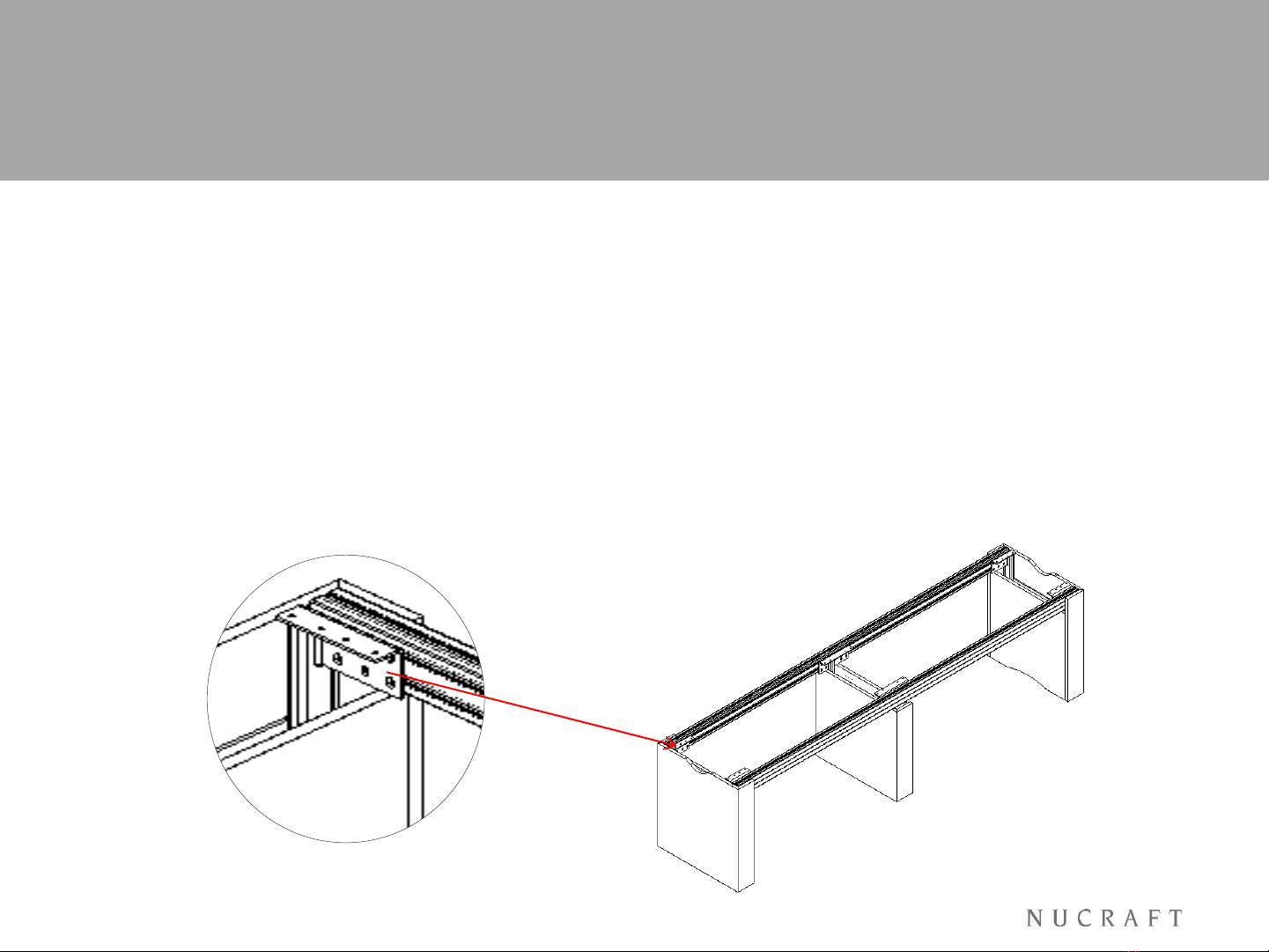

•Attach end bases by sliding the clamp bars into the beams.

–Beams should be 1/8” from the top of the base panel.

•Tighten cap screws to secure.

•Repeat to attach beams to center base. Keep beams tight and flush at the joint.

Step 5: Work Surface Alignment

•Use a level and adjust glides on the bottom of the bases to level table frame before adding the top.

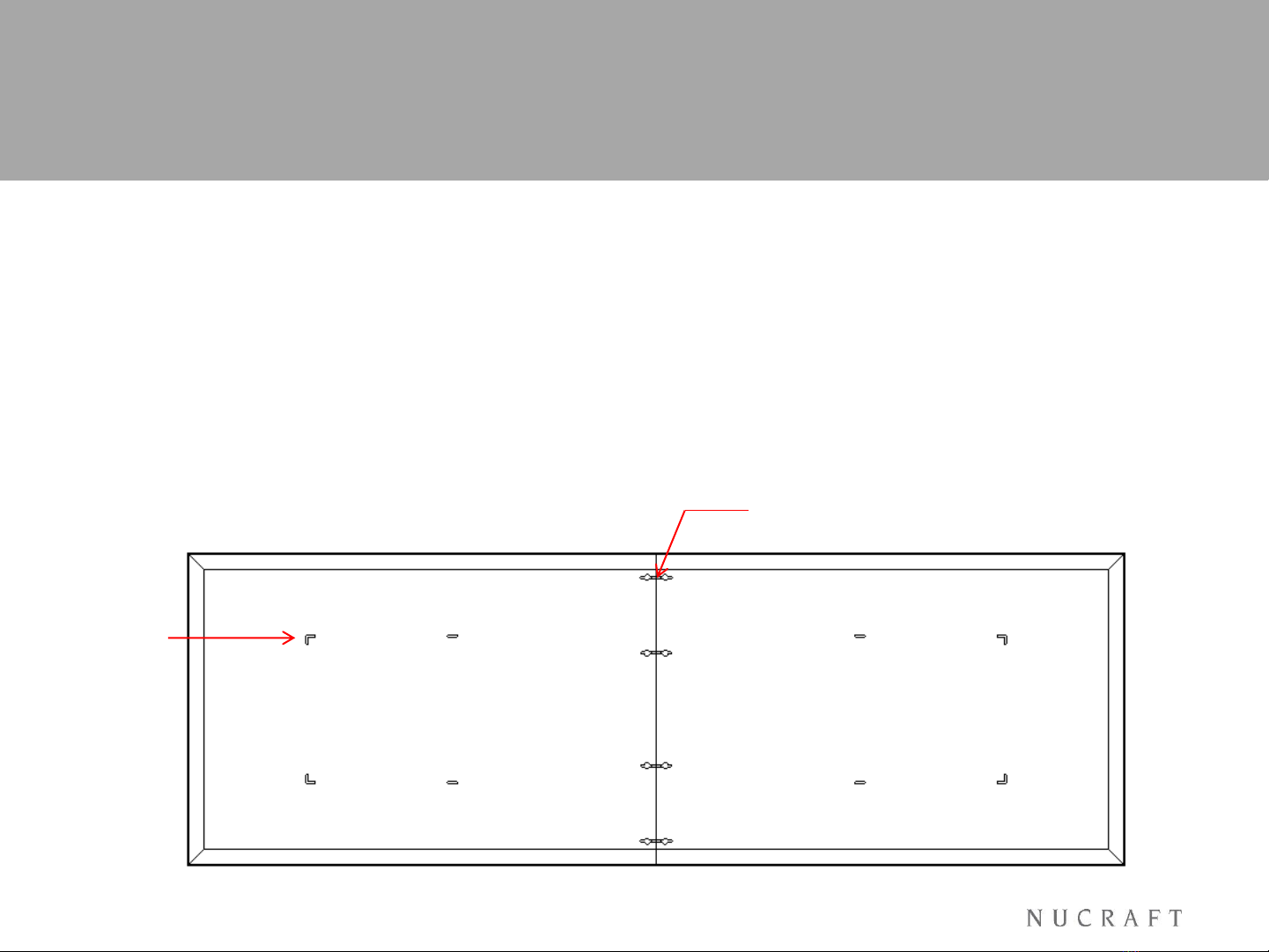

•Align the “L” shaped notes on the bottom of the top with the corners of the bases.

•With multi-piece tops, join the pieces with the provided draw tight hardware.

•Fasten the work surface with the 1” #12 screws and brackets provided.

“L” Shaped

Notes

Draw Tight

Flow NT Table –Post Leg Base
