NTEK Doortalk Manuel utilisateur

Lite

I. TABLE OF CONTENTS

I. TABLE OF CONTENTS...........................................................

II. YOUR DOORTALK ...............................................................

III. INSTALLING DOORTALK...................................................

IV. CONFIGURING YOUR DEVICES........................................

V. REGISTERING RECEIVER/CLIENT ......................................

VI. USING DOORTALK .............................................................

VII. TROUBLESHOOTING........................................................

VIII. DOORTALK FACTORY RESET ......................................

Safety Precautions .......................................................................................

Specications ...............................................................................................

DoorTalk’s design .........................................................................................

Device Installation .......................................................................................

Integrating Other Devices ..........................................................................

STEP 1: Know your SIP Proxy Server .........................................................

STEP 2: Download the DoorTalk App ........................................................

STEP 3: Connect DoorTalk to a power source .........................................

STEP 4: Connect mobile device to DoorTalk Access Point (AP) .............

STEP 5: Start the Application .....................................................................

STEP 6: Find your DoorTalk Device ...........................................................

STEP 7: Network Setup ...............................................................................

STEP 8: Event Server Conguration ..........................................................

STEP 9: Call Functions Setup ......................................................................

STEP 1: Download The DoorTalk Application ..........................................

STEP 2: Input Registration Data ................................................................

Customizing Email Notications ...............................................................

Answering a Call ..........................................................................................

Calling your DoorTalk Device/s .................................................................

This manual contains only basic information about DoorTalk, including its

installation and conguration procedures. For more information about

other features, visit www.DoorTalk.net.

II. YOUR DOORTALK

Safety Precautions

Please read and follow all the instructions cited in this manual. More

information on how to use other features of DoorTalk are available

online at www.DoorTalk.net. Basic safety precautions should always

be followed for the benet of the user and to prolong usability of the

product.

DO NOT dismantle the device or tamper with the product’s

software. Only qualied technicians from authorized distributors

or the manufacturer are allowed to open it and make technical

modications if necessary. Tampering may cause malfunction

and may void warranty.

During installation, DO NOT plug the device to a power source

until the procedure has been completed. If you prefer to connect

to a power line, TURN OFF THE POWER SOURCE FIRST.

If device is to be relocated, always UNPLUG or TURN OFF the

power source rst before detaching the device from its place.

Do not submerge or soak the device into any liquid.

Avoid direct exposure to weather elements to reduce potential

risks and prolong usage.

Handle the unit with care. Do not shake, drop or strike the unit to

prevent internal damage.

Unplug the device or turn o the power source before removing

the micro SD card or USB cable.

Do not use detergent, wax, solvent, spray, benzene-based

chemicals, thinner, alcohol or excessive water to clean the

surface of the device.

DoorTalk is designed to provide security. Do not use the device

in any way that violates the right to privacy or for any other

activities that constitute a violation of human rights.

Repairs should only be referred to and done by authorized

distributors or the manufacturer.

Keep the device software and application updated. You will be

sent notications when updates are available.

10.

11.

Specications

Dimension

Material

Connectivity

Operating System

Power Input

Audio

Camera

Video

Memory

Sensors

Sensor Input

Relay Output

Operating Temperature

I/O Interface

CPU

9 x 14.7 x 2.62 cm

ABS Plastic / Weatherproof

Wi-Fi (802.11 b/g/n) or LAN (Ethernet)

Android OS

5.0V - 14V DC/2.0A

Built-in 87dB unidirectional Microphone

Built-in 2W Speaker

2MP Color (1600 x 1200 CMOS - UXGA)

60° view angle with Face Recognition

and 6 IR LED’s for night visibility

1600 x 1200 at 15FPS

Micro-SD card expandable up to 32GB

Ambient Light sensor, Motion Sensor

Active Sensors up to 5V/50mA

Contact Rating: 30VDC / 1A 125VAC / 0.5A

-20 °C to 48 °C

Micro USB

1GHz ARM Cortex A8

DoorTalk’s Design

1. Ambient Light Sensor

2. Infrared Illuminator

3. Mic

4. Camera

5. Call Button

6. Motion Detector

7. LED / Status Indicator

8. Speaker

9. USB 2 (Host)

10. Reset

11. USB 1 (Host) for Ethernet dongle

12. Sensor Input

13. Relay Output

14. Power Input (5V - 14V DC)

11 12 13

15. Micro HDMI

16. Micro SD Slot (External Storage)

Device Installation

STEP 1:

Plan your installation and wiring. Select a location by your door,

where visitors can easily notice and use DoorTalk. If you have a

wired mechanical door bell, you may choose to replace your door

bell button with DoorTalk. See “Integrating Other Devices, p.12” for

instructions.

Before starting the installation process, plan rst how your device will

be powered, the network connection type (wireless or LAN) and what

security systems you plan to integrate with DoorTalk. Decide whether

the wiring should go through the wall or pass underneath the device.

IMPORTANT!

READ THE INSTRUCTIONS CAREFULLY AND MAKE THE NECESSARY

PREPARATIONS FIRST BEFORE STARTING INSTALLATION OF YOUR

DOORTALK DEVICE. KEEP THE DEVICE UNPLUGGED UNTIL

INSTALLATION HAS BEEN COMPLETED.

Through Wall wire out Bottom wire out

III. INSTALLING DOORTALK

DEVICE INSTALLATION

POWER: DoorTalk comes with an AC adapter, to be plugged to a

power outlet near the door.

ETHERNET / LAN CONNECTION: DoorTalk can be connected through

Ethernet/LAN if preferred. The provided USB-Ethernet dongle serves

as an adapter to connect with a LAN (RJ45) cable. ( refer to Step 6 )

SECURITY SENSORS:

Decide which of the following security systems you plan to connect

with DoorTalk and line up their cables.

Doorbell

Electronic Door Lock System

Smoke Detector / Fire Alarm

Contact Closure Detector

NOTE: Connecting DoorTalk to any of these systems enables you to receive notications

on your mobile device if they are triggered by an event. Know more about the

corresponding mobile applications for these security systems at www.DoorTalk.net.

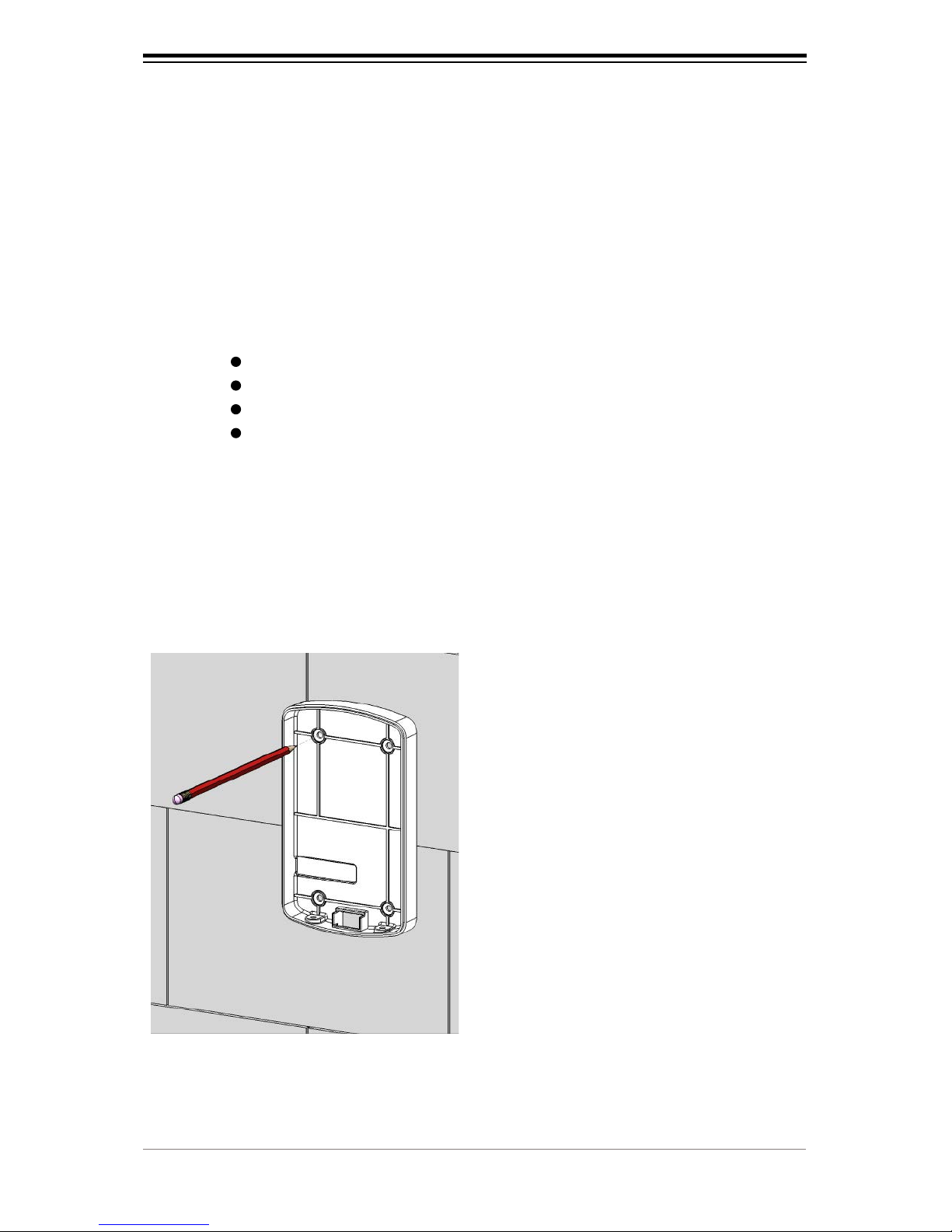

STEP 2:

Place the back cover against

the wall and mark through the

screw holes and wire outlet

(through-wall wiring) using a

pencil or marker.
