NRI V2 eagle Manuel utilisateur

CPI Crane Payment Innovations GmbH | Zum Fruchthof 6 | 21614 Buxtehude | Germany

Web: inf[email protected] | www.cranepi.com | Phone: +49 (0) 41 61-729-0 | Fax: +49 (0) 41 61-729-115

06.14 Hns/GS/Roe

BA_v2_eagle_parallel_EN_1-0

Operating Instructions

5“ Coin Validator

with BDTA/BACTA Interface

Table of conTenTs

BA_v2_eagle_parallel_EN_1-0 3

Table of contents

1 Revision protocol 7

2 About ... 8

2.1 About these operating instructions 8

2.1.1 Text conventions 8

2.1.2 Additional useful technical documentation 9

2.2 About the v2eagle 9

2.2.1 The v2eagle features 9

2.2.2 Models 10

2.2.2.1 Coin entry and return area 10

2.2.2.2 Internal 4-fold or 5-fold sorting mechanism 10

3 Safety instructions 11

3.1 Proper use 11

3.2 Protecting persons and equipment 11

4 Design 12

4.1 Overview 12

4.1.1 v² eagle with 5-fold in-line sorting mechanism 12

4.1.2 v² eagle with 4-fold sorter 13

4.2 Coin path (5-fold in-line sorter only) 14

4.3 Product label 15

4.3.1 Model number decoding 16

4.3.2 Data block decoding 16

4.4 Label – switch functions/coin channel assignment 17

4.5 Switch blocks 18

4.5.1 Switch functions – switch block S1 18

4.5.2 Switch functions – switch block S2 18

4.6 Coin return lever 19

4.7 Status LED (only v² eagle with 4-fold sorter) 19

4.8 Interfaces 19

Table of conTenTs

4BA_v2_eagle_parallel_EN_1-0

5 Function 20

5.1 Coin acceptance and coin channels 20

5.2 Memory blocks 21

5.3 Accepted coin sensor and sorting control 21

5.4 Transmission of coin values via coin pulses and coin signal lines 22

5.4.1 Multiple pulses 22

5.4.2 Coin pulse length 22

5.4.3 Tow assignments of the BACTA machine interface

(standard and binary mode) 23

5.4.3.1 Binary mode 23

5.4.3.2 Standard mode 23

5.5 Coin-in mech signal (CIMS) (option, not standard BACTA mode) 23

5.6 Coin inhibition/activation of narrow coin channels 24

5.6.1 Inhibiting all coins via the machine control system

(common inhibit) 24

5.6.2 Inhibiting individual coins/coin channels via the machine

control system (single inhibit) 24

5.6.3 Inhibiting individual coins/coin channels via the switch blocks 24

5.7 Sorting accepted coins (option) 25

5.7.1 Sorting principle of 5-fold in-line sorter (Ex8xPx. ..)

(not with BACTA interface) 25

5.7.1.1 Sorting with NRI 4-way manifold (option) 26

5.7.2 Sorting principle of 4-fold sorter (Ex7xPx. ..)

(not with BDTA interface) 27

5.7.2.1 Sorting with Money Controls 4-way manifold 28

5.7.2.2 Sorting with active Money Controls 8-way manifold 29

5.7.3 Sorter override for tube-full signal via ... 30

5.7.3.1 ... Single inhibit lines of BDTA interface 30

5.7.3.2 ... Sorter override interface (only BACTA) 30

5.8 Teach mode (option) 30

5.9 Manipulation detection (option) 31

5.9.1 Foul signal (only v² eagle BACTA) 31

5.9.2 String recognition 31

6 Start-up 32

Table of conTenTs

BA_v2_eagle_parallel_EN_1-0 5

7 Operation 34

7.1 Selecting the memory block ... 34

7.1.1 ... using the switch block on the coin validator 34

7.1.2 ... via machine control (option, only BDTA interface) 34

7.2 Inhibiting coins/activating narrow coin channel 35

7.2.1 Inhibit functions – switch block S1 35

7.2.2 Inhibit functions – switch block S2 35

7.3 Teaching coin channels in teach mode (optional) 37

8 Maintenance and service 39

8.1 Cleaning measurement and validation area 39

8.2 Troubleshooting 41

9 What subsequent settings can be made? 42

9.1 Serviceandcongurationtools 42

9.1.1 PCcongurationsoftwareheartbeat 42

9.1.2 On-site service tool HENRI+42

9.2 Which device functions can be set? 42

10 Technical data 44

10.1 Device data 44

10.2 Interfaces 46

10.2.1 BDTA interface 46

10.2.1.1 BDTA pin assignment 46

10.2.1.2 BDTA interface description 47

10.2.1.3 BDTA connection diagram 47

10.2.2 BACTA interface 48

10.2.2.1 BACTA pin assignment, binary mode 48

10.2.2.2 BACTA pin assignment, standard mode 49

10.2.2.3 BACTA interface description 49

10.2.3 Sorter override interface (only BACTA) 50

10.2.4 v² eagle – 8-fold manifold (option, only BACTA 4-fold sorter) 50

10.3 Accessories 51

10.3.1 Front plates 51

10.3.2 Manifolds/sorters 52

10.3.3 Service tools 53

11 Index 54

6BA_v2_eagle_parallel_EN_1-0

BA_v2_eagle_parallel_EN_1-0 7

Revision pRoTocol

1 Revision protocol

Version Revision Chapters/sections concerned

_1-0 Firstofcialversion

BA_v2_eagle_parallel_EN_1-0 7

8BA_v2_eagle_parallel_EN_1-0

abouT ...

2 About ...

This chapter is intended to provide a general overview of the advantages and options of the

coin validator v2eaglewithparallelinterface.Therstsection,however,isdesignedtohelpyou

navigate easily within these operating instructions.

2.1 About these operating instructions

These operating instructions describe the design and operation of the electronic 5" coin validator

v2eagle with parallel BDTA or BACTA interface. Afterwards, chapters 6 and 7 explain the necessary

steps for starting up and operating the coin validator. Chapter 7 describes how to clean the coin

validator and remedy the cause of any malfunction.

Chap.10"Technicaldata"andtheappended"Index"reducethesearchforspecicexplanations.

2.1.1 Text conventions

To make it easier for you to navigate within these operating instructions and to operate the

device, the following accentuations were made in the text:

Safety instructions which you must observe in order to protect operators

and equipment.

Special notes intended to facilitate the use of the coin validator.

Atthebeginningofeachchapteryouwillndashort"guide"whichsummarizes

the contents of the chapter.

Device functions which are set or prepared by the manufacturer according

tocustomerspecicationsandcanbe set or changedusingourservice and

congurationtools(cf. Chap. 9 What subsequent settings can be made?, p. 42).

1 2 3 ... Requests to perform an action are numbered in a different typeface.

[Fig. 1/2] Cross-reference to an illustration. The number preceding the slash indicates the

numberofthegure,thenumberfollowingtheslashisthenumberoftheitem

inthegure.

BA_v2_eagle_parallel_EN_1-0 9

abouT ...

2.1.2 Additional useful technical documentation

Apart from the operating instructions you already have, further documentation is available for the

v2eagle,e.g.documentationconcerningconguration.Alldocumentationcanbedownloaded

from the Crane Payment Innovations website (www.cranepi.com, Support)aspdfle.

2.2 About the v2eagle

The v2eaglecoinvalidatorwithparallelBDTA/BACTAinterfaceinthestandardized5“format

uses the patented multi-frequency technology (MFT) for reliable coin validation. Communication

with the vending machine control system takes place via the 16-pin BDTA or the 17-pin BACTA

connector. Due to its modular, compact design the v2eagle is ideally suited for gaming, vending

and service machines.

For coin acceptance the coin validator has 32 coin channels which – divided into 2 x 16 coin

channels – can be managed in two memory blocks with different coin congurations and

selected individually.

Depending on the application, the coin validator can optionally be equipped with a 4-fold or

5-fold sorter.

To be able to react as quickly as possible to new false coins and to make your individual settings,

thecoinvalidatorcanbeconguredonsiteinthemachineusingaservicetoolorintheworkshop

via a PC programming station.

Any coins or tokens not taken into account by the manufacturer can be programmed in the optional

teachmodedirectlyonthecoinvalidatorwithoutanycongurationsoftwarebyinsertingthecoins.

2.2.1 The v2eagle features

• Reliable acceptance of genuine coins and rejection of false coins due to MFT multiple

sensing of the coins inserted and evaluation of 24 measuring parameters

• Operating and manipulation safety provided by optical accepted coin sensors and sorting

control in the coin validation and coin outlet area

• Acceptance speed of two coins per second

• 32coinchannelsmanagedintwoindependentlyconguredandindividuallyselectable

memory blocks (2 x 16 coin channels)

• Service interface for PC programming station or on-site service tool

• Flashtechnologyforeasyandtime-savingrmwareupdates(CXash))

• Options

–teach mode for eight coin channels

–string sensor

–top or front entry, front or bottom return

–front plate

–4-fold or 5-fold sorting mechanism

–passive 4-way both or active 8-way manifold for 4-fold sorting mechanism

–various return levers depending on machine type

10 BA_v2_eagle_parallel_EN_1-0

abouT ...

2.2.2 Models

The v2eagle is available in different models. They mainly differ

• in the coin entry and return area

• in the sorting mechanism and

• in the machine interface.

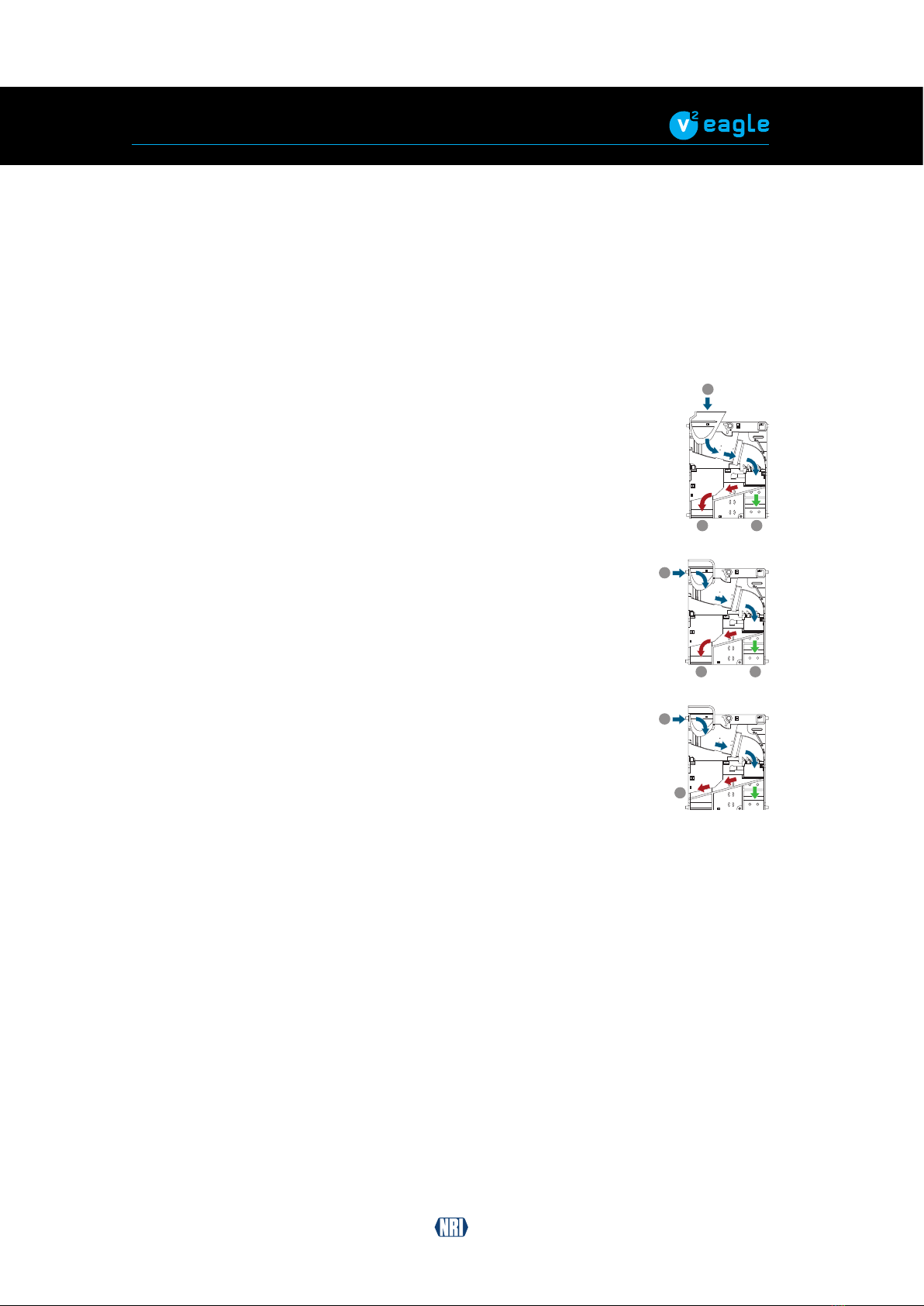

2.2.2.1 Coin entry and return area

• Top entry and bottom return (E1xxPx. ..)

The coin is inserted into the device from the top and returned, if not

accepted, via the return area at the bottom.

• Front entry and bottom return (E3xxPx. ..)

The coin is inserted into the device from the side and returned, if not

accepted, via the return area at the bottom. The coin validator with

frontentrygenerallyhasanNRIfrontplatettedtotheleft-handside

of the device (cf. Chap. 10.3.1 Front plates, p. 51). However, this model is

also available without front plate.

• Front entry and front return (E4xxPx. ..)

The coin is inserted into the device from the side and returned, if not

accepted, via the return area also located on the side. The coin validator

withfrontentrygenerallyhasanNRIfrontplatettedtotheleft-hand

side of the device (cf. Chap. 10.3.1 Front plates, p. 51). However, this model

is also available without front plate.

2.2.2.2 Internal 4-fold or 5-fold sorting mechanism

In order to sort the accepted coins into the cash-box or e.g. change tubes or hoppers, the v2eagle

can optionally be equipped with an internal 5-fold sorting mechanism (cf. Chap. 5.7 Sorting accepted

coins (option), p. 25):

• 4-fold sorter (Ex7xPx. ..)

• 5-fold in-line sorter (Ex8xPx. ..)

• Single cash-box chute out of 5-fold in-line sorter (no sorting mechanism)

(Ex1xPx. ../Ex2xPx. ../Ex3xPx. ../Ex4xPx. ../Ex5xPx. ..)
