NPC Network Phone Camera Manuel utilisateur

第1页

Network Phone Camera User Manual

Read and understand thoroughly this safety awareness & instruction before using and keep it

for future reference, the device is called NPC in this text.

Safety Precaution:

Do not place heavy object on the NPC.

Do not let any solid or liquid fall into or infiltrate the NPC.

Do not disassemble, repair or replace the parts of the NPC by yourself

Using environment:

Please place and use the NPC between 0℃and 40 ℃.Avoid direct sunlight or stay away from heat.

Do not install the NPC in damp environment.

Do not expose the NPC in smoky or dusty environment.

Do not drop the NPC and avoid strongly collision.

Please insure the NPC level installation in a stable workplace and prevent the NPC to be dropped

Please install in well-ventilated place. Do not block the vents.

The NPC only can be used within the range of rated input and output.

Network Phone Camera User Manual

Contents

Contents...................................................................................................................................................................3

1Product Introduction..........................................................................................................................................4

1.1 Product overview ..........................................................................................................................................4

1.2 Main fuctions................................................................................................................................................4

2Open-package check and cable connection................................................................................................5

2.1 Open-package check.....................................................................................................................................5

2.2 The front panel and rear panel ......................................................................................................................5

2.3 Button function of the front and front panel .................................................................................................6

2.4 The rear panel................................................................................................................................................8

3Basic operation ...................................................................................................................................................9

3.1 Turn on..........................................................................................................................................................9

3.2 Turn Off ........................................................................................................................................................9

3.3 Standby state.................................................................................................................................................9

4 Main menu..........................................................................................................................................................11

4.1 Main menu navigation

..............................................................................................................................11

4.2 General setup

.............................................................................................................................................12

4.3 System setup

..............................................................................................................................................12

4.4 Playback

.....................................................................................................................................................13

4.5 Network setup

............................................................................................................................................15

4.6 Alarm setup

................................................................................................................................................16

4.7 Record setup

..............................................................................................................................................18

5 Remote access & video calls........................................................................................................................19

5.1 Remote monitor

.........................................................................................................................................19

5.2 Video call

...................................................................................................................................................20

6 The wireless learning code............................................................................................................................22

6.1 Wireless detector and device learning code

.............................................................................................22

6.2 Remote control and device learning code

................................................................................................22

7 FAQ and maintenance.....................................................................................................................................22

7.1 Frequently asked questions

.......................................................................................................................22

7.2 Maintenance

...............................................................................................................................................25

第4页

1 Product Introduction

1.1 Product Overview

The NPC series is a type of excellent intelligent home product specially designed for digital field.

It introduces embedded LINUX operating system which is more stable. It introduces the technology

of standard H.264 mp video compression format and G.711A audio compression format which

insure the high-quality image, low-bit rate and single-frame playing. It introduces Cloudlink P2P

network transmission technology which achieves strong network data transmission ability and

remote control ability. It introduces wireless learning codes technology and wireless detector to

construct a strong alarm system

1.2 Main functions

Video call

It can realize the video call not only between two NPC, but also among smart phone, tablet

computer and NPC.

Record function

After inserting U disk or Micro SD to NPC, it can realize simultaneous storage and recording of

audio and video, and different recording mode such as manual recording, alarm recording, timing

recording can be selected.

You can search video files intelligent on the device and playback video on the screen directly.

Remote monitor

It can achieve remote monitor by using mobile APP to dial 3C number.

Wireless alarm

It introduces wireless learning code and wireless detector to construct alarm system, and also email

alarm function is supported.

Network Phone Camera User Manual

2 Open-package inspection and cable connection

2.1 Open package check

First, please check whether there is any visible damage to the package appearance. The

protective material used for the package of the NPC can sustain most accidental clashes during the

transportation.

Then, please open the box and get rid of the plastic protective coating. Check whether there is

any visible damage to the NPC appearance.

2.2 The front panel and rear panel

The key function specification in the front panel and the interface specification in the rear panel

are described in details in the manual.

Please check carefully the product model in the bottom plate or in the rear panel film whether

is accordant with the model you ordered.

The label in the bottom plate or in the real panel is very important for after-sales service, please

protect it carefully.

Please provide the product model and serial number in

the label before you contact our after-sales.

Network Phone Camera User Manual

2.3 The front and rear panel key function

Pilot lamp: From left to right are： (Network, Defense, Recording,

Alarm)

Network Phone Camera User Manual

The front button operation function

Num

Button

name Mark Function

1 Number button 0

-9

Input the number key during user input state

Short press to decrease the volume during video call or

playing state

Short press to delete text during edit state

2 */.键

键键

键

Long press to record/stop recording during manual record

mode

Short press to increase the volume during video call or

playing state

Short press to switch input method during edit state

3 Ctrl shift/

defense

Long press to do defense/cancel operation

Short press to dial video call during standby state

4 Dial/preview

Long press to enter real-time preview during standby

mode

Hang up call during video call

5 Hang up/Exit

Back to above level menu and exit current state

Remove the cursor by up and down buttons when the

main menu or submenu is popped

Add or decrease number during edit state

Change the setting in the menu

Play last or next video file by up and down buttons

during the playback state

Move the cursor by left and right buttons when the main

menu or submenu is popped

6 Direction button

Play in the multi-low or multi-fast video during the

playback state

7 Main

Confirm

Network Phone Camera User Manual

menu/confirm

key

Enter main menu

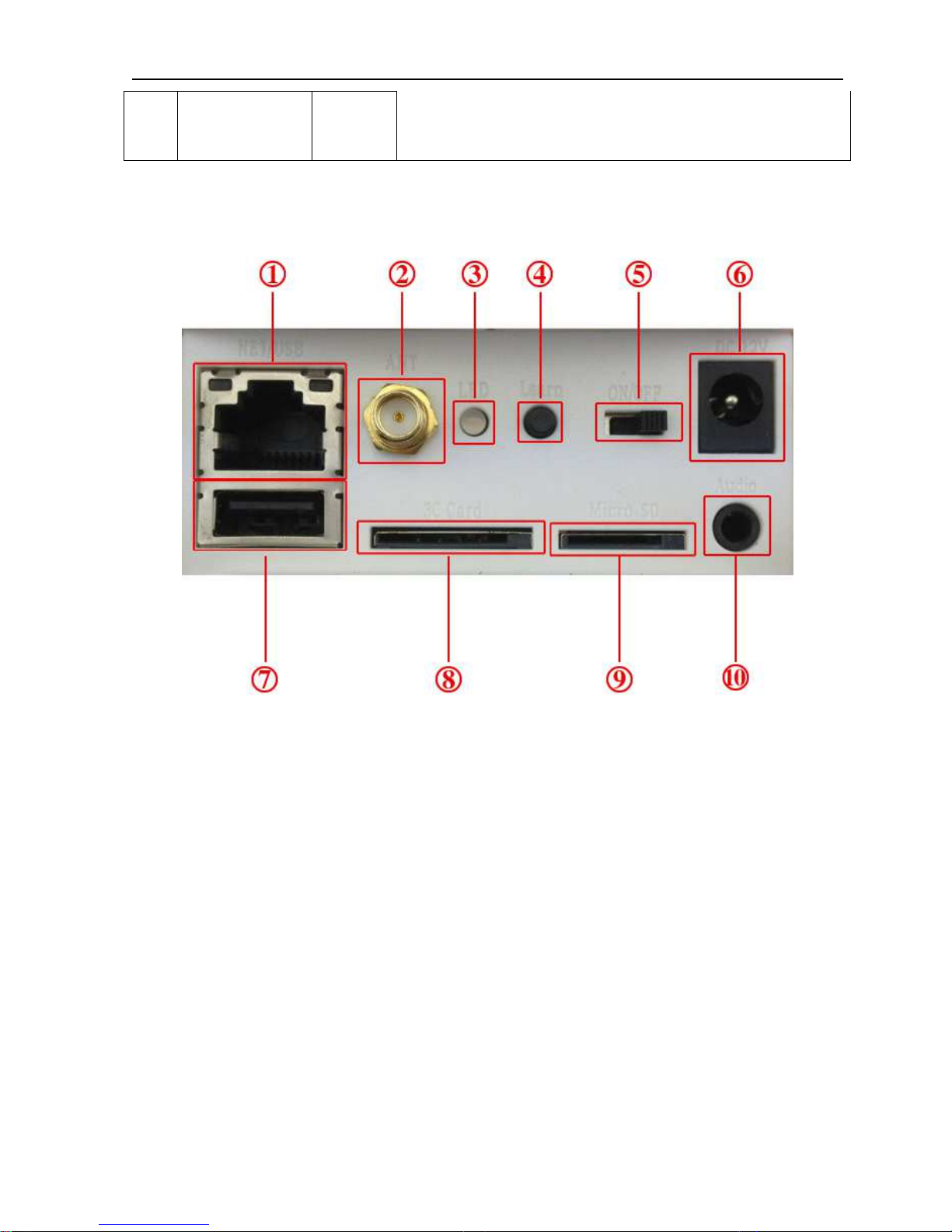

2.4 The rear panel

○

,1Network interface

○

,2WIFI ant interface

○

,3Learning code indicator

○

,4Learning

button

○

,5Power switch

○

,6Power interface

○

,7USB interface

○

,83C smart card

interface

○

,9Micro SD card interface

○

,10Earphone interface

Network Phone Camera User Manual

3 Basic operation

3.1 Turn on

Plug the power supply and turn on the power supply switch to “ON”, the NPC enters the

system.

Suggest using the stable input voltage

and power input ripple with less interference to make

sure the NPC power supply.

Suggest using the UPS to protect the power supply under allowable conditions

3.2 Turn off

Check and confirm the recording is stopped before turn off the NPC, turn off the power supply

switch to “OFF”, or pull the rear panel power switch that can switch power.

Auto resume after power failure

If the NPC is shut down abnormally, it can automatically backup video and resume previous

working status after power failure.

Insert the U disk or Micro SD card

Please make sure the NPC is not in recording state before inserting the U disk or Micro SD

card, otherwise information will loss or storage equipment will be damaged.

Replace the battery

Please save the setting information and turn off the power supply switch before replacing the

battery. The NPC uses button battery. Please check the system time regularly, if the time is not

correct, you need replace the battery. Suggest replacing the battery every year and using the same

type battery.

Note: The setting information must be saved before replacing the battery otherwise information will

lose.

3.3 Standby state

Turn on the NPC and enter standby state, the system standby is shown as below:

Network Phone Camera User Manual

Picture 3.1 Login interface

Icons meaning under standby state:

USB detection icon

Micro SD detection icon

Motion detection icon

3C smart card detection icon

WIFI connection icon

Internet connection icon

Sever abnormal

connection icon
