NOYAFA NF-1502 Manuel utilisateur

INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL INSTRUCTION MANUAL

MODEL:NF-168

ORIGINAL

AUTHENTIC

ORIGINAL

AUTHENTIC

REV1.0

Your excellent helper in cable test!

RJ45/RJ11/BNC WIRE TRACKER

Find target wire required from numerous

telephone wires and LAN cables

Find target wire required from numerous

telephone wires and LAN cables

Example ⅠExample Ⅱ

Hunt cable in

telephone exchanger

Hunt cable in

distribution frame

Connect launcher and telephone

wire port to be hunted in right way

Hunt cable at the other end

with receiver

Connect launcher and LAN cable

port to be hunted in right way

Find target wire required from numerous

telephone wires and LAN cables

Find target wire required from numerous

telephone wires and LAN cables

Find target wire required from numerous

telephone wires and LAN cables

Hunt cable at the other end

with receiver

Your excellent helper in cable test!

Please read and learn safety instructions

before use or maintain the equipment

●

Please store the te st in r igh t pla ce an d ope rat e in co rre ct wa y in

case of the s har p pro be hu rts .

Never expose the equipment directly in the su n.

Never put the equipment in th e place with much dust, h umi dity and

high temperature (over 40℃).

Please use batter y acc ord ing t o the s pec ifi cat ion ; oth erw ise , it

may result in damage to equipment.

Please never dismount the equipment arbitrarily. The maintenance

and care shall be conducted by professio nal personnel.

Please take out the b att ery i n lau nch er an d rec eiv er if t he

equipment is not used for a long time so as t o pre ven t tha t the

battery liquid is leaked in future.

Never use the equipment to de tec t pow er co rd wi th el ect ric ity

(such as power supply circu it of 2 20V ), ot her w ise , it ma y res ult i n

damage to equipment and personal injury.

Never conduct relate d operation of com mun ica tio n line in

thunderstorm we ath er so a s to pr eve nt li ght nin g str oke a nd

impact on personal safety.

Your excellent helper in cable test!

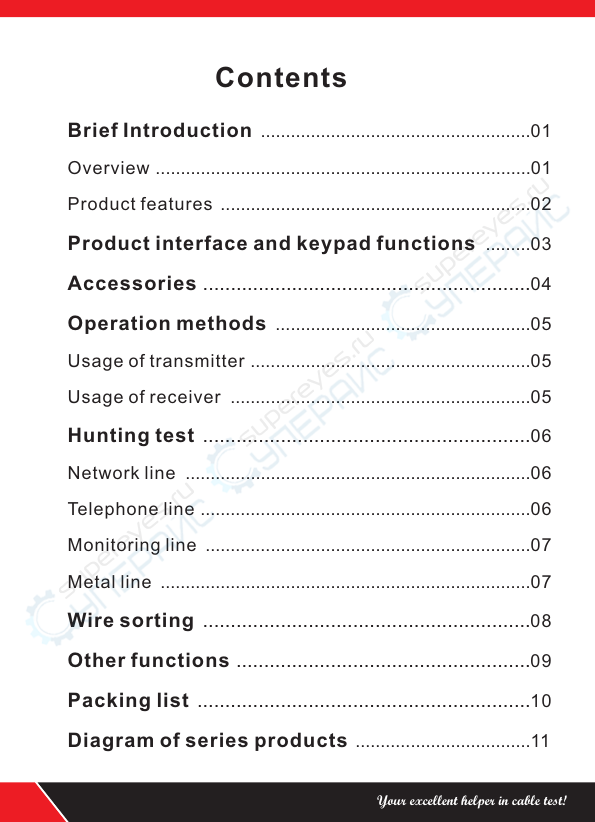

Contents

Brief Introduction ......................................................01

Overview ...........................................................................01

Product features ..............................................................02

Product interface and keypad functions .........03

Accessories ...........................................................04

Operation methods ...................................................05

Usage of transmitter ........................................................05

Usage of receiver ............................................................05

Hunting test ...........................................................06

Network line .....................................................................06

Telephone line ..................................................................06

Monitoring line .................................................................07

Metal line ..........................................................................07

Wire sorting ...........................................................08

Other functions .....................................................09

Packing list ............................................................10

Diagram of series products ...................................11

Your excellent helper in cable test!

NF-168 is an updated item after NF-801. It is a breakthrough in the

communication field, which highlights for its anti-interference ability.

This item is composed of emitter and receiver .It owns three great

functions of hunting, wire sorting and circuit status testing quickly and

accurately. thus, it becomes an available tool for technicians in in

stallation and maintenance of weak current system. It is widely

applicable to telephone system, computer network, other metal wire

Brief Introduction

The service manual for user here covers all products of NF-168

(all instructions are suitable for all products as shown in figure below

unless there is another regulation):

Emitter Receiver

SET

8 G

VERIFY

STATUS

TEST

OFF

SCAN

OFF

POWER

NF-168

Overview

circuit and other fields.

Your excellent helper in cable test! 01

Product features:

Tracing network line (4 cores) directly when connected with switch

or router. (NF-801 don't).

The wire can be hunted directly in connection with Ethernet switch/

router /PC terminal of different models in startup.

the wire can also be hunted directly such as 5E, 6E, telephone

line, coaxial cable and other cables.

Test 5E, 6E directly, troubleshooting open, short, cross errors.

RJ45/RJ11/BNC and other ports are included and the complex

switch is not required.

Endurable high pressure and self-protection ability.

Earphone and backlight help you operate in dark.

9V battery for power supply and low-voltage hint function.

●

Specification:

8Vp-p

≤20mA

≤30mA

≥3km

0.083kg

0.096kg

187×46×27 mm

0.458kg

285×150×46 mm

146×57×30 mm

Specification

Wire tracker

DC, 9V battery

Item

Product name

Power supply

The max working current

Signal transmission format

Signal output electric status

Distance of signal transmission

Appearance dimension

Weight

Emitter

Receiver

Multi-frequency impulse

Emitter

Whole set

Emitter

Receiver

Whole set

Your excellent helper in cable test!

Product Interface and Keypad Introduction

SET

8 G

BNCRJ45

RJ11

NF-168

RJ45

Scan indicator

DIP switch

wire sorting

indicator

toggle button

LED indicator

Probe

Signal indicator

LED indicator

Function switch

Volume

Earphone

POWER

SCAN

OFF

STATUS

VERIFY

TEST

OFF

SCAN

Receiver

Emitter

Spotlight switch

NF-168

Your excellent helper in cable test! 03

RJ11 cable Crocodile clip RJ45 cable

Earphone 9V battery

The accessories are included in the whole set, their usage

are as below.

●

RJ45 cable

Connect 8-core network cable with transmitter or reiceiver.

Crocodile clip

clip the wire cores to test if necessary.

RJ11 cable

Connect telephone line (2/4/6 cores) with transmitter of

reiceiver.

Earphone

It help users to operate in noisy environments.

Accessories

Your excellent helper in cable test!

Operation methods

Usage of transmitter

Open battery cover, install DC 9V battery in launcher,

push the key to “scan”, the indicator flashes, which means the

transmitter is normal. Connect two ends of network line to the

RJ45 port of launcher and remote identifier separately. then

hold the receiver to find the target line. (If you want to alter its

frequency,press the button of “Set”). Push the key to “test”,

the “VERIFY” indicators will flash. Connect two ends of

network line to the RJ45 port of launcher and receiver

separately, then go ahead with the test result. (If you want to

adjust its speed, press the button of “Set”) .

Usage of receiver

Open battery cover, install DC 9V battery in launcher,

push the key to “scan”, the indicator flashes, which means

the transmitter is normal. Connect two ends of network line to

the RJ45 port of launcher and remote identifier separately.

then hold the receiver to find the target line. when the probe

is close to the target cable among plenty of cables, you will

hear “beep, beep”, and the voice is the loudest, the signal

light would be brightest. (Sometimes there may be some

noise, it is difficult to distinguish which one is the goal, here

you can turn down the voice to the best status.)

Your excellent helper in cable test! 05

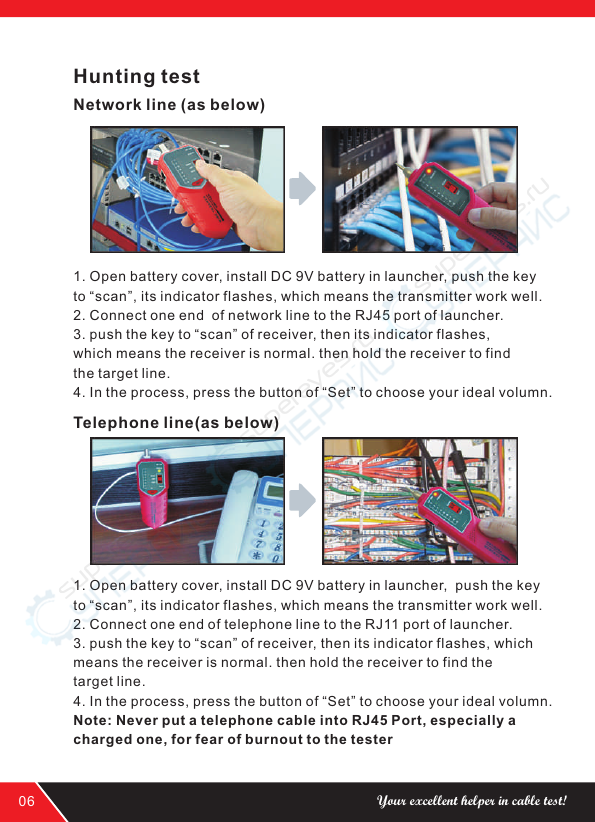

Hunting test

Network line (as below)

1. Open battery cover, install DC 9V battery in launcher, push the key

to “scan”, its indicator flashes, which means the transmitter work well.

2. Connect one end of telephone line to the RJ11 port of launcher.

3. push the key to “scan” of receiver, then its indicator flashes, which

means the receiver is normal. then hold the receiver to find the

target line.

4. In the process, press the button of “Set” to choose your ideal volumn.

Note: Never put a telephone cable into RJ45 Port, especially a

charged one, for fear of burnout to the tester

1. Open battery cover, install DC 9V battery in launcher, push the key

to “scan”, its indicator flashes, which means the transmitter work well.

2. Connect one end of network line to the RJ45 port of launcher.

3. push the key to “scan” of receiver, then its indicator flashes,

which means the receiver is normal. then hold the receiver to find

the target line.

4. In the process, press the button of “Set” to choose your ideal volumn.

Telephone line(as below)

Your excellent helper in cable test!
