Manual

of NVBDH+/NVBDL+

Manual of NVBDH+/NVBDL+

NNovusun

CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua/

Contects

Chapter 1. Brief Introdution...........................................................................................................................- 1 -

1.1 Products brief introduction.................................................................................................................. - 1 -

1.2 Specification feature...............................................................................................................................- 1 -

1.3 Product appearance and dimension........................................................................................................ - 2 -

1.4 Notice and aring..................................................................................................................................- 7 -

Chapter 2. Connection....................................................................................................................................- 8 -

2.1 Connection interface definition...............................................................................................................- 8 -

2.2 NVBDH+ connection.............................................................................................................................- 9 -

2.3 NVBDL+ connection............................................................................................................................- 12 -

Chapter 3. Configuration methods...............................................................................................................- 15 -

3.1 Panel definition....................................................................................................................................- 15 -

3.2 Parameter setting and LED display...................................................................................................... - 16 -

3.3 parameter description............................................................................................................................- 17 -

MNovusun

CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua

» Chapter 1. Brief Intro ution

1.1 Products brief introduction

e design Brushless spindle driver NVBDH+ and NVBDL+ specialized for the

ecomomic engraving machine,it matchs with the brushless DC motor. ith the updated DSP

technology,the driver can drive the motor to output more precise speed and bigger torque

comparing with current drivers. e adopt the idea from the inverter, designed independent

demountable panel.The users can take down the panel from the main driver and install it on the

controller cabinet.By the panel,we can set the parameter,control motor speed and

start/stop,very convenient.

DVBDH is the brushless driver with Hall.

DVBDL is the brushless driver without Hall.

1.2 Specification feature

1) High performance,low prices

2) DSP main control module

3) No current passing when no movement

4) Voltage range 24VDC-60VDC

5) demountable panel

6) Maximum driver power 600

7) 3 debugging ways:Panel potentiometer external voltage signak external P M

signal

8) Maximum driver motor running speed 12000R/Min

NNovusun

CNC Manual of NVBDH+/NVBDL+

9) Speed testing port for user to inspect the real speed.

10) Internal over-voltage, over-current and stalling inspection

11) Input signal TTL compatible

cnc.prom.ua

1.3 Product appearance and dimension

NVBDH+ product appearance pls see picture 1-1,detached driver pls see picture

1-2,NVBDH with motor see picture 1-3.

NVBDL+ product appearance pls see picture 1-4, detached driver pls see picture

1-5,NVBDH with motor see picture 1-6.

Figure1-1 NVBDH+ appearance

MNovusun

CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua

Figurei-2. detached NVBDH+ appearance

Figurei-3. NVBDH with brushless spindle motor as one set

NNovusun

CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua

Figurei-4. NVBDL+ Product appearance

NVBD

BRUSH L ESS MOTOR DRIVER ITHOUT HALL

NVBDL+

//Novusun

#¥c n c r a &

1 RUn| j^STOpj

48V U V

C CC P M FG VSI GNO

r r r I r I

Figure1 -5. NVBDL+ detached panel

Figure1-6. NVBDL+ brushless spindle motor as one set

NVBDH+ and NVBDL+ mechanical dimensions are the same,here we take NVBDL+

as example.Product outline dimension is 118*76*33mm,as picture 1-7 shows.The two

installing hole size is 110mm,see picture 1-8.

NNovusun

CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua

Figure1-8. back side installing hole dimension

MNovusun

CNC Manual of NVBDH+/NVBDL+ cnc.prom.ua

1.4 Notice and aring

Prohibit staying in the rain, it will cause short-circuit..

▲

Pls use proper voltage power supply and motor.

Note the power supply connection. Prohibit reverse connection of power supply

and Hall.

Chapter 2 Connection

MNovusun Manual of NVBDH+/NVBDL+ cnc.prom.ua

» Chapter 2. Connection

2.1 Connection interface definition

NVBDL without Hall feedback,other parts are same as NVBDH.

NVBDH+ and NVBDL+ connection table as table 2-1.The green color Hall signal cable

is only for NVBDH+.

Mark Definition

Main power

supply

Main power

supply Ground

Input voltage range is

24V-60V,our matched

spindle is 48V,so here we

marked 48V

Brushless motor U phase

Brushless motor V phase

Brushless motor W phase

Hall power supply ,voltage is 12V

Hall power supply Ground

Hall feedback W phase signal cable

Hall feedback V phase signal cable

Hall feedback U phase signal cable

Motor clockwise rotate control signal

port

Motor couterclockwise rotate control

signal port

NVBDH /NVBDL

NVBDH

NVBDH /NVBDL

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Novusun CNC Contrôleurs

Novusun CNC

Novusun CNC NC200 Manuel utilisateur

Novusun CNC

Novusun CNC NCB01 Manuel utilisateur

Novusun CNC

Novusun CNC NVUM Manuel utilisateur

Novusun CNC

Novusun CNC NVEMV2 Manuel utilisateur

Novusun CNC

Novusun CNC NVUM_SPv1.1 Manuel utilisateur

Novusun CNC

Novusun CNC NVCM Series Manuel utilisateur

Novusun CNC

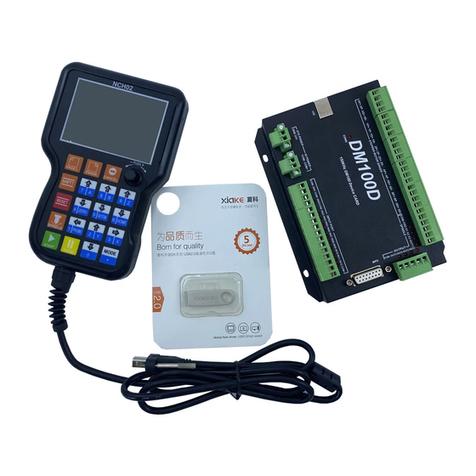

Novusun CNC NCH02 Manuel utilisateur
