Quick start guide

NVIP-2H-6232-II

NVIP-2H-6232-II/7043

NVIP-2H-6232-II Quick start guide version 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

THE PRODUCT MEETS THE REQUIREMENTS CONTAINED IN THE FOLLOWING DIRECTIVES:

Information

The device, as a part of professional CCTV system used for surveillance and control, is not designed

for self installation in households by individuals without technical knowledge.

Excluding of responsibility in case of damaging data on a disk or other devices:

The manufacturer does not bear any responsibility in case of damaging or losing data on a disk or other

devices during device operation.

WARNING!

PRIOR TO UNDERTAKING ANY ACTION THAT IS NOT DESCRIBED FOR THE GIVEN

PRODUCT IN USER’S MANUAL AND OTHER DOCUMENTS DELIVERED WITH THE

PRODUCT, OR IF IT DOES NOT ARISE FROM THE USUAL APPLICATION OF THE

PRODUCT, MANUFACTURER MUST BE CONTACTED UNDER THE RIGOR OF EXCLUDING

THE MANUFACTURER’S RESPONSIBILITY FOR THE RESULTS OF SUCH AN ACTION.

Pictures in this publication showing camera views can be simulations. Actual camera

images may vary depending on the type, model, settings, observation area, or

environmental conditions.

DIRECTIVE 2014/30/EU OF THE EUROPEAN PARLIMENT AND OF THE

COUNCIL of 26 February 2014 on the harmonisation of the laws of the Member States

relating to electromagnetic compatibility (OJ L 96, 29.3.2014, p. 79–106, with changes).

DIRECTIVE 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 4 July 2012 on waste electrical and electronic equipment WEEE)

(OJ L 197, 24.7.2012, p. 38–71,with changes).

DIRECTIVE 2011/65/EU OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 8 June 2011 on the restriction of the use of certain hazardous substances in

electrical and electronic equipment (OJ L 174, 1.7.2011, p. 88–110, with changes).

COMMISION DELEGATED DIRECTIVE (EU) 2015/863 of 31 March 2015 amending

Annex II to Directive 2011/65/EU of the European Parliament and of the Council as regards

the list of restricted substances.

DIRECTIVE (EU) 2017/2102 OF THE EUROPEAN PARLIAMENT AND OF THE

COUNCIL of 15 November 2017 amending Directive 2011/65/EU on the restriction of the

use of certain hazardous substances in electrical and electronic equipment.

NVIP-2H-6232-II Quick start guide version 1.0

IMPORTANT SAFEGUARDS AND WARNINGS

WARNING!

THE KNOWLEDGE OF THIS MANUAL IS AN INDESPENSIBLE CONDITION OF A PROPER

DEVICE OPERATION. YOU ARE KINDLY REQUSTED TO FAMILIRIZE YOURSELF WITH

THE MANUAL PRIOR TO INSTALLATION AND FURTHER DEVICE OPERATION.

WARNING!

USER IS NOT ALLOWED TO DISASSEMBLE THE CASING AS THERE ARE NO USER

-SERVICEABLE PARTS INSIDE THIS UNIT. ONLY AUTHORIZED SERVICE PERSONNEL

MAY OPEN THE UNIT

INSTALLATION AND SERVICING SHOULD ONLY BE DONE BY QUALIFIED SERVICE

PERSONNEL AND SHOULD CONFORM TO ALL LOCAL REGULATIONS

1. Prior to undertaking any action please consult the following manual and read all the safety and operating

instructions before starting the device.

2. Please keep this manual for the lifespan of the device in case referring to the contents of this manual is

necessary;

3. All the safety precautions referred to in this manual should be strictly followed, as they have a direct

influence on user’s safety and durability and reliability of the device;

4. All actions conducted by the servicemen and users must be accomplished in accordance with the user’s

manual;

5. The device should be disconnected from power sources during maintenance procedures;

6. Usage of additional devices and components neither provided nor recommended by the producer is forbidden;

7. You are not allowed to use the camera in high humidity environment (i.e. close to swimming pools, bath tubs,

damp basements);

8. Mounting the device in places where proper ventilation cannot be provided (e. g. closed lockers etc.) is not

recommended since it may lead to heat build-up and damaging the device itself as a consequence;

9. Mounting the camera on unstable surface or using not recommended mounts is forbidden. Improperly

mounted camera may cause a fatal accident or may be seriously damaged itself. The camera must be mounted

by qualified personnel with proper authorization, in accordance with this user’s manual;

10. Device should be supplied only from a power sources whose parameters are in accordance with those

specified by the producer in the camera technical datasheet. Therefore, it is forbidden to supply the camera

from a power sources with unknown parameters, unstable or not meeting producer’s requirements;

Due to the product being constantly enhanced and optimized, certain parameters and functions

described in the manual in question may change without further notice.

We strongly suggest visiting the www.novuscctv.com website in order to access the newest manual.

NVIP-2H-6232-II Quick start guide version 1.0

TABLE OF CONTENTS

TABLE OF CONTENTS.....................................................................................................4

1. FOREWORD INFORMATION.....................................................................................5

1.1. General characteristics.........................................................................................5

1.2. Technical specification .......................................................................................6

1.3. Camera dimensions .............................................................................................7

1.4. Package contents..................................................................................................7

2. START-UP AND INITIAL IP CAMERA CONFIGURATION .................................8

2.1. Description of connectors and control tools........................................................8

2.2. Ethernet cable connecting ...................................................................................9

2.3. Camera mounting ..............................................................................................10

2.4. Starting the IP camera........................................................................................11

2.5. Initial configuration via the web browser..........................................................12

2.6. Security recommendations for network architecture and configuration .........13

3. NETWORK CONNECTION USING WEB BROSWER .........................................14

3.1. Recommended PC specification for web browser .............................................14

3.2. Connection with IP camera via web browser.....................................................14

4. WWW INTERFACE - WORKING WITH IP CAMERA.........................................19

4.1. Displaying live video. ........................................................................................19

5. ELECTRIC CONNECTORS AND ACCESORIES .................................................20

5.1. MicroSD card installation .................................................................................20

6. FACTORY SETTINGS RESTORING ......................................................................21

6.1. Software factory settings restoring via web browser .........................................21

6.2. Software factory settings restoring via NMS IPTool……… ...………………..21

6.3. Hardware factory settings restoring ......................………………..…………...22

NVIP-2H-6232-II Quick start guide version 1.0

1. FOREWORD INFORMATION

1.1. General Characteristics

• Sensor resolution: 2.0 megapixels

• Mechanical IR cut filter (IR operation capability)

• Min. Illumination from 0 lx with IR LED on

• Wide Dynamic Range (WDR) for enhanced image quality in diverse light conditions

• Digital Noise Reduction (DNR)

• Highlight Compensation (HLC)

• Back Light Compensation (BLC)

• Reduction of image flicker (Antiflicker)

• Lens type: varifocal, f=2.8 ~ 12 mm/F1.4

• Built-in LED illuminator

• Built-in webserver: camera configuration through the website

• Video compression: H.264, H.265, H.264+, H.265+, MJPEG / G711

• Max. video resolution up to 1920 x1080

• Multi streaming: compression, resolution, speed and quality defined individually for each video

stream

• ROI functions

• Motion detection

• Private Zones

• RTSP protocol support for video transmission

• Schedule

• Micro SD card up to 256GB

• Wide range of responses to alarm events: e-mail with attachment, saving file on FTP server,

saving file on SD card,

• Electronic Shutter from 1/3 s to 1/100000 s.

• Supports up to 2 streams

• ONVIF Protocol Support

• Software: NMS (NOVUS MANAGEMENT SYSTEM) for video recording, live monitoring,

playback and remote IP devices administration

• Power supply: 12 VDC / PoE

• Two housing colors available

FOREWORD INFORMATION

NVIP-2H-6232-II Quick start guide version 1.0

1.2. Technical specification

FOREWORD INFORMATION


Image Sensor 2 MPX CMOS sensor 1/2.8” SmartSens

Number of Eecve Pixels 1920 (H) x 1080 (V)

Min. Illuminaon 0.006 lx/F1.4 - color mode, 0 lx (IR on) - B/W mode

Electronic Shuer auto: 1/3 s ~ 1/100000 s

Digital Slow Shuer (DSS) up to 1/3 s

Wide Dynamic Range (WDR) yes

Digital Noise Reducon (DNR) 3D

Highlight Compensaon (HLC) yes

Back Light Compensaon (BLC) yes

Reducon of image icker (Anicker) yes

LENS

Lens Type varifocal, f=2.8 ~ 12 mm/F1.4

DAY/NIGHT

Switching Type mechanical IR cut lter

Switching Mode auto, manual, me

Switching Level Adjustment yes

Switching Delay 2 ~ 120 s

Switching Schedule yes

Visible Light Sensor yes

NETWORK

Stream Resoluon 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 480 (VGA),

320 x 240 (QVGA)

Frame Rate 30 fps for 1920 x 1080 (Full HD) and lower resoluons

Mulstreaming Mode 2 streams

Video/Audio Compression H.264, H.264+, H.265, H.265+, MJPEG/G.711

Number of Simultaneous Connecons max. 3

Bandwidth 9 Mb/s in total

Network Protocols Support HTTP, IPv4, IPv4/v6, UDP, HTTPS, FTP, DHCP, DDNS, NTP, RTSP,

RTP, UPnP, SNMP, QoS, IEEE 802.1X, PPPoE, SMTP, RTCP

ONVIF Protocol Support Prole S

Camera Conguraon from Internet Explorer browser languages: Polish, English, Russian,

and others

Compable Soware NMS, N Control 6000

Mobile applicaons SuperLive Plus (iPhone, Android)

OTHER FUNCTIONS

Privacy Zones 4 video mask type: single color

Moon Detecon yes

Region of interest (ROI) 8

Video Content Analysis (VCA) tamper, abandoned object, object disappearance, line cross, Scene

Change, Video Blurred, Video Color Cast, intrusion detecon

Image Processing sharpening, mirror eect, vercal ip, horizontal ip

Prealarm/Postalarm up to 6 s/up to 120 s

System Reacon to Alarm Events e-mail, e-mail with aachment, saving le on FTP server, saving le

on SD card

Restoring default sengs via web browser, using reset buon, via NMS IPTool soware

NVIP-2H-6232-II Quick start guide version 1.0

FOREWORD INFORMATION

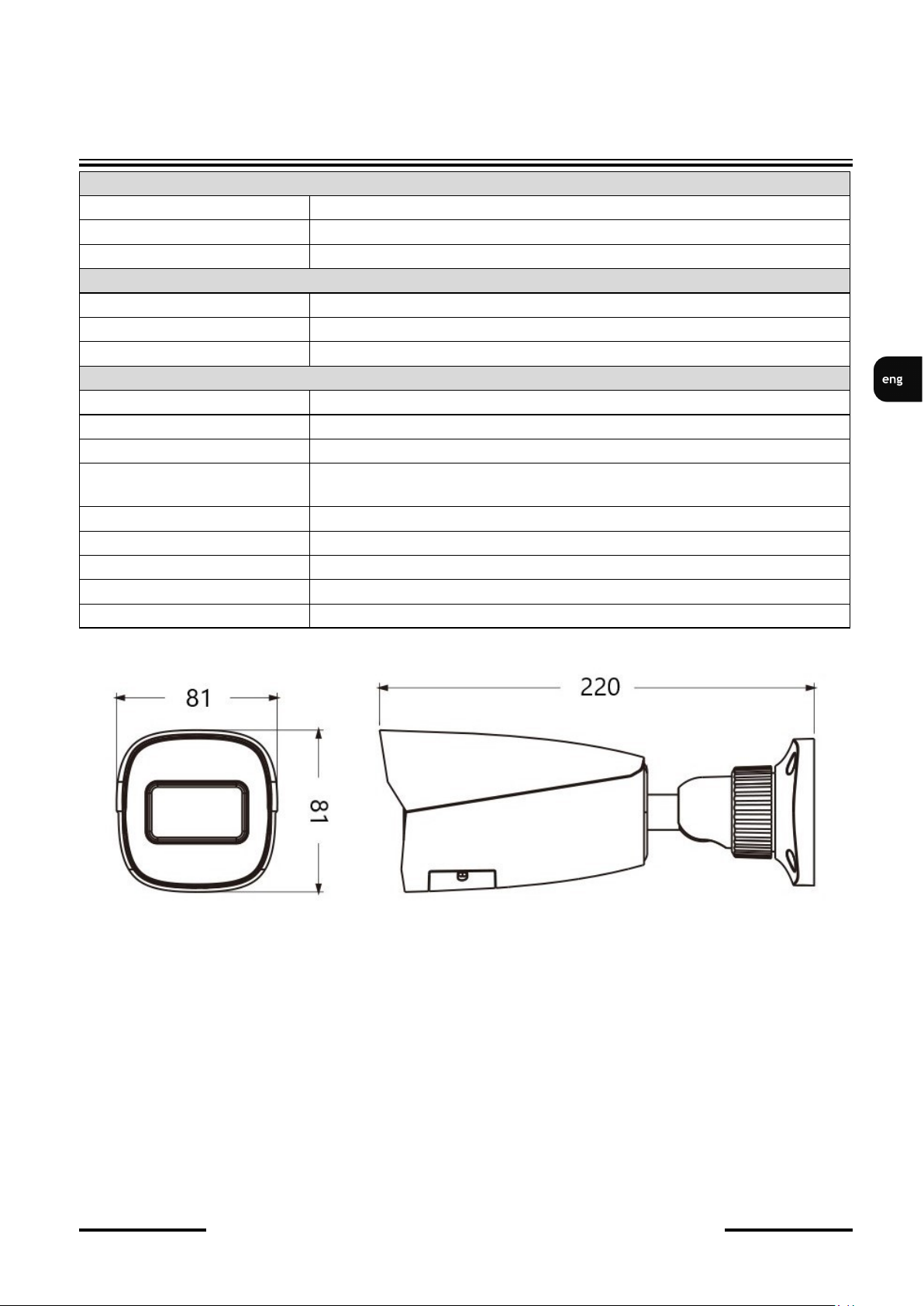

1.3. Camera dimensions (mm)

1.4. Package contents

After opening the package make sure that the following elements are inside:

• IP camera

• Accessories bag

• Short version of user’s manual

If any of this elements has been damaged during transport, pack all the elements back into the original

box and contact your supplier for further assistance.

CAUTION!

It is forbidden to use – as the camera power source – PoE equipment (adapters, etc.) not

compatible with IEEE 802.3af standard (items called “passive PoE power supply”). Damages

caused by the usage of improper power supply source are not covered by the warranty.

IR LED

LED Number 2

Range 50 m

Smart IR yes (soware support)

INTERFACES

Audio Input/Output 1 x Jack (3.5 mm)/-

Network Interface 1 x Ethernet - RJ-45 interface, 10/100 Mbit/s

Memory Card Slot microSD - capacity up to 256GB

INSTALLATION PARAMETERS

Dimensions (mm) with bracket: 81 (W) x 81 (H) x 220 (L)

Weight 0.66 kg

Degree of Protecon IP 67 (details in the user’s manual)

Enclosure aluminium, white or gray (NVIP-2H-6231-II/7043), fully cable managed wall

mount bracket in-set included, IK10 impact rang

Power Supply PoE, 12 VDC

Surge protecon TVS 4000 V

Power Consumpon 3 W, 7.5 W (IR on)

Operang Temperature -30°C ~ 60°C

Humidity max. 95%, relave (non-condensing)

NVIP-2H-6232-II Quick start guide version 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

2. START-UP AND INITIAL IP CAMERA CONFIGURATION

CAUTION!

If the device was brought from a location with lower temperature, please wait until it reaches

the temperature of location it is currently in. Turning the device on immediately after bringing it

from a location with lower ambient temperature is forbidden, as the condensing water vapour

may cause short-circuits and damage the device as a result.

Before starting the device familiarize yourself with the description and the role of particular

inputs, outputs and adjusting elements that the device is equipped with.

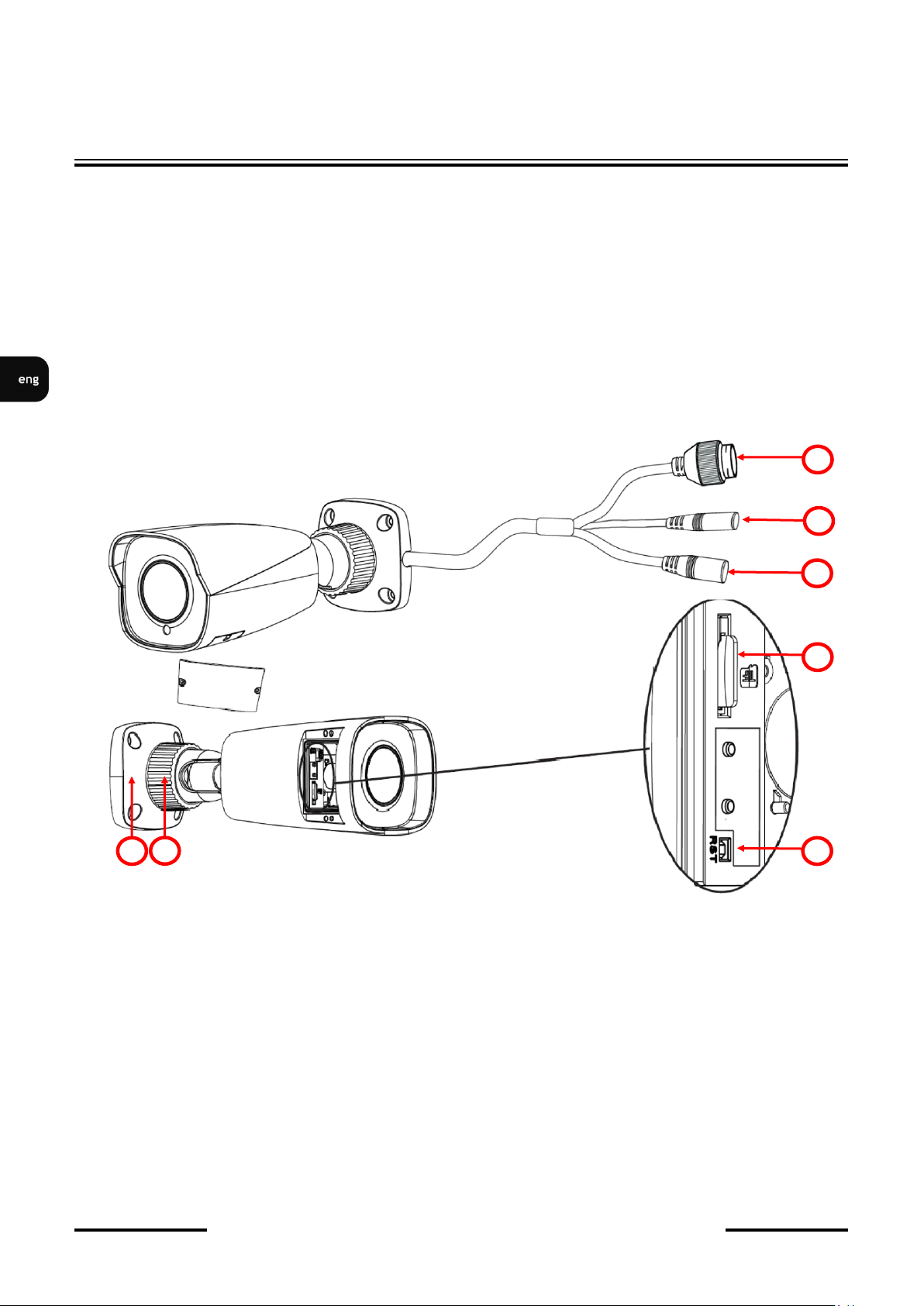

2.1 Description of connectors and control tools

1. 100 Mb/s Ethernet port (PoE RJ-45 connector)

2. Audio input (Jack 3.5 mm)

3. Power supply 12VDC

4. Base of camera

5. Counter nut

6. MicroSD card slot

7. Reset button

NVIP-2H-6232-II Quick start guide version 1.0

START-UP AND INITIAL IP CAMERA CONFIGURATION

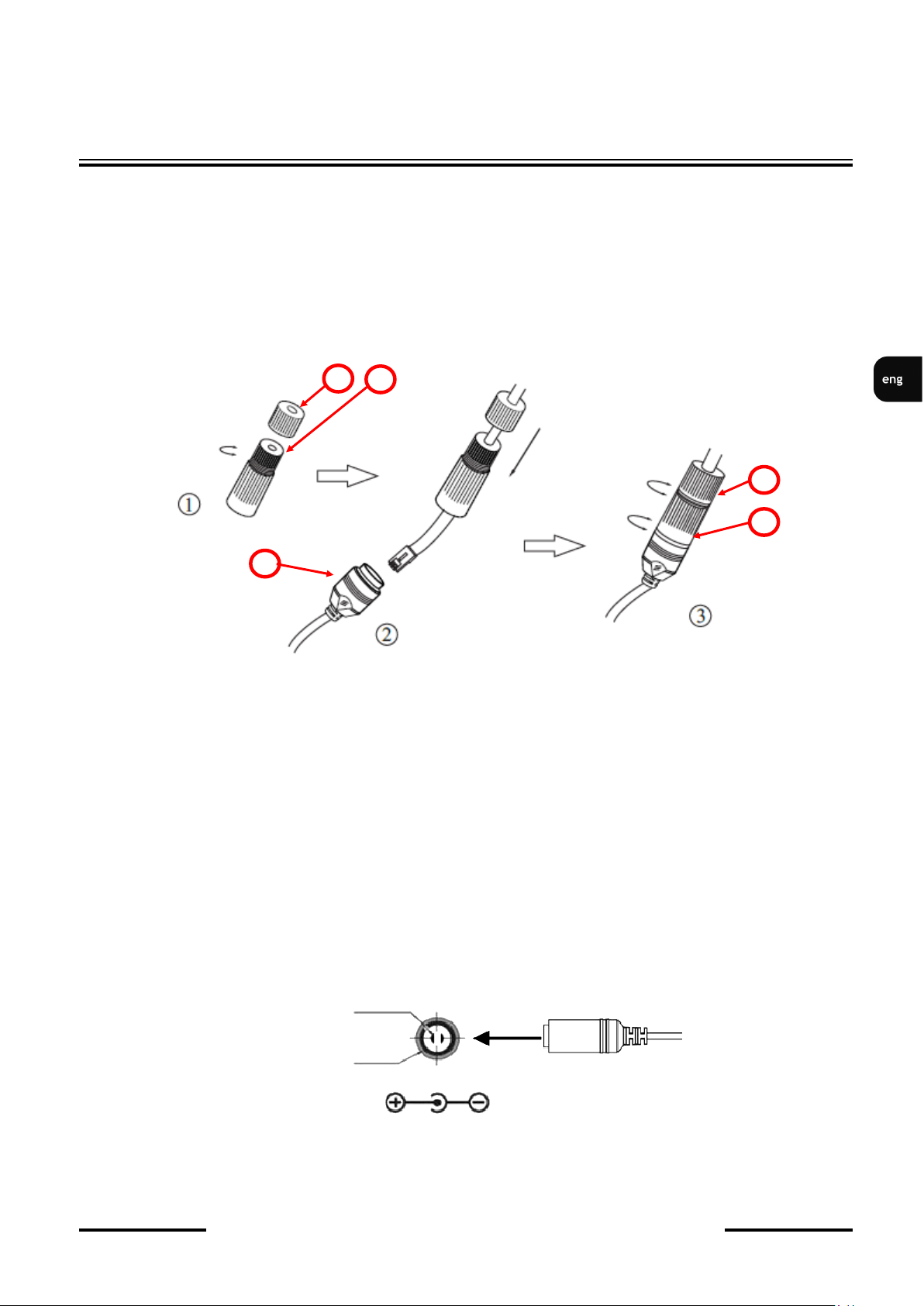

2.2. Ethernet cable connecting

To maintain tightness of ethernet cable connection, please follow instruction below:

1. Unscrew the nut (1) from the connector cover (2).

2. Route the network cable (without the RJ-45 plug) through the components (1) and (2), than crimp the

RJ-45 connector.

3. Plug the RJ-45 connector into the hermetic socket (3), screw the connector cover (2), and than the

nut (1).

CAUTION!

The declared degree of protection of the camera relates to its housing and does not take into

account the possibility of moisture infiltration into the camera by connection cables. Connection

cables protection through i.e. sealing up is the camera installer duty. The manufacturer is not

liable for any camera damages caused as a result of failing in performing that activity by

installer, which also means that camera damaged in that way is not subject to warranty repairs.

CAUTION!

Camera power supply connector is not hermetic. Installer should seal this connector by himself.

Camera can be supplied using external power supply unit corresponding with the camera parameters or

by using RJ45 network socket and PoE (802.3af) power supply unit. If you’re using external power

supply please connect wires according to polarisation shown on picture:

CAUTION!

In order to provide protection against voltage surges/lightning strikes, usage of appropriate surge

protectors is advised. Any damages resulting from surges are not eligible for service repairs.

12 VDC +

GND

Scheme of 12VDC power supply connector

NVIP-2H-6232-II Quick start guide version 1.0

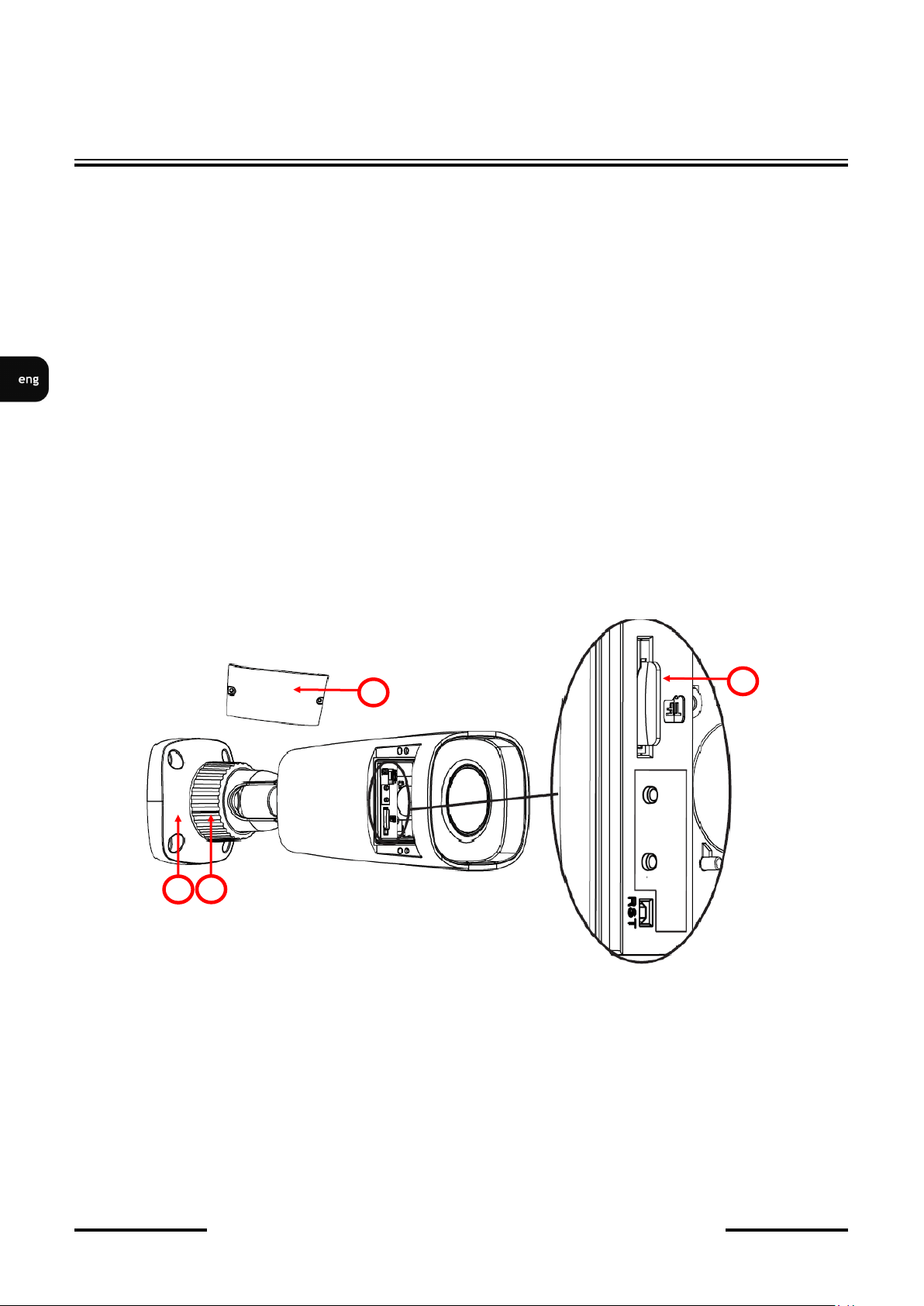

2.3. Camera mounting

To mount a camera please follow the instructions below:

• Unscrew the counter nut (2).

• Put the bracket to the wall in a desired mounting place (with cable hole). Take the drill pattern

and mark future drilling holes for screws and wires.

• Drill holes for screws, wires and base.

• Mount the camera base (1) using the supplied plugs and screws.

• If necessary, unscrew the camera service panel (3), mount microSD card in the socket (4) and

screw the camera service panel (3).

• Connect the camera wires.

• Adjust camera position, if necessary, unscrew the camera service panel (3), using Zoom/Focus

levers adjust the lens and screw the camera service panel (3).

• Tighten to the stop counter nut (2).

CAUTION!

Please note that the wall or ceiling must have enough strength to carry the IP Camera.

CAUTION!

In order to obtain declared degree of protection please seal the camera bracket to prevent water

getting inside. Furthermore, when installing the bracket on rough/uneven surfaces, please

additionally seal the junction with appropriate sealing mass. Please pay special attention to any

mounting holes and if they are a loop-through ones, seal them too.

START-UP AND INITIAL CAMERA CONFIGURATION

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Novus Caméra de sécurité

Novus

Novus NVIP-4H-6522M/F-II Manuel utilisateur

Novus

Novus NVIP-2H-6231-II Manuel utilisateur

Novus

Novus NVIP-5VE-6502M/F Manuel utilisateur

Novus

Novus NVIP-2DN2101V/IR-1P Manuel utilisateur

Novus

Novus NVIP-2DN3031AH/IR-1P Manuel utilisateur

Novus

Novus NVIP-2DN2006V/IR-1P Manuel utilisateur

Novus

Novus NVIP-3DN7540H/IRH-2P Manuel utilisateur

Novus

Novus NVIP-3DN3011H/IR-1P Manuel utilisateur

Novus

Novus NVIP-4SD-6550F Manuel utilisateur

Novus

Novus NVIP-2VE-6401 Manuel utilisateur

Novus

Novus NVIP-4H-6101/WL/LITE Manuel utilisateur

Novus

Novus NVIP-4DN3516D/IR-1P Manuel utilisateur

Novus

Novus 4000 series Manuel utilisateur

Novus

Novus NVIP-5DN3612H/IR-1P/F Manuel utilisateur

Novus

Novus NVIP-3DN7030SD/IRH-2P Manuel utilisateur

Novus

Novus NVIP-4DN2002V/IR-1P-II Manuel utilisateur

Novus

Novus NVIP-2VE-6501/F Manuel utilisateur

Novus

Novus NVIP-2H-6402M Manuel utilisateur

Novus

Novus NVIP-4VE-6501/F-II Manuel utilisateur

Novus

Novus NVIP-2DN5002V/IRH-1P Manuel utilisateur

Novus

Novus NVIP-5VE-6401/F Manuel utilisateur

Novus

Novus NVIP-2DN5021H/IRH-1P Manuel utilisateur

Novus

Novus NVAHD-2DN5102MD/IR-1 Manuel utilisateur

Novus

Novus NVIP-2DN3032V/IR-1P Manuel utilisateur

Manuels Caméra de sécurité populaires d'autres marques

Okina USA

Okina USA SIR36-870VF650LP Manuel utilisateur

Divio

Divio NDR155PA Manuel utilisateur

Canon

Canon VB-C500D Manuel utilisateur

Easy Access

Easy Access EasyGuard Manuel utilisateur

Vivotek

Vivotek FD9389-EHV-v2 Manuel utilisateur

TUYA

TUYA COSMO W2 Manuel utilisateur

Eusso

Eusso UNC7500-IR Guide de configuration

urmet domus

urmet domus 1096/204 Manuel utilisateur

VC VC20 series Manuel utilisateur

Axis

Axis Q1614 Manuel utilisateur

ieGeek

ieGeek DD201 Manuel utilisateur

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuel utilisateur

Vicon

Vicon V662-D-1 Mode d'emploi

Grundig

Grundig GCH-K0274P Manuel utilisateur

Lorex

Lorex VANTAGE LBC7032 Manuel utilisateur

4xem

4xem WPT Manuel utilisateur

Samsung

Samsung SCV-3082 Manuel utilisateur

Vitek

Vitek VTC-C544 Manuel utilisateur
