Aran / Burren Technical Manual
1 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Models: Aran: 505/506L |605/606L | 805/806L | 906L | 706L
Burren: 608/609L |808/809L | 908L | 708L | 710L
________________________________________________________________________
Aran Range
Burren Range
Aran / Burren Technical Manual
2 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400

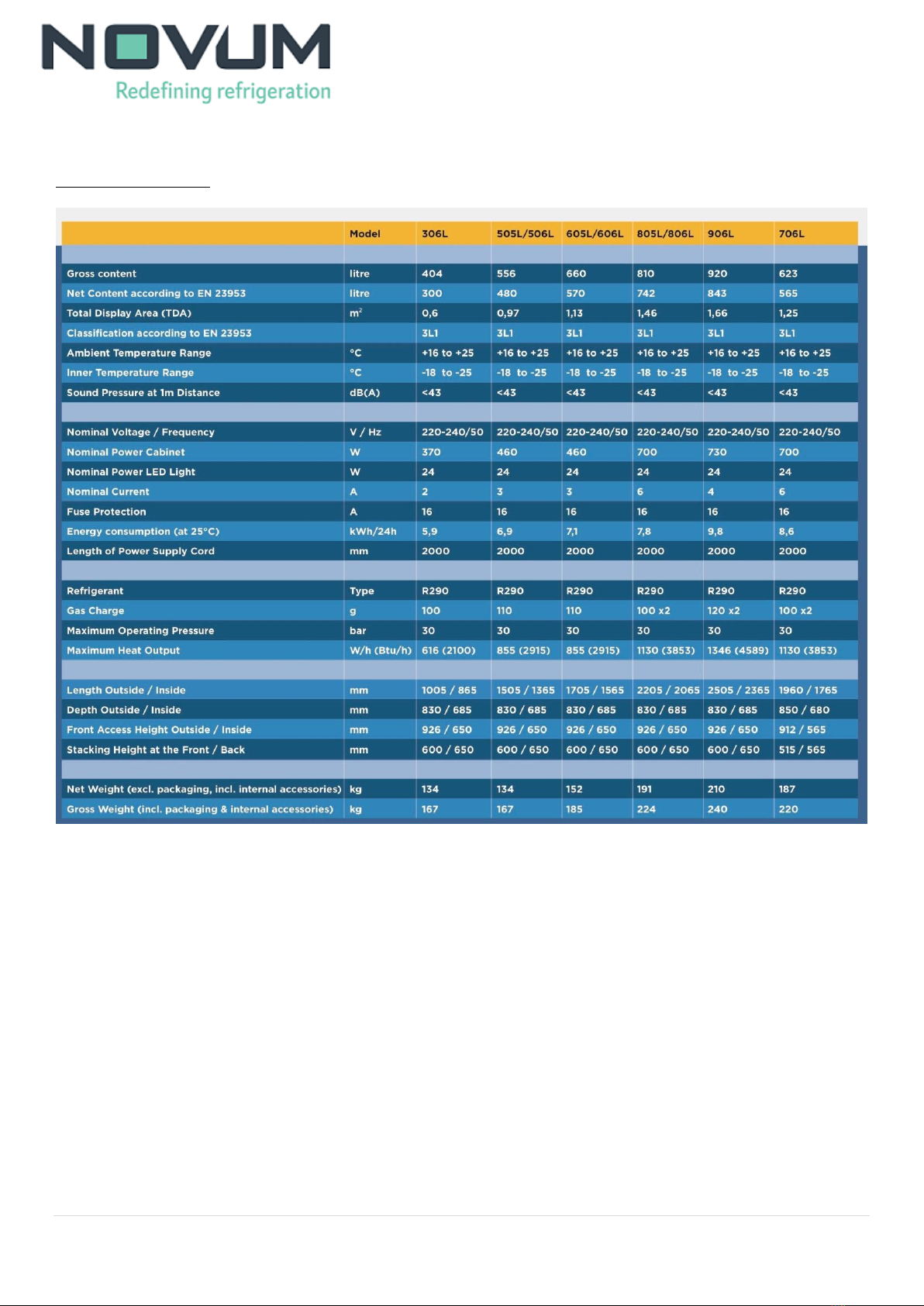

Specifications - Aran____________________________________________________________________
Aran / Burren Technical Manual
3 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400

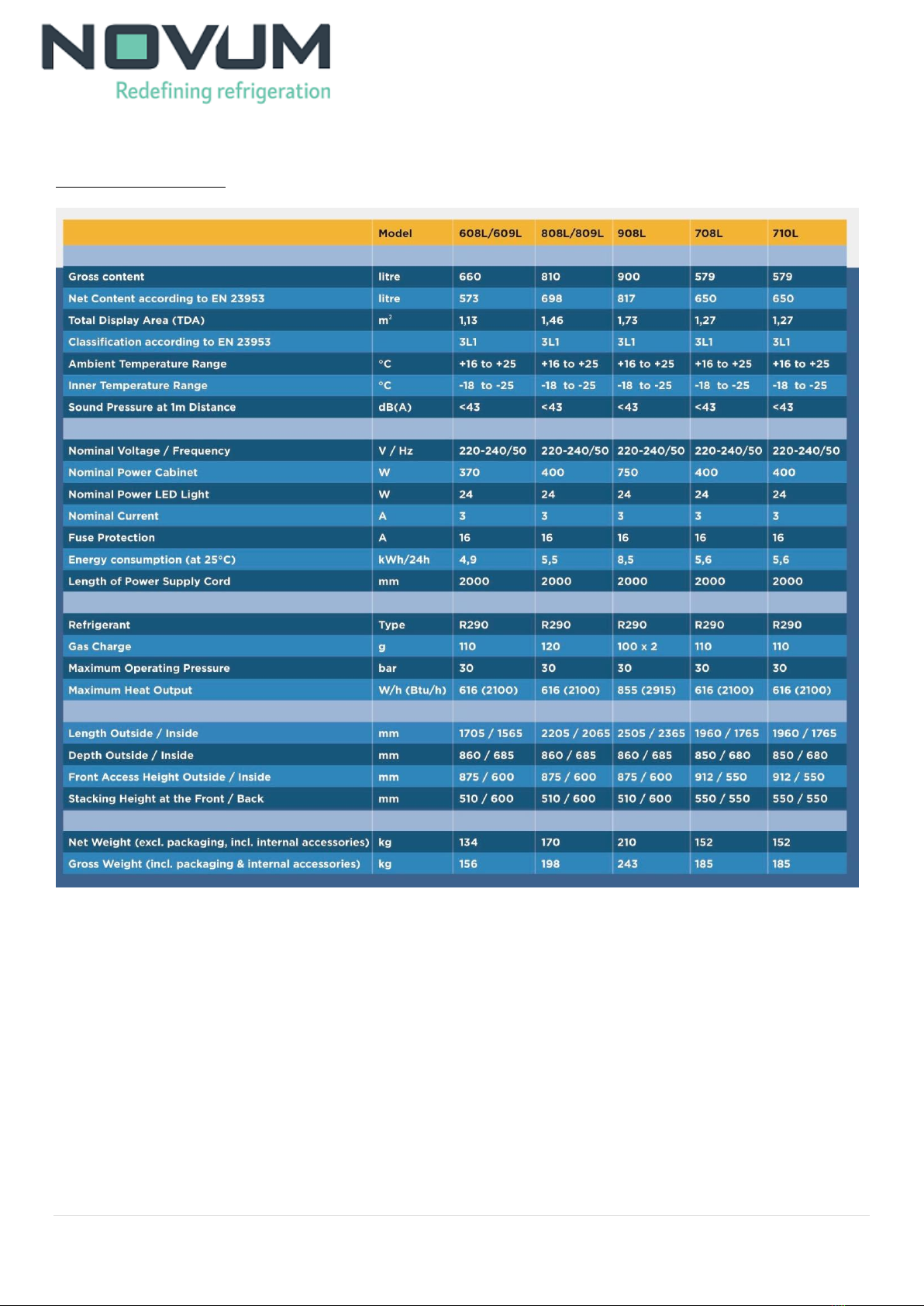

Specifications - Burren____________________________________________________________________
Aran / Burren Technical Manual
4 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Dimensions - Aran____________________________________________________________________
Aran / Burren Technical Manual
5 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Dimensions –Burren______________________________________________________________________
Aran / Burren Technical Manual
6 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Product Loading______________________________________________________________________
•Novum Cabinets are conservators in nature and can be used to store and display previously frozen food.
•NEVER merchandise product above the red load limit sticker.
•As soon as the Cabinet has reached a storage temperature of below -18°C (as indicated by the Electronic
Controller display), it can be loaded with Frozen Foods up to the maximum of the Load Limit line.
•Do not load the Cabinet with non-frozen foods or try to freeze products in the Cabinet.
•DO NOT LEAVE LID OPEN for extended periods during merchandising.
•Exercise due care when loading heavy product, do not damage internal liner.
•Exercise due care when loading product so as not to damage liner, particularly heavy product.
Universal Cabinets (Freezer / Chiller)________________________________________________________
For universal cabinets (Freezer & Chiller), there is a manual switch in the front control panel to switch
between freezer and chiller modes.
•The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities,
or lack of experience and knowledge, unless they have been given supervision or instruction.
•Children being supervised not to play with the appliance.
Aran / Burren Technical Manual
7 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Stand Alone / Single Row Installation_________________________________________________________
When the case is installed as stand-alone unit against a wall a minimum distance of 100mm must be
maintained between the back of the case and the wall to ensure air can enter the back of the case.
Aran / Burren Technical Manual
8 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Back to Back Installation____________________________________________________________
If two Aran cases are to be installed back to back, a ventilation panel must be fitted to ensure adequate airflow.
These are simply clipped into place. When an end of aisle case is fitted to an island configuration, an end of aisle
ventilation kit must be fitted.
Vent System__________________________________________________________________________
Top Vent.
•
Position cabinets back to back 250mm apart.
•
Drop vent panel into factory fitted receiving brackets.
End Panel
•
Secure End wall brackets to back panel using screws provided.
•
Push panel gently into brackets.
Aran / Burren Technical Manual
9 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
706 Vent System____________________________________________________________
Aran / Burren Technical Manual
10 | P a g e
Novum Overseas. The Novum Building. Clonshaugh Ind Est. Dublin 17. Ireland | [email protected] | +353 1 803 6400
Europe Rating
Brown
Live
Blue
Neutral
Green
Earth
Electrical Connections____________________________________________________________
All Cabinets must be wired as per international standards.
US Rating
Black
Live
Light grey, white or
silver
Neutral
Green
Earth
Notes:
•
If you are in any doubt concerning the electrical connection of your Novum
Conservator we recommend that you contact a qualified Electrician.
•
If the Supply Cord is damaged, it must be replaced by Novum, it’s Service
Agent or similarly qualified persons in order to avoid a hazard.
