About This Guide

This guide describes how to install, configure, and manage Novell® Business Continuity Clustering.

The guide is intended for cluster administrators and is divided into the following sections:

Chapter 1, “Overview,” on page 9

Chapter 2, “Installation and Setup,” on page 17

Chapter 3, “Virtual IP Addresses,” on page 47

Documentation Conventions

In this documentation, a greater-than symbol (>) is used to separate actions within a step and items

in a cross-reference path.

A trademark symbol (®, ™, etc.) denotes a Novell trademark. An asterisk (*) denotes a third-party

trademark.

When a single pathname can be written with a backslash for some platforms or a forward slash for

other platforms, the pathname is presented with a backslash. Users of platforms that require a

forward slash, such as UNIX*, should use forward slashes as required by your software.

8Novell Business Continuity Cluster Services 1.0 Administration Guide

novdocx (ENU) 10 August 2006

Overview

novdocx (ENU) 10 August 2006

Overview

As corporations grow more international, fueled in part by the reach of the World Wide Web, the

requirement for service availability has increased. Novell® Cluster Services™ offers corporations

the ability to maintain 24x7x365 data and application services to their users while still being able to

perform maintenance and upgrades on their systems.

In the past few years, natural disasters (ice storms, earthquakes, tornadoes, and fires) have caused

unplanned outages of entire data centers. In addition, US federal agencies have realized the

disastrous effects that terrorist attacks could have on the US economy when corporations lose their

data and the ability to perform critical business practices. This has resulted in initial

recommendations for corporations to build mirrored or replicated data centers that are

geographically separated by 300 km or more (minimum acceptable being 200 km).

Many companies have built and deployed geographically mirrored data centers. The problem is that

setting up and maintaining the two or more centers is a very manual process that takes a great deal of

planning and synchronizing. Even configuration changes have to be carefully planned and

replicated. One mistake and the redundant site is no longer able to effectively take over in the event

of a disaster.

1.1 Disaster Recovery Implications

The implications of disaster recovery are directly tied to your data. Is your data mission critical? In

many instances, critical systems and data drive the business. If these services stop, the business

stops. When calculating the cost of downtime, some things to consider are

File transfers and file storage

Calendaring and collaboration

Web hosting

Critical databases

Productivity

Reputation

Continuous availability of critical business systems is no longer a luxury, it is a competitive business

requirement.The Gartner Group estimates that 40% of enterprises that experience a disaster will go

out of business in five years and only 15% of enterprises have a full-fledged business continuity plan

that goes beyond core technology and infrastructure.

1.2 Disaster Recovery Implementations

There are two main Novell Cluster Services implementations that you can use to achieve your

desired level of disaster recovery. These include a stretch cluster and a cluster of clusters. The

Novell Business Continuity Cluster product automates some of the configuration and processes used

in a cluster of clusters.

10 Novell Business Continuity Cluster Services 1.0 Administration Guide

novdocx (ENU) 10 August 2006

1.2.1 Stretch Clusters vs. Cluster of Clusters

Stretch Clusters

A stretch cluster consists of one cluster in which the nodes in the cluster are located in

geographically separate areas. All nodes in the cluster must be in the same eDirectory™ tree. In this

architecture, the data is mirrored between two data centers that are geographically separated. All the

machines in both data centers are part of one cluster, so that if a disaster occurs in one data center,

the other automatically takes over.

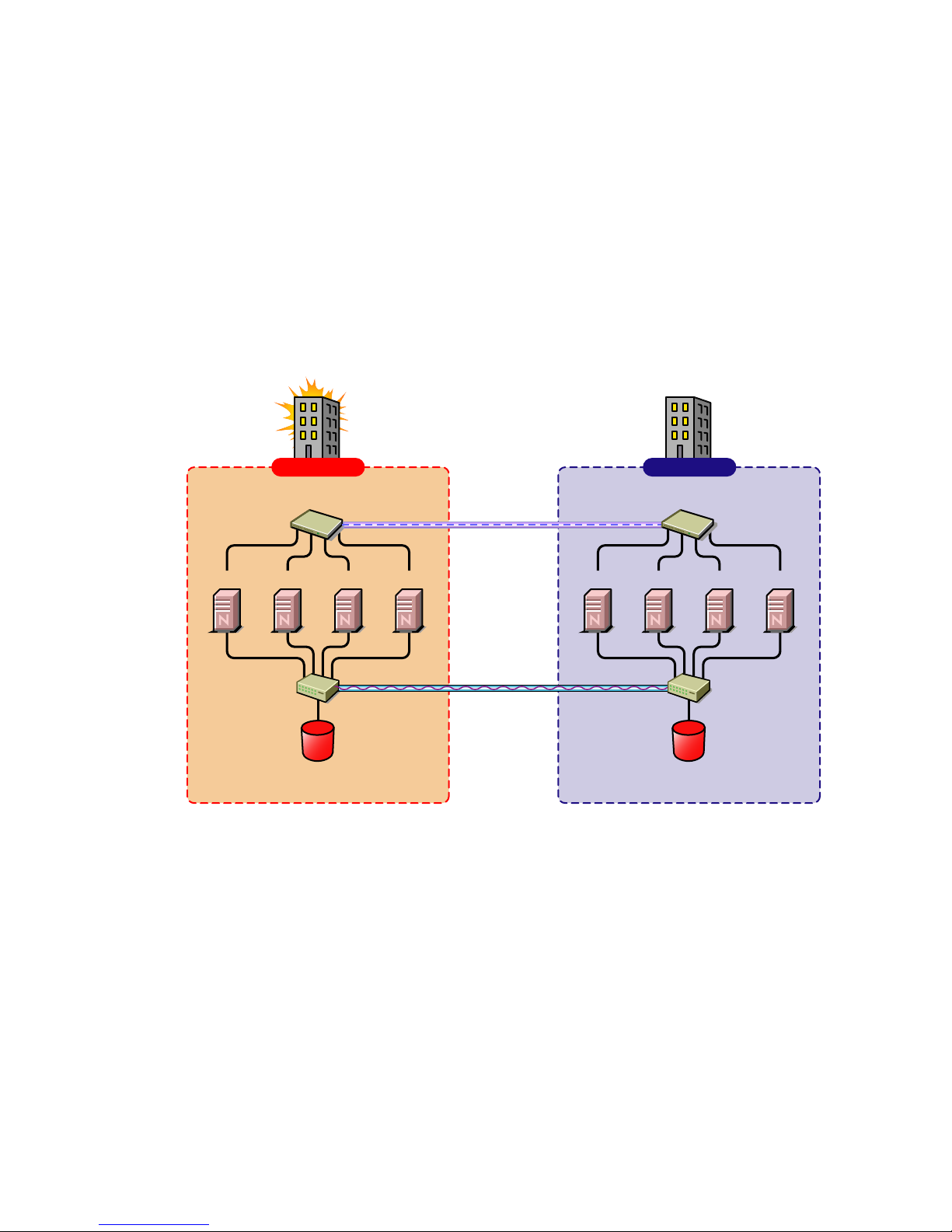

Figure 1-1 Stretch Cluster

Cluster of Clusters

A cluster of clusters consists of two or more clusters in which each cluster is located in a

geographically separate area. A cluster of clusters provides the ability to fail over selected or all

cluster resources from one cluster to another cluster. Typically, replication of data blocks between

Server 6 Server 7Server 5 Server 8

Fibre Channel

Switch

Building A Building B

Server 2 Server 3Server 1 Server 4

Fibre Channel

Switch

Fibre Channel

Disk Array

Disk blocks

WAN

Cluster

Heartbeat

8-node cluster stretched

between two sites

Site 2

SAN

Site 1

Ethernet Switch Ethernet Switch

Fibre Channel

Disk Array

Autres manuels pour BUSINESS CONTINUITY CLUSTERING 1.0 -...

Table des matières

Autres manuels Novell Logiciel

Novell

Novell GROUPWISE 7 - WEB ACCESS Manuel utilisateur

Novell

Novell GROUPWISE 8 - INTERNET AGENT Manuel utilisateur

Novell

Novell BUSINESS CONTINUITY CLUSTERING 1.1 SP1 - 9-21-2010 ADMINISTRATION GUIDE FOR OPEN ENTERPRISE SERVER 1 SP2... Mode d’emploi

Novell

Novell ZENWORKS 10 CONFIGURATION MANAGEMENT SP3 - COMMAND LINE UTILITIES REFERENCE 10.3... Manuel d'installation et d'exploitation

Novell

Novell ZENWORKS NETWORK ACCESS CONTROL 5.0 - ... Manuel utilisateur

Novell

Novell PLATESPIN ORCHESTRATE 2.0.2 - ADMINISTRATOR REFERENCE... Manuel utilisateur

Novell

Novell GROUPWISE 7 - SECURITY POLICIES Manuel utilisateur

Novell

Novell ZENWORKS PATCH MANAGEMENT 6.4 - AGENT Manuel utilisateur

Novell

Novell CLIENT FOR LINUX 1.2 Manuel utilisateur

Novell

Novell GROUPWISE 8 - WEBACCESS Manuel utilisateur

Novell

Novell ZENWORKS 10 CONFIGURATION MANAGEMENT SP3 - COMMAND LINE UTILITIES REFERENCE 10.3... Guide de référence rapide

Novell

Novell PLATESPIN ORCHESTRATE 2.0.2 - UPGARDE GUIDE... Manuel d'installation et d'exploitation

Novell

Novell GROUPWISE 8 - POST OFFICE AGENT Manuel utilisateur

Novell

Novell OPEN WORKGROUP SUITE SMALL BUSINESS EDITION 2.0 - ... Manuel utilisateur

Novell

Novell GROUPWISE 8 - MONITOR Manuel utilisateur

Novell

Novell OPEN ENTERPRISE SERVER 2.0 SP2 - UPGRADING TO OES-PLANNING AND IMPLEMENTATION GUIDE... Manuel utilisateur

Novell

Novell ZENWORKS SUITE 7SP1 IR4 - GETTING STARTED GUIDE... Manuel utilisateur

Novell

Novell XDASV2 - ADMINISTRATION GUIDE V1 Mode d’emploi

Novell

Novell ZENWORKS APPLICATION VIRTUALIZATION 8.0 - INTEGRATION AND STREAMING GUIDE... Manuel utilisateur

Novell

Novell IFOLDER 3.6 - SECURITY ADMINISTRATION Manuel utilisateur

Novell

Novell LINUX ENTERPRISE SERVER 11 - DEPLOYMENT Guide de référence rapide

Novell

Novell ACCESS MANAGER 3.1 SP1 - ADMINISTRATION Manuel utilisateur

Novell

Novell ZENWORKS 10 CONFIGURATION MANAGEMENT SP3 - PREBOOT SERVICES AND IMAGING REFERENCE 10.3... Manuel utilisateur

Novell

Novell ZENWORKS ENDPOINT SECURITY MANAGEMENT 3.5 Manuel utilisateur

Manuels Logiciel populaires d'autres marques

COMPRO

COMPRO COMPROFM Manuel utilisateur

Muratec

Muratec OFFICEBRIDGE ONLINE Manuel utilisateur

Oracle

Oracle Contact Center Anywhere 8.1 Manuel utilisateur

Adobe

Adobe 65007312 - Photoshop Lightroom Manuel

Avaya

Avaya NULL One-X for RIM Blackberry Manuel utilisateur

HP ProLiant BL420c Manuel utilisateur

PS Audio

PS Audio PowerPlay Manuel du propriétaire

Brady

Brady LOCKOUT PRO 3.0 Manuel de service

Avaya

Avaya Interaction Center Manuel utilisateur

Texas Instruments

Texas Instruments TI-83 Plus Silver Edition Manuel

Oracle

Oracle Application 9i Manuel utilisateur

Acer

Acer RDM Manuel utilisateur

Canon

Canon Vixia HF21 Manuel utilisateur

Canon

Canon ZR950 Manuel utilisateur

Samsung

Samsung Auto Backup Manuel utilisateur

Polycom

Polycom Vortex EF2201 Instructions d'installation et d'utilisation

Brocade Communications Systems

Brocade Communications Systems Brocade 8/12c Manuel utilisateur

Lexmark

Lexmark Apps Manuel de service
