Pulley Hangar

H O W T O

ASSEMBLE YOUR

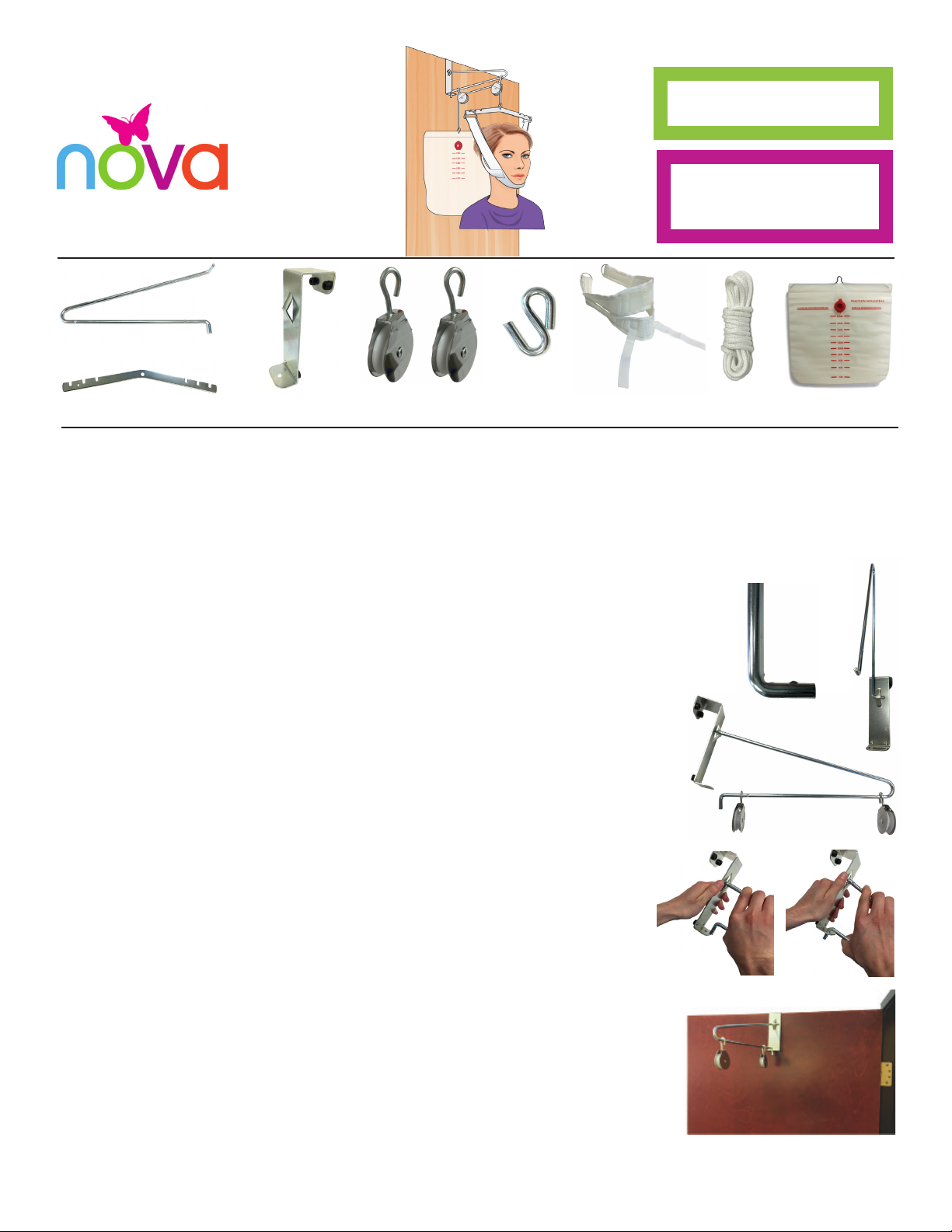

Remove all parts from box:

1 pulley hanger, 1 spreader bar, 1 door bracket, 2 pulley mechanisms, 1 S-hook,

1 head halter, 1 rope, and 1 weight bag

OverdoorTraction Set

Item # 6060-R

Capacity of weight bag not to exceed 20 lb

No tools required

All parts included

Spreader Bar Door Bracket S-hook Rope

Pulley

Mechanisms Head Halter Weight Bag

NOTE: It is much easier and safer to assemble this device with help from a second

person.

On one of the bent ends of the “PULLEY HANGER”, it will have a

locking notch on the side. With the “PULLEY HANGER”, turned

upwards, slide that end into the triangle opening of the door

bracket.

Once the locking notch slides completely through the “DOOR

BRACKET”, turn the “PULLEY HANGER” downwards and slide

on both “PULLEY MECHANISMS.

Squeeze the “PULLEY HANGER” and insert the bent end

into the hole at the bottom of the “DOOR BRACKET”.

Once assembled, install the “DOOR BRACKET” over the top

of an interior door. Ensure the “DOOR BRACKET” is centered

on the door and the top of the bracket is pushed all the way

down. Close the door after secured.

NOTE: Make sure that no one opens the door while you are

using the traction device. If possible, lock the door so that no

one can open it while you are attached to the traction device.

Easy to follow

step by step

instructions

Ensure that both “PULLEY MECHANISMS” are on

the outside of both locking notches as shown.

Using the “TRACTION ROPE”, tie a “Traction Knot” through the metal loop

hanger at the top of the “WEIGHT BAG”. Once the knot is tied, pull on both the

“TRACTION ROPE” and “WEIGHT BAG” to tighten the knot. Check the knot to

make sure it is secure. (Refer to steps A-D under “HOW TO TIE A TRACTION

KNOT”). Allow approximately 2 to 4 inches (5 to 10 centimeters) at the end. This

extra length of rope will allow you to adjust the knot if needed.

NOTE: The more weight that is put on the rope, the tighter the knot will get.

At the top of the “WEIGHT BAG”, open the red drainage cap and ﬁll the “WEIGHT

BAG” with the prescribed amount of water. Once ﬁlled, tightly close and seal the

red drainage cap.

Thread the free end of the “TRACTION ROPE” through both “PULLEY MECHANISMS”

with the “WEIGHT BAG” at the closest point to the door.

Using the “TRACTION ROPE” and “S-HOOK”, tie another “Traction Knot” through

the closed end of the “S-HOOK”. Once the knot is tied, pull on both the “TRACTION

ROPE” and “S-HOOK” to tighten the knot. Check the knot to make sure it is secure.

(Refer to steps A-D under “HOW TO TIE A TRACTION KNOT”). Allow approximately

2 to 4 inches (5 to 10 centimeters) at the end. This extra length of rope will allow

you to adjust the knot if needed.

NOTE: Before each use, ensure that all knots are tight, all hardware is secure, and

rope is not frayed. Ensure that the rope is in the pulley wheel grooves and moves

freely so that the rope does not come off-track and bind between the pulley

wheels and casing.

Locking Notches

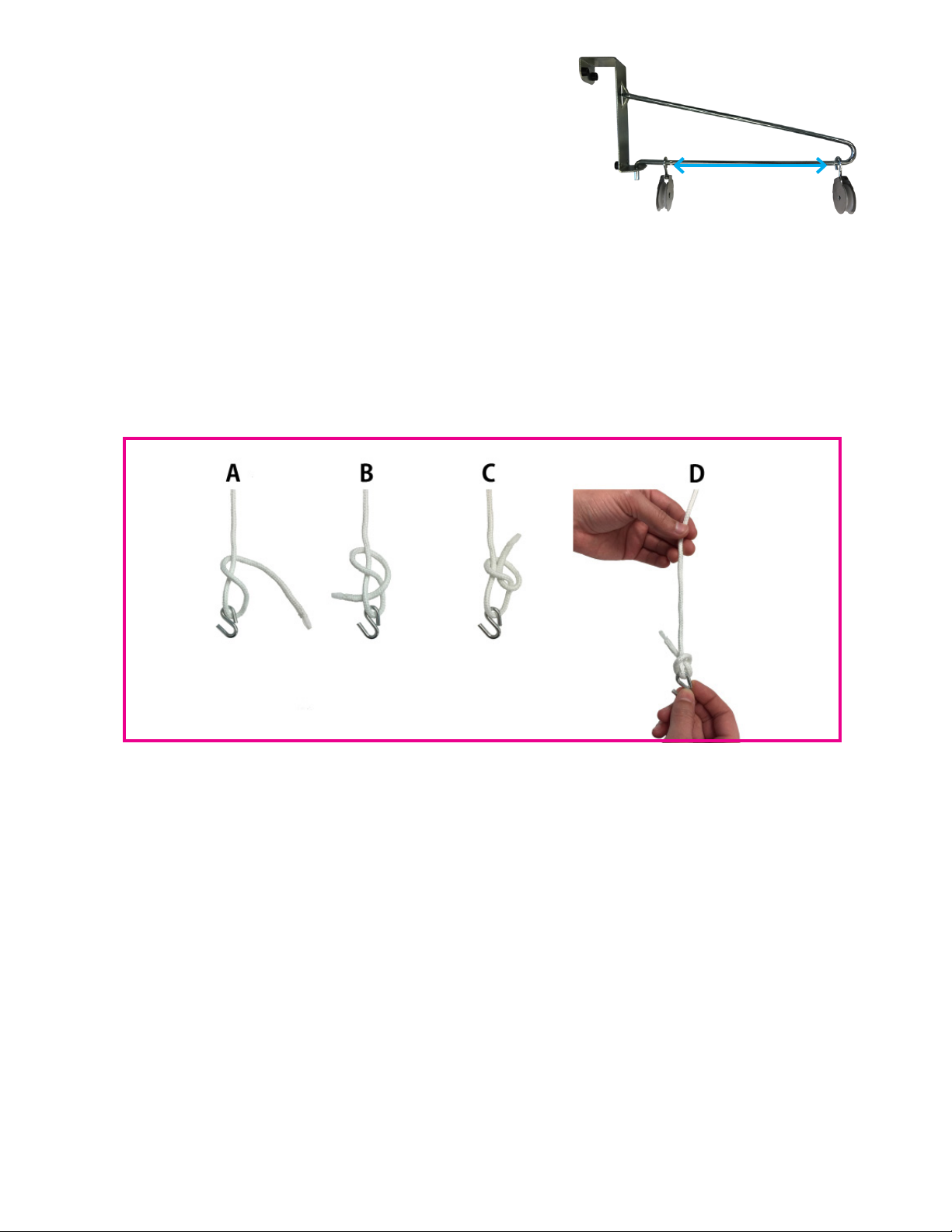

HOW TO TIE A TRACTION KNOT

11 Hook the open end of the “S-HOOK” through the center hole of the “SPREADER

BAR”.

NOTE: Check with your physician on placement either facing away from or

facing towards door and place accordingly

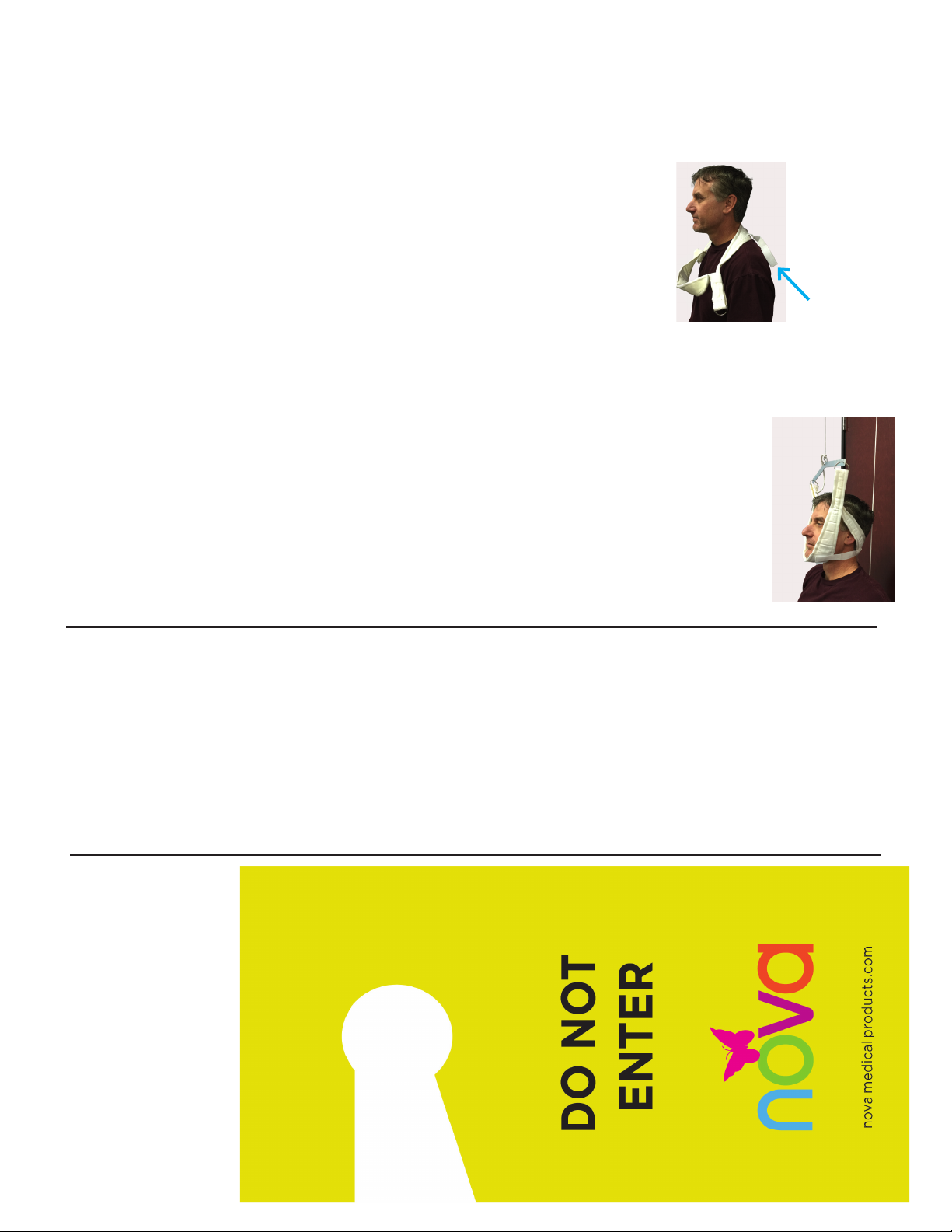

12 Unfasten the Velcro straps of the “HEAD HALTER” and

slip head through the opening. The part of the “HEAD

HALTER” that has the straps sewn onto it goes behind

the head. The Velcro straps should hang down.

On the opposite end of the “HEAD HALTER”, place chin on the padded portion of

the chin rest. Bring the Velcro straps under the ears and fasten the Velcro straps

underneath the chin rest along the jaw.

Place the metal D-rings of the “HEAD HALTER” evenly into one of

the three slots located on each side of the “SPREADER BAR”.

The D-rings must be placed into the same slot on each side of

the “SPREADER BAR”. If necessary, position a straight-back chair

against the door underneath the bracket and pulley assembly.

Otherwise, patient should stand under the bracket and pulley

assembly facing away from or towards the door.

NOTE: Each slot on the “SPREADER BAR” provides various

degrees of tension.

Velcro strap

How to care for your: Overdoor Cervical Traction Set

At the top of the “WEIGHT BAG”, open the red drainage cap and completely drain the

water. Once drained, leave the red drainage cap open to allow the bag to air dry. After

the “WEIGHT BAG” has dried, store the bag either ﬂat or rolled. DO NOT fold the bag.

Doing so can cause damage to the bag.

The ”TRACTION ROPE” and “HEAD HALTER” can be hand washed in cold

water. DO NOT machine wash or use harsh cleansers or bleach. Hang to air dry.

Cut out this Do

Not Enter sign

and hang on door

for safety when

using the

OverDoor

Traction Set.

NOVA stands rm on our commitment to providing the highest quality products, as well as exceptional service. This product was built to precise

standards and thoroughly inspected prior to shipment. This warranty represents our condence in the materials and workmanship of our

product. NOVA extends this warranty only to the original purchaser of this product. The warranty does not extend to any subsequent purchaser

or owner. The warranty is void upon any sale or transfer of ownership or use by other person. NOVA warrants its products are free from defects in

material and workmanship under NORMAL use for the period commencing upon the date of purchase and continuing for the following specied

period of time after that date:

Metal Frame - Limited Lifetime Warranty

Non-Metal/Metal parts - One Year Limited Warranty

(rubber tips, plastic or metal hardware)

This warranty does not cover problems due to user negligence, misuse of the product, failure to adhere to product instructions, or normal wear

and tear. Items that have been subject to negligent abuse, modied without prior written authorization are not covered within this warranty.

For warranty service, please contact the dealer from whom you purchased your NOVA product. In the event that you do not receive satisfactory

service, please call us directly at the number on the bottom front of this sheet. Be prepared to indicate, the nature of the defect, the product

serial number, and the name and location of where you purchased the product. You will also be required to provide a receipt of your purchase.

DO NOT return any products to our oce without prior consent.

Repair or replacement is the only remedy under this limited warranty. This warranty does not include any labor or shipping charges incurred in

replacement part installation or repair of product.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, IMPLIED WARRANTIES, IF ANY, INCLUDING THE IMPLIED

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. NOVA SHALL NOT BE LIABLE FOR ANY SEQUENTIAL OR

INCIDENTAL DAMAGES WHATSOEVER.

WARRANTY INFORMATION

IMPORTANT WARNING

READ THESE DIRECTIONS CAREFULLY BEFORE USE.

FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.

WARNING: The 6060-R Over Door Cervical Traction Set can be dangerous if not used correctly. This

product is not a toy. KEEP AWAY FROM CHILDREN. Failure to do so could result in injury. Use only under

the care and instruction of a physician or contact a health-care professional before using. If you do not

CARE •QUALITY •INNOVATION

THE NOVA PROMISE

Connect with NOVA!

novamedicalproducts.com

facebook: novamedicalprod

twitter: novamedicalprod

twitter: novawalkerstalk

youtube: NOVA Medical Products

info@novajoy.com

1 800 557 6682
