Noritz NRC83-DV Manuel utilisateur

NORITZ America Corporation

Gas Water Heater

NRC83 (-DV, -OD)

NRC98 (-DV, -OD)

NRC1111/NCC1991(-DV,-OD)

NR981/NC199(-DVC,-OD,-SV)

NR83-DVC

Field Manual

•Refer to this manual whenever performing service or

maintenance on this appliance.

•This manual will be used for service technician training seminars.

•The specifications and descriptions in this manual may be

changed without prior notice.

•For further assistance, contact Noritz Technical Support at

1-866-766-7489.

Do not short circuit any safety device on

this appliance

Rev: October, 2012

Contents

Important Safety Information.................................................................................................... 2

1. Features.............................................................................................................................. 3

2. Speciﬁcations/Performance Table....................................................................................... 4

3. Dimensions......................................................................................................................... 7

4. Components ....................................................................................................................... 9

5. Troubleshooting.................................................................................................................. 26

•Error Codes and Checkpoints......................................................................................... 26

•Remote Controller........................................................................................................... 27

•Displaying Maintenance Monitors ................................................................................... 27

•Maintenance Monitor List................................................................................................29

•Gas Line Requirements...................................................................................................26

• Water Treatment ............................................................................................................. 32

• Periodic lnspection ......................................................................................................... 33

• Periodic Maintenance ..................................................................................................... 34

•Changing Default Temperature Setting........................................................................... 36

6. Installation Check.............................................................................................................. 40

KS-11-0004

Important Safety Information

To prevent damage to property and injury to the user, the icons below warn of

varying levels of risk.

Caution

Warning Ignoring this indication will cause an immediate danger of death or

serious injury.

Ignoring this indication may result in death or serious injury.

Prohibited.

1. Safety Tips for Service

•Wear the appropriate clothing and protective gear:

In order to prevent injury or accident, wear a protective helmet, safety boots and a

lifting belt whenever necessary.

Caution

•Use only the appropriate tools and parts:

Warning Only use replacement parts manufactured by Noritz for this model as listed in the

Installation Manual Parts List for service on this unit. Use appropriate tools.

•Modi cation of the unit is prohibited:

Do not attempt to modify or alter the unit. This will cause a re hazard and a risk of

electrical shock.

•When servicing:

Warning Disconnect the power supply during maintenance and repairs to reduce the risk

of electric shock. If it is necessary to have the electricity connected during repairs,

use extreme caution not to touch parts that may cause a shock.

•Do not short circuit any safety device on this appliance:

If a safety device is not functioning properly, replace the part. Do not under any cir-

cumstances short circuit the part.

•Exhaust and gas leakage caution:

Warning Always check for leaks when installing or modifying the exhaust vent or gas piping.

2. Post-Service Checks

•Check parts for leaks:

Caution eh tr eh t ehwf osse l d r age rskae l t suahxer o, r e t aw, sagone r ae r eh tt ah tmr r i f noC service performed could have caused them.

If the unit is installed indoors, check that the flue collar and vent pipe are installed

correctly and that they are in good condition. Confirm that there are no gas, water

or exhaust leaks regardless of whether the service performed could have caused

them.

•Check for combustibles:

Caution After service or maintenance is completed, check that there are no combustibles in

the vicinity of the unit.

•Check insulation resistance:

Warning After service or maintenance is completed, measure the resistance between the

electrical wires and ground. If it is less than 10MΩ, there is a risk of electrical

shock.

•Properly reconnect the power supply:

Warning Confirm that the power supply has been reconnected properly after service or

maintenance is completed. Also confirm that there is no dust or other obstacles

that might cause an electric shock or a fire hazard.

1. Features

1. Quick Connect Multi System

•Allows the simple installation of up to 2 units linked together using a Quick Connect Cord

CCP Valve

System controller

2. Maximum Remote Controller Length (Only one remote controller can be connected.)

•Remote controller (1 unit): Cord can be extended up to 300' with 18AWG wire.

* Note: In a Quick Connect Multi-System, only one remote controller will be installed.

3. Temperature Lockout Function

•The remote controller can be set to restrict the maximum allowable temperature setting for added safety.

See "Changing Default Temperature Setting" section for details.

4. Elevation Adjustment

• The water heater can be quickly conﬁgured for installations above 2000' by simply adjusting dip switches inside

of the unit. No additional equipment or adjustments are necessary. See the "Installation Manual" for details.

Not required

2. Speciﬁcations/Performance Table

Speciﬁcations

Speciﬁcation

NRC98-DV NRC98-OD

Indoor Wall Mounted Outdoor Wall Mounted

Direct Ignition

15-150 psi

0.5 GPM (2 L/min.)

24.2" (615mm) x 18.3" (464mm) x 9.4" (240mm)

58 lbs. 57 lbs.

0.5 Gallon (1.8L)

3/4"

3/4”

1/2” Threaded

120 VAC (60Hz)

NG : 73W LP : 78W

Freeze Prevention 213W

Zinciﬁed Steel Plate/Polyester Coating

PVC Stainless Steel

Copper Sheeting, Copper Tubing

Stainless Steel Sheeting, Stainless Steel Tubing

Flame Rod, Thermal Fuse, Lightning Protection

Device (ZNR), Overheat Prevention Device, Freezing

Prevention Device, Fan Rotation Detector

Remote Controller, Remote Controller Cord,

Anchoring Screws

Item

Model Name

Type

Ignition

Operating Pressure

Minimum Flow Rate

Dimensions (Height) x (Width) x (Depth)

Weight

Water Holding Capacity

Accessories

Installation

Air Supply/Exhaust

Connection Sizes

Power Supply

Materials

Water Inlet

Hot Water Outlet

Gas Inlet

Condensate Drain

Safety Devices

Casing

Flue Collar

Primary Heat Exchanger

Secondary Heat Exchanger

Supply

Consumption

Power Vented

NG : 64W LP : 68W

Freeze Prevention 203W

Speciﬁcation

Direct Ignition

15-150 psi

0.5 GPM (2 L/min.)

24.2" (615mm) x 18.3" (464mm) x 9.4" (240mm)

58 lbs. 57 lbs.

0.5 Gallon (1.8L)

3/4"

3/4”

1/2” Threaded

120 VAC (60Hz)

NG : 58W LP : 64W

Freeze Prevention 213W

Zinciﬁed Steel Plate/Polyester Coating

PVC Stainless Steel

Copper Sheeting, Copper Tubing

Stainless Steel Sheeting, Stainless Steel Tubing

Flame Rod, Thermal Fuse, Lightning Protection

Device (ZNR), Overheat Prevention Device, Freezing

Prevention Device, Fan Rotation Detector

Remote Controller, Remote Controller Cord,

Anchoring Screws

Item

Model Name

Type

Ignition

Operating Pressure

Minimum Flow Rate

Dimensions (Height) x (Width) x (Depth)

Weight

Water Holding Capacity

Accessories

Installation

Air Supply/Exhaust

Connection Sizes

Power Supply

Materials

Water Inlet

Hot Water Outlet

Gas Inlet

Condensate Drain

Safety Devices

Casing

Flue Collar

Primary Heat Exchanger

Secondary Heat Exchanger

Supply

Consumption

NRC83-DV NRC83-OD

Indoor Wall Mounted Outdoor Wall Mounted

Power Vented

NG : 51W LP : 54W

Freeze Prevention 203W

NRC98(-DV/-OD)

NRC83(-DV/-OD)

NRC1111(-DV,-OD)/ NCC1991(-DV,-OD)

Installation Indoor/Outdoor,

Wall Mounted

Indoor/Outdoor,

Wall Mounted

Air Supply/Exhaust

Connection Sizes Water Inlet

Hot Water Outlet

Gas Inlet

Power Supply Supply

NG : 81W NG : 78W

LP : 83W LP : 80W

Materials Casing

Flue Collar

Heat Exchanger

0.5 GPM

24.4"(Height) x 18.3"(Width) x 9.4"(Depth)

66 lbs.

0.5 Gallon

3/4"

Power Vented

Direct Ignition

15-150 psi

NRC1111-OD

NCC1991-OD

Type

Item

Ignition

Operating Pressure

NRC1111-DV

NCC1991-DV

68 lbs.

3/4"

120 VAC (60Hz)

Freeze Prevention 223W

PVC

Copper Sheeting, Copper Tubing

Flame Rod, Thermal Fuse, Lightning Protection Device (ZNR), Overheat Prevention

Device, Freeze Prevention Device, Fan Rotation Detector

Anchoring Screws

Model Name

Safety Devices

Accessories

Minimum Flow Rate

Dimensions

Weight

Water Holding Capacity

Consumption

Installation

Outdoor,

Wall Mounted

Air Supply/Exhaust

23.6"(Height) x 13.8"(Width) x

11.0"(Depth)

54 lbs. 58 lbs.

Water Inlet

Hot Water Outlet

Gas Inlet

Supply

NG : 65W NG : 65W NG : 80W

LP : 69W LP : 67W LP : 83W

Casing

Flue Collar

Heat Exchanger

Anchoring Screws

Item

Model Name

Type

Ignition

Operating Pressure

Water Holding Capacity

Safety Devices

Accessories

Connection Sizes

Power Supply

Consumption

Materials

0.5 GPM

NR981-OD

NC1991-OD

NR981-DVC

NC1991-DVC

Dimensions

Weight

Minimum Flow Rate

Indoor,

Wall Mounted

Power Vented

NR981-SV

Direct Ignition

15-150 psi

Copper Sheeting, Copper Tubing

Flame Rod, Thermal Fuse, Lightning Protection Device (ZNR), Overheat Prevention Device, Freeze

Prevention Device, Fan Rotation Detector

23.6"(Height) x 13.8"(Width) x

9.4"(Depth)

Freeze Prevention 161W

3/4"

120 VAC (60Hz)

Stainless Steel

0.2 Gallon

Freeze Prevention 193W

Remote Controller, Remote Controller Cord, Anchoring Screws

NR981-SV

Outdoor,

Wall Mounted

NR981(-SV,-OD,-DVC)/ NC1991(-OD,-DVC)

Speciﬁcation

NR83-DVC

Indoor Wall Mounted

Power Vented

Direct Ignition

15-150 psi

0.5 GPM (2 L/min.)

23.6" (600mm) x 13.8" (350mm) x 9.4" (240mm)

49 lbs.

0.2 Gallon (0.95L)

3/4"

120 VAC (60Hz)

NG : 82W LP : 90W Freeze Prevention 161W

Zinciﬁed Steel Plate/Polyester Coating

Stainless Steel

Copper Sheeting, Copper Tubing

Flame Rod, Thermal Fuse, Lightning Protection

Device (ZNR), Overheat Prevention Device, Freezing

Prevention Device, Fan Rotation Detector

Anchoring Screws

Item

Model Name

Type

Ignition

Operating Pressure

Minimum Flow Rate

Dimensions (Height) x (Width) x (Depth)

Weight

Water Holding Capacity

Accessories

Installation

Air Supply/Exhaust

Connection Sizes

Power Supply

Materials

Water Inlet

Hot Water Outlet

Gas Inlet

Safety Devices

Casing

Flue Collar

Heat Exchanger

Supply

Consumption

NR83-DVC

Performance

Maximum Performance

Minimum Performance

Maximum Hot Water Capacity 45°F Rise

Default Temperature Options 120, 130, 140°F (Original is 120°F) 120, 130, 140, 185°F (Original is 120°F)

Temperature Settings (Using the Remote Controller)

100 - 140°F (In 5°F intervals),

(9 Options) 100 - 150°F (In 5°F intervals),

160, 170, 185°F (14 Options)

NRC1111-DV NRC1111-OD NCC1991-DV

Gas Consumption NG : 199,900 btuh LP : 199,900 bt

NG : 16,000 btuh LP : 16,000 btu

8.4 Gal./min.

Capacity Range

Item

0.5 - 11.1 Gal./min.

NCC1991-OD

Maximum Performance

Minimum Performance

Maximum Hot Water Capacity 45°F Rise

Default Temperature Options 120, 130, 140°F (Original is 120°F) 120, 130, 140, 185°F (Original is 12

0°F)

Temperature Settings (Using the Remote Controller)

100 - 140°F (In 5°F intervals),

(9 Options) 100 - 150°F (In 5°F intervals),

160, 170, 185°F (14 Options)

NC1991-DVC

Gas Consumption NG : 199,900 btuh LP : 199,900 bt

NG : 16,000 btuh LP : 16,000 btu

7.5 Gal./min.

Capacity Range

Item

0.5 - 9.8 Gal./min.

NC1991-OD

NR981-DVC / NR981-OD / NR981-SV

Item

Gas

Consumption

Maximum Hot Water Capacity

Capacity Range

Temperature Settings

Default Temperature Options

Maximum Performance

Minimum Performance

45°F (25°C) Rise

NRC98-DV

NG : 180,000 btuh LP : 180,000 btuh

NRC98-OD

NG : 16,000 btuh LP : 16,000 btuh

7.5 GPM (28.2 L/min.)

0.5-9.8 GPM (2-37.0 L/min.)

100-140°F (In 5°F intervals) (9 Options)

°F Mode:

°C Mode: 37-48°C (In 1°C intervals),

50,55,60°C (In 5°C intervals) (15 Options)

120°F (50°C), 130°F (55°C), 140°F (60°C)

(Original is 120°F (50°C))

Item

Gas

Consumption

Maximum Hot Water Capacity

Capacity Range

Temperature Settings

Default Temperature Options

Maximum Performance

Minimum Performance

45°F (25°C) Rise

NRC83-DV

NG : 157,000 btuh LP : 157,000 btuh

NRC83-OD

NG : 16,000 btuh LP : 16,000 btuh

6.6 GPM (25.0 L/min.)

0.5-8.3 GPM (2-31.4 L/min.)

100-140°F (In 5°F intervals) (9 Options)

°F Mode:

°C Mode: 37-48°C (In 1°C intervals),

50,55,60°C (In 5°C intervals) (15 Options)

120°F (50°C), 130°F (55°C), 140°F (60°C)

(Original is 120°F (50°C))

Item

Gas

Consumption

Maximum Hot Water Capacity

Capacity Range

Temperature Settings

Default Temperature Options

Maximum Performance

Minimum Performance

45°F (25°C) Rise

NR83-DVC

NG : 180,000 btuh LP : 180,000 btuh

NG : 18,000 btuh LP : 18,000 btuh

6.7 GPM (25.4 L/min.)

0.5-8.3 GPM (2-31.4 L/min.)

100-140°F (In 5°F intervals) (9 Options)

50,55,60°C (Original is 50°C)

120,130,140°F (Original is 120°F)

°F Mode:

°C Mode:

37-48°C (In 1°C intervals),

50,55,60°C (In 5°C intervals) (15 Options)

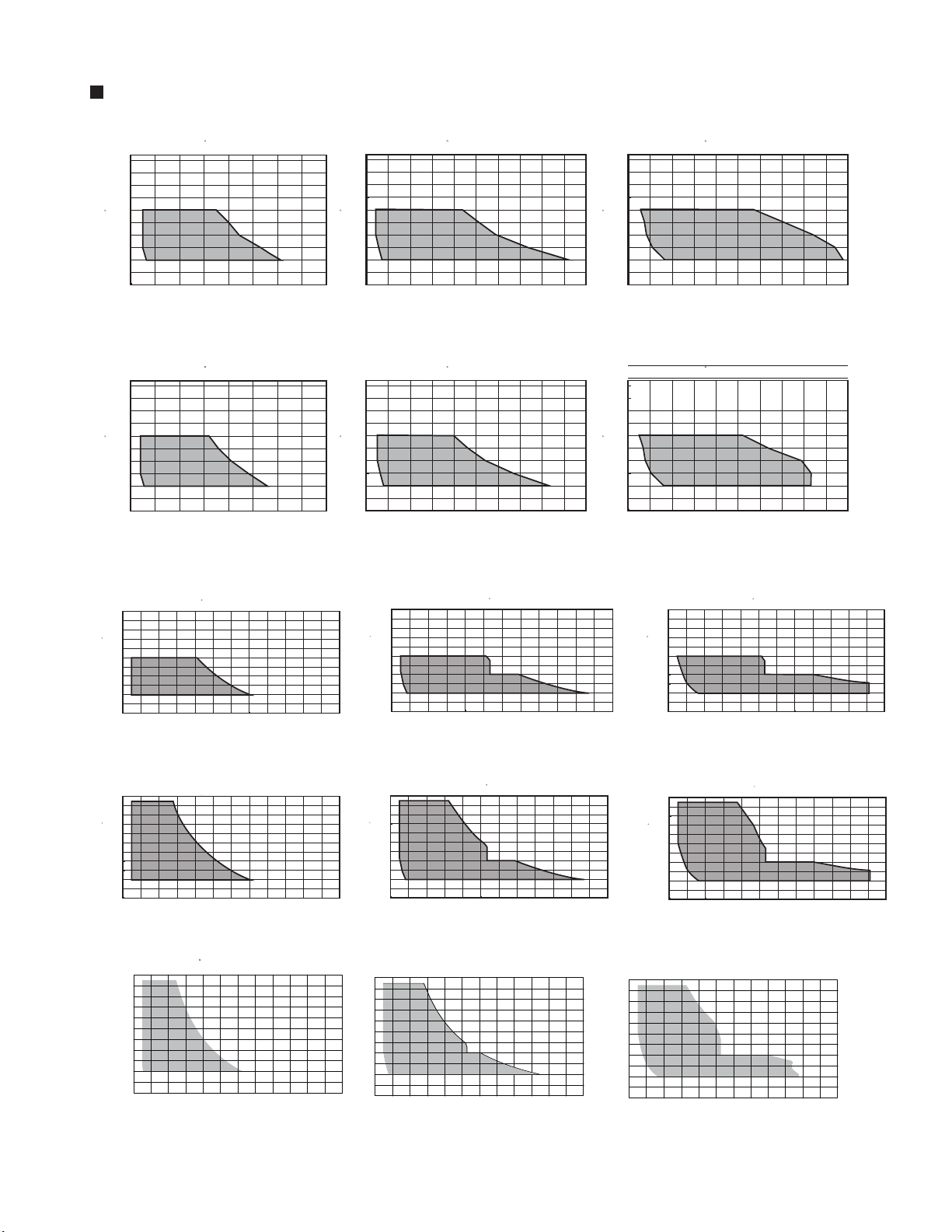

Hot Water Supply Capabillities

[Winter] Inlet water temp. 46 F [Spring/Fall] Inlet water temp. 64 F [Summer] Inlet water temp. 82 F

Set temperature ( F)

800 1 2 3 4 5 6 7 8

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

80 0 1 2 345 6 7 8 9 10

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

80 0 1 2 3 4 5 6 7 8 9 10

100

110

120

130

140

150

160

170

180

Set temperature ( F)

Flow Rate (GPM)

[Winter] Inlet water temp. 46 F [Spring/Fall] Inlet water temp. 64 F [Summer] Inlet water temp. 82 F

Set temperature ( F)

800 1 2 3 4 5 6 7 8

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

80 0 1 2 345 6 7 8 9 10

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

80 0 1 2 3 4 5 6 7 8 9 10

100

110

120

130

140

150

160

170

180

Set temperature ( F)

Flow Rate (GPM)

< NRC83 Series >

< NRC98 Series >

<NCC1991-DV,NCC1991-OD>

9 10 11 12

Set temperature ( F)

800 1 2 345 6 7 8

100

110

120

130

140

150

160

170

180

190

Flow Rate (GPM)

[Spring / Fall] Inlet water temp. 64 F

9 10 11 12

Set temperature ( F)

800 1 2 345 6 7 8

100

110

120

130

140

150

160

170

180

190

Flow Rate (GPM)

[Summer] Inlet water temp. 82 F

Set temperature ( F)

800 1 2 345 6 7 8 9 10 11 12

100

110

120

130

140

150

160

170

180

190

Flow Rate (GPM)

[Winter] Inlet water temp. 46 F

9 10 11 12

Set temperature ( F)

800 1 2 345 6 7 8

100

110

120

130

140

150

160

170

180

190

Flow Rate (GPM)

[Spring / Fall] Inlet water temp. 64 F

9 10 11 12

Set temperature ( F)

800 1 2 3 4 5 6 7 8

100

110

120

130

140

150

160

170

180

190

Flow Rate (GPM)

[Summer] Inlet water temp. 82 F

<NRC1111-DV,NRC1111-OD>

Set temperature ( F)

800 1 2 345 6 7 8 9 10 11 12

100

110

120

130

140

150

160

170

180

190

Flow Rate (GPM)

[Winter] Inlet water temp. 46 F

<NC1991-OD, NC1991-DVC>

190

[Winter] Inlet water temp. 46 F

Flow Rate (GPM)

80 0 1 2 3 4 5 6 7 8 9 10 11 12

130

140

150

160

170

180

120

110

100

Flow Rate (GPM)

[Spring / Fall] Inlet water temp. 64 F

800 1 3 4 5 6 7 8 9 10 11 12

130

140

150

160

170

180

120

110

100

Flow Rate (GPM)

[Spring / Fall] Inlet water temp. 64 F

800 1 3 4 5 6 7 8 9 10 11 12

130

140

150

160

170

180

120

110

100

190

Flow Rate (GPM)

190

[Summer] Inlet water temp. 82 F

800 1 2 3 4 5 6 7 8 9 10 11 12

130

140

150

160

170

180

120

110

100

Hot Water Supply Capabillities

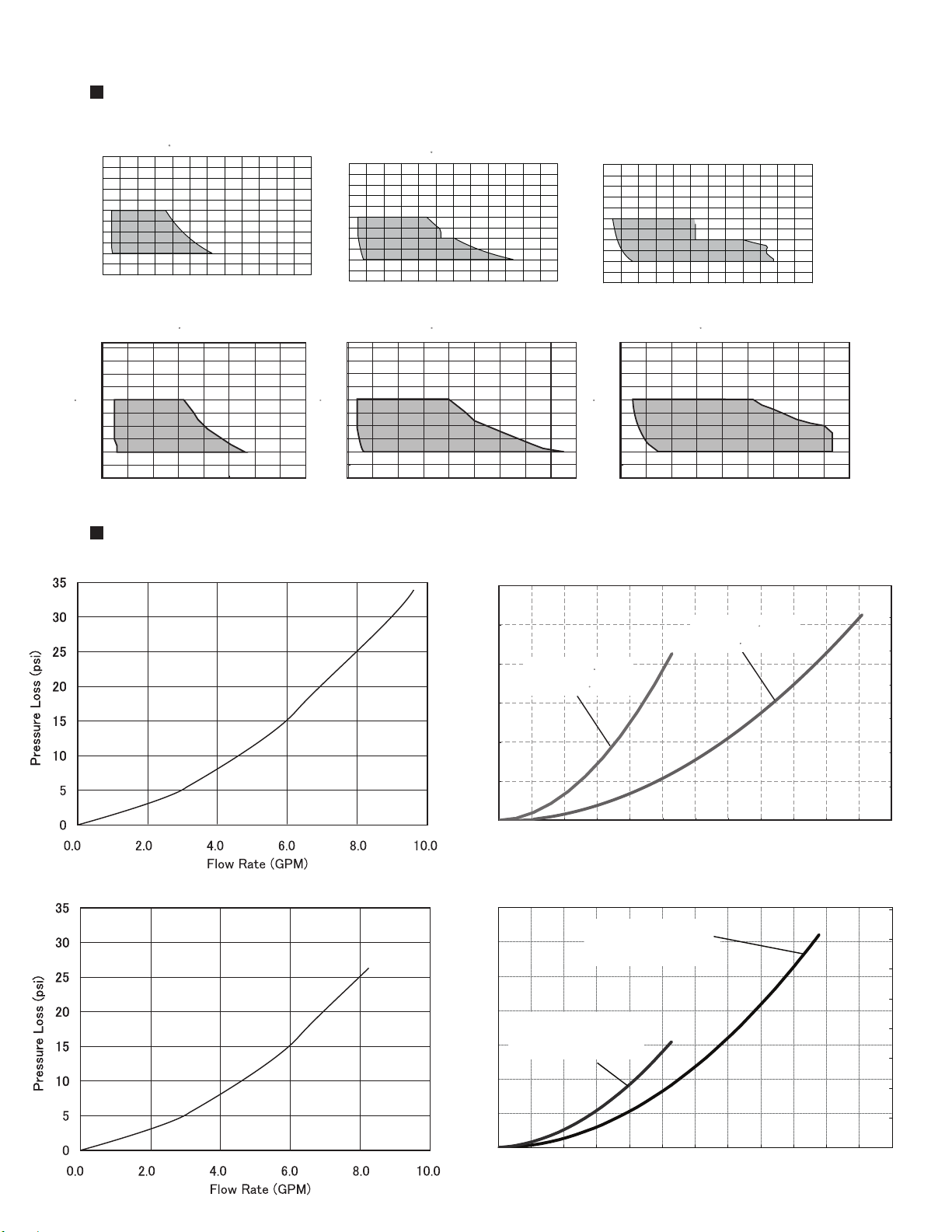

Pressure Loss Characteristics

< NRC98 Series >

< NRC83 Series >

<NR981-OD, NR981-DVC, NR981-SV>

190

[Winter] Inlet water temp. 46 F

80 0123456789101112

130

140

150

160

170

180

120

110

100

Flow Rate (GPM)

190

[Spring / Fall] Inlet water temp. 64 F

80 0123456789101112

130

140

150

160

170

180

120

110

100

Flow Rate (GPM)

190

[Summer] Inlet water temp. 82 F

80 0123456789101112

120

110

100

130

140

150

120

160

170

180

0.0 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0

Flow rate [GPM]

Pressure loss [psi]

Pressure loss [Ft. of head]

Bypass Flow Control Valve Close

Set temperature : 125F or higher

(Storage Tank Setting W/ System

Controller : 170-185 F)

Bypass Flow Control Valve Open

Set temperature : 120F or less

(Storage Tank Setting W/ System

Controller : 160 F or less)

1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0

Flow Rate (GPM)

Pressure Loss (Ft. of head)

Bypass flow control valve Open

Set temperature : 120ﾟF or less

(storage Tank Setting W/ System

Controller : 160ﾟF or less)

Bypass flow control valve Close

Set temperature : 125ﾟF or higher

storage Tank Setting W/ System

Controller : 170-185ﾟF)

[Winter] Inlet water temp. 46 F [Spring/Fall] Inlet water temp. 64 F [Summer] Inlet water temp. 82 F

Set temperature ( F)

80012345678

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

80 01234567810

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

Set temperature ( F)

80 01234567810

100

110

120

130

140

150

160

170

180

Flow Rate (GPM)

<NR83-DVC>

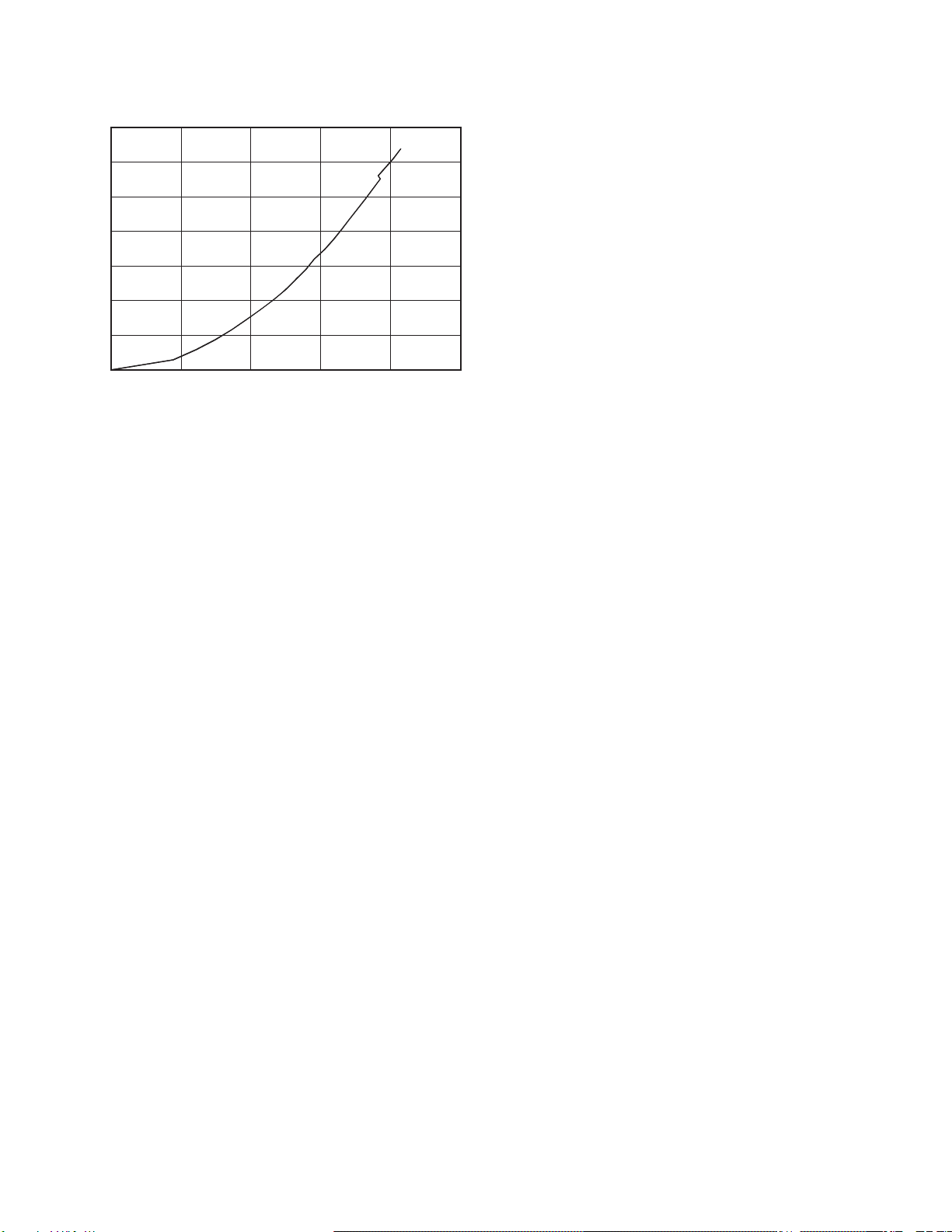

Pressure Loss (psi)

0.0 2.0 4.0 6.0 8.0 10.0

Pressure Loss (psi)

Flow Rate (GPM)

< NR83-DVC>

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Noritz Chauffe-eau

Noritz

Noritz GQ-C3259WZ-FF US Manuel utilisateur

Noritz

Noritz N-084M Manuel utilisateur

Noritz

Noritz NCC199-DV Manuel utilisateur

Noritz

Noritz NR71-SV Manuel utilisateur

Noritz

Noritz NRCP1112-DV Manuel utilisateur

Noritz

Noritz NC1991-DVC Manuel utilisateur

Noritz

Noritz proTOUGH NR981-OD Manuel d'utilisation et d'entretien

Noritz

Noritz GQ-2857WX US Manuel utilisateur

Noritz

Noritz GQ-2457WS US Manuel utilisateur

Noritz

Noritz NC1991-DVC Manuel utilisateur

Noritz

Noritz N-0841MC Manuel utilisateur

Noritz

Noritz GQ-C3259WX-FF US Manuel utilisateur

Noritz

Noritz NR662-OD-LP Manuel utilisateur

Noritz

Noritz NC250-SV-ASME Manuel utilisateur

Noritz

Noritz NR111-SV Manuel utilisateur

Noritz

Noritz N-084M-DV Manuel d'instructions

Noritz

Noritz GQ-2857WX-FFA US Manuel utilisateur

Noritz

Noritz NRCP111-DV Manuel utilisateur

Noritz

Noritz NR662-OD Manuel utilisateur

Noritz

Noritz NRC98-DV Manuel utilisateur

Noritz

Noritz N-0842MC Manuel utilisateur

Noritz

Noritz NR50-OD Manuel utilisateur

Noritz

Noritz NC199-OD Manuel utilisateur

Noritz

Noritz proTOUGH NR83OD Manuel utilisateur

Manuels Chauffe-eau populaires d'autres marques

Kenmore

Kenmore 153.582400 Manuel utilisateur

Applimo

Applimo Edel AIR Manuel utilisateur

STIEBEL ELTRON

STIEBEL ELTRON Eltronom SHU 5 S Manuel utilisateur

clage

clage E-Mini Series Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-180 Manuel utilisateur

Bradford White

Bradford White EF Series Manuel utilisateur

Eccotemp

Eccotemp 40-H Manuel utilisateur

Dimplex

Dimplex ECSd125-580 Mode d’emploi

Dux

Dux 32FCR6N Manuel utilisateur

Toyotomi

Toyotomi Oil Miser OM-148 (Type D) Guide de dépannage

TESY

TESY GCV7/4S 10047 Fiche technique

A.O. Smith

A.O. Smith Gphe 50 Manuel utilisateur

Koryo

Koryo KWHZF15Y Manuel utilisateur

Pentair

Pentair PSC-14-4-02 Manuel utilisateur

GE 40M06AAG Instructions de montage

Thermor

Thermor AEROMAX SPLIT 2 Manuel utilisateur

American Hometec

American Hometec AHQ-B03X Manuel utilisateur

PVI

PVI MAXIM Manuel utilisateur
