NordicTrack SL 710 Manuel utilisateur

Patent Pending

Model No. NT007941

Soda1 No.

SeriaUNumber

DecaU

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction, if you

have questions, or if there are

missing parts, we wil! guarantee

satisfaction through direct assis-

tance from our factory.

TO AVOID DELAYS, PLEASE

CALL DIRECT TO OUR TOLL-

FREE CUSTOMER NOT LINE.

The trained technicians on our

customer hot line will provide

immediate assistance, free of

charge to you.

CUSTOMER HOT LINE:

1°877°993°7999

Mon.=Fd., 6 a.m.=6 p.m. MST

_CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

:visit ourw÷bsiteat

www.nordictrackocom

new products, prizes,

fitness tips, and much more r.

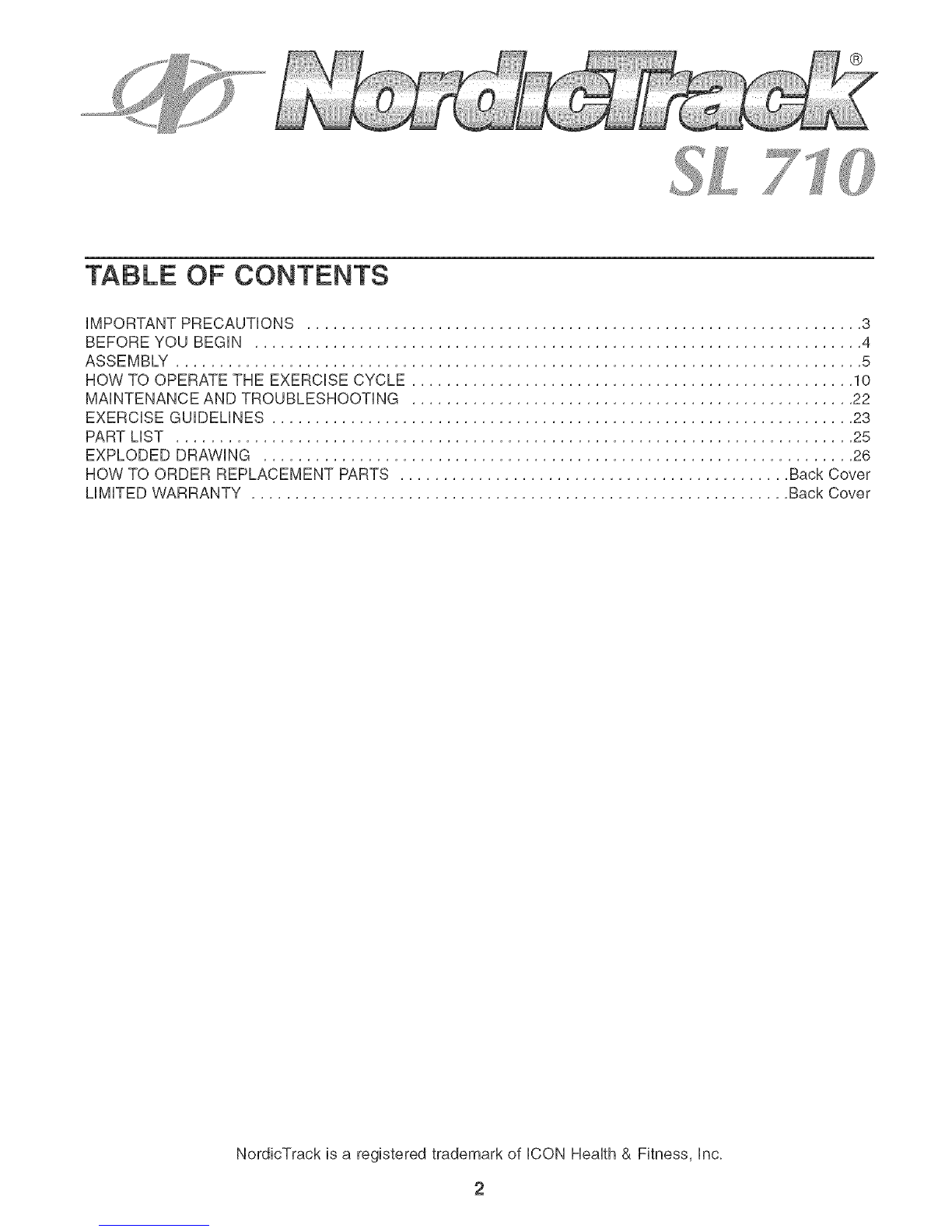

TABLE OF CONTENTS

iMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO OPERATE THE EXERCISE CYCLE ................................................... 10

MAINTENANCE AND TROUBLESHOOTING ................................................... 22

EXERCHSE GUHDELHNES ................................................................... 23

PART LiST .............................................................................. 25

EXPLODED DRAWHNG .................................................................... 26

HOW TO ORDER REPLACEMENT PARTS ............................................. Back Cover

LiMiTED WARRANTY .............................................................. Back Cover

NordicTrack is a registered trademark of iCON Health & Fitness, inc.

iMPORTANT PRECAUTmONS

A WARN ING: Toreducethe.skofseriousinjury, readthefollowing important precau-

tionsbefore using the exercise cycle.

1. Read aH instructions in this manuaJ before 7. Wear euitabJe clothing when using the

using the exercise cyeJe. Use the exercise

cycle onJy as described.

2. It is the responsibility of the owner to

ensure that aH users of the e×ereise cycle

are adequately informed of all precautions.

exercise cycle; do not wear loose clothing

that couJd become caught on the e×ercise

cycle. Always wear atHetic shoes.

8. Always keep your back straight when using

the exercise cycle. Do not arch your back.

3. Use the exercise cycJe indoors on a mevel 9. if you feel pain or dizziness while e×ercia°

surface. Keep the exercise cycJe away from ing, stop immediately and cooJ down.

moisture and dust. Place a mat under the

exercise cycle to protect the floor or carpet. 10. The puJse sensor is not a medicaJ device.

Various factors, including the user's move-

4. inspect and properly tighten alJ parts regu-

larly. FlepJace any worn parts immediately.

5. Keep children under the age of 12 and pets

away from the exercise cycle at aH times.

6. The exercise cycle should not be used by

persons weighing more than 250 pounds.

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general

11. The exercise cycle is intended for in-home

use onJy. Do not use the exercise cycle in a

commercial, rental, or institutional setting.

"_ WARNING: Beforebeg,nn_ngthisoranyexerciseprogram,eonsultyourphysician.Th,a

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read aH instructions before using, mCONassumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Congratulations for selecting the new NordicTrack _

SL 710 exercise cycle, Cycling is one of the most

effective exercises for increasing cardiovascular fit-

ness, building endurance, and toning the entire body,

The NordicTrack _ SL 710 offers an impressive array

of features designed to let you enjoy this healthful

exercise in the comfort and privacy of your home,

For your benefit, read this manual carefully before

you use the exercise cycle, if you have questions

after reading this manual, call our Customer Service

Department toll-free at 1-877-993-7999, Monday

through Friday, 6 a,m, until 6 p,m, Mountain Time

(excluding holidays), To help us assist you, mention

the product model number and serial number when

calling, The model number is NTC07941, The serial

number can be found on a decal attached to the exer-

cise cycle (see the front cover of this manual for the

location of the decal),

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below,

Water Bottle

Bookrack

Fan

Console

Pulse Sensor

Seat FRONT

Seat Knob

Backrest

Wheel

Seat Handle

REAR

Leveling Foot *No water bottle is included

ASSEMBLY

Assembly requires two persons. Hace all parts of the exercise cycle in a cbared area and remove the packing

materiab, Do not dispose of the packing materiab until assembly is compbted,

Assembly requires the included tools and your own adjustable wrench ©___./_.

Use the drawings below to identify the small parts used during assembly, The number in parenthesis below each

drawing is the key number of the part, from the PART LiST on page 25, The number following the key number is

the quantity needed for assembly, Note: Some small parts may have been pre-assembJed. [fa part is not in

the parts bag, check to see if it has been pre-assembled.

i' I¸¸ _i

M8 Split M6 Washer M8 Nylon MIO Nylon

Washer (55)-12 (60)-5 Locknut (89)-4

M10 Split

Washer (88)-2

M4 x 16mm

Screw (57)-5 M6 x 20mm Button

Screw (20)-6

M8 x 40mm Button

Screw (54)-8

M6 x 45mm Button

Screw (80)-1

_"\]

ili

M8 x 40mm Button

Bolt (81)-4

M8 x 25mm Button

Screw (79)-4

M10 x 52mm Button Bolt (82)-2

M10 x 118mm Button Screw (78)-2

1, identify the Front Stabilizer (15), While another person

lifts the front of the Frame (1), attach the Front

Stabilizer to the Frame with four M8 x 40mm Button

Screws (54) and four M8 Split Washers (55),

2, 2

While another person Hfts the rear of the Frame (1),

attach the Rear Stabilizer (16) to the Frame with four

M8 x 40mm Sutton Screws (54) and four M8 Split

Washers (55),

While another person hoUdsthe Upright (2) in the posi-

tion shown, connect the Upper Wire Harness (97) to

the Lower Wire Harness (43), Gently pull the upper

end of the Upper Wire Harness to remove any sUack

from the Wire Harnesses,

Insert the Upright (2) into the Frame (1), Be careful to

avoid pinching the Wire Harnesses (43, 97). Attach

the Upright with two MIO x 118mm Button Screws

(78), two MIO Split Washers (88), and two Upright

Spacers (99), Make sure the concave end of each

Upright Spacer is turned toward the Upright.

Udentify the Left HandUebar (70), which is marked with

an "L" sticker, While another person hoUdsthe Left

HandUebar near the Upright (2), connect the UeftPuUse

Sensor Wire (6) to the PuUseWire (3)_ Next, slide the

Left HandUebar onto the indicated tube on the Upright,

Be careful to avoid pinching the Wires. Carefully

insert two M8 x 40mm Button Bolts (81) through the

Left Handlebar and the tube on the Upright, Be care-

ful not to damage the Wires with the Button Botts.

Finger tighten two M8 Nylon Locknuts (89) onto the

Button Bolts, Next, slide the Handlebar Collar (100)

onto the upper end of the Left Handlebar,

Attach the Right Handlebar (72) as described above,

Note: As you slide the Right Handlebar onto the right

tube on the Upright (2), insert the upper end of the

Right Handlebar into the Left Handlebar (70),

Connect the Handlebars (70, 72) with the Handlebar

Collar (100) and an M4 x 16mm Screw (57), Tighten

the four M8 x 40mm Button Bolts (81), Make sure the

M8 Nyton Locknuts (89} are seated in the he×ago-

naJ hotes in the Handlebars.

\\\

Make sure the wires

do not get damaged

during this step.

Make sure the

wire harnesses

do not get

pinched and

damaged during

this step.

Tube

6 3\

\\ 89 N

\\\\\\

Have another person hold the Console (4) near the

Upright (2),

Connect the Upper Wire Harness (97) to the wire haro

hess on the Console (4), Connect the Pulse Wire (8)

to the pulse wire on the Console,

Carefully insert all excess wiring down into the Upright

(2), Attach the Console (4) to the Upright with four M4

x 16mm Screws (57), Be careful to avoid pinching

the wires. Next, press the bookrack onto the Console

in the indicated location,

Attach the Seat (9) to the Seat Frame (7) with four M6

x 20mm Button Screws (20) and four M6 Washers

(60),

Attach the Seat Frame (7) to the Seat Carriage (11)

with two MIO x 52mm Button Bolts (82) and two MIO

Nylon Locknuts (63),

Bookrack

Make sure the wires

do not get damaged

during this step.

8, 8

Attach the Backrest (62) and the Seat Back (98) to

the Backrest Frame (42) with two M6 x 20mm Button

Screws (20), an M6 x 45mm Button Screw (80), and

an M6 Washer (60),

SHde the Backrest Frame (42) onto the Seat Frame

(7), Attach the Backrest Frame with four M8 x 25mm

Button Screws (79) and four M8 Split Washers (55),

9, Udentify the Left PedaU(22), which is marked with an

"L," Using an adjustaMe wrench, firmly tighten the

Left PedaUcountemlockwise into the Left Crank Arm

(24), Tighten the Right PedaU(not shown) clockwise

into the Right Crank Arm, Important: Tighten both

Pedals as firmly as possible. After using the exer-

cise cycle for one week, retighten the Pedals. For

beet performance, the Pedals must be kept tight-

ened.

Udentify the Left PedaUStrap (25), which is marked

with an "L," Attach the Left PedaUStrap to the Left

PedaU(22), and adjust it to the desired position, Attach

and adjust the Right PedaUStrap (not shown) in the

same way,

10, The ConsoUe (4) requires four "D" batteries (not

incUuded); aUkaHnebatteries are recommended, Slide

the battery cover off the Console, Insert four batteries

into the battery compartment, Make sure that the

batteries are oriented as shown by the diagram

inside the battery compartment. Slide the battery

cover back onto the Console, Note: When the batter°

ies are installed correctly, the fan will turn on for a

moment,

/55

25\

Batteries

11, Make sure that aH parts are property tightened before you use the exercise cycle. Note: After assembly

is completed, some extra parts may be left over, Place a mat beneath the exercise cycle to protect the floor,

mNSTALUNG THE RECEmVER FOR THE OPTmONAL CHEST PULSE SENSOR

if you purchase the optional chest pulse sensor (see page 21), follow the steps below to install the receiver

included with the chest pulse sensor,

Remove the access door from the underside of the

Console (4). You may need to use a small standard

screwdriver to remove the access door.

Slide the receiver onto the indicated plastic pin on the

Console (4); make sure that the receiver is oriented

e×aetly as shown. Locate the two small screws included

with the chest pulse sensor. Attach the receiver to the

Console with the two screws as shown.

Connect the wire on the receiver to the indicated wire on

the Console (4),

Reattach the access door. Make sure that no wires are

pinched. Note: The other wires included with the chest

pulse sensor may be discarded.

Screws Receiver

Access

Door

HOW TO OPERATE THE EXERCISE CYCLE

HOW TO MOVE AND LEVEL THE EXERCmSE

CYCLE

Stand in back of the exercise cycHe,and Hftthe exer-

cise cycHeuntil it can be moved on the front wheeHs,

Move the exercise cycHeto the desired Hocationand

carefully lower it, Due to the weight of the exercise

cycle, use extreme caution while moving it.

if the exercise cycle

rocks slightly during

use, turn the level-

ing feet under the

rear stabilizer until

the rocking motion

is eliminated,

Foot

HOW TO ADJUST THE SEAT

The seat can be

adjusted to the posi- Seat

tion that is the most Seat

comfortabHe for you, Knob

To adjust the seat,

puHHthe seat knob,

slide the seat for-

ward or backward,

and then reHease

the seat knob, Move

the seat forward or

backward sHghtHy

until the pin on the

seat knob snaps into one of the holies in the seat rail,

HOW TO ADJUST THE PEDAL STRAPS

The pedaHstraps

can be adjusted to

the position that is

the most comfort°

abHefor you, Press

the tabs on the ped-

arts,adjust the

straps to the

desired position,

and then reHease

the tabs,

PedaH

Autres manuels pour SL 710

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels NordicTrack vélo d'appartement

NordicTrack

NordicTrack NTEX03121-INT.2 Manuel utilisateur

NordicTrack

NordicTrack Gx 3.1 Bike Manuel utilisateur

NordicTrack

NordicTrack 400 Bike Manuel utilisateur

NordicTrack

NordicTrack C7 Zl Bike Manuel utilisateur

NordicTrack

NordicTrack GX 2.5 NTEX23012.0 Manuel utilisateur

NordicTrack

NordicTrack Commercial S22i Studio Cycle Manuel utilisateur

NordicTrack

NordicTrack NTC69022 Manuel utilisateur

NordicTrack

NordicTrack SL 800 Manuel utilisateur

NordicTrack

NordicTrack Gx 3.1 Bike Guide de configuration

NordicTrack

NordicTrack SL 710 Manuel utilisateur

NordicTrack

NordicTrack GX 4.6 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel d'utilisation et d'entretien

NordicTrack

NordicTrack Gx 2.7 Bike Manuel utilisateur

NordicTrack

NordicTrack 30706.0 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Guide de l'utilisateur

NordicTrack

NordicTrack C7 Zl Bike Manuel du système

NordicTrack

NordicTrack CEX32531 Manuel utilisateur

NordicTrack

NordicTrack GX4.7R Manuel utilisateur

NordicTrack

NordicTrack Gx 3.1 Bike Guide de démarrage rapide

NordicTrack

NordicTrack VGR 850 Manuel utilisateur

NordicTrack

NordicTrack S27i Manuel utilisateur

NordicTrack

NordicTrack C3 Si Bike Manuel utilisateur

NordicTrack

NordicTrack GX 5.2 NTEVEX74612.1 Manuel utilisateur

NordicTrack

NordicTrack Gx 3.4 Bike Mode d’emploi

Manuels vélo d'appartement populaires d'autres marques

Weslo

Weslo Vector 302 Guide de démarrage rapide

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Guide de l'utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur

Stamina

Stamina 15-0340A Manuel utilisateur
