PARTNO,619703

NORCOLD 03/26/2008

PARTS LIST

3163 SERIES

3163G

3163T

3163VWG

3163HBV

3163LG

3163LGB16

3163LGHBV

3163LGHHB

3163LGR

3163LGH26R

3163SERIESPARTSLIST - PAGE2

FRONT VIEW - 3163 SERIES

3163SERIES PARTSLIST - PAGE3

FRONT VIEW - 3163 SERIES

CONTINUEDONPAGE4

NO. PART # DESCRIPTION

3163G

3163T

3163VWG

3163HBV

3163LG

3163LGB16

3163LGHBV

3163LGHHB

3163LGR

3163LGH26R

1 617989 BURNERTUBE XXXXXXXXXX

2 618073 FAN-12VDC XXXXXXXXXX

3 618403 BRACKET-FANSUPPORT/FRONT XXXXXXXXXX

4 618404 BRACKET-FANSUPPORT/BACK XXXXXXXXXX

5 618093 THERMOSTAT-DCFAN/THERMODISC XXXXXXXXXX

6 618021 CONTROLPANELASSY XXXXXXXXXX

7 618083 WIRE-DIFFUSER/FORMED XXXXXXXXXX

8 617960 BAFFLE-FLUE/SPIRAL XXXXXXXXXX

9 61745422 HEATER-DC/EG3(COOLINGSERIAL#11200050&BEFORE) XXXXXXXXXX

630806 HEATER-DC/EG3/BACKER (COOLING SERIAL# 11200051 & AFTER) X X X X X X

10 61745322 HEATER-AC(COOLINGSERIAL#11200050&BEFORE) XXXXXXXXXX

630805 HEATER-AC/BACKER(COOLING SERIAL# 11200051 & AFTER) X X X X X X

11 617998 CONTROLASSY-3163 XXXXXXXXXX

12 61583322 FUSECOVER XXXXXXXXXX

13 618079 FUSE-GLASS/1AMP XXXXXXXXXX

14 61440522 FUSE-GLASS/20AMP XXXXXXXXXX

15 61654622 FUSE-GLASS/3AMP/32VORLESS XXXXXXXXXX

16 61584222 FUSEHOLDER XXXXXXXXXX

17 617918 CORD-ACPOWER XXXXXXXXXX

18 617979 TERMINALBLOCK XXXXXXXXXX

19 619868 RELIGHTER XXXXXXXXXX

20 617971 KNOB-GASVALVE/THERMOSTAT XXXXXXXXXX

21 617947 MOUNTINGANGLE-RIGHT XXXXXXXXXX

22 61728722 CLIP-FIN XXXXXXXXXX

23 617948 FINASSY-3163 XXXXXXXXXX

24 617977 GASKET-BURNER BOX COVER X XXXXXXXXX

25 617936 BURNERASSY(USE621951) XXXXXXXXXX

26 618067 HEATSHIELD XXXXXXXXXX

27 617908 BRACKET-BOTTOMSUPPORT(USE622097) XXXXXXXXXX

28 617938 GRILLE-AIRINLET/BLACK XXXXXXXXXX

29 618063 SHELF-WIRE XXXXXXXXXX

30 618047 CHAIN-TRAVELLATCH XXXXXXXXXX

31 618046 PIN-TRAVELLATCH XXXXXXXXXX

32 617910 HINGE-RHBOTTOM/LHTOP XXXXXXXXXX

33 617912 BREAKER-BLACKTRIM XXXXXXXXXX

34 617911 HINGE-LHBOTTOM/RHTOP XXXXXXXXXX

35 61550722 HINGEPIN-BOTTOM XXXXXXXXXX

3163SERIES PARTSLIST - PAGE4

FRONT VIEW - 3163 SERIES CONTINUED FROM PAGE 5

NO. PART # DESCRIPTION

3163G

3163T

3163VWG

3163HBV

3163LG

3163LGB16

3163LGHBV

3163LGHHB

3163LGR

3163LGH26R

36 617915 DOOR ASSY-GRAY (USE620297/3163LG) X

617914 DOOR ASSY-TAUPE(USE620297/3163LG) X

620342 DOOR ASSY-VWG (USE620297/3163LG) X X

618678 DOOR ASSY-VWG/DARK GRAY (USE620297/3163LG) X X

620297 DOORASSY-LG XXXXXX

37 617999 DOOR LINER ASSY-GRAY (USE 620297/3163LG) X

618000 DOOR LINER ASSY-TAUPE (USE620297/3163LG) X

618679 DOOR LINER ASSY-VWG/DARK (USE 620297/3163LG) X X

620341 DOOR LINER ASSY-VWG/DARK GRAY (USE620297/3163LG) X X

620296 DOOR LINER ASSY-LIGHT GRAY X XXXXX

38 618064 DOORRAIL-WHITE XXXXXXXXXX

39 617906 DOORGASKET XXXXXXXXXX

40 61742022 HINGEBUSHING XXXXXXXXXX

41 61114600 HINGEPIN-TOP XXXXXXXXXX

42 617905 SYSTEM COVER (USE 620299/3163LG) X

617904 SYSTEM COVER (USE 620299/3163LG) X

618676 SYSTEM COVER (USE 620299/3163LG) X X

620343 SYSTEM COVER (USE 620299/3163LG) X X

620299 SYSTEM COVER-3163LG/LH X X X X

625113 SYSTEM COVER-3163LG/RH XX

43 617909 BRACKET-MOUNTING/LEFTFRONT/LSHAPED XXXXXXXXXX

44 617946 MOUNTINGANGLE-LEFT XXXXXXXX

3163SERIES PARTSLIST - PAGE5

CONTROL PANEL ASSEMBLY - 3163 SERIES

NO. PART # DESCRIPTION

3163G

3163T

3163VWG

3163HBV

3163LG

3163LGB16

3163LGHBV

3163LGHHB

3163LGR

3163LGH26R

618021 CONTROLPANELASSY-3163 XXXXXXXXXX

1 621328 CONTROLPANEL XXXXXXXXXX

2 617945 SWITCH-PUSHBUTTON XXXXXXXXXX

3 61609022 INDICATORLIGHT-FLAME XXXXXXXXXX

4 617981 HOLEPLUG-1"BLACK/CONTROLPANEL XXXXXXXXXX

NS 620623 NAMEPLATE-BLUE(NOTSHOWN) XXXXXX

3163SERIES PARTSLIST - PAGE6

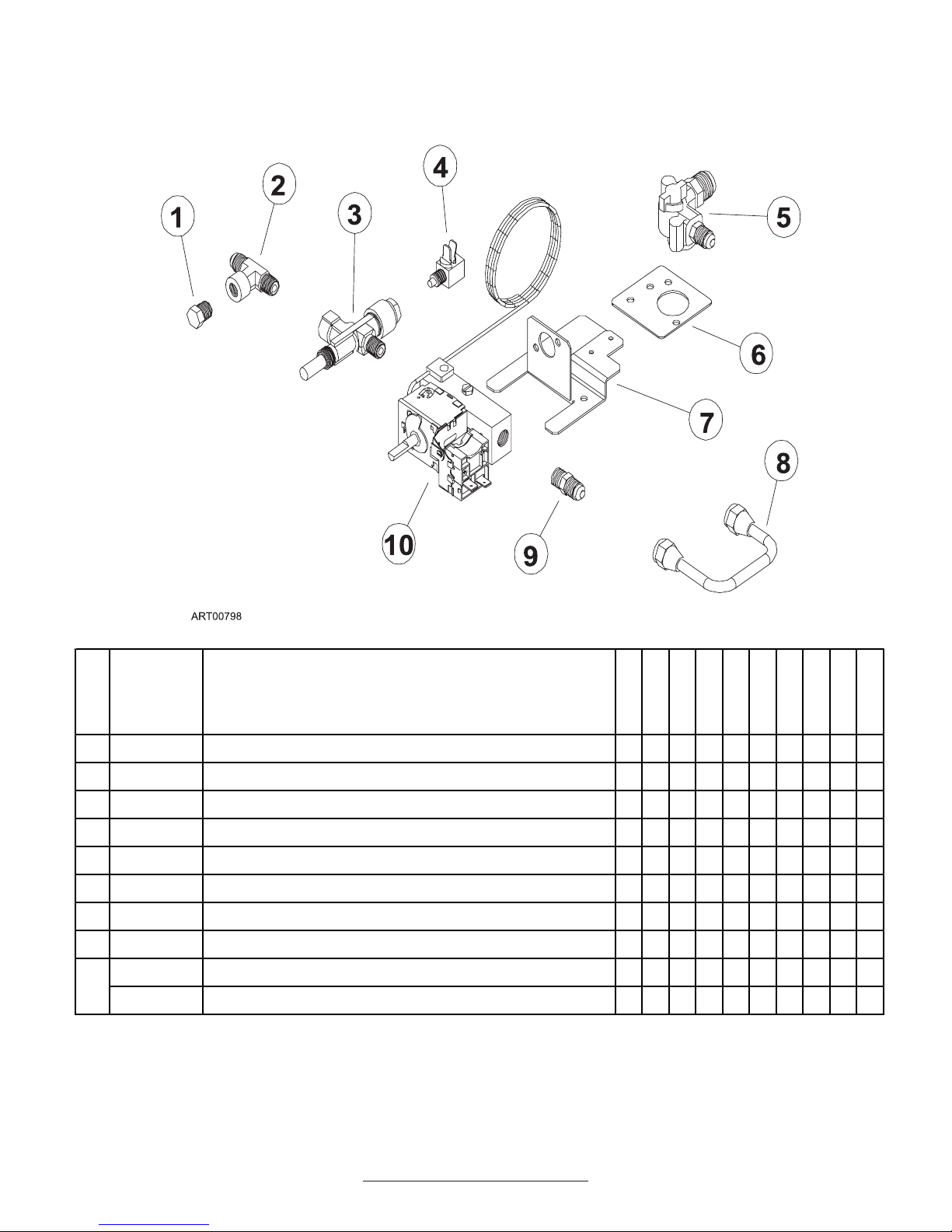

CONTROL ASSEMBLY - 3163 SERIES

NO. PART # DESCRIPTION

3163G

3163T

3163VWG

3163HBV

3163LG

3163LGB16

3163LGHBV

3163LGHHB

3163LGR

3163LGH26R

1 61445322 PLUG-FORPRESSURETAP/1/8" XXXXXXXXXX

2 61594422 PRESSURETAP XXXXXXXXXX

3 622746001 KIT-SAFETYVALVE/EXTENSIONPLUG XXXXXXXXXX

4 621737 INTERRUPTER XXXXXXXXXX

5 617976 MANUALSHUTOFFVALVEASSY XXXXXXXXXX

6 61749822 BRACKET-MANUALSHUTOFFVALVE XXXXXXXXXX

7 617952 BRACKET-MOUNTING/THERMOSTAT/GASVALVE XXXXXXXXXX

8 61694622 UNIONTUBE XXXXXXXXXX

9 61546822 CONNECTOR-MALE XXXXXXXXXX

10 617944 GASVALVE-THERMOSTATCONTROL XXXXXXXXXX

3163SERIES PARTSLIST - PAGE7

BURNER AREA - 3163 SERIES

NO. PART # DESCRIPTION

3163G

3163T

3163VWG

3163HBV

3163LG

3163LGB16

3163LGHBV

3163LGHHB

3163LGR

3163LGH26R

1 617995 SIGHTGLASS-3163 XXXXXXXXXX

2 617933 GROMMET-SIGHTGLASS/3163 XXXXXXXXXX

3 617927 BRACKET-BURNER MOUNTING X XXXXXXXXX

4 621951 KIT-BURNER/ORIFICEADAPTERASSY XXXXXXXXXX

5 617997 GROMMET-THERMOCOUPLE XXXXXXXXXX

6 617983 THERMOCOUPLE XXXXXXXXXX

7 617966 ELECTRODE-SPARK/3163 XXXXXXXXXX

8 617996 GROMMET-BURNER/3163 XXXXXXXXXX

9 617925 BURNER BOX X X X X

620414 BURNER BOX ASSY-B16 X

618956 BURNER BOX ASSY-HBV X X

618977 BURNER BOX ASSY-HHB X

625149 BURNER BOX ASSY-3163LGH26R/26" X

10 617977 GASKET-BURNER BOX X XXXXXXXXX
