Nomadic NC-X3 Manuel
NC-X3Install Manual
16680 N 51st Ave Units 4 & 5
Glendale, AZ 85306
(480) 576-2489
www.NomadicCooling.com/Support
Version 23122648V | 24V | 12V
NC-X3Instalation Manual 231226 2 Nomadic Cooling Co
Keep a record of the following information:
Model
Serial No.
Date Purchased
Installed By
TABLE OF CONTENTS
INTRODUCTION ..........................2
RETURNS..................................2
ITEMIZED PARTS LIST (48V)................3
ITEMIZED PARTS LIST (12/24V).............4
NC-X3 EXPLODED COMPONENT VIEW ....5
IMPORTANT SAFETY INSTRUCTIONS......6
NC-X3SPECIFICATIONS ...................7
INSTALLATION STEPS .....................8
ELECTRICAL WIRING DIAGRAM 48V......13
ELECTRICAL WIRING DIAGRAM 12/24V...15
WARRANTY POLICY......................17
RETURNS, CANCELLATIONS, and
MISSING PARTS .........................18
INTRODUCTION
The NC-X3Air Conditioner (“AC unit”) is de-
signed and intended for instalation on the
roof of a recreational vehicle during or after
the vehicle is manufactured.
The NC-X3can be installed by one person with
brief help from one additional person. Reading
this instalation manual in its entirety first will
ensure the proper instalation and function of
the NC-X3.
RETURNS
Nomadic Cooling will gadly accept returns
within 30 days of receiving the order. Only
items in their original condition with all
packaging, accessories, instruction manuals,
warranty cards, and UPC codes will be ac-
cepted. Any returns after 30 days are subject
to approval.
Nomadic Cooling reserves the right to modify
appearance and specifications without notice.
Always bench test AC unit
before installing.
Check to ensure all required
parts are included (see page 3).
16680 N 51st Ave Units 4 & 5
Glendale, AZ 85306
(480) 576-2489
www.NomadicCooling.com/Support
NC-X3Rooftop AC Unit |
48V
24V
12V
Nomadic Cooling Co 3 NC-X3Instalation Manual Version 231226
ITEMIZED PARTS LIST
NC-X3Instalation Manual 231226 4 Nomadic Cooling Co
ITEMIZED PARTS LIST
Nomadic Cooling Co 5 NC-X3Instalation Manual Version 231226

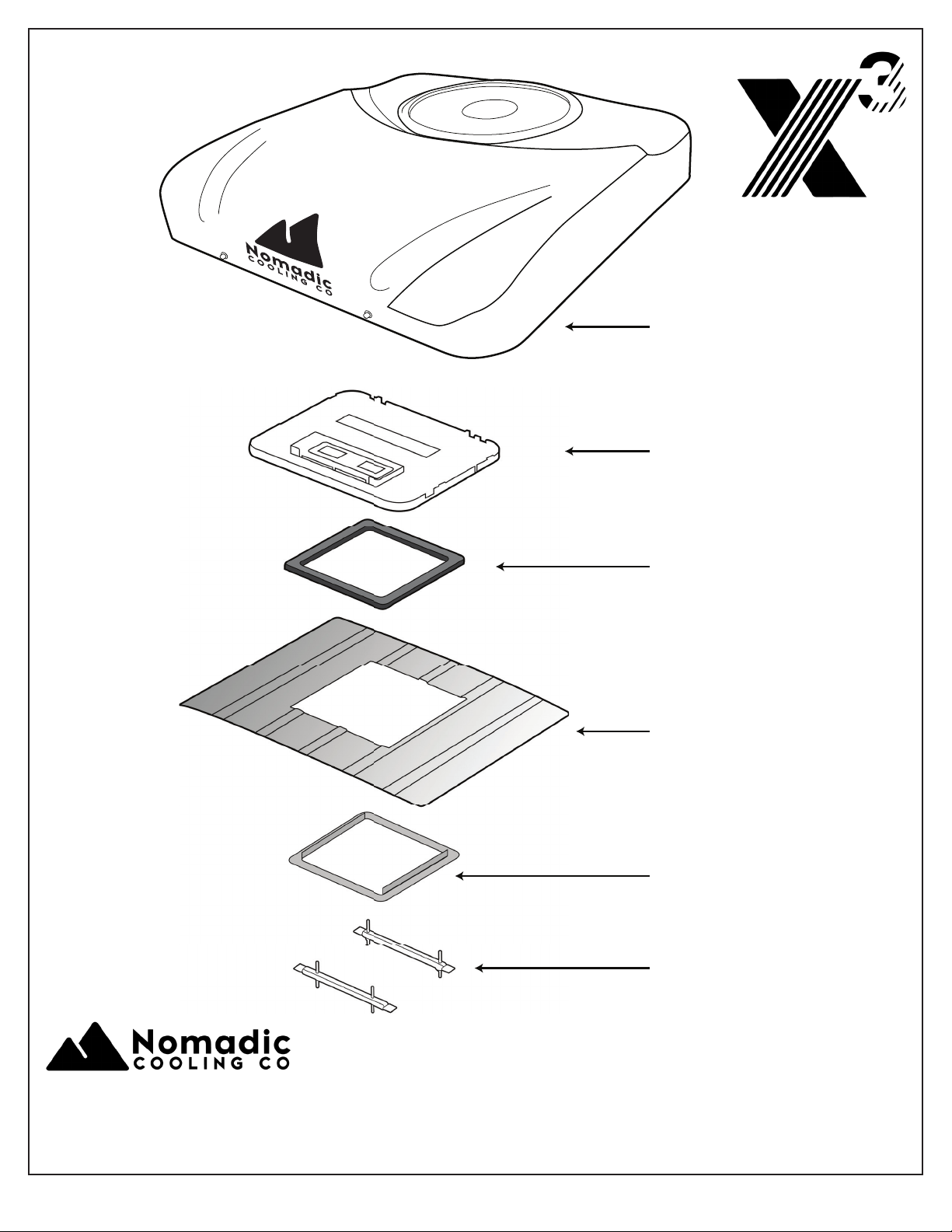

AC Base Plate
AC
Unit and Shroud
Foam Gasket
Vehicle Roof
Optional X3
Trim Ring (DIY Kit)
Crossbars
16680 N 51st Ave Units 4 & 5
Glendale, AZ 85306
(480) 576-2489
www.NomadicCooling.com/Support
NC-X3Instalation Manual 231226 6 Nomadic Cooling Co
This manual contains safety guidelines and
instructions that can aid in reducing or elim-
inating the risk of accidents and injuries.
A. Recognizing Safety Information
The safety alert symbol is utilized to notify
potential physical injury hazards. To avoid
possible injury or death, follow all safety
messages that come after this symbol.
B. Understanding Signal Words
Signal words identify safety and property
damage messages and indicate the degree
of hazard seriousness.
WARNING is used for hazardous situ-
ations that could result injury (includ-
ing death, severe, moderate or minor
injury if not avoided.
NOTICE is used for situations that
could result in AC unit or vehicle
damage or unnecessary complications
in the instalation process.
HELPFUL TIP is used for useful
information or best practices.
C. Supplemental Directives
To avoid potential injury and even death,
read and follow all of the safety information
and instructions.
Read and comprehend these instructions
before installing, using, servicing, or maintain-
ing this AC unit. Poor instalation, operation,
servicing, or maintenance of this AC unit can
result in severe injury. Follow all instructions.
The instalation must comply with all appli-
cable local and national codes, including the
atest edition of the following standards:
USA
• ANSI/NFPA70, National Electrical
Code (NEC)
• ANSI/NFPA1192, Recreational
Vehicle Code
CANADA
• CSA C22 1. Parts I & II,
Canadian Electrical Code
• CSA Z240 RV Series,
Recreational Vehicles
D. General Safety Messages
WARNING - Failure to follow the subsequent
warnings could lead to death or serious injury.
• A qualified service technician MUST
install or service this product.
• Do NOT modify this product in any
way. Modifications can be extremely
dangerous and void any warranties.
• Do NOT add any devices or accessories
to the AC unit unless specifically
authorized in writing by Nomadic
Cooling Co.
IMPORTANT SAFETY INSTRUCTIONS
Nomadic Cooling Co 7 NC-X3Instalation Manual Version 231226

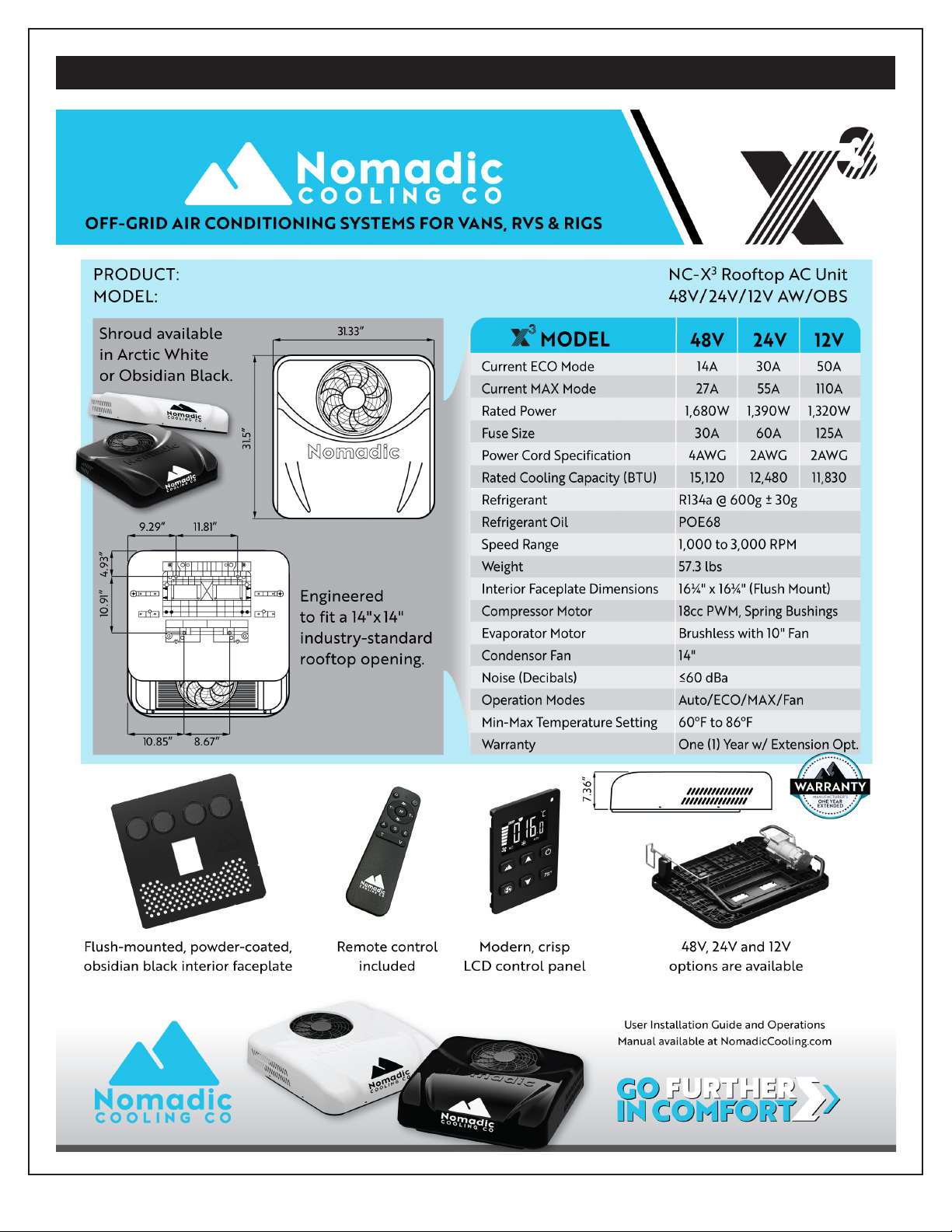

NC-X3SPECIFICATIONS
NC-X3Instalation Manual 231226 8 Nomadic Cooling Co
INSTALLATION STEPS

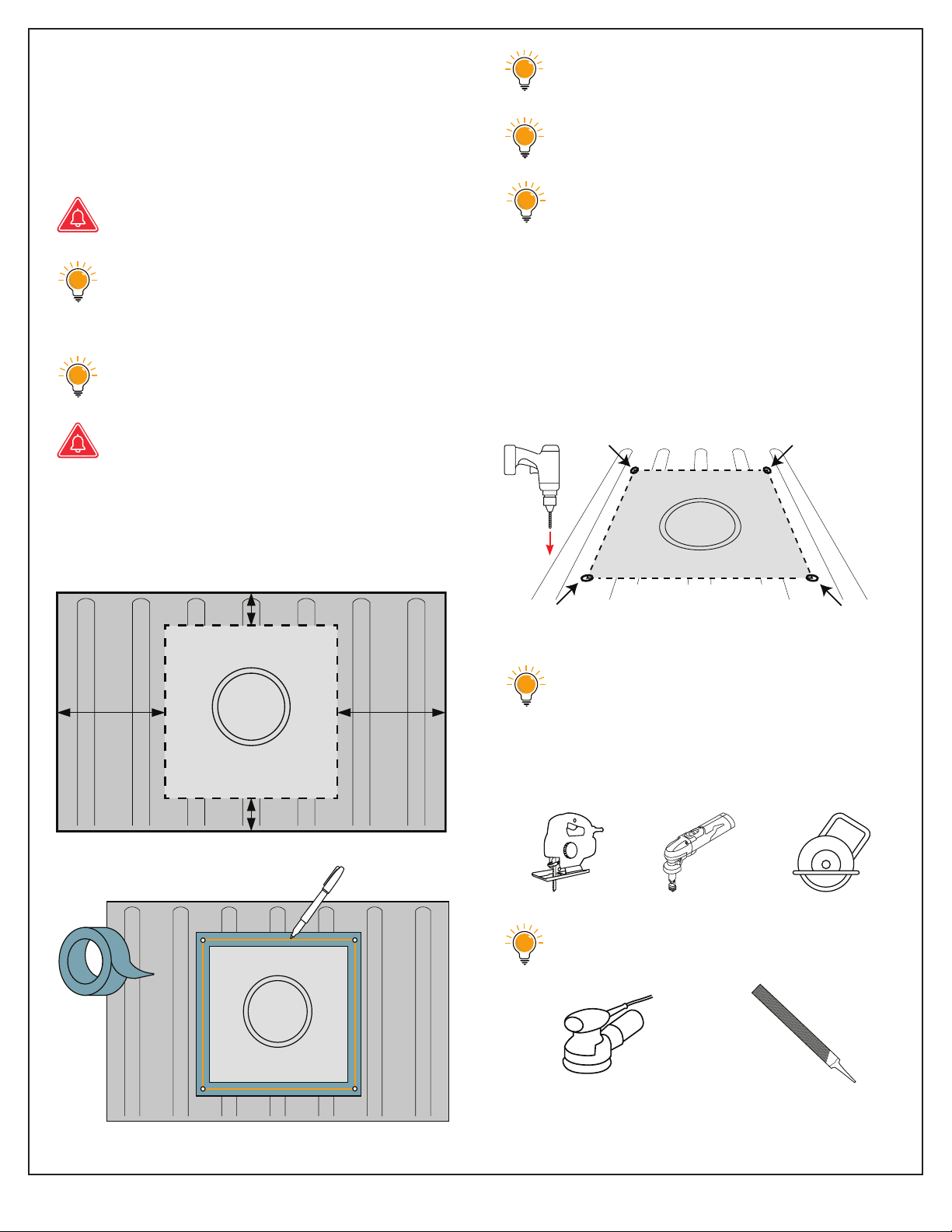

1. Mark your 14”x 14” rooftop opening. DIY
Kit includes a cardboard tempate. Cut
from the exterior of your vehicle.
Never cover AC unit top fan.
When determining AC unit location,
be sure to allow for the shroud (cover)
when positioned on the roof.
Make sure there is no electrical or
other encumbrances in the way.
Do not cut into structural beams.
2. Make sure the panned opening is
centered from all four sides. This gives
the best chance for easy instalation.
Use painter’s tape and a permanent
marker to draw your 14”x 14” cutline.
Make multiple passes with the marker.
If you make a mistake repace the
tape and try again. Measure repeat-
edly to make sure your lines create a
perfect 14”x 14” square.
3. Drill each corner of your markings
through the roof. This will make it easier
to detect the location of your 14”x 14”
opening from the underside of your roof.
Use a 1/8” drill bit for corner holes.
4. Cut on your lines using a jig saw, nibbler
or cutting wheel.
Use a sander or file to smooth out the
rough edges after cutting.
14”
14”
14”14”
Exterior Roof
Vehicle Front
Exterior Roof
14”
14”
14”14”
Exterior Roof
Nomadic Cooling Co 9 NC-X3Instalation Manual Version 231226

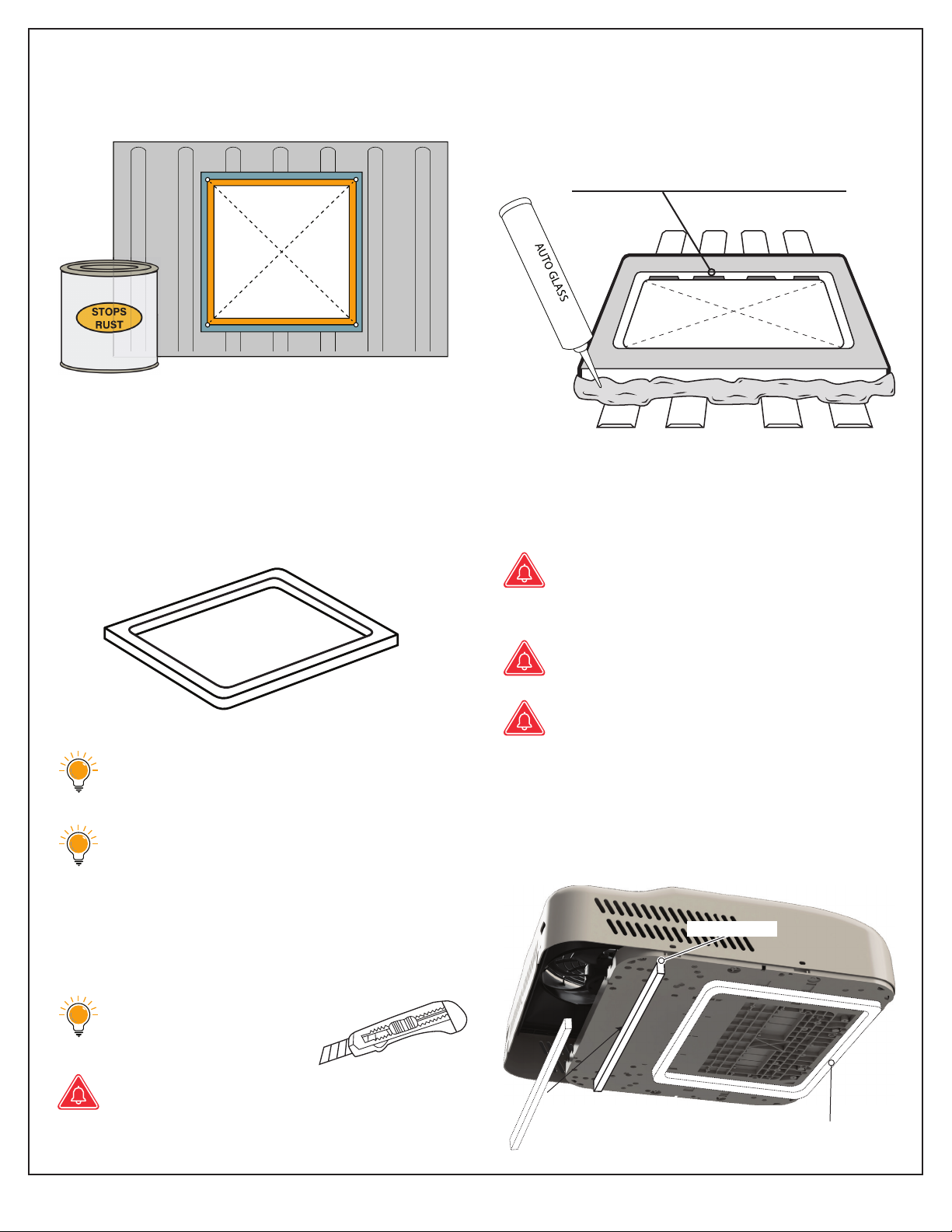

5. Paint around the edges of the cut roof
opening to prevent rust. You can use any
color rust-preventative paint.
6. Remove tape and clean exterior surface.
7. Remove 14”x 14” waterproof gasket
from box.
Make sure area/paint is clean, dry and
clear of all debris.
Use alcohol wipes or PrepSol to
remove oil or wax from vehicle roof.
If pacing gasket over a high or uneven
roof surface, remove small amounts of the
14”x 14” gasket to match roof contours.
Use bade to cut away gasket
if needed.
Remove gasket adhesive only after
making any necessary cuts. Pace the
gasket sticky side down.
8. Apply window weld/adhesive around
14”x 14” gasket, after sticking it down on
vehicle roof. DIY kit includes a tube of
polyurethane adhesive seaant.
9. Pace AC unit on roof over 14”x 14” gasket
gently. Measure side-to-side until unit is
centered on all four sides.
Be careful not to puncture, rip
or tear the gasket with the AC
unit’s mounting bolts.
Do not put adhesive on top of gasket.
Do not damage electrical components
when pacing AC unit.
10. Adhere optional leveling strip behind the
14”x14” gasket. If you do, remove the two
rubber feet at the back of the AC unit.
Exterior Roof
Exterior Roof
URETHANE ADHESIVE
CUTAWAYS FOR ROOF RIDGES
Leveling strip
14” x 14” gasket
Adhesive side
NC-X3Instalation Manual 231226 10 Nomadic Cooling Co

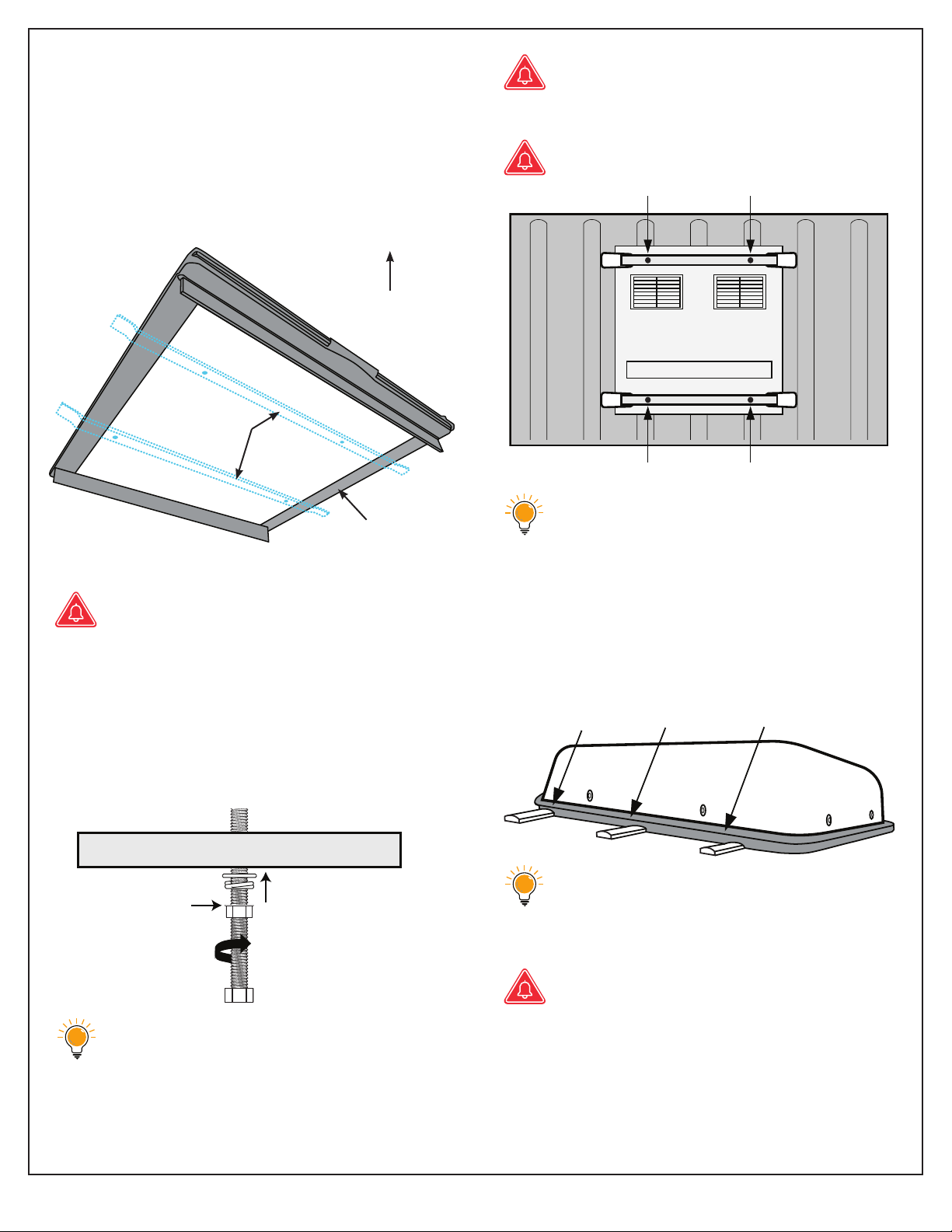

11. From inside the vehicle add the crossbars
with mounting bolts to securely attach
AC unit to the roof.
A trim ring (included with DIY kit) should be
paced between the vehicle roof and the AC
unit before crossbars are added.
Do not use electric drill on crossbars.
Put the washer/lock washer on each M8 bolt
and hand tighten (+1/4 turn) bolt into the AC
base pate until the crossbars are secure.
Tighten all four of the nuts to the crossbar to
3.7 lbs. of torque (~5 nm).
AC unit will help to create pressure.
When securing AC unit to the vehicle,
increased compression of the gasket
will level the unit against the roof. No
light should be visible.
Do not over-tighten mounting bolts.
Bolts will rotate if over torqued, and
may break from AC base pate.
Over-tightening will void warranty.
Our gaskets are used for vibration
absorption. It is very high density and
can’t be compressed more than 10%.
Use gasket tension to control AC unit’s
distance from roof surface.
AC unit should be resting on foam gasket
and not on the vehicle’s roof.
Over-compression of the AC unit to
the roof may cause the internal fan to
rub against the fan housing.
Be sure the fan bades rotate freely
prior to starting the AC unit.
Interior Roof
Trim Ring
Crossbars
Interior Roof
1. Hand tighten bolt un-
til flush with crossbar.
2. Then tighten nut to
3.69 lbs. (5 nm.) of
torque.
Fat side up
