Nokia NAVIGATOR 6210 Manuel utilisateur

Nokia 6210

26.09.00

NOTE! Nokia **** in the pictures means in this document Nokia 6210

Quick Guide to Using the Nokia 6210 with the Windows 95 Fax -

Exchange for Windows 95 or Windows Messaging for Windows 95

1. Installing and setting up

This guide assumes that you have already installed the Nokia 6210 on your computer.

Microsoft Windows 95 fax support can be installed with the Windows 95 mail application (exchange or messaging -

hereafter called mail in this document).

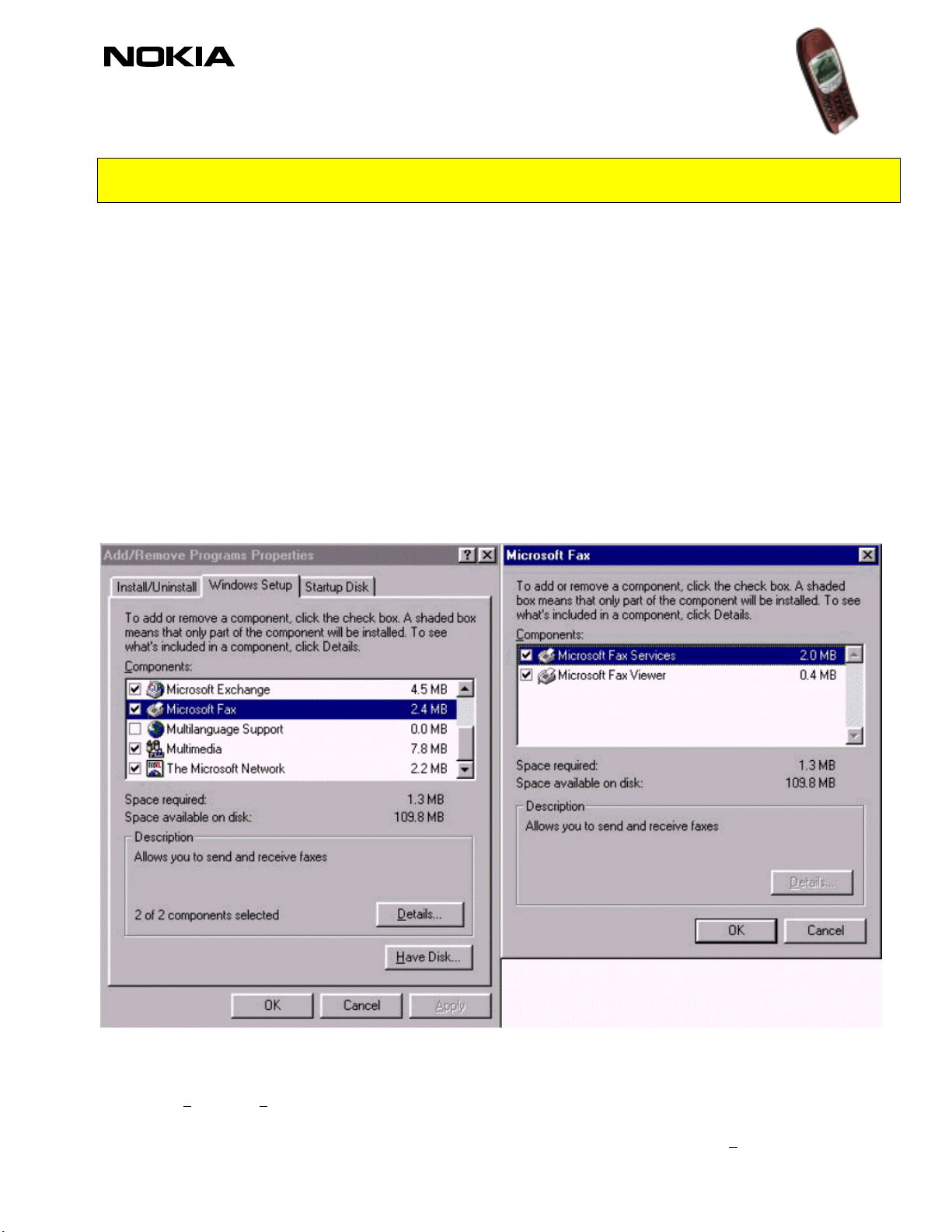

1. Ensure that you have fax and mail components installed on your computer. This can be done by opening the

Control Panel and clicking ‘Add/Remove Programs’. Select the ‘Windows Setup’ window (Figure 1).

Figure1:InstallingWindows95faxcomponents.

You can install fax support for mail the first time you start mail or later by clicking the mail icon in the Control Panel

or selecting Tools - Services.. in mail.

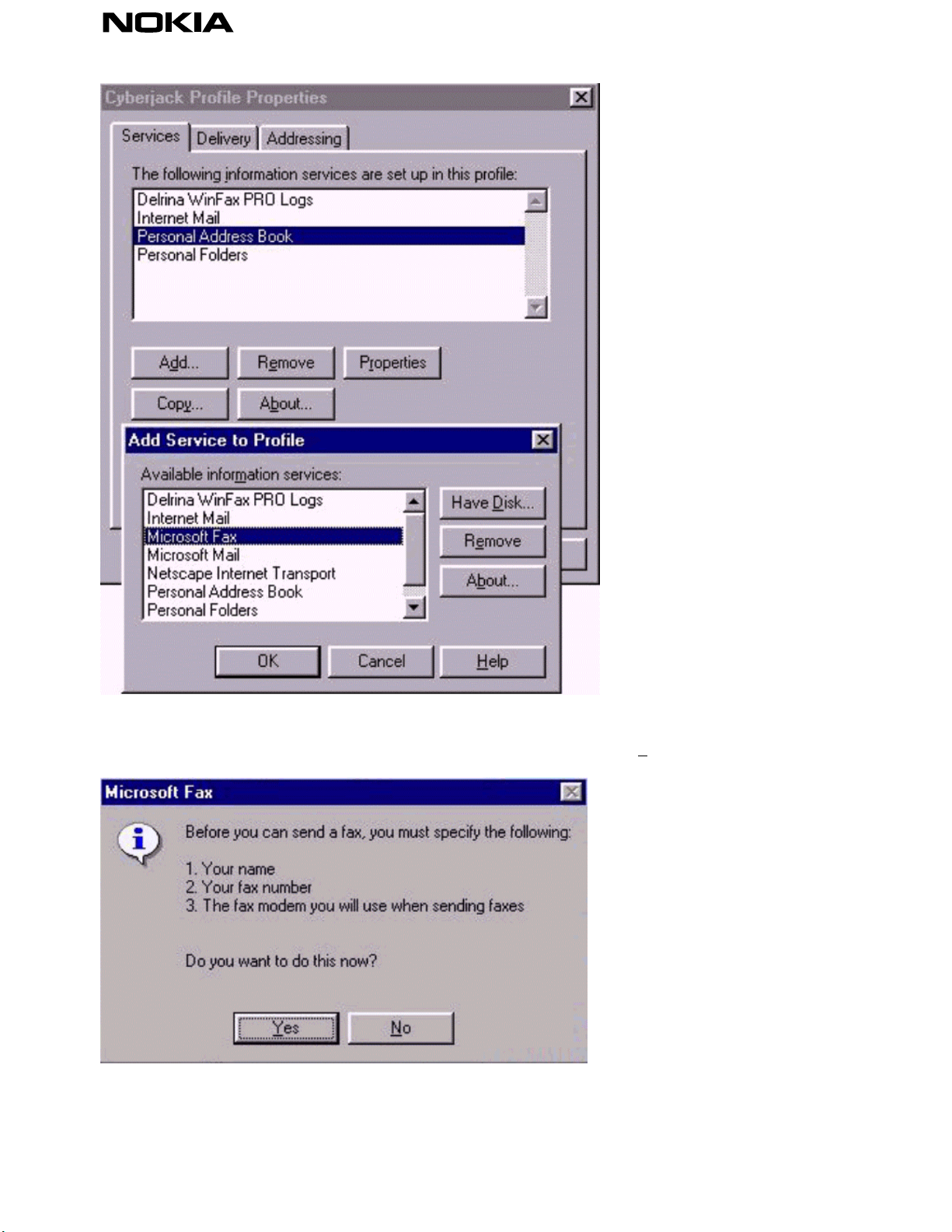

2. If Microsoft Fax does not appear in the Services window, you can install it by clicking the Add... button and

selecting the Microsoft Fax option in the Add Service to Profile window.

3. Click OK (Figure 2).

Figure2.AddingMicrosoftFaxatWindows95mail.

4. Next you must give the information needed in the fax application. Click the Yes- button shown in Figure 3.

Figure3:Confirmationoffaxsupport installationformail.

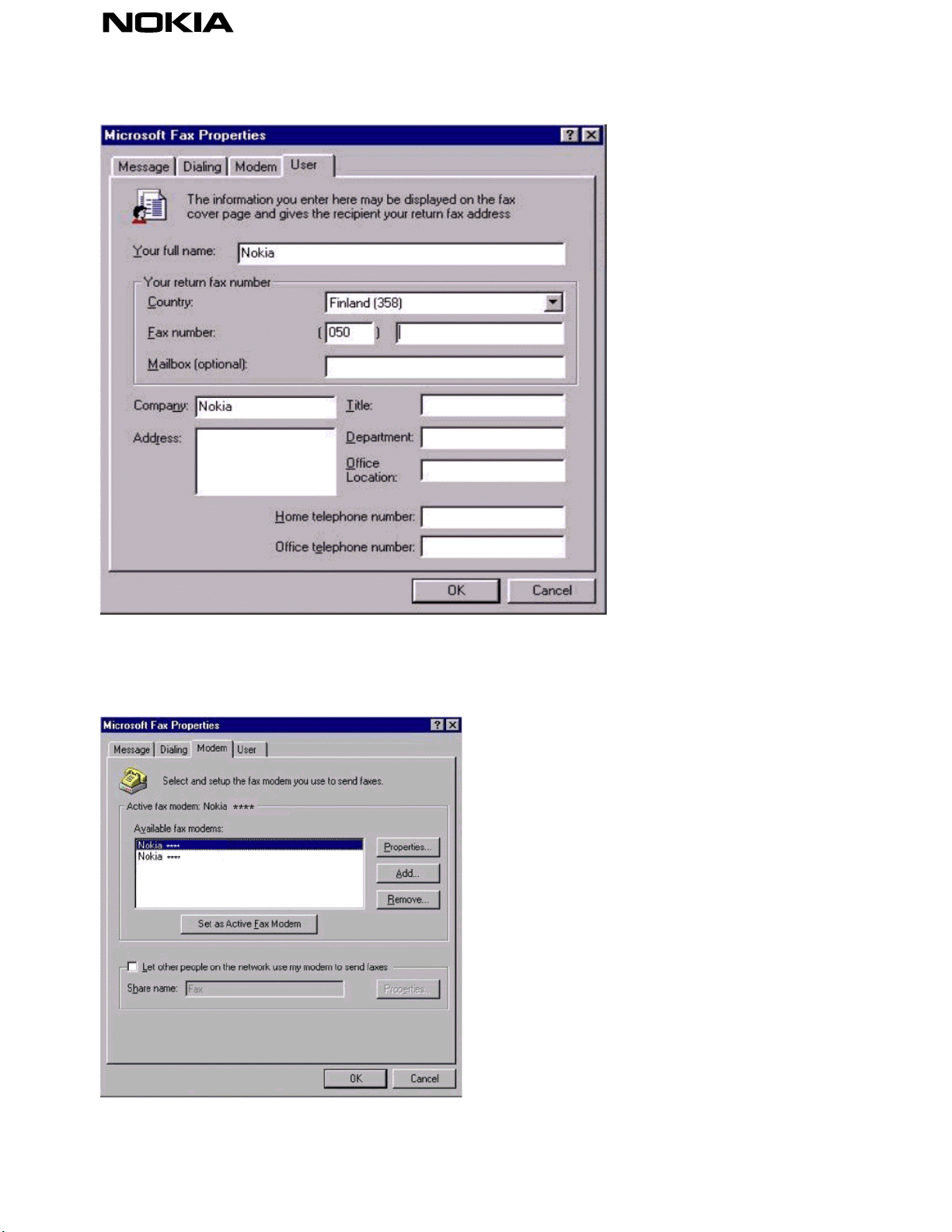

5. Enter the required information (Figure 4).

Figure4:UserinformationforMicrosoftmail.

6. Select your fax modem from the ‘Available fax modems’ box and click the ‘Set as Active Fax Modem’ button below

(Figure 5).

Figure5:Selectthefaxmodemyou wantto use withyourfax.

You may also change the modem’s properties or add a new modem.

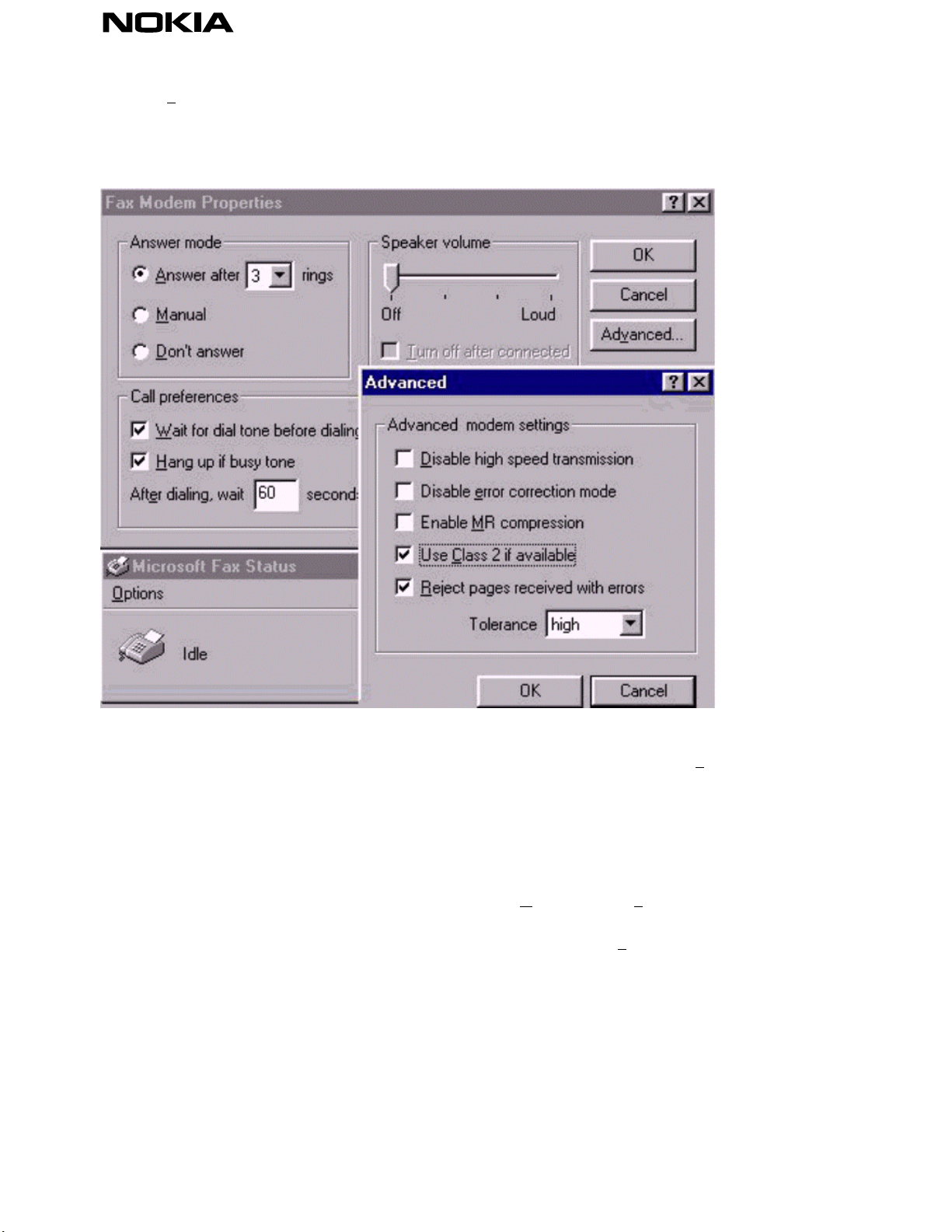

Click the ‘Properties...’ button. Set the answer mode to the ‘Answer after # rings’ if you want to receive faxes. Set the

speaker volume control to the off position. Click the ‘Advanced...’ button. You must check ‘Use Class 2 if available’ to

obtain the best functionality - Class 2 is slightly slower than Class 1, but it is more reliable (Figure 6). Close the

Modem properties window and click the ‘OK’ button.

Figure6:Modempropertiesand advanced settings.

Now the fax support is installed in your mail application. You have a new menu: Start - Programs - Accessories -

Fax. There you can find the Compose new fax, cover page editor and request a fax applications.

1.1 Sending a fax

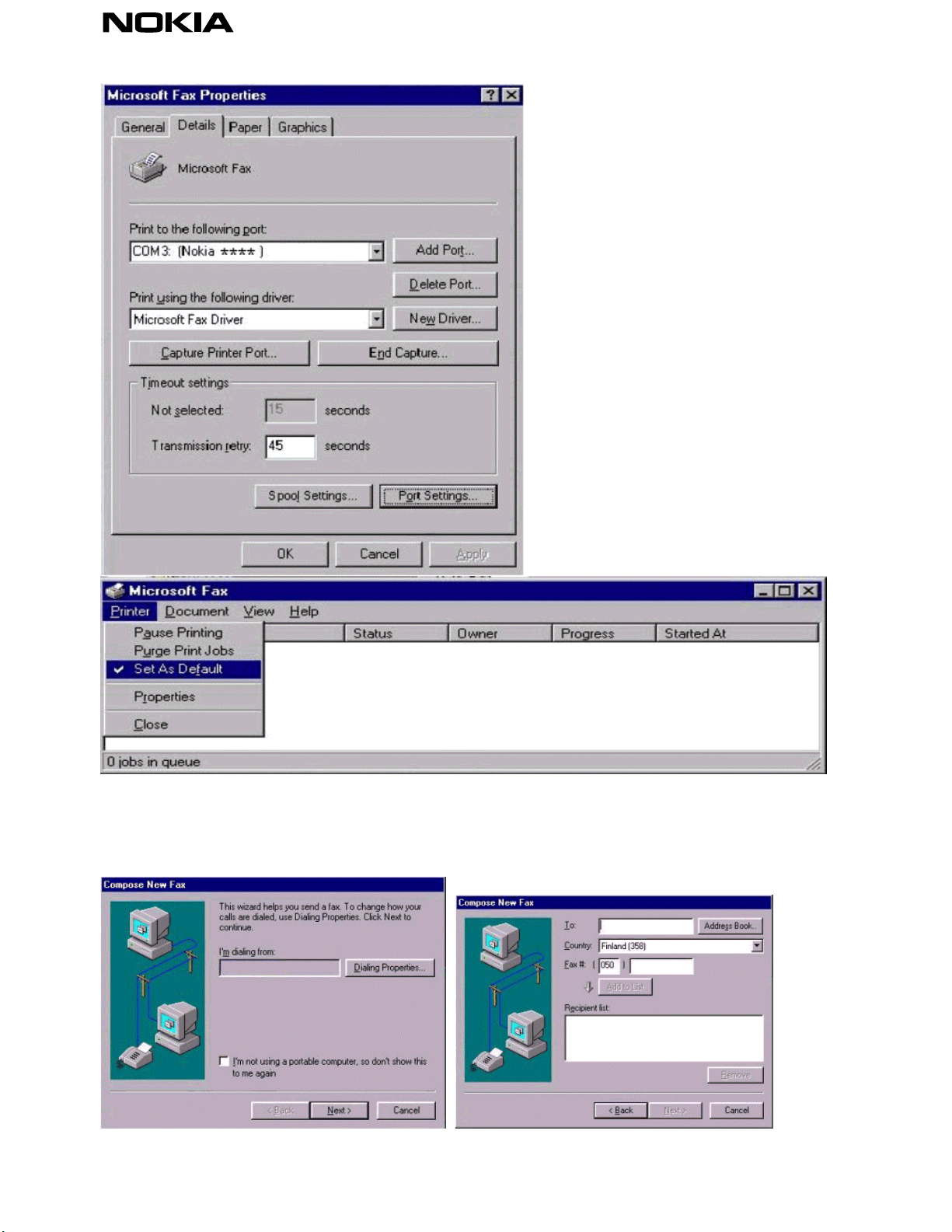

After installation you can send a fax from mail by selecting Compose - New Fax or directly from the application, for

example Write, by using Microsoft Fax as default printer (Figure 7). Check that the information in ‘Print to the

following port’ box is correct. The third way to send a fax is to open Start - Programs - Accessories - Fax and

select Compose New Fax.

Figure7:SettingMicrosoftFaxasthedefaultprinter.

The fax wizard starts automatically when you send a fax. Fill in the recipient's name and fax number. Click ‘Add to

list’. You may define as many recipients as you want. After that click ‘Next’ (Figure 8).

Figure8:Sendingafax.

Then you may select the cover page. After that you may write your message (Figure 9).

Figure9:Selectinga cover page and writingamessage.

Next you may add a text file to your fax. Now your fax is ready to send. Click the ‘Finish’ button.

The progress of the fax transmission will be shown step by step (Figures 10-13).

Figures10-13:Fax sending process.

Receiving

You must have either the ‘Answer after # rings’ or the ‘Manual’ answer option on, in Fax modem properties, if you

want to receive a fax (Figure 6). If you have a 6210 connected to your computer, the phone on and in service and

autoanswer enabled, Microsoft fax will answer incoming fax calls automatically.

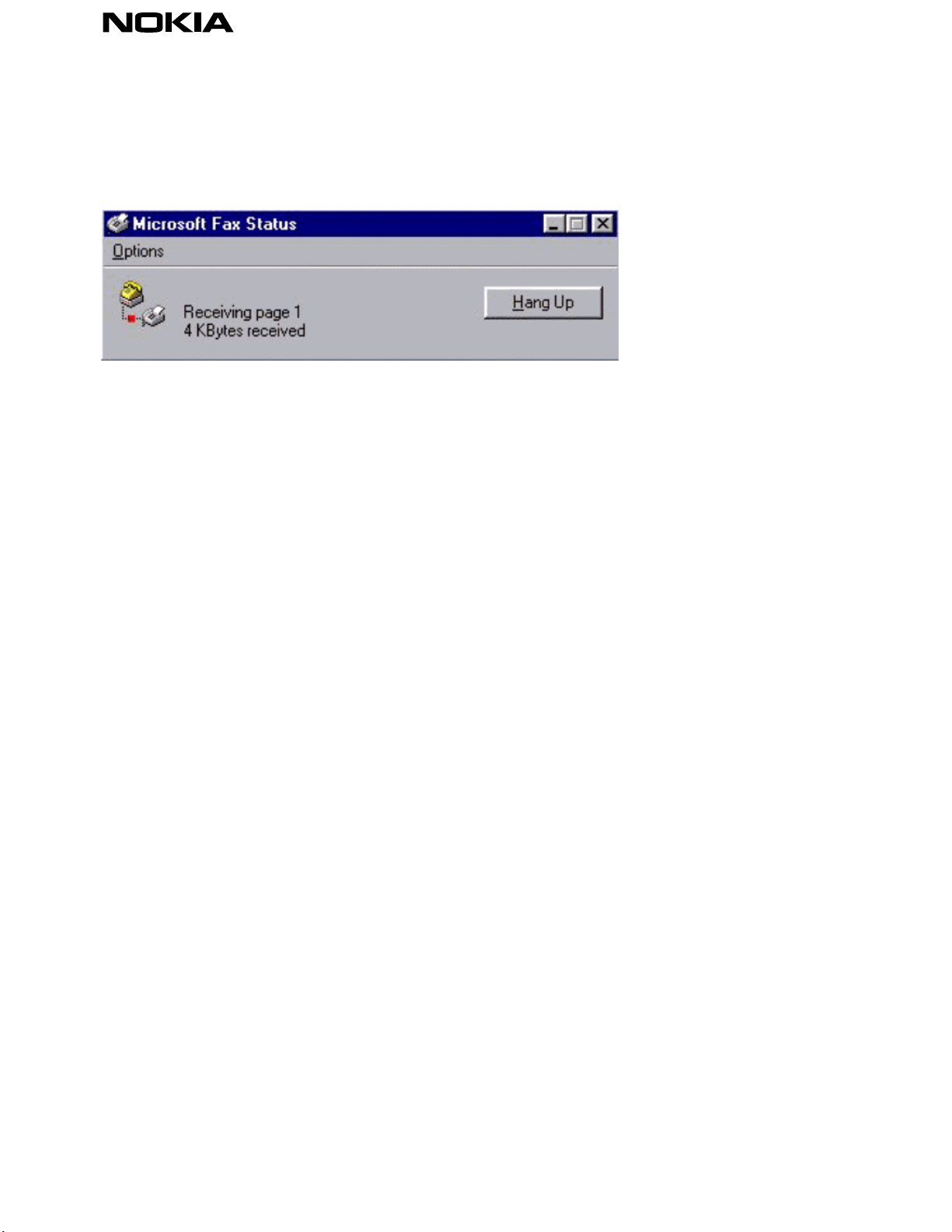

Figure14:Microsoft faxreceiving a fax

LEGAL NOTICE

Reproduction, transfer, distribution or storage of part or all of the contents of this document in any form without the prior written permission of

Nokia is prohibited.

Nokia and Nokia Connecting People are registered trademarks of the Nokia Corporation. Other product and company names mentioned herein

may be trademarks or tradenames of their respective owners.

Nokia operates a policy of continuous development. Therefore, we reserve the right to make changes and improvements to any of the products

described in this document without prior notice.

Under no circumstances shall Nokia be responsible for any loss of data or income or any special, incidental, consequential or indirect damage

howsoever caused.

The contents of this document are provided "as is". Except as required by the applicable law, no warranties of any kind, either express or implied,

including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose, are made in relation to the accuracy,

reliability or contents of this document. Nokia reserves the right to revise this document or to withdraw it at any time without prior notice.
