Nokia N82 Fiche technique

Get started

Nokia N82

9204693, Issue 1 ENModel: N82-1

Keys and parts (front)

Model number: Nokia N82-1.

Hereinafter referred to as Nokia N82.

1Power key

2Nokia AV Connector (3.5 mm) for compatible headsets,

headphones, and TV-out cables

3Light sensor

4Secondary camera with lower resolution

5Selection keys

Tip: To lock or unlock the keypad, press the left

selection key, then .

6Call key

7Menu key

8Numeric keypad

9Scroll key

10 Clear key C

11 Multimedia key

12 End key

Keys and parts (back and sides)

1Stereo speakers with 3D sound effect

2Camera activation switch with lens cover

3Zoom/volume key

4Xenon flash

5Main camera for high resolution (up to 5 megapixels)

image capture and video recording

6Review key

72-stage capture key for auto-focus, still image

capture, and video recording

8Micro USB connector to connect to a compatible PC

9Memory card slot for a compatible microSD card

10 Charger connector

11 Microphone

Insert the (U)SIM card and battery

A USIM card is an enhanced version of the SIM card and

is supported by UMTS mobile phones.

Keep all SIM cards out of the reach of small children.

Always switch the device off and disconnect the charger before

removing the battery.

1With the back of the device facing you, press and hold

the release button, slide the cover, and lift it up.

2To release the SIM card holder, slide the holder to the

right, and lift the holder up.

3Insert the SIM card into the card holder. Ensure that

the bevelled corner on the card is facing the bevelled

corner on the holder, and that the contact area on the

card is facing down. Slide the holder to the left, back to

the slot to lock the holder into place.

4Insert the battery.

5Replace the cover so that the locking catches are

directed towards their slots, and slide the cover into

place.

Switch the device on

1Press and hold the power key.

2If the device asks for a PIN code or

lock code, enter it, and press the

left selection key. The factory

setting for the lock code is

12345.

Your device has internal antennas.

Note: As with any radio

transmitting device, avoid

touching an antenna

unnecessarily when the antenna is in use. For example,

avoid touching the cellular antenna during a phone

call. Contact with a transmitting or receiving antenna

affects the quality of the radio communication, may

cause the device to operate at a higher power level than

otherwise needed, and may reduce the battery life.

1Cellular antenna

2Bluetooth technology/

wireless LAN antenna

3GPS receiver

Charge the battery

1Connect a compatible

charger to a wall

outlet.

2Connect the power

cord to the device. If

the battery is

completely discharged,

it may take a while

before the charging

indicator starts scrolling.

3When the battery is fully charged, the charging

indicator stops scrolling. Disconnect the charger from

the device, then from the wall outlet.

Tip: Disconnect the charger from the wall outlet when

the charger is not in use. A charger that is connected

to the outlet consumes power even when it is not

connected to the device.

Memory card

Use only compatible microSD cards

approved by Nokia for use with this

device. Nokia uses approved industry

standards for memory cards, but

some brands may not be fully compatible with this device.

Incompatible cards may damage the card and the device

and corrupt data stored on the card.

Keep all memory cards out of the reach of small children.

Insert the memory card

A memory card may be already inserted in the device. If

that is not the case, do the following:

1Place your

finger in the

recess below the

door of the

memory card

slot, and lift the

door. Pull the

door to the left

to reveal the hinge, and swing the door to the side.

2Insert a compatible

memory card in the

slot. Make sure that

the contact area on

the card is facing up

and towards the slot.

3Push the card in. You

can hear a click when the card

locks into place.

4Push the hinge back in, and close

the door. Ensure that the door is

properly closed.

Eject the memory card

Important: Do not remove the memory card in the

middle of an operation when the card is being accessed.

Removing the card in the middle of an operation may

damage the memory card as well as the device, and data

stored on the card may be corrupted.

To eject the memory card, do the following:

1Before you eject the card, press the power key, and

select Remove memory card. All applications are

closed.

2When Removing memory card will close all open

applications. Remove anyway? is displayed, select

Yes.

3When Remove memory card

and press 'OK' is displayed,

open the door of the memory

card slot.

4Press the memory card to

release it from the slot.

5Pull out the memory card. If the

device is switched on, select OK.

Camera

To activate the main camera, open the lens cover by using

the camera activation switch, or press , and select

Applications > Camera, and open the lens cover. To close

the main camera, close the lens cover.

Tip: To activate the main camera when the lens cover

is already open, press and hold the capture key.

To take a picture, do the following:

1If the camera is in the video mode, select the image

mode from the active toolbar.

2To lock the focus on an

object, press the capture

key halfway down (main

camera only, not

available in landscape

and sports scenes). The

green locked focus

indicator appears on the

display. If the focus was not locked, the red focus

indicator appears.

3To take a picture, press the capture key.

To zoom in or out, use the zoom key in your device.

A scene helps you find the right colour and lighting

settings for the current environment. To change the scene,

in the active toolbar, select Scene modes and a scene.

To send the picture or video by using a multimedia

message, e-mail, or other connection methods, press the

call key, or select Send in the active toolbar (network

service).

To delete the picture or video you have taken, select

Delete in the active toolbar.

Xenon flash

Keep a safe distance when using the flash. Do not use the

flash on people or animals at close range. Do not cover the

flash while taking a picture.

The main camera has a xenon flash for low light

conditions. You can set the flash to On , Off ,

Automatic , or R. eye redu. in the active toolbar.

Xenon flash is not available in:

•Sports scene

•Sequence mode

•Front camera

•Video mode

You cannot take pictures until the flash is fully charged,

unless you have set the flash to Off. When the flash is

charging, blinks on the display. Charging the xenon

flash usually takes a couple of seconds.

Share online

You can share your images and video clips in compatible

online albums, weblogs, or other compatible online sharing

services on the web (network service). You can upload

content, save unfinished posts as drafts and continue later,

and view the content of the albums. The supported content

types may vary depending on the service provider.

Before sharing images and videos online, you must

subscribe to the service with an online image sharing

service provider, and create a new account. Contact your

service provider for details on subscribing to the service.

To upload a file easily, press , and select Gallery >

Images & videos, the file you want to upload, and in

the active toolbar.

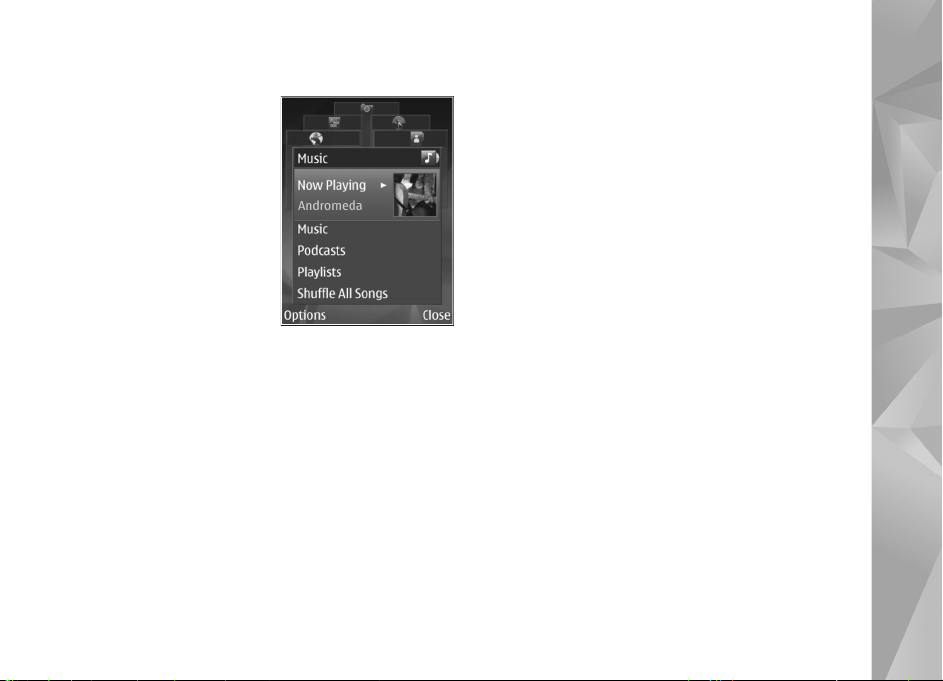

Multimedia menu

With the multimedia menu,

you can view your most

frequently used multimedia

content, such as images and

videos, music clips, favourite

web bookmarks, and

locations saved in Nokia

Maps. You can also enter

your favourite games, or

define your favourite

contacts, and call or send

text messages to them.

The selected content is shown in the appropriate

application.

To open or close the multimedia menu, press the

multimedia key. To navigate in the multimedia menu, use

the scroll key.

Positioning (GPS)

The Global Positioning System (GPS) is a worldwide radio

navigation system that includes 24 satellites and their

ground stations that monitor the operation of the

satellites. Your device has an internal GPS receiver.

The accuracy of location data can be affected by poor

satellite geometry. Availability and quality of GPS signals

may be affected by your location, buildings, natural

obstacles, and weather conditions. The GPS receiver

should only be used outdoors to allow reception of GPS

signals. The first fix takes several minutes.

The GPS receiver

is located at the

top of the device.

When using the

receiver, from an

upright position,

move the device

to an angle of

about 45 degrees

with an

unobstructed view of the sky.

Your device also supports Assisted GPS (A-GPS) (network

service). A-GPS is used to retrieve assistance data over a

packet data connection, which assists in calculating the

coordinates of your current location when your device is

receiving signals from satellites.

Any GPS should not be used for precise location

measurement, and you should never rely solely on location

data from the GPS receiver and cellular radio networks for

positioning or navigation.

Maps

With Maps, you can see your current location on the map,

browse maps for different cities and countries, search for

addresses, and plan routes. The map coverage varies by

country. To open the Maps application, press , and select

Maps.

When you open Maps, it zooms in to the location that was

saved from your last session.

Almost all digital cartography is inaccurate and

incomplete to some extent. Never rely solely on the

cartography that you download for use in this device.

Download maps

Nokia Map Loader is a PC software that you can use to

download and install maps for different countries to your

device from the internet. To use Nokia Map Loader, you

must first install it to a compatible PC. You can download

Autres manuels pour N82

Table des matières

Autres manuels Nokia Téléphone portable

Nokia

Nokia CLASSIC 6220 Manuel utilisateur

Nokia

Nokia Communicator 9290 Guide de démarrage rapide

Nokia

Nokia 2115i - Mono Headset Hs-5 Hs5 2270 2285 3100 3120 3200 3205 3220... Manuel utilisateur

Nokia

Nokia Communicator 9210 Guide de l'administrateur

Nokia

Nokia 5185i Manuel utilisateur

Nokia

Nokia C1-00 Manuel utilisateur

Nokia

Nokia 6340i - Cell Phone - AMPS Manuel utilisateur

Nokia

Nokia 3585 Manuel utilisateur

Nokia

Nokia 3155 Mode d’emploi

Nokia

Nokia Lumia 925 Manuel utilisateur

Nokia

Nokia C2-00 Manuel utilisateur

Nokia

Nokia IP30 - Satellite Plus - Security Appliance Guide de configuration

Nokia

Nokia 3300 - Cell Phone - GSM Manuel utilisateur

Nokia

Nokia 6185 - Cell Phone - CDMA Manuel utilisateur

Nokia

Nokia XpressMusic 5130 Manuel utilisateur

Nokia

Nokia 6300b Manuel utilisateur

Nokia

Nokia NPM-8 Manuel utilisateur

Nokia

Nokia 9300i Manuel utilisateur

Nokia

Nokia 2280 Manuel utilisateur

Nokia

Nokia RM-540 Manuel utilisateur

Nokia

Nokia 300 Manuel utilisateur

Nokia

Nokia RM-10 Manuel utilisateur

Nokia

Nokia 2760 - Cell Phone 11 MB Manuel utilisateur

Nokia

Nokia 5300 - XpressMusic Cell Phone 5 MB Manuel utilisateur

Manuels Téléphone portable populaires d'autres marques

Zte

Zte BLADE A520 Manuel utilisateur

Blackbe;rry

Blackbe;rry KEYone Manuel utilisateur

Bea-fon

Bea-fon X5 Premium Manuel utilisateur

Blackbe;rry

Blackbe;rry 8707 Series Manuel utilisateur

Blackbe;rry

Blackbe;rry Storm Mode d'emploi

LG LM-X420QN Manuel utilisateur

LifeWatch

LifeWatch V Manuel utilisateur

Bea-fon

Bea-fon SILVER LINE SL860 Manuel utilisateur

IKI Mobile

IKI Mobile KF4.5i Manuel utilisateur

Hitech

Hitech HT-850 Manuel utilisateur

Yezz

Yezz Fashion F10 Manuel utilisateur

Point Mobile

Point Mobile PM60 Manuel utilisateur

Blackbe;rry

Blackbe;rry Q10 Manuel utilisateur

Blackbe;rry

Blackbe;rry Bold 9900 Manuel utilisateur

Blackbe;rry

Blackbe;rry STORM 9500 - VERSION 5.0 Manuel utilisateur

LG LM-K420EMW Manuel utilisateur

ISAFE MOBILE

ISAFE MOBILE IS655.2 Manuel utilisateur

LG Thrive Manuel utilisateur
