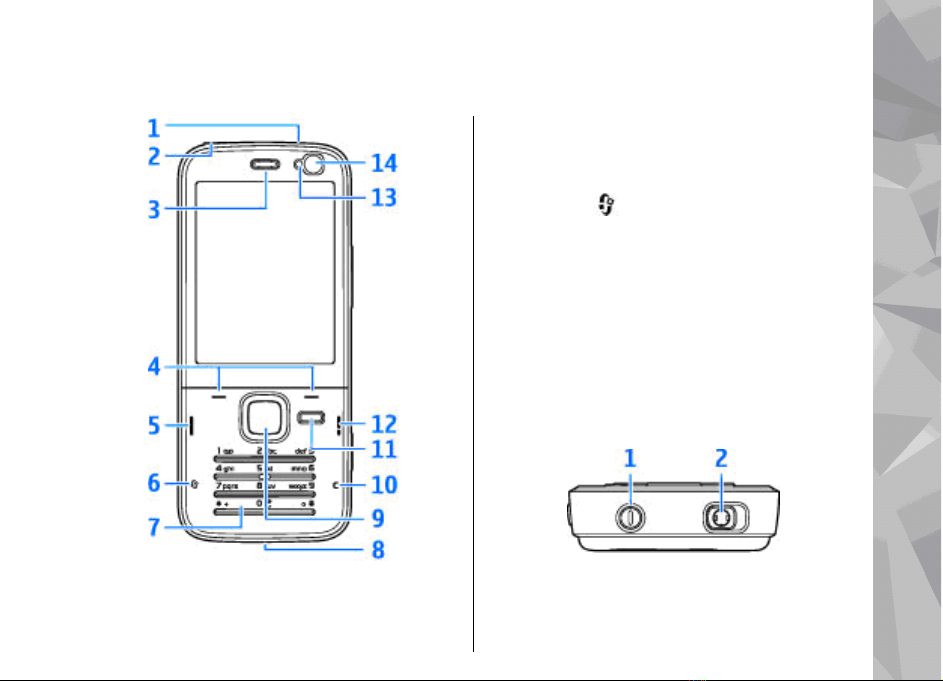

Keys and parts (front)
1— Power key
2— Nokia AV Connector (3.5 mm) for compatible
headsets, and headphones
3— Earpiece
4— Selection keys
5— Call key
6— Menu key
7— Numeric keypad
8— Microphone
9— Navi™ wheel. Hereinafter referred to as the
scroll key.
10 — Clear key C
11 — Multimedia key
12 — End key
13 — Light sensor
14 — Secondary camera
3
Keys and parts (back)
2— Zoom/Volume key
3— 2-stage capture key for auto-focus, still image
capture, and video recording
4— LED flash
5— Main camera for high resolution (up to 3.2
megapixels) image capture and video recording
6— Micro USB connector to connect to a compatible
computer
7— Memory card slot for a compatible microSD card
8— Charger connector
10 — Hole for a wrist strap
4
1 and 9 — Stereo speakers with 3-D sound effect
Insert (U)SIM card and battery
A USIM card is an enhanced version of the SIM card
and is supported by UMTS mobile phones.
Always switch the device off and disconnect the
charger before removing the battery.
1. With the back of the
device facing you,
press and hold the
release button and
lift up the cover.
2. Insert the SIM card
into the card holder.
Ensure that the
bevelled corner on the
card is facing toward
the slot, and that the
contact area on the
card is facing down.
3. Insert the battery.
4. To replace the cover,
direct the top locking
catch toward its slot
first and then press
down until the cover
locks into place.
5
Switch the device on
1. Press and hold the power key.
2. If the device asks for a PIN code
or lock code, enter it, and press
the left selection key. The
factory setting for the lock
code is 12345.
Your device has internal
antennas.
Note: Your device may
have internal and external antennas. As with any
radio transmitting device, avoid touching the
antenna unnecessarily when the antenna is in use.
Contact with such an antenna affects the
communication quality, may cause the device to
operate at a higher power level than otherwise
needed and may reduce the battery life.
1— Bluetooth and wireless LAN antenna, and GPS
receiver
2— FM transmitter antenna
3— Cellular antenna
Note: The Bluetooth, WLAN, GPS, and FM transmitter
antennas are in the back cover of your device. If you
change the back cover, verify that you have a
genuine Nokia part intended for use with this
device, or these connections may stop working.
6
Memory card
Use only compatible microSD cards
approved by Nokia for use with this
device. Nokia uses approved industry
standards for memory cards, but some brands may
not be fully compatible with this device.
Incompatible cards may damage the card and the
device and corrupt data stored on the card.
Insert the memory card
Keep all memory cards out of the reach of small
children.
A memory card may be already inserted in the
device. If not, do the following:
1. Place your finger in the recess beside the door of
the memory card slot, and lift the door. Pull the
door to the left to reveal the hinge, and swing
the door to the side.
2. Insert a
compatible
memory card in
the slot. Make
sure that the
contact area on
the card is
facing down and
towards the
slot.
3. Push the card in.
You can hear a click
when the card
locks into place.
4. Push the hinge
back in, and close
the door. Ensure that the door is properly closed.
Eject the memory card
Important: Do not remove the memory card
in the middle of an operation when the card is being
accessed. Removing the card in the middle of an
operation may damage the memory card as well as
the device, and data stored on the card may be
corrupted.
1. Before you eject the card, press the power key,
and select Remove memory card. All
applications are closed.
7
2. When Removing memory card will close all
open applications. Remove anyway? is
displayed, select Yes.
3. When Remove memory
card and press 'OK' is
displayed, open the door of
the memory card slot.
4. Press the memory card to
release it from the slot.
5. Pull out the memory card. If
the device is switched on, select OK.
8
Charge the battery
1. Connect a compatible
charger to a wall
outlet.
2. Connect the power
cord to the device. If
the battery is
completely
discharged, it may
take a while before the charging indicator starts
scrolling.
3. When the battery is fully charged, the charging
indicator stops scrolling. Disconnect the charger
from the device, then from the wall outlet.
Tip: Disconnect the charger from the wall
outlet when the charger is not in use. A
charger that is connected to the outlet
consumes power even when it is not
connected to the device.
9
Navi™ wheel
Use the scroll key to move around the menus and
lists (up, down, left, or right). Press the scroll key to
select the action shown on top of the key or to show
the most used options .
When the Navi™ wheel setting is switched on in the
settings, you can scroll quickly through Photos,
Music Player, Nokia Video Centre, Contacts, and
Messaging lists, or the multimedia menu.
1. Move the tip of your finger gently around the rim
of the scroll key clockwise or counterclockwise.
Keep moving your finger until scrolling starts on
the display.
2. To continue scrolling, slide your
finger around the rim of the
scroll key clockwise or
counterclockwise.
To turn the Navi wheel setting on
or off, press , and select Tools >
Settings > General > Navi wheel > Navi
wheel.
Sleep mode indicator
When the device is on standby, the rim inside the
Navi wheel lights up slowly. The light varies
periodically as if the device was breathing. The
breathing is quicker if there are missed calls or
received messages.
To turn off breathing, press , and select Tools >
Settings > General > Navi wheel >
Breathing.
