Nokia Lumia 800 Manuel utilisateur

Check the repair

policy before

performing any

mechanical repair

on Service Level

1&2!

Service Manual for L1 and L2

Nokia Lumia 800

RM-801, RM-819

Key features

Windows Phone Mango operating system

Large 3.7" OLED ClearBlack screen

Best instant social experience

Sync, store and share media files

Fast browsing with IE9

Version 2.0

Exploded view Disassembly steps Disassembly video

Assembly steps Assembly video Service devices

Product controls and interfaces Service concept Phone reset

More More More

Service Manual Level 1 and 2

Nokia Lumia 800

RM-801, RM-819

Version 2.0

Exploded view

DISPLAY

I0004

EARPIECE BOOT

I0028

EARPIECE

I0029

LIGHT SWAP PWB

I0011

THERMAL PAD

I0023

FLASH BOOT

I0026

USB DOOR

I0001

SIM DOOR

I0002

TYPE LABEL

I0027

BTB RUBBER

I0012

ALS PROXIMITY FPC

I0006

SHIELDING COVER 1

I0019

SHIELDING COVER 2

I0020

THERMALPAD

I0022

CAMERA MODULE

I0030

SIDE KEY FLEX

I0031

AV FLEX

I0032

TYPE LABEL 2

I0027

SCREW TORX+

SIZE 5 M1.4 X 1.7

I0003

WINDOW FRAME

I0005

THERMAL PAD

I0018

SCREW TORX+

SIZE 5 M1.4 X 3.6

I0007

BATTERY

I0009

CHASSIS

I0008

BATTERY SPONGE

I0010

THERMAL PAD

I0025

THERMAL PAD

I0024

SHIELDING COVER 7

I0017

SHIELDING COVER 8

I0016

THERMAL PAD

I0018

BTB RUBBER

I0014

BTB RUBBER

I0013

BTB RUBBER

I0015

SHIELDING COVER 4

I0021

BODY

I0036

FLASH MODULE

IHF SPEAKER

I0033

ANTENNA

I0034

LIGHT SWAP PACKAGE

(I0011 - I0029)

BODY ASSEMBLY

(I0031 - I0036)

DISPLAY ASSEMBLY

(I0004, I0005)

Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia Lumia 800

RM-801, RM-819

Version 2.0

Disassembly steps

For disassembling you need the Nokia Standard toolkit version 2. You will also need the camera removal

tool SS-210 and the unibody opening tool SS-282.

Protect the DISPLAY with protective film.

Push in from the shown place to open the USB DOOR.

Pull the SIM DOOR to the direction shown to open it.

Remove the SIM DOOR.

Pull out and remove the USB DOOR. Do not use it again. Discard it.

Unscrew the two Torx+ size 5 screws in the order shown. Do not use them again. Discard them.

Insert the unibody opening tool SS-282 to the shown place and lever up the top left corner of the

WINDOW FRAME.

Insert the SS-282 to the shown place and lever up the top right corner of the WINDOW FRAME.

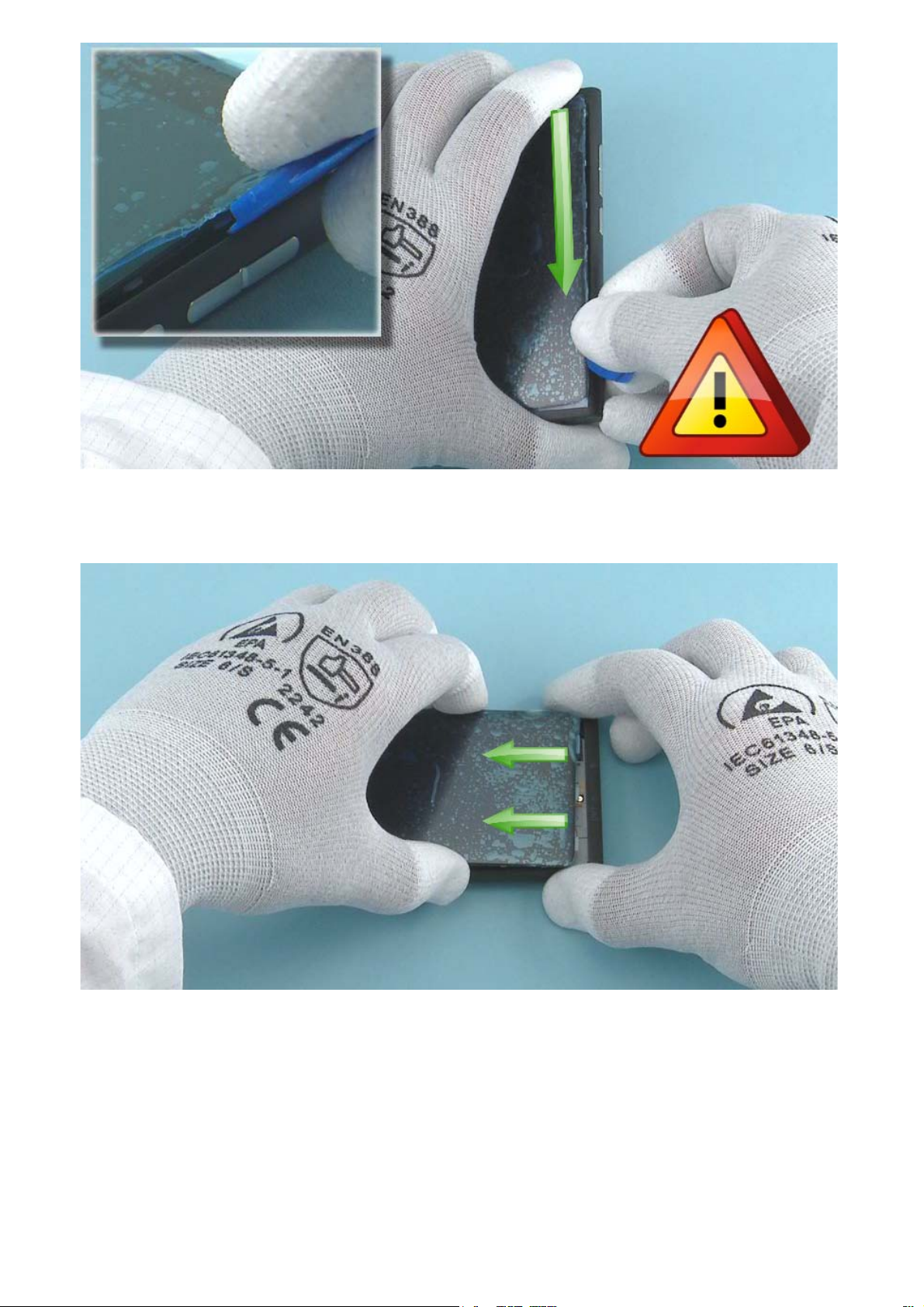

Release the left side of the WINDOW FRAME by sliding the SRT-6 to the direction shown. Start from the

top end of the device. While releasing the WINDOW FRAME, be careful not to damage the BODY

ASSEMBLY.

Release also the right side of the WINDOW FRAME by sliding the SRT-6 to the direction shown. Start from

the top end of the device.

Pull the WINDOW FRAME gently to the direction shown to release the three remaining clips holding it.

Turn over the WINDOW FRAME as shown. While turning the WINDOW FRAME, be careful not to damage the

two shown flexes.

Use the SS-93 to open the DISPLAY connector. While opening the connector, be careful not to damage it

or nearby components.

Use the sharp end of the SS-93 to open the PROXIMITY connector. While opening the connector, be

careful not to damage it or nearby components.

The WINDOW FRAME can now be separated.
