Nokia Lumia 720 Manuel utilisateur

Check the repair

policy before

performing any

mechanical repair

on Service Level

1&2!

Service Manual for L1 an

Nokia Lumia 720

RM-885

Key features

Sleek and stylish unibody design

Windows Phone 8 Operating System

4.3" IPS LCD display with Nokia ClearBlack technology

6.7 Mpix main camera with f/1.9 aperture

1.3 Mpix front camera

Bluetooth 3.0, NFC connectivity

Version 1.0

Exploded view Disassembly steps Disassembly video

Assembly steps Assembly video Solder components

Service devices Product controls and interfaces Service concept

Phone reset

Mor

Service Manual Level 1 and 2

Nokia Lumia 720

RM-885

Version 1.0

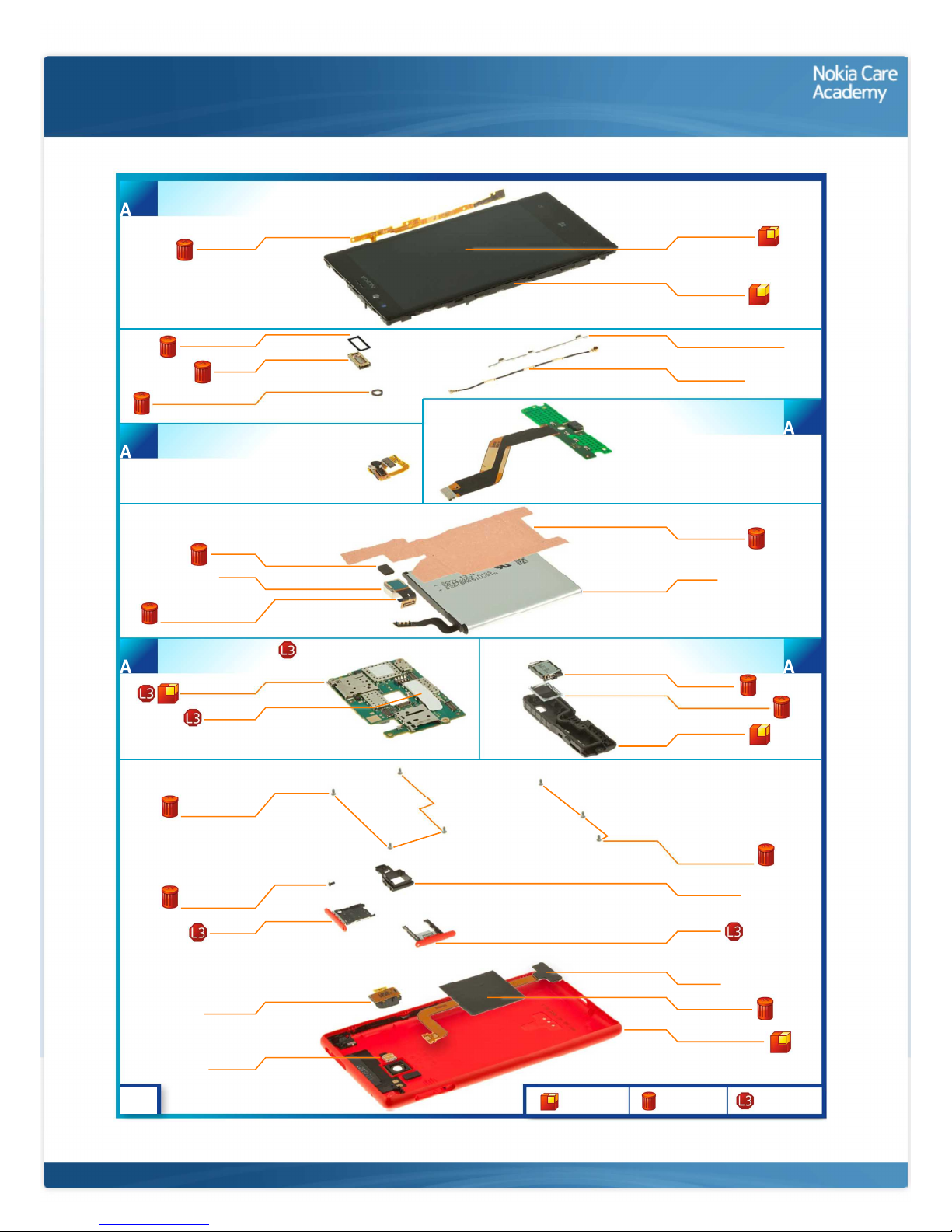

Exploded view

SIDEKEY FLEX

I0006

EARPIECE

I0007

CAMERA

CONNECTOR GASKET

I0016

FRONT CAMERA GASKET

I0009

LIGHT SWAP PWB

I0010

SIM DOOR

I0001

TYPE LABEL

I0011

AV MODULE

I0027

FLASH LED

I0026

EARPIECE GASKET

I0008

IC GASKET

I0014

CAMERA

I0015

DISPLAY MODULE

I0005

BATTERY

I0013

DISPLAY FRAME

I0004

RF COAX CABLE HOLDER

I0020

RF COAX CABLE

I0019

HEATSPREADER

I0018

IHF SPEAKER

I0022

CAMERA BOOT

I0017

WLC FLEX

I0029

BATTERY GASKET

I0028

UNIBODY ASSEMBLY

I0025

IHF SPEAKER GASKET

I0021

MAIN ANTENNA

I0023

SD DOOR

I0003

SCREW TORX+

SIZE 4 M1.4 x 2.5

I0024

SCREW TORX+

SIZE 4 M1.4 x 2.5

I0012

SCREW TORX+

SIZE 2 M1.2 x 2.6

I0002

FRONT CAMERA ASSEMBLY

DISPLAY MODULE ASSEMBLY

(I0004 - I0006)

LIGHT SWAP PACKAGE

(I0010, I0011)

USB FLEX ASSEMBLY 3

MAIN ANTENNA ASSEMBLY

(I0021 - I0023) 5

v1.0 Only available

as assembly

Not reuseable

after removal

Repair/swap

only in level 3

Service Manual Level 1 and 2

Nokia Lumia 720

RM-885

Version 1.0

Disassembly steps

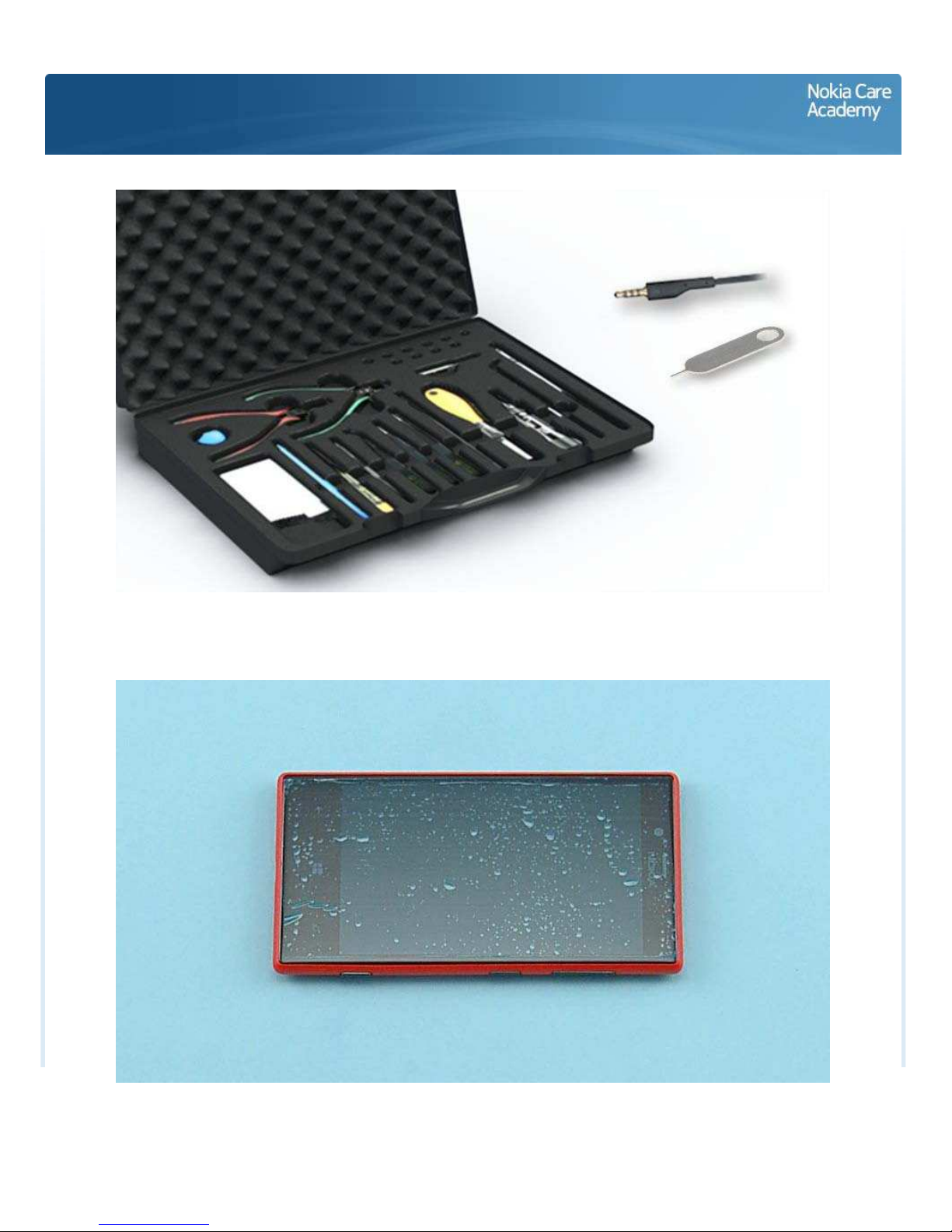

1) For disassembling you need the Nokia Standard toolkit version 2. You will also need an AV plug and the

SIM door key.

2) Protect the DISPLAY MODULE with protective film.

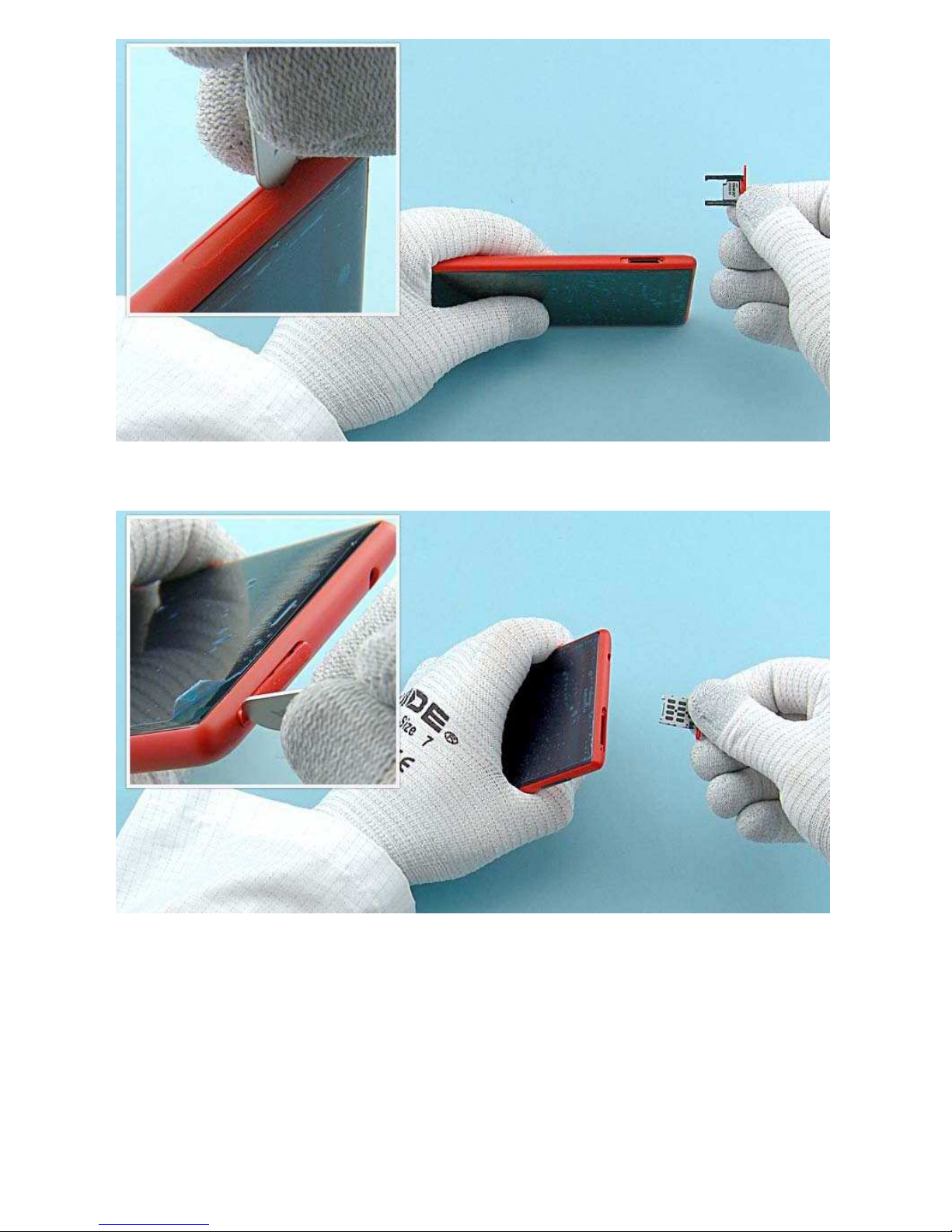

3) Insert the SIM door key to the small hole on the SD DOOR and press it gently. Remove the SD DOOR.

4) Insert the SIM door key to the small hole on the SIM DOOR and press it gently. Remove the SIM DOOR.

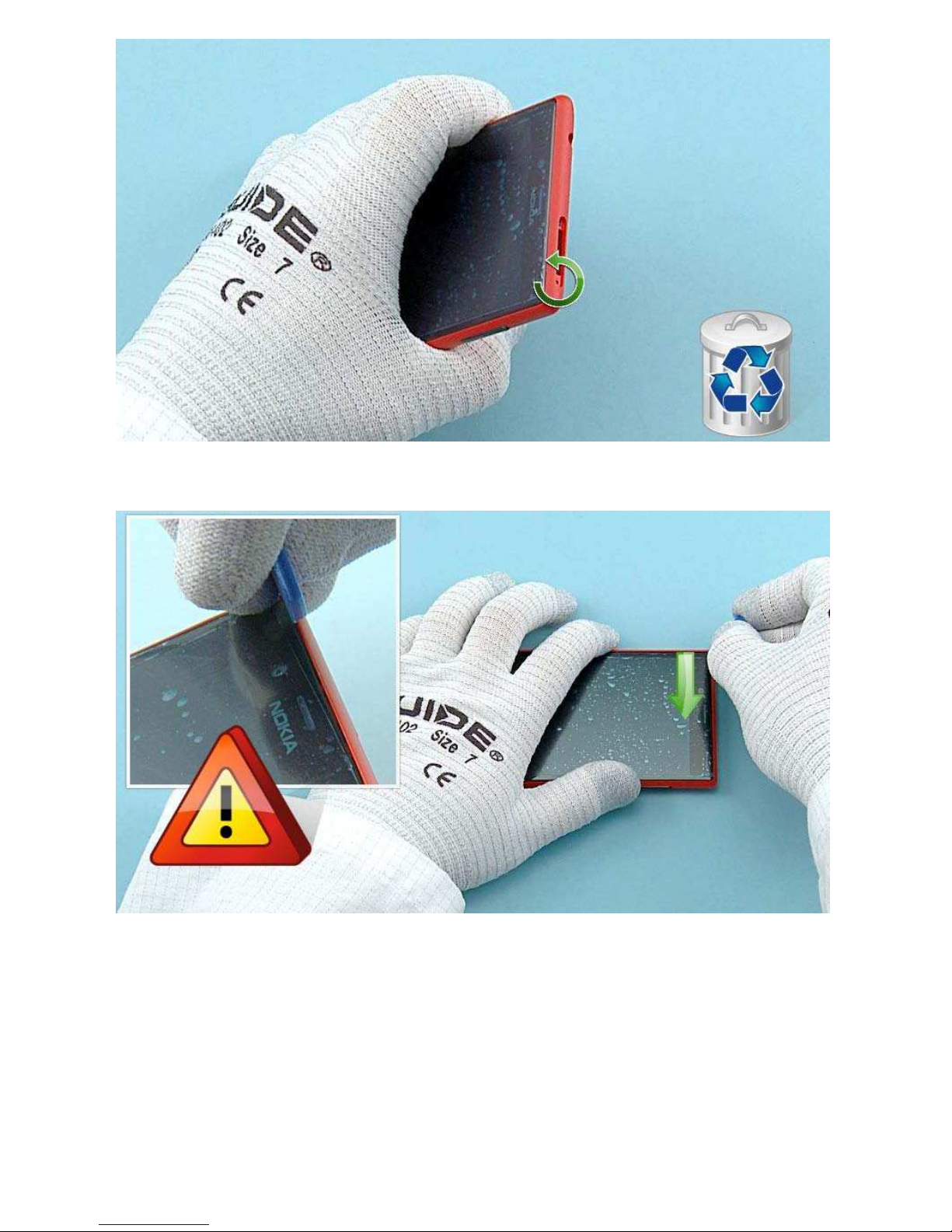

5) Unscrew the TORX+ size 2 screw. Do not use it again. Discard it.

6) To release the DISPLAY MODULE insert the SRT-6 to the top left corner of the device and slide to the

direction shown. Be careful not to damage the UNIBODY ASSEMBLY!

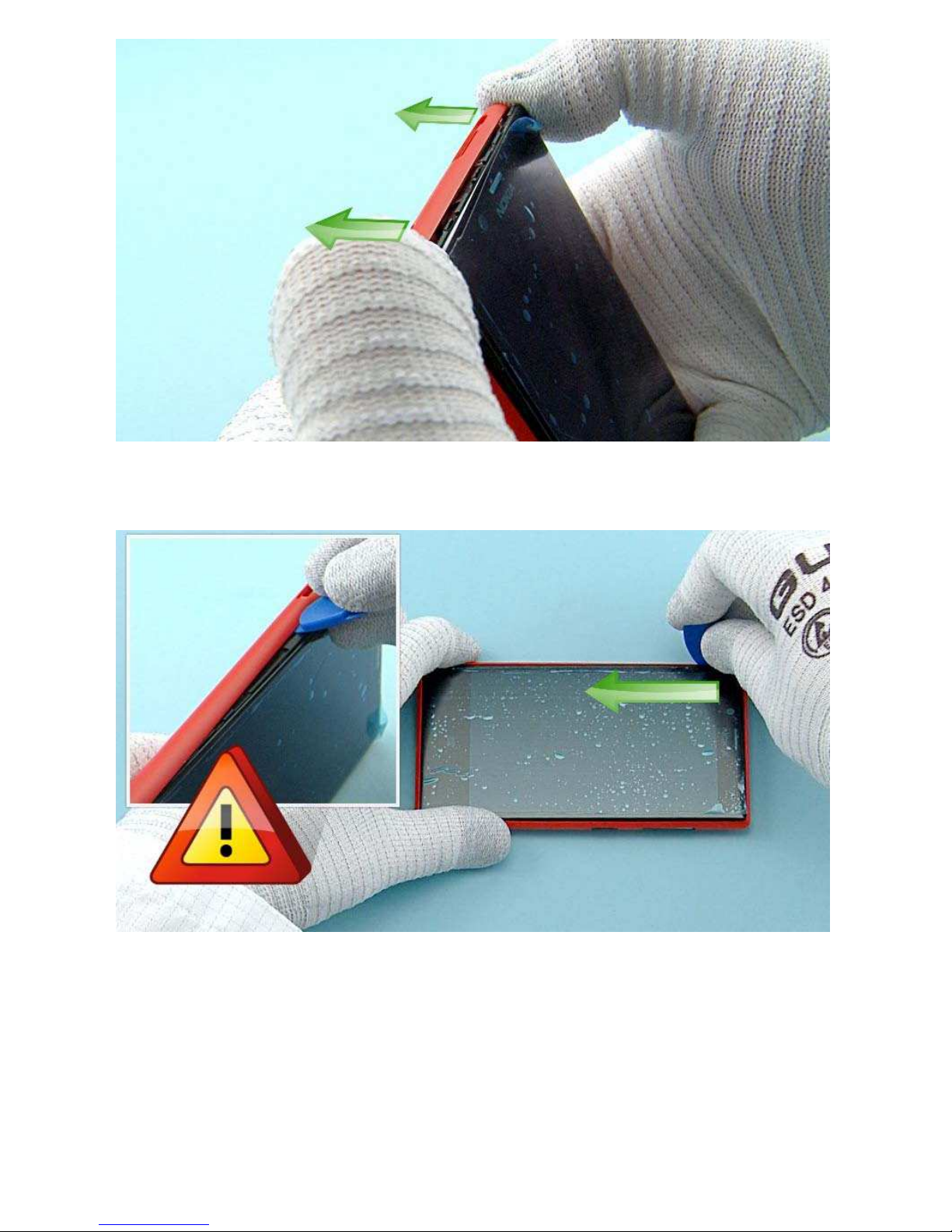

7) Push the top end of the UNIBODY ASSEMBLY to the direction shown to release the top part of the

DISPLAY MODULE.

8) Release the left side of the UNIBODY ASSEMBLY by sliding the SRT-6 to the direction shown. Be

careful not to damage the UNIBODY ASSEMBLY!

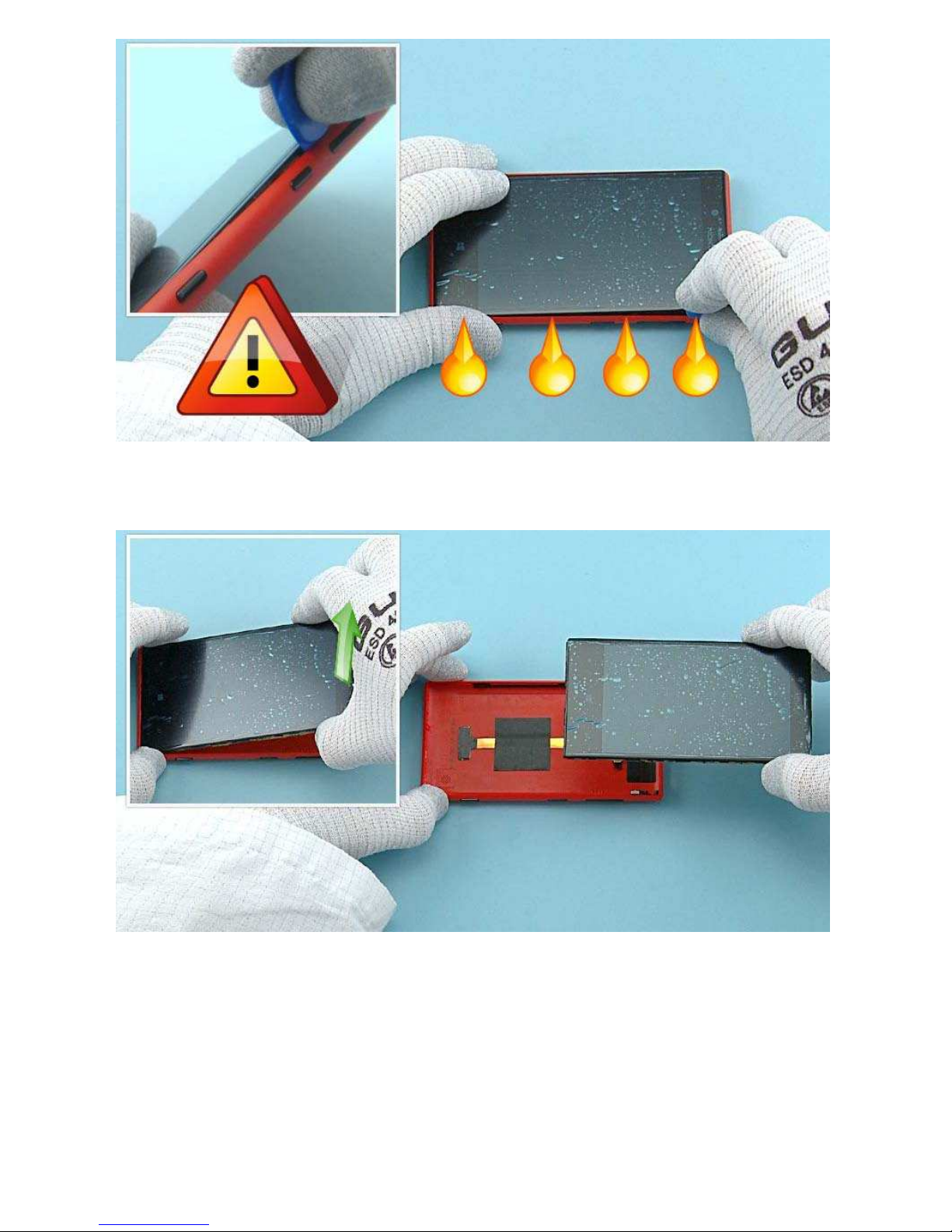

9) Release the four clips on the right side of the device with the SRT-6. Do not slide the SRT-6 as it might

damage the SIDEKEY FLEX!

10) Lift the top end of the DISPLAY MODULE up first. The DISPLAY MODULE and the UNIBODY ASSEMBLY

can now be separated.

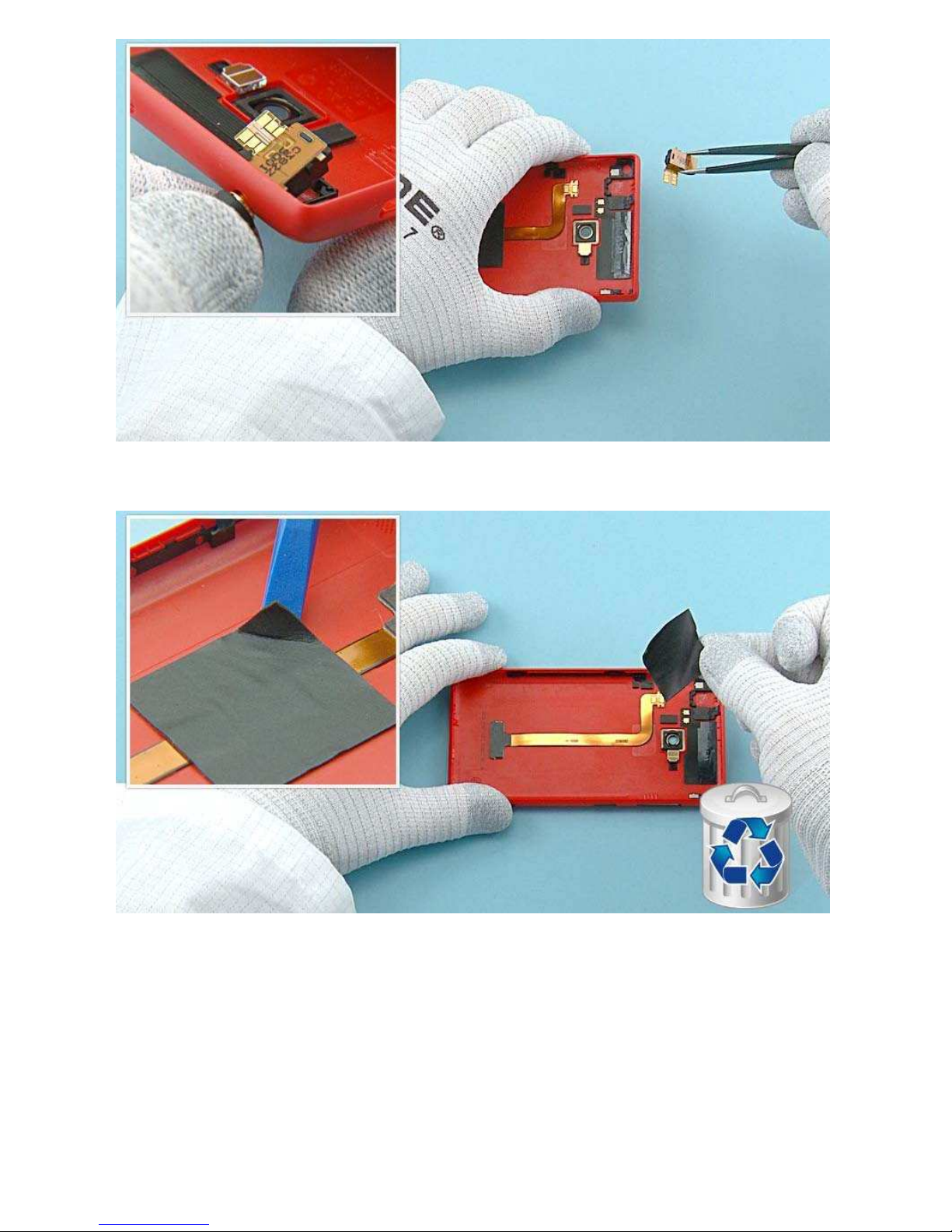

11) Use the AV plug to lever up the AV MODULE. Remove the AV MODULE.

12) Lift one corner of the BATTERY GASKET with the SS-93 and peel it off. Do not use it again. Discard it.

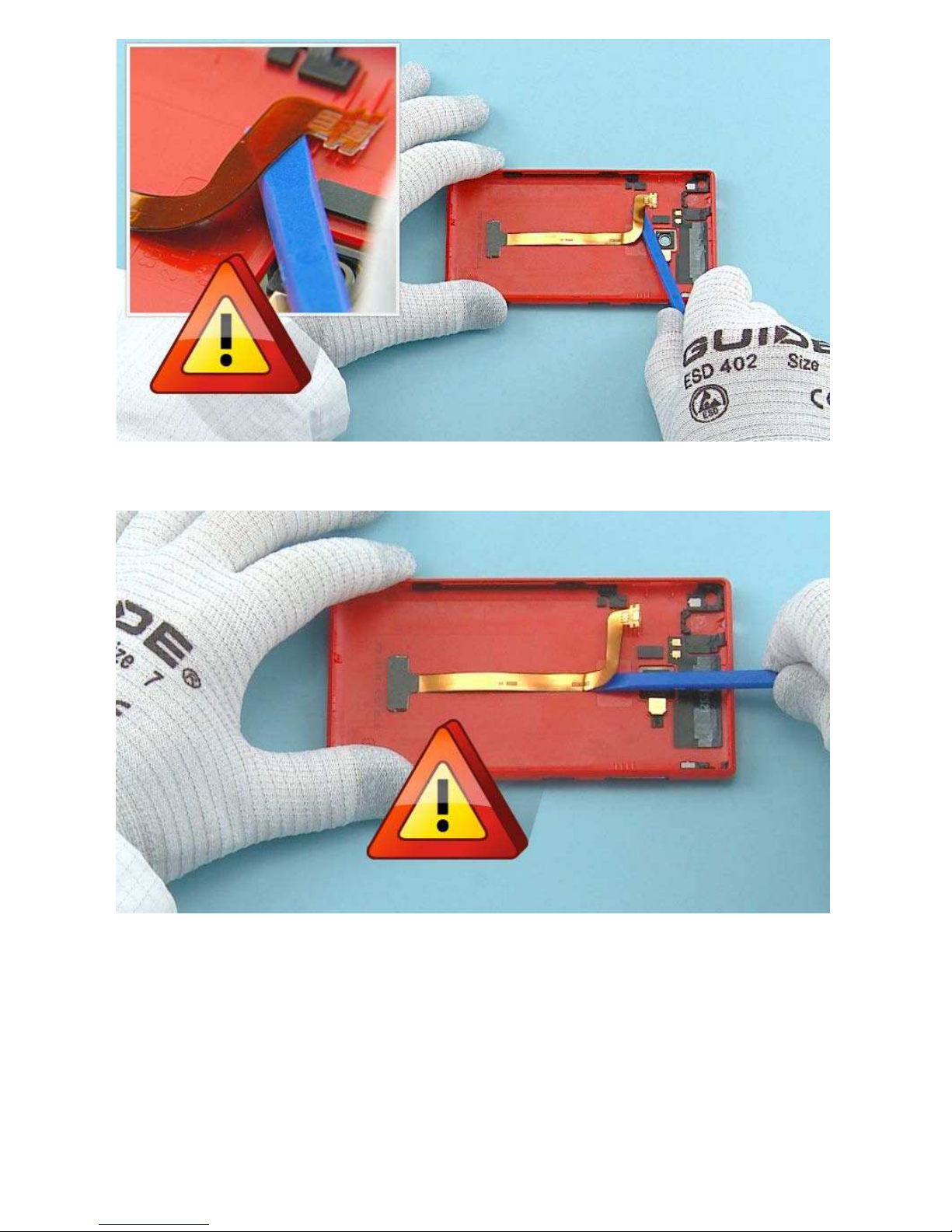

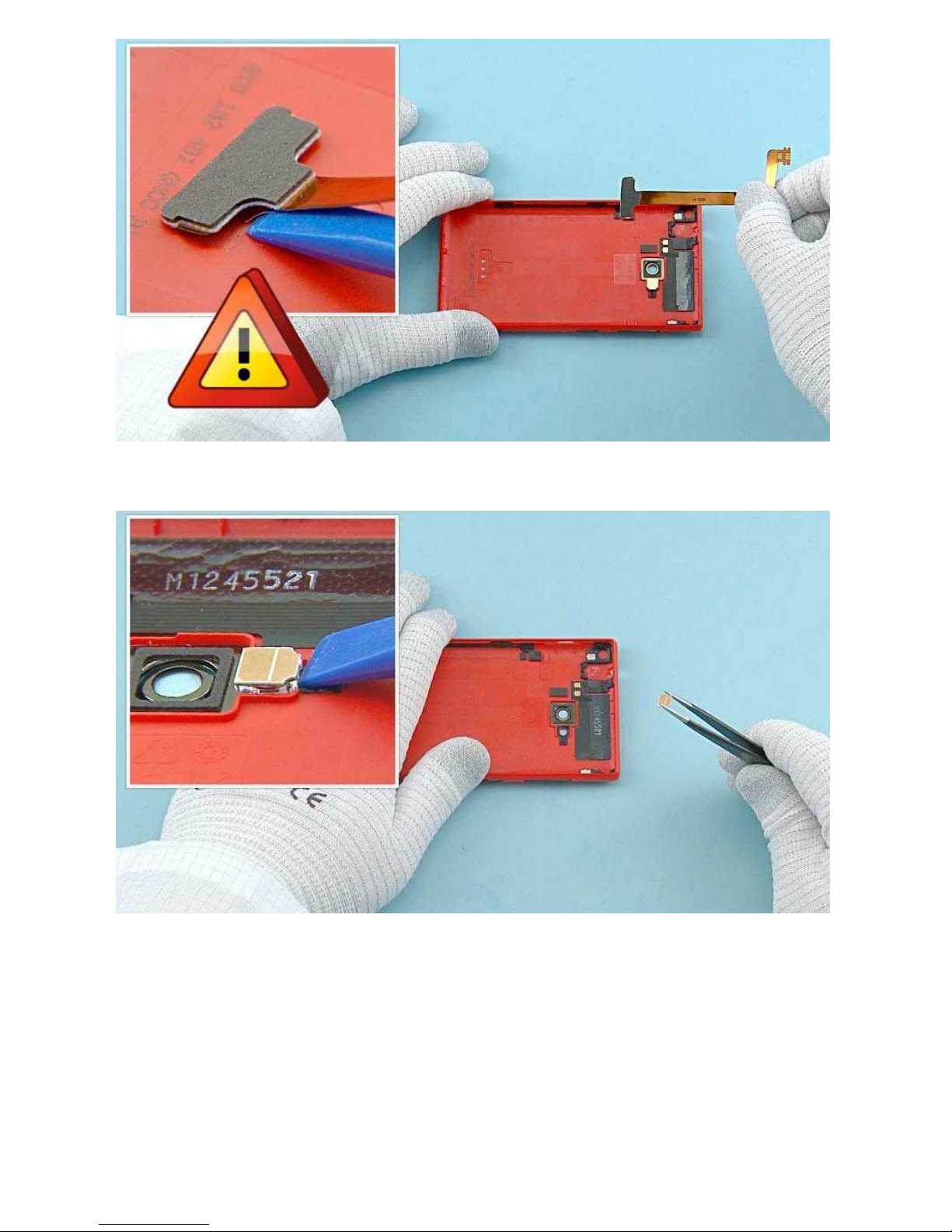

13) Use the SS-93 to release the top end of the WLC FLEX. Be careful not to damage it!

14) Then release the middle part of the WLC FLEX. Be careful not to bend the flex!

15) Carefully release the bottom end of the WLC FLEX and remove it. Be careful not to damage the flex!

16) Use the SS-93 to release the FLASH LED. Remove it with tweezers.
