Nilfisk-ALTO MAXXI II Manuel utilisateur

Service Manual

Models:

35, 55-1, 55-2, 75-1, 75-2

MAXXI II

ENGLISH

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Preface 3

Safety Issues 4

Technical specifications 5

Construction 10

Top 10

Container 13

Parts 15

Models:

35 15

55-1, 75-117

55-2, 75-218

55, 75 BSF, BDF 19

Filter and Bags 20

Squeegee 20

Diagrams 21

Notes 22

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Preface

In this manual you will find the essentials you need to know when repairing the wet and

dry vacuum cleaners in the MAXXI II series. When carrying out repairs, make sure you

have a suitable workbench or the like with the necessary water and power supply

available.

 If you determine an error in operation, be sure to refer the customer to the user

manual.

A fault in the equipment can have a number of causes. The chapter ”service / repair”

will help you here. Use the illustrated spare parts lists for your repairs. These show you

the location of the individual parts and the sequence in which they are assembled.

 Always refer to the technical service bulletin information sheets. Also known as

TSB’s

These will tell you about any technical modifications made after publication of this

service manual.

 Only use original Nilfisk-ALTO spare parts

It is under no circumstances legal to provide this service manual and any technical

service bulletin that might be released to third party without a written approval from the

Global Product Management group, located at

Sognevej 25, 2605 Brøndby, Denmark

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Safety Issues

To be performed by a skilled or instructed person only !

Disconnect the vacuum cleaner from the power supply before

starting the work!

Safety instructions marked with this symbol in

this manual must be observed to prevent

danger to persons.

This symbol is used to mark safety

instructions that must be observed to prevent

damage to the equipment and degradation of

performance.

This symbol indicates tips and instructions to

simplify work and to ensure safe operation.

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Technical specifications

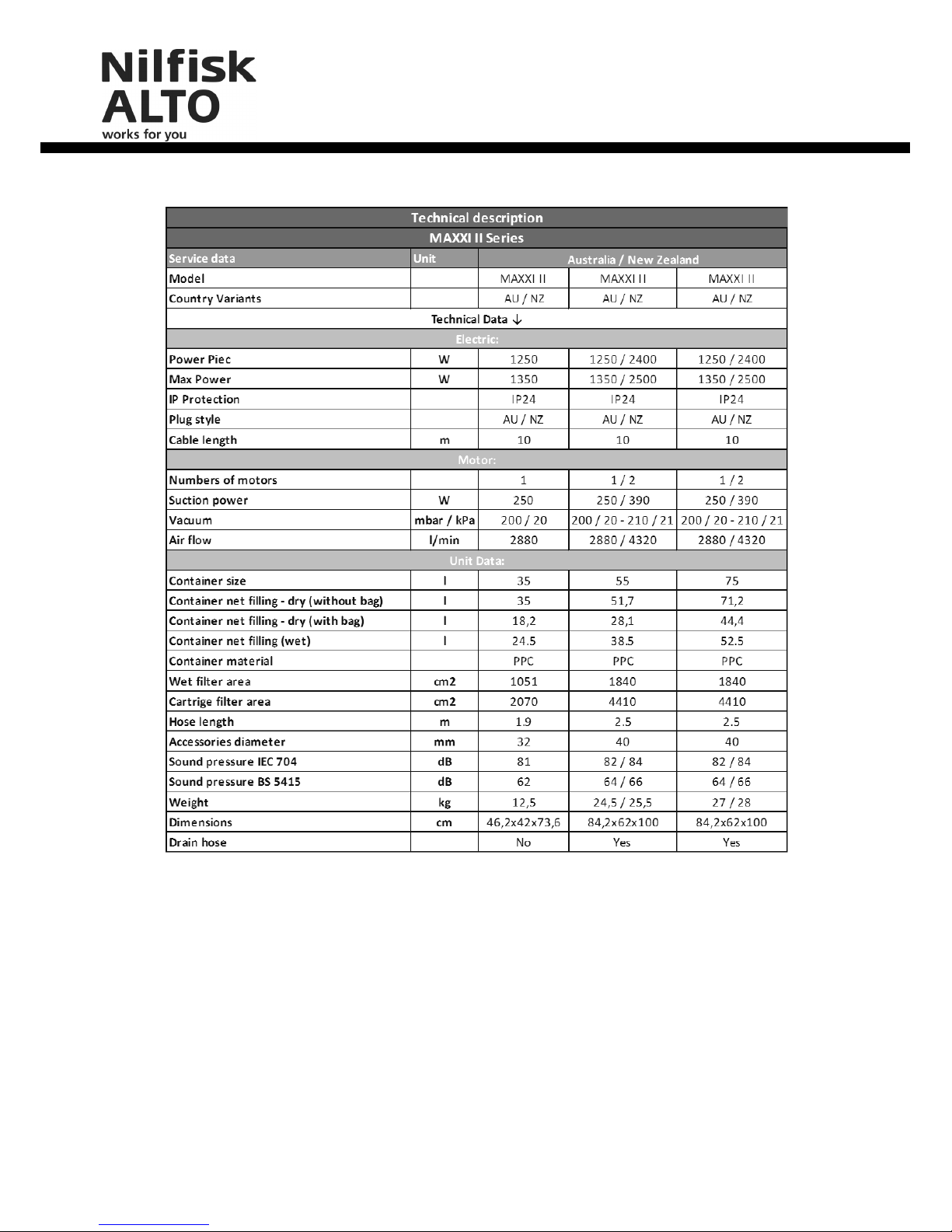

Technical specification for the MAXXI II EU variants

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the MAXXI II UK variants

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the MAXXI II AU / NZ variants

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the MAXXI II US variants

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the MAXXI II JP variants

MAXXI_II_Service_Manual_version_1.0_Feb_2013

Construction

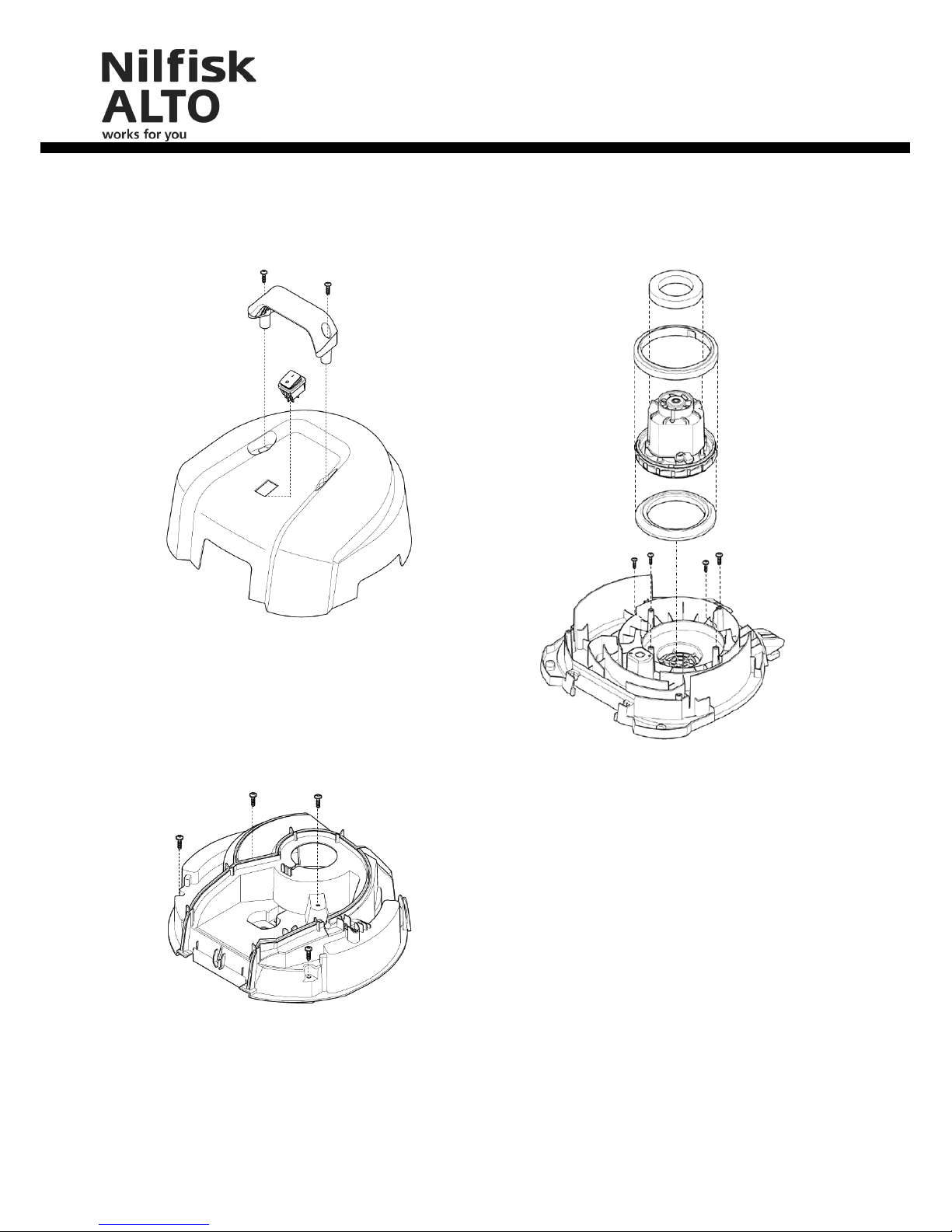

MAXXI II - Top 35

Art: 6.1 shows how the handle, top

cover and the switch is placed on top

of the motor cover.

Art: 6.1

Art: 6.3

Art: 6.3 shows how the motor is

fitted into the bottom part of the

motor head.

Art: 6.2

Art: 6.2 shows how the motor cover

is fitted into the bottom part of the

motor head. Please refer to the spare part list for

part numbers.
