ENGLISH Models:

35, 55-1, 55-2, 75-1, 75-2

VL 500

’’

Service Manual

VL500_Service_Manual_version_1.0_Feb_2013

Preface 3

Safety Issues 4

Technical specifications 5

Construction 12

Top 12

Container 15

Parts 18

Models:

35 18

55-1, 75-120

55-2, 75-221

55, 75 BSF, BDF 22

55, 75 EDF 23

Filter and Bags 24

Squeegee 24

Diagrams 25

Notes 26

VL500_Service_Manual_version_1.0_Feb_2013

Preface

In this manual you will find the essentials you need to know when repairing the wet and

dry vacuum cleaners in the VL500 series. When carrying out repairs, make sure you

have a suitable workbench or the like with the necessary water and power supply

available.

 If you determine an error in operation, be sure to refer the customer to the user

manual.

A fault in the equipment can have a number of causes. The chapter ”service / repair”

will help you here. Use the illustrated spare parts lists for your repairs. These show you

the location of the individual parts and the sequence in which they are assembled.

 Always refer to the technical service bulletin information sheets. Also known as

TSB’s

These will tell you about any technical modifications made after publication of this

service manual.

 Only use original Nilfisk-Advance spare parts

It is under no circumstances legal to provide this service manual and any technical

service bulletin that might be released to third party without a written approval from the

Global Product Management group, located at

Sognevej 25, 2605 Brøndby, Denmark

VL500_Service_Manual_version_1.0_Feb_2013

Safety Issues

To be performed by a skilled or instructed person only !

Disconnect the vacuum cleaner from the power supply before

starting the work!

Safety instructions marked with this symbol in

this manual must be observed to prevent

danger to persons.

This symbol is used to mark safety

instructions that must be observed to prevent

damage to the equipment and degradation of

performance.

This symbol indicates tips and instructions to

simplify work and to ensure safe operation.

VL500_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the VL500 EU variants

VL500_Service_Manual_version_1.0_Feb_2013

Technical specifications

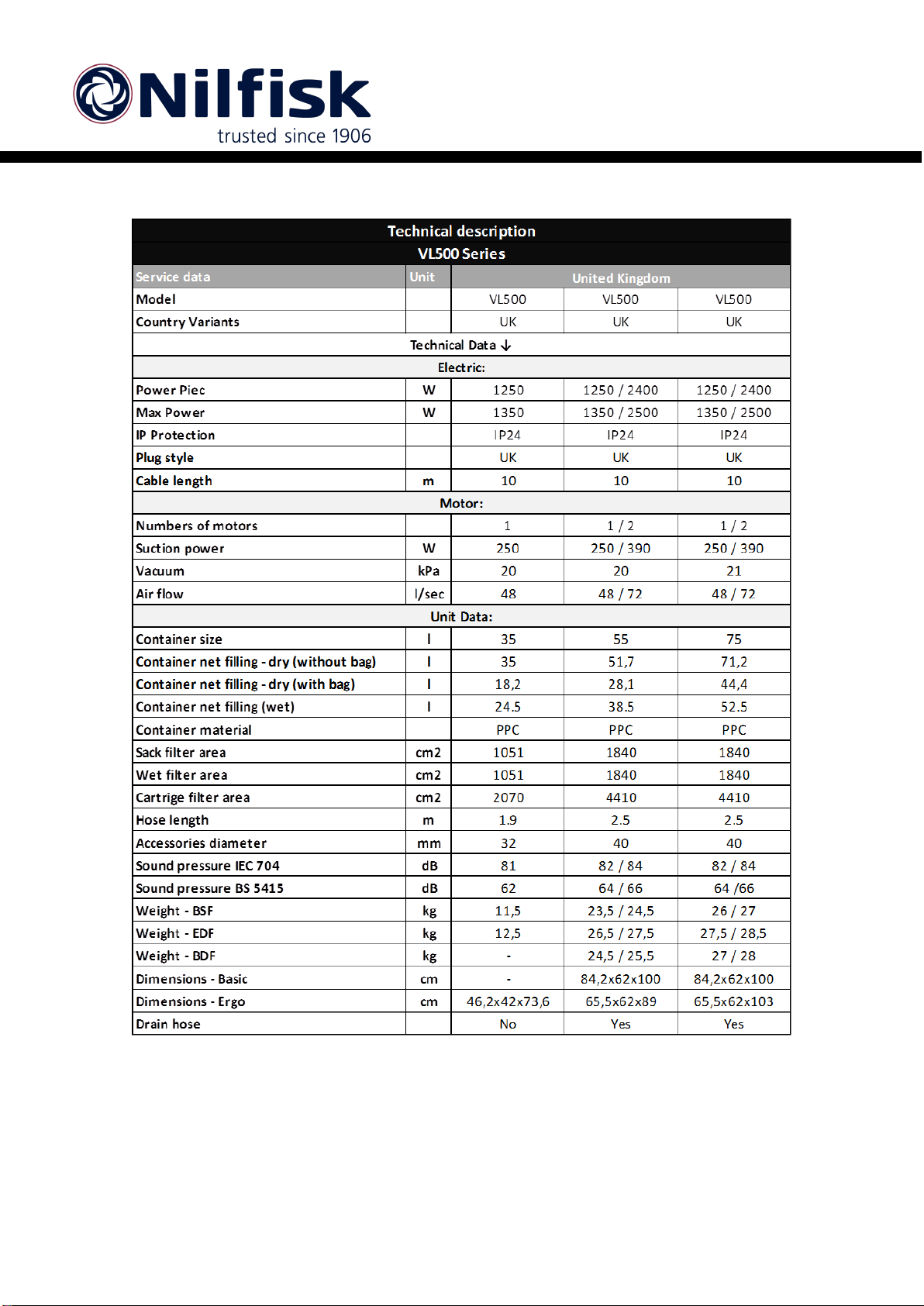

Technical specification for the VL500 UK variants

VL500_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the VL500 AU / NZ variants

VL500_Service_Manual_version_1.0_Feb_2013

Technical specifications

Technical specification for the VL500 US variants

VL500_Service_Manual_version_1.0_Feb_2013

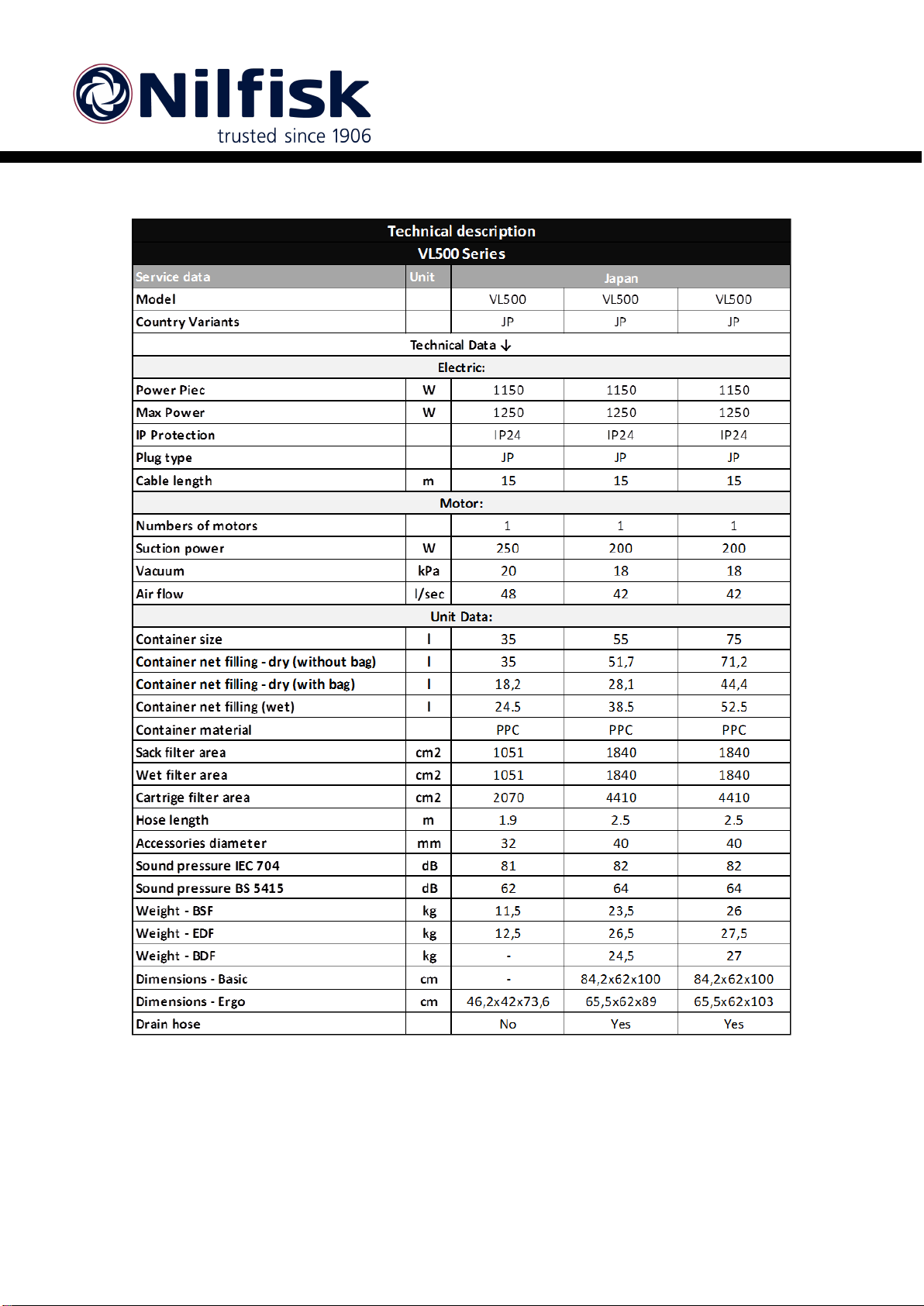

Technical specifications

Technical specification for the VL500 JP variants
