Nilfisk-Advance Convertamatic 260B Manuel utilisateur

8/93 revised 12/00 Form Number 56043021

Convertamatic

™

260B/32B/32BD/38BD

SERVICE MANUAL

Advance MODELS 56372450(260B), 56395700(32B)

56395710(32BD), 56395720(38BD)

56372460(260BHD), 56395715(320BHD), 56395725(380BHD)

Hydro-Retriever

™

260BHD/320BHD/380BHD

56043021 - 260, 32, 38, 320, 380

TABLE OF CONTENTS

_________________________________________________________________________________________________________________________________________________________________________________________________________________________

Batteries.........................................................................................................53

Brush Drive Belt Adjustment - 32, 38, 320, 380 .............................................16

Brush Drive Belt Adjustment - 260 .................................................................14

Brush Drive Motor - Carbon Brush Inspection - 260 ......................................17

Brush Drive Motor - Carbon Brush inspection - 32, 38, 320, 380 ..................19

Brush Drive Motor Replacement - 32, 38, 320, 380.......................................22

Brush Drive Motor Replacement - 260...........................................................20

Brush Drive System Maintenance..................................................................14

Brush Drive System Troubleshooting.............................................................31

Caster Replacement ......................................................................................51

Differential Removal - 32BD, 38BD, 320BHD, 380BHD ................................49

Drive Belt Removal - 32BD, 38BD, 320BHD, 380BHD..................................45

Drive System Maintenance ............................................................................45

Drive System Troubleshooting - 32BD, 38BD, 320BHD, 380BHD.................52

Drive Wheel Removal - 32BD, 38BD, 320BHD, 380BHD..............................47

Main Wheel Removal - 32B ...........................................................................48

Main Wheel Removal - 260............................................................................47

Pressure Arm Bearing Replacement - 32, 38, 320, 380 ................................26

Pressure Arm Bearing Replacement - 260 ....................................................24

Propelling Linkage Adjustment - 32, 38, 320, 380 .........................................29

Propelling Linkage Adjustment - 260 .............................................................28

Safety.............................................................................................................. 1

56043021 - 260, 32, 38, 320, 380

Solution Cable Replacement - 32, 38, 320, 380 ............................................12

Solution Cable Replacement - 260 ................................................................10

Solution System Maintenance .........................................................................6

Solution System Troubleshooting ..................................................................13

Solution Valve Replacement - 32, 38, 320, 380 ...............................................8

Solution Valve Replacement - 260 ...................................................................6

Specifications & Maintenance..........................................................................3

Squeegee Adjustment - Curved .....................................................................40

Squeegee Adjustment - Straight ....................................................................39

Squeegee Blade Replacement - Curved .......................................................43

Squeegee Blade Replacement - Straight.......................................................41

Vacuum Motor - Carbon Brush Inspection - 32, 38, 320, 380 ........................35

Vacuum Motor - Carbon Brush Inspection - 260 ............................................33

Vacuum Motor Removal - 32, 38, 320, 380 ...................................................38

Vacuum Motor Removal - 260 .......................................................................36

Vacuum System Maintenance .......................................................................32

Vacuum System Troubleshooting ..................................................................44

Note: All references to right, left, front, or rear in this manual are as seen from the operator’s stand-point.

TABLE OF CONTENTS

56043021 - 260, 32, 38, 320, 380

SAFETY

________________________________________________________________________________________________________________________________________________________________________________

SYMBOLS

Advance uses the symbols below to signal potentially dangerous conditions. Always read this information

carefully and take the necessary steps to protect personnel and property.

DANGER!

Is used to warn of immediate hazards that will cause severe personal injury or death.

WARNING!

Is used to call attention to a situation that could cause severe personal injury.

CAUTION!

Is used to call attention to a situation that could cause minor personal injury or damage to the machine or other

property..

GENERAL SAFETY INSTRUCTIONS

Specific Cautions and Warnings are included to warn you of potential danger of machine damage or bodily

harm.

WARNING!

Keep sparks, flame and smoking materials away from the batteries. Explosive gasses are vented during

normal operation.

Remove all jewelry when working near electrical components.

Turn the Main Switch OFF and disconnect one of the battery terminals when servicing electrical components.

Never work under a machine without safety stands or blocks to support the machine.

Do not dispense flammable cleaning agents, operate the machine on or near these agents, or operate in areas

where flammable liquids exist.

56043021 - 260, 32, 38, 320, 380

CAUTION!

Before performing any service function, carefully read all instructions pertaining to that service function.

Take precautions to prevent hair, jewelry, or loose clothing from becoming caught in moving parts.

Keep the Battery Compartment OPEN while charging the battery. Charging produces highly explosive hydro-

gen gas. Charge only in well-ventilated areas, away from open flame. Do not smoke while charging the

battery.

Use caution when moving the machine in below freezing temperature conditions. Any water in the solution or

recovery tanks or in the hose lines could freeze.

Do not leave the machine unattended without first turning the Main Switch OFF and applying the Parking

Brake (if applicable).

Turn the Main Switch OFF before changing the brushes.

GENERAL SAFETY INSTRUCTIONS (continued...)

SAFETY

56043021 - 260, 32, 38, 320, 380

SPECIFICATIONS

SPECIFICATIONS - 260

Dimensions English (Metric)

Scrub Brush Diameter 13 inches (33 cm)

Scrub Brush Path 25 inches (63.5 cm)

Scrub Brush Pressure 120 lbs (55 kg) - float position

185 lbs (84 kg) - first notch

215 lbs (98 kg) - second notch

Scrub Brush Speed 150 to 180 rpm (150 to 180 rpm)

Machine Length 53.5 inches (136 cm)

Machine Width 27 inches (67 cm)

Machine Height 43 inches (109 cm)

Wheels/Casters two 8" X 1.6" (20 cm X 4 cm) front wheels

one 4" X 2" (10 cm X 5 cm) swivel rear caster

Solution Tank Capacity 18 gal (68 litre)

Recovery Tank Capacity 18 gal (68 litre)

Machine Weight 438 lbs (199 kg) w/o batteries

702 lbs (318 kg) w 220 AH batteries

733 lbs (332 kg) w 244 AH batteries

Battery Weight 65 lbs (30 kg) each 220 AH battery

73 lbs (33 kg) each 244 AH battery

Battery Dimensions

Height 10.63 inches (27 cm) each 220 AH battery

Width 7.06 inches (18 cm) each 220 AH battery

Length 10.25 inches (26 cm) each 220 AH battery

Height 11.5 inches (29 cm) each 244 AH battery

Width 7.06 inches (18 cm) each 244 AH battery

Length 10.38 inches (26 cm) each 244 AH battery

Battery Compartment Dimensions

Height 11.75 inches (30 cm)

Width 15 inches (38 cm)

Length 21 inches (53 cm)

General Specifications

Brush Motor 24 volt, 1 hp dc motor

Vacuum Motor 24 volt, 3/4 hp dc motor

Squeegee Type Forward/reverse cartridge style - 260B

4 sided, curved, self tracking - 260BHD

Propulsion Means Power-Flo™ drive, brush/pad assisted fwd/rev

Battery Requirements (4) 6 volt deep cycle, 220 or 244 AH

Battery Charger Requirements 24V/20 amp (p/n 372947)

Vacuum Waterlift (sealed) 44 inches (112 cm)

Sound Level 71 dbA (decibels) at operator position

Run Time Per Charge 2.5 hours/220 amp hour batteries

2.8 hours/244 amp hour batteries

56043021 - 260, 32, 38, 320, 380

SPECIFICATIONS

SPECIFICATIONS - 32, 38, 320, 380

Dimensions English (Metric)

Scrub Brush Diameter 17 inches (43 cm) - 32 &320

20 inches (50 cm) - 38 & 380

Scrub Brush Pressure 150 to 225 lbs (68 to 102 kg) - 32 & 320

150 to 250 lbs (68 to 113 kg) - 38 & 380

Scrub Brush Speed 120 rpm (120 rpm) - 32 & 320

105 rpm (105 rpm) - 38 & 380

Machine Length 52 inches (132 cm)

Machine Width 34 inches (86 cm) - 32 & 320

40 inches (102 cm) - 38 & 380

Machine Height 43.5 inches (111 cm)

Solution Tank Capacity 28 gal (106 litre)

Recovery Tank Capacity 28 gal (106 litre)

Machine Weight 569 lbs (258 kg) w/o batteries - 32B

627 lbs (284 kg) w/o batteries - 32BD, 320BHD

641 lbs (290 kg) w/o batteries - 38BD, 380BHD

1018 lbs (462 kg) w batteries - 32B

1076 lbs (488 kg) w batteries - 32BD, 320BHD

1090 lbs (494 kg) w batteries - 38BD, 380BHD

Battery Weight 73 lbs (33 kg) each 244 AH battery

Battery Dimensions

Height 11.5 inches (29 cm) each 244 AH battery

Width 7.06 inches (18 cm) each 244 AH battery

Length 10.38 inches (26 cm) each 244 AH battery

General Specifications

Brush Motor 36 volt, 2 1/4 hp dc motor

Vacuum Motor 36 volt, 3/4 hp dc motor

Squeegee Type Forward/reverse cartridge style - 32B, 32BD,

38BD

4 sided, curved, self tracking - 320BHD, 380BHD

Battery Requirements (6) 6 volt deep cycle, 244 AH

Battery Charger Requirements 36 V/20 amp (p/n 395101)

Run Time Per Charge 3.7 hours

Propulsion Means Power-Flo™ drive, brush/pad assisted fwd/rev

Transport Drive Take off from gear box drives wheels - 32BD,

38BD, 320BHD, 380BHD

56043021 - 260, 32, 38, 320, 380

MAINTENANCE

MAINTENANCE SCHEDULE

MAINTENANCE ITEM DAILY WEEKLY MONTHLY YEARLY

Clean Tanks •

Clean Vacuum Shut-Off Float •

Clean Squeegee •

Charge Batteries •

Check Battery Water Level •

* Lubrication / Grease •

** Lubrication / Oil •

Service Vacuum Motor •

* Lubricate these items every month with grease...

1(2) pressure arm bearings

2(2) main wheel bearings (260 / 32B)

3(4) differential bearings, (2) intermediate shaft bearings (32BD, 38BD, 320BHD, 380BHD)

4Caster swivel and wheel bearings (if applicable)

** Lubricate these items every two months with oil...

1Tank hinges

2Squeegee lever pivot linkage

3Control handle pivot points

4Front skirt locks

5Front skirt hinges

6Solution lever linkage

7Propelling linkage

56043021 - 260, 32, 38, 320, 380

SOLUTION SYSTEM

MAINTENANCE

The solution system should be flushed every day to prevent a build-up of soap residue in the solution valve.

To flush the solution system . . .

1Park the machine near a floor drain and open the solution valve.

2When the tank is empty, close the solution valve and put about 2 inches (5 cm) of clean, warm water in

the solution tank.

3Move the solution lever to the full-on position, and allow all of the water to drain through the solution

valve.

4Close the solution valve before refilling the solution tank.

5Check to make sure that the solution tank screen is not plugged (32, 38, 320, 380).

6The solution filter is flushed when ever the solution tank is drained through the drain hose (260).

SOLUTION VALVE REPLACEMENT - 260

1Drain both the solution and recovery tanks.

2Tip the solution tank forward and remove the recovery tank from the machine.

3Remove the vacuum motor hose for easier access to the solution valve.

4See Figure 1. Disconnect hose “A” from the top of solution valve “B”.

5Disconnect solution cable “C” from the solution valve arm (do not loose the bushing).

6Remove the (2) “D” bolts and nuts holding the solution valve to its mount.

7Disconnect the (2) “E” solution hoses and remove solution valve “B” from the machine.

8Remove all of the fittings from the old solution valve and install them on the new one.

9Follow steps 1-7 in reverse order to reassemble.

10 Test for leaks and proper operation.

56043021 - 260, 32, 38, 320, 380

SOLUTION SYSTEM

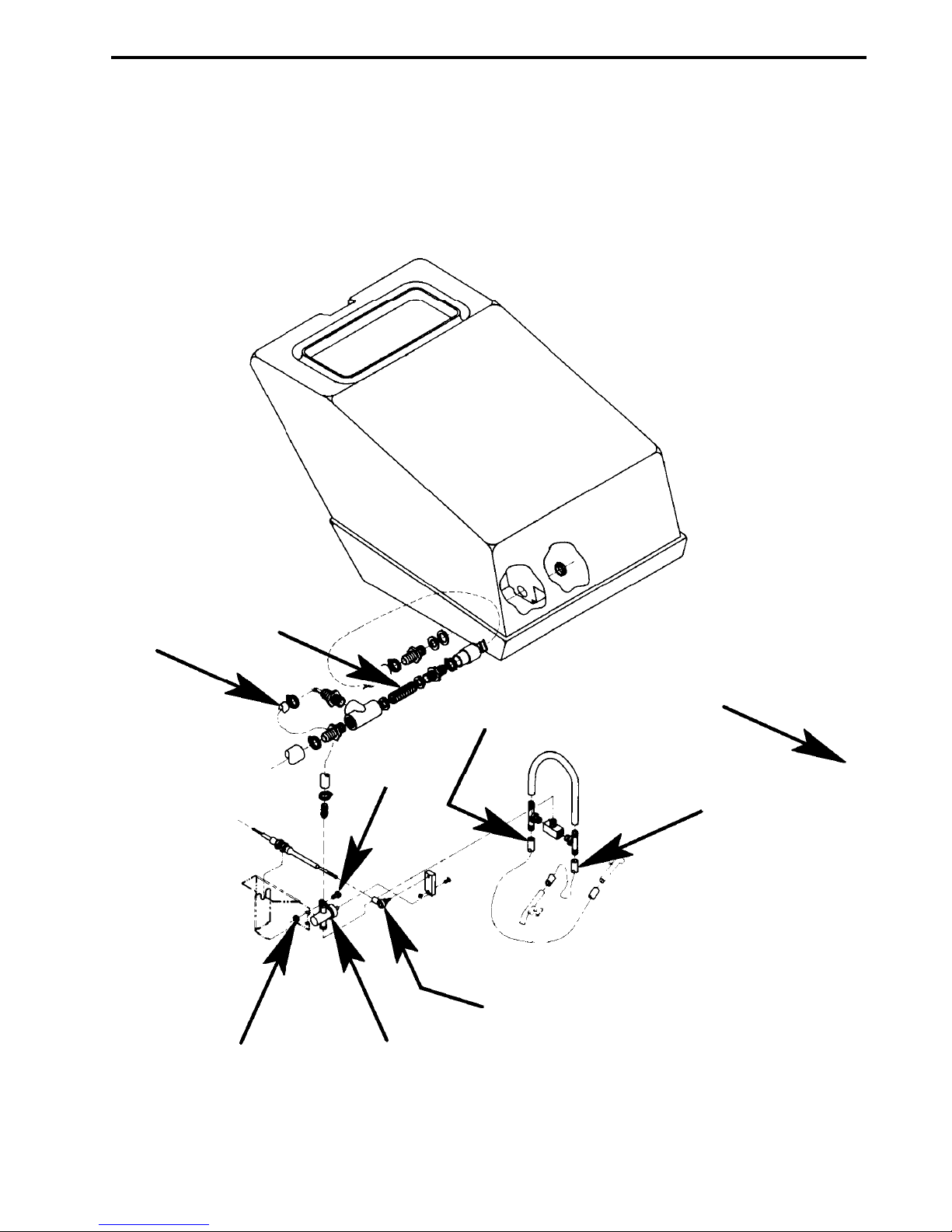

FIGURE 1

SOLUTION VALVE REPLACEMENT - 260 (continued...)

EFront

Solution Filter

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nilfisk-Advance Scrubber

Nilfisk-Advance

Nilfisk-Advance CA 430 S Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Warrior ST Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance FLOORTEC R 670 P Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance BA 450 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Clarke CA60 Guide de l'utilisateur

Nilfisk-Advance

Nilfisk-Advance BR 601 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SC800 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SR 1601 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Hydro-Retriever 2052 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance PS 333 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Retriever 350B Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance BRX 700 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance ecoflex BA 551 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance ECOFLEX BR1100S Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance SC350 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Adgressor BR 1050S Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance BR 1100S SBG SPECIAL Manuel de service

Nilfisk-Advance

Nilfisk-Advance SC530 Manuel de la liste des pièces

Nilfisk-Advance

Nilfisk-Advance 908 7144 020 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance AquaRide Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance Advance SC900 ST-28D Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance crescent SC250 Manuel utilisateur

Nilfisk-Advance

Nilfisk-Advance HSC 585 Mode d'emploi

Nilfisk-Advance

Nilfisk-Advance Liberty SC50 Manuel utilisateur

Manuels Scrubber populaires d'autres marques

Olympus

Olympus M200H Manuel utilisateur

Clarke

Clarke BEXT 100H Manuel d'installation et d'exploitation

JOHNY VAC

JOHNY VAC JVC70BCT Manuel utilisateur

RCm

RCm Elan Series Manuel

Kärcher

Kärcher B 120 W Manuel utilisateur

Truvox

Truvox Orbis MotorScrubber 20 Manuel utilisateur

Numatic

Numatic TTB 4045/100 Manuel utilisateur

U.S. Products

U.S. Products PEX 500-C-TICK Mode d'emploi

Mclennan

Mclennan C510 Manuel utilisateur

Tennant

Tennant T20 LPG Manuel utilisateur

Columbus

Columbus ARA 66 BM 100 Manuel utilisateur

Numatic

Numatic TTV 678G / 300T Manuel utilisateur

American-Lincoln

American-Lincoln 505-945 Manuel utilisateur

FIORENTINI

FIORENTINI ET 65-75 Manuel utilisateur

Floorpul

Floorpul ruby 48 blt Guide de l'utilisateur

Onyx

Onyx RX-34 Manuel utilisateur

Dustbane

Dustbane Hurricane 400 Manuel utilisateur

Sana

Sana EUJ-702 Manuel utilisateur
