Niles GXR2 EX Manuel utilisateur
Q U I C K I N S T A L L G U I D E
MODULAR MULTIZONE RECEIVER
GXR2 EX
The IntelliControl® ICS GXR2 EX Modular Multizone Receiver
works as the main system distribution center for IntelliControl
ICS. This receiver uses module cards from the iPod®,
Network Integration, AM/FM Export and Legacy Audio
modules, and distributes the audio and metadata throughout
6 zones as well as receives controls from our user interfaces such
as the iRemote® RF Remote Control with LCD display, the Contact
Touch Screen Control Keypad, the Display System Control Keypad
with LCD display and the Single Wall Mount Control Keypad.
3
www.nilesaudio.com
FEATURES AND BENEFITS
• Modular MultiZone Receiver distributes up to six
sources to six zones
• Built-in High Current 12-channel Amplifier
delivers 55 watts per channel RMS @ 8 ohm
and 85 watts per channel @ 4 ohm to each of six zones
• Integrated Six Slot Card Cage accepts any
combination of up to six IntelliControl ICS integration
modules
• Plug and Play Integration of TM-AM/FM, IM-AUDIO
TM-XM, HD Radio™, TM-Sirius and IM-iPod IntelliControl
ICS integration modules
• Reliable “One Touch to Music” operation using
IntelliControl ICS Touch Screens, Keypads and remote
controls
• Party Mode turns on all your favorite areas from any
keypad or remote control
• Global Off turns off all areas from any keypad or
remote control
• Tone Controls fine tune bass and treble in each
separate zone
• Balance Control fine tunes channel levels in each
separate zone
4
FEATURES AND BENEFITS (CONT’D)
• Programmable Turn-On Volume for each zone
• Alarm Clock and Sleep Timer for each zone
• Paging/Doorbell Input enables system wide voice
announcements from a phone system or doorbell sounds
from the Niles DBI-1
• Zone Linking allows a grouping of zones to be controlled
as a single zone. Turn-on, source selection, paging and
turn-off all work in unison, yet each zone has independent
volume adjustment and muting
• Home Theater Integration Ports enable audio and
video source components shared with the home theater
system to be turned on, controlled via IR and turned off as
needed
• Selectable Fixed/Variable Zone Preamp Outputs
with 12 volt triggers for external amplifier applications
• Source Matching Gain Control ensures changing
sources doesn’t require changing volume control settings
• Removable Speaker Connectors hold up to 12-gauge
speaker wire
• Expandable Up To 30 Zones with additional GXR2 EXs
5
www.nilesaudio.com
GETTING STARTED
Unpacking the Box (Contents)
■ 1, IntelliControl ICS GXR2 EX Modular Multizone Receiver
■ 2, Rack Mount Panels
■ Speaker Connector (removable)
■ Review Important Safety Instructions
Tools Required:
■ Screwdriver with No. 2 Philips bit
INSTALLATION:
1. Remove the four chassis screws located at the front
of one of the IntelliControl ICS GXR2 EX Modular MultiZone Re-
ceiver side panels (Figure 1).
2. Place a rack mount panel on the GXR2 EX side panel, aligning the
holes in the rack mount panel, with the holes in the GXR2 EX side panel.
3. Replace all four screws, fastening the rack mount panel to the chassis.
Note: Do not over tighten the screws.
4. Repeat procedure for the other side of the GXR2 EX.

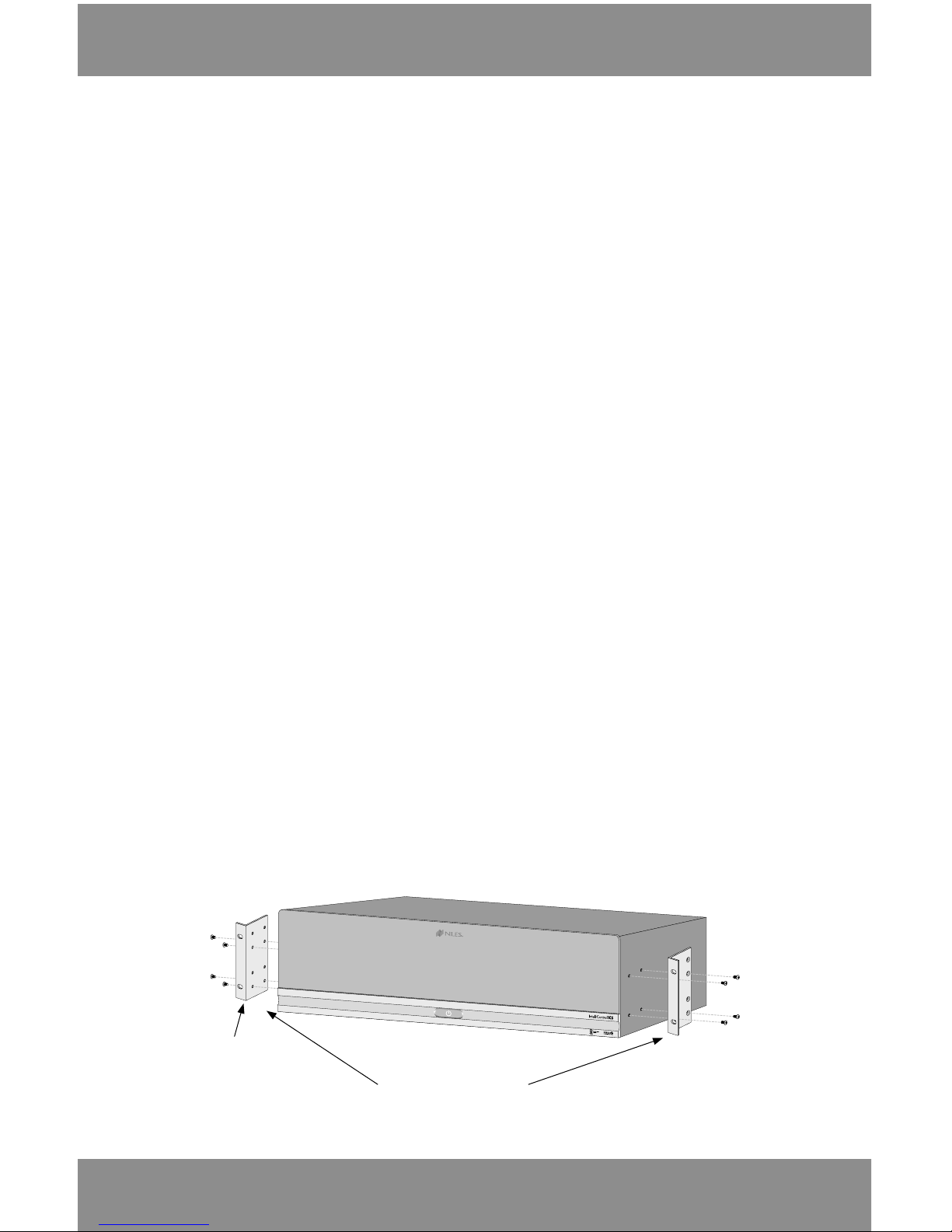

Figure 1: Fastening the Rack Mount Panels.
Rack Mount Panels
Flange for
butting bracket
against a joist
6
INSTALLATION (CONT’D)
Basic Installation Diagram
Figure 2.
7
www.nilesaudio.com
Niles offers many accessories. For a complete list please visit:
www.nilesaudio.com.
ACCESSORIES
iRemote® 2-Way Wireless RF System FG01180
Control Remote with LCD Display
iRemote® EX 2-Way Wireless RF System FG01364
for EU Countries
RBX-1 Remote Charging Base FG01269
RBX-1 EX 2-Way Wireless RF System FG01363
for EU Countries
RHS-1 iRemote Handheld Remote FG01270
RHS-1 EX 2-Way Wireless RF System FG01362
for EU Countries
Contact System Control Keypad with FG01185
Color Touch Screen
Display System Control Keypad with FG01183
LCD display
Single Wall Mount System Control Keypad FG01182
IM-iPOD Apple® iPod® Integration Module FG01176
IM-AUDIO Legacy Audio Integration Module FG01177
TM-XM XM® Satellite Radio Tuner Module FG01179
TM-SIRIUS SIRIUS® Satellite Radio Tuner Module FG01181
IM-SERVER Network Integration Module FG01339
TM-DAB Digital Audio Broadcasting Tuner FG01338
TM-HD/R HD Radio™ Tuner Module FG01340
TM-AM/FM EX International AM/FM Tuner Module FG01193
8
SPECIFICATIONS
Power: 55 watts x 12 channels
Frequency Response: 26-20 kHz +/- 3 db
Signal to Noise: > = 85 db
Power Supply: AC 240, 50Hz GXR2 EX
Power Consumption: 1500 watts maximum
Warranty: Two-year limited
Shipping Weight: 54 lbs.
DIMENSIONS
GXR2 EX Modular
MultiZone Receiver: 17-3/8" W x 5-3/4" H x 18" D
(including feet)
Compliance
and Certifications: Safety: UL/EN 60065
EMC: CE, CTICK
9
www.nilesaudio.com
CUSTOMER SERVICE – TECHNICAL SUPPORT
1-800-BUY-HIFI (289-4434)
BY PHONE (IN USA)
CUSTOMER SERVICE HOURS
8:00 AM to 5:30 PM EST
8:00 AM to 7:00 PM EST
TECHNICAL SUPPORT HOURS
www.nilesaudio.com
ON THE WEB
EMAIL TECHNICAL SUPPORT
EMAIL FOR PRODUCT SUGGESTIONS
productsuggestions@nilesaudio.com
techsupport@nilesaudio.com
BY PHONE (OUTSIDE USA)
1-305-238-4373
10
