AF-S DX Nikkor ED

18-55/3.5-5.6G

JAA79251 Black

Silver

REPAIR MANUAL

Ｍ

サービス

計画課

JAA79251-R.3669.A

- M1･AF-S DX 18-55/3.5-5.6G -

Specications

Type of lens: G-type AF-S DX Zoom-Nikkor lens with built-in CPU and Nikon bayonet

mount (Specially designed for use with Nikon digital SLR – Nikon DX

format – cameras)

Focal length: 18mm–55mm

Maximum aperture: f/3.5–5.6

Lens construction: 7 elements in 5 groups (1 ED and 1 aspherical lens elements)

Picture angle: 76° – 28°50´

Focal length scale: 18, 24, 35, 45, 55mm

Distance information: Output to camera body

Zoom control: Manually via separate zoom ring

Focusing: Autofocus using a Silent Wave Motor; manually via separate focus ring

Closest focus distance: 0.28m (0.9 ft.) at all zoom settings

Diaphragm: Fully automatic

Aperture range: f/3.5 to f/22 (at 18mm), f/5.6 to f/38 (at 55mm)

Exposure measurement:Via full-aperture method

Attachment size: 52mm (P = 0.75mm)

Dimensions: Approx. 69mm dia. x 74mm extension from the camera’s lens-mount ange

Weight: Approx. 210g (7.4 oz)

・Specications and designs are subject to change without any notice or obligation on the part

JAA79201-R.3669.A

- Ｄ1･ AF-S 18-55/3.5-5.6G -

#68

#113

Disassembly / Assembly / Adjustment

1. Disassembly

Name plate

Company name ring

Note: Detaching the name plate (#68) is NOT necessary EXCEPT replacing it.

・The company name ring (#113)

is attached with the both-sided

adhesive tape.

Note:

① When disassembling, make sure to memorize the processing state of wires and FPC.

②Because prototypes are used for "Disassembly/(Re)assembly/Adjustment", they may differ from the actual

products in forms, etc.

③ Because pictures are processed by a special method, they may differ from the actual ones in texture.

　・Lead-free solder is used for this product.

　・For soldering work, the special solder and soldering iron are required.

　・Do NOT mix up lead-free solder with traditional solder.

　・Use the special soldering iron respectively for lead-free solder and lead solder.

They cannot be used in common.

　Points to notice for Lead-free solder products

JAA79201-R.3669.A

- Ｄ2･ AF-S 18-55/3.5-5.6G -

#62

Rear cover ring

・ Take out 3 screws (#91) to remove the rear cover ring (#39).

#39

#91×3

#B27

Rubber ring

・ Remove the rubber ring (#62).

JAA79201-R.3669.A

- Ｄ3･ AF-S 18-55/3.5-5.6G -

#103

#111×4

#B1

#100A ～I×n

#52

#67×2

#B27

#B6

1st lens group

Distance brush hole-sealing plate

Polyester tape

・ Take out 2 screws (#67) of the contact unit (#B6) that is attached to the bayonet mount unit (#B27).

Removal of Contact unit

JAA79201-R.3669.A

- Ｄ4･ AF-S 18-55/3.5-5.6G -

・ Take out the screw (#155) to remove the M/A change-SW unit(#B22).

#155

Bayonet mount unit

・ Take out 3 screws (#78) of the bayonet mount unit (#B27) to remove the lead wire (#1131).

#1131

Remove the solder.

#78×3

#B27

Removal of M/A change-SW unit

#B22

JAA79201-R.3669.A

- Ｄ5･ AF-S 18-55/3.5-5.6G -

Washer

#101A ～J×n

#1131

・ Remove the washers （#101A ～J×n).

Flare cutter

・ Release the key part of the are cutter (#46) from the key-groove of the cam tube, then remove the are

cutter.

#46

Key part

Key-groove of Cam tube

#B24

Release the key part from the key-groove.

・ Set the zoom position to WIDE-end. While

pressing the pointed tip of the key inward,

remove the key by turning clockwise.

　① → ②

①

②

JAA79201-R.3669.A

- Ｄ6･ AF-S 18-55/3.5-5.6G -

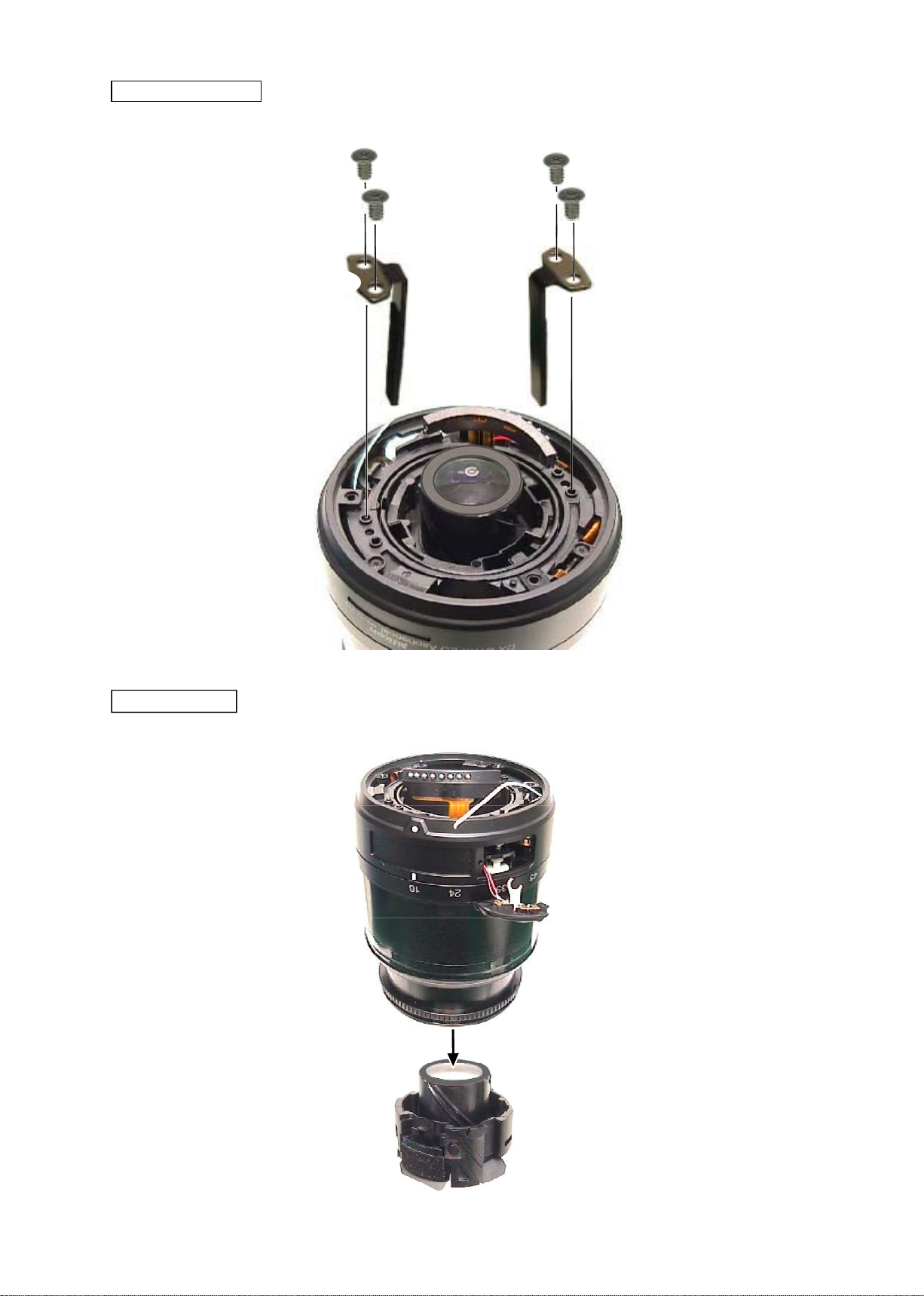

Straight key unit

#86×2

#B25A

#86×2

#B25B

2nd lens group

#B24

JAA79201-R.3669.A

- Ｄ7･ AF-S 18-55/3.5-5.6G -

Rear xed tube

・ Set the M/A change-SW unit (#B22) to A mode. Detach it from the window of the rear xed tube (#57) and

remove the rear xed tube.

#B22

#57

Removal of FPC from Main-PCB unit

・ Remove the SWM unit (#B501) from the main-PCB unit (#B1001).

#B501

#B1001

・ Remove the contact unit (#B6) and MR unit (#B7) from the connector of the main-PCB unit (#B1001).

#B1001

#B7 #B6

Note: Do NOT touch "A" part directly

with hand.

JAA79201-R.3669.A

- Ｄ8･ AF-S 18-55/3.5-5.6G -

・ Remove the zoom/distance FPC from the connector of the main-PCB unit (#B1001).

#B1001

Zoom/distance FPC

・ Remove the main-PCB unit (#B1001).

#89

#B1001

Main PCB unit

・ Remove the lead wire (#1131) from the main-PCB unit (#B1001).

Hole Remove the solder.

#1131
