Nikon JAA63051 Mode d'emploi

作成承認印配布許可印

JAA63051-R.3689.A

Copyrigh ｃ2006 by Nikon Corporation.

Printed in Japan Mar.2006

AF-S VR Micro Nikkor

105mm / f2.8G

JAA63051(MADE IN JAPAN)

REPAIR MANUAL

JA63051-R.3689.A

- M1・AF-S VR 105/2.8G -

Specications

Type of lens: G-type AF-S Micro-Nikkor lens with built-in CPU and Nikon bayonet mount

Focal length: 105mm

Maximum aperture: f/2.8

Lens construction: 14 elements in 12 groups (1 ED glass and 1 Nano Crystal Coat-deposited

lens elements)

Picture angle: 23°20’ [15°20’ with Nikon digital cameras (Nikon DX format); 18°40’ with

IX240 system cameras]

Reproduction ratio: 1:10 to 1:1 (life-size)

Distance information: Output to camera body

Focusing: Nikon Internal Focusing (IF) system (utilizing an internal Silent Wave

Motor); manually via separate focus ring

Focusing limit switch: Provided; two ranges available: Full ( ‡-0.314m) or‡-0.5m

Vibration reduction: Lens-shift method using voice coil motors (VCMs)

Shooting distance scale: Graduated in meters and feet from 0.314m (1 ft.) to innity ( ‡)

Closest focus distance: 0.314m (1 ft.) (life-size)

No. of diaphragm blades: 9 pcs. (rounded)

Diaphragm: Fully automatic

Aperture range: f/2.8 to f/32

Exposure measurement: Via full-aperture method

Attachment size: 62mm (P = 0.75mm)

Dimensions: Approx. 83mm dia. x 116mm extension from the camera’s lens mount

ange

Weight: Approx. 790g (27.9 oz)

Specications and designs are subject to change without any notice or obligation on

the part of the manufacturer.

JAA63051-R.3689.A

- D1･ AF-S VR MC 105/2.8G -

Removing the 1-1st lens group or 5th lens group of this lens needs the lens alignment work after the assembly.

Therefore, at service facilities where the lens alignment cannot be performed, do NOT remove the 1-1st lens

group nor 5th lens group.

　On this lens, the VR (vibration-reduction) unit is mounted to correct the picture blur.

　In order to maintain the functional accuracy of the picture blur correction, if detaching the VR

(vibration-reduction) unit and gyro base plate or if removing the main PCB unit, be sure to adjust the VR by

using the VR lens adjustment equipment (J15380）.

　However, if disassembling the parts except the above, the VR adjustment is NOT necessary.

At service agencies where the "VR lens adjustment equipment" is not prepared, do NEITHER disassemble

NOR repair the products of the above case.

Caution:

① When disassembling, make sure to memorize the processing state of wires, screws to be xed and their types, etc.

②Because prototypes are used for "Disassembly/(Re)assembly/Adjustment", they may differ from the actual

products in forms, etc.

③ Because pictures are processed by a special method, they may differ from the actual ones in texture.

　・Lead-free solder is used for this product.

　・For soldering work, the special solder and soldering iron are required.

　・Do NOT mix up lead-free solder with traditional solder.

　・Use the special soldering iron respectively for lead-free solder and lead solder.

They cannot be used in common.

　Points to notice for Lead-free solder products

※ Before Disassembly / (Re)assembly / Adjustment

JAA63051-R.3689.A

- D2･ AF-S VR MC 105/2.8G -

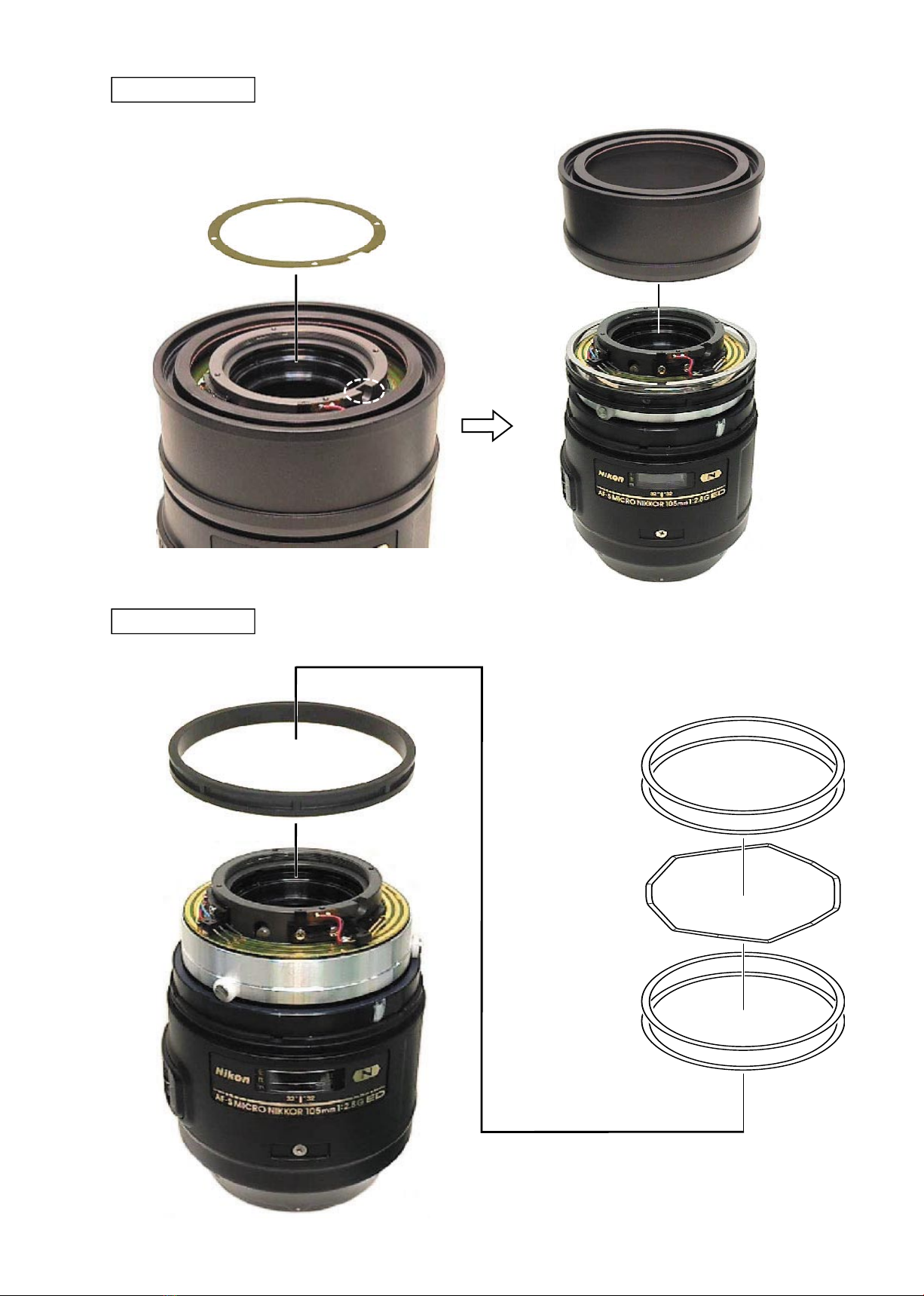

Rear cover ring

#38×3

Rear cover ring

　Front cover sheet

・ Remove the front cover sheet (which is attached

with the adhesive double-coated tape).

Front cover sheet

VR name plate

・

Remove the VR name plate (which is attached

with the adhesive double-coated tape).

VR name plate

1. DISASSEMBLY

JAA63051-R.3689.A

- D3･ AF-S VR MC 105/2.8G -

5th lens group

#113×3

#151×3

5th lens group

Lens body

① Take out the two screws (#66) to remove the

contact unit.

② Take out the four screws (#136) to remove the

bayonet mount.

③ Take out the washer (#176).

Bayonet mount

Caution:

Removing the 5th lens group needs the lens alignment work after the assembly.

Therefore, at service facilities where the lens alignment cannot be performed, do NOT remove the 5th lens

group.

Contact unit

#66×2

Bayonet mount

#176

#136×4

JAA63051-R.3689.A

- D4･ AF-S VR MC 105/2.8G -

VR lens group unit

Concave

portion

Pin × 2

Hole×2 Contact

unit

③ Remove the VR lens group and washer(s) (#138 selected from A ～J) with the VR lens-assembling tool

(★J11324).

④ Remove the VR- xing tool (★J11321) from the lens.

VR lens

G-assembling tool

(★J11324)

VR lens group

#138A ～J

★J11321

★ New tool

★J11321

① Turn the VR SW to OFF.

② Align the concave portion of the VR- xing tool ( ★J11321)

and the FPC of the contact unit, and  t the two pins of the

tool into the two holes of the lens. Then assemble the VR-

 xing tool into the lens.

JAA63051-R.3689.A

- D5･ AF-S VR MC 105/2.8G -

3rd lens group

3rd lens-G

assembling tool

(★J11323)

2nd lens group, 1-2nd lens group, 1-1st lens group

Removing the 1-1st lens group needs the lens alignment work after the assembly.

Therefore, at service facilities where the lens alignment cannot be performed, do

NOT remove the 1-1st lens group.

① Take out the four screws (#142) and the four washers (#151). Then

remove the 1-1st lens group and the washer(s) (#152 selected from

A-J).

② Remove the 1-2nd lens group and the washer(s) (#137 selected from

A-J) with the 1-2nd lens-G assembling tool ( ★J11320).

③ Remove the 2nd lens group.

#142×4

#151×4

1-1st lens G

#152A ～J

1-2nd lens G

#137A ～J

2nd lens G

JAA63051-R.3689.A

- D6･ AF-S VR MC 105/2.8G -

Rubber ring

Filter ring unit

#69×4

Filter ring unit

JAA63051-R.3689.A

- D7･ AF-S VR MC 105/2.8G -

Focus ring (2) unit

#175

Focus ring (1) unit

#139×2

#27

#139×2

JAA63051-R.3689.A

- D8･ AF-S VR MC 105/2.8G -

MF brush unit

Red: MF brush unit

Black: MF brush unit

#163×2

Black: Power source brush unit 1

　　Red: Power source brush unit 1

　　　　Yellow: Power source brush unit 1

　　　Yellow: Power source brush unit 2

　　Red: Power source brush unit 2

Black: Power source brush unit 2

Power source brush unit

FS40(#56)

#163×2 #163×2

Caution: After removing the wires, suck the solder off completely. Otherwise, the SWM

unit cannot be removed.
