User manual
LEK

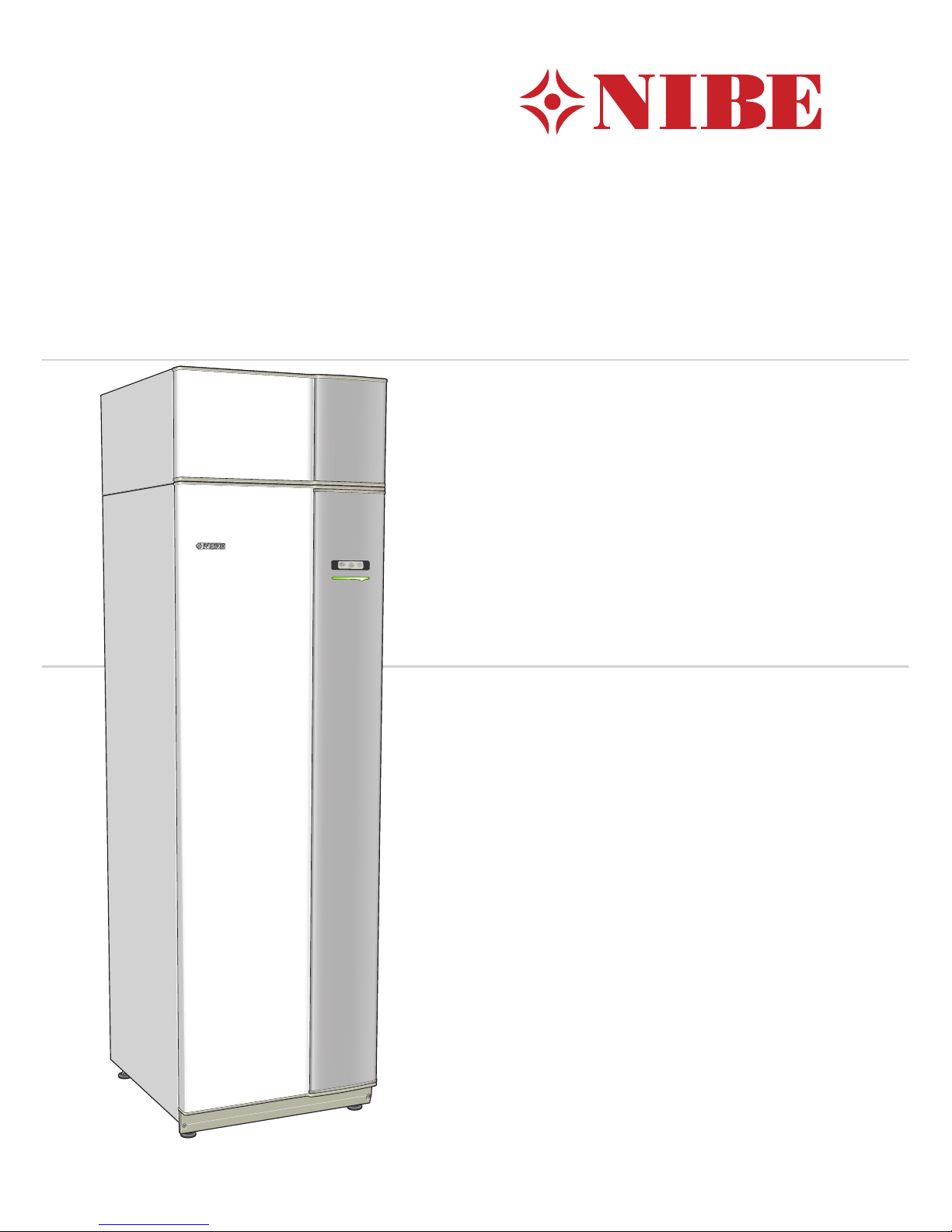

NIBE™ F470
Exhaust air heat pump
AHB GB 1040-1
031572
4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page 11.
How to scroll through menus and make different settings is described on
page 15.
6HW WKH LQGRRU FOLPDWH
;
The mode for setting the indoor temperature is reached, when in the start
mode in the main menu, by pressing the OK button twice. Read more
about the settings on page 29.
,QFUHDVH KRW ZDWHU YROXPH
;
;
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button twice.
Read more about the settings on page 48.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page 70
for instructions.
Table of Contents
1 Important information 2
Installation data 2
Safety information 3
Serial number 4
Country specific information 4
F470 – An excellent choice 7
2 The heat pump – the heart of the house 8
Heat pump function 9
Contact with F470 10
Maintenance of F470 19
3 F470 – at your service 28
Set the indoor climate 28
Set the hot water capacity 47
Get information 53
Adjust the heat pump 58
4 Disturbances in comfort 68
Info-menu 68
Manage alarm 68
Troubleshooting 70
5 Technical data 73
6 Glossary 74
Item register 79
1NIBE™ F470Table of Contents |
1Important information
Installation data
F470Product
Serial number
Installation date
Installer
Accessories
✔
SetDe-
fault
set-
tings
NameNo.
Extra shunt ECS 40/410temperature (heating
curve offset)
1.1
Room unit RMU 409heating curve (curve
slope)
1.9.1
Communications
module SMS 40
20min. flow line temp.1.9.3
District heating mod-
ule FJVM 220
50%ventilation
exhaust air fan (fan
speed, normal mode)
5.1.5
45%Supply air fan (fan
speed, normal mode)
5.1.6
Serial number must always be given
Certification that the installation is carried out according to instructions in
NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F470Chapter 1 | Important information2
Safety information
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appli-
ance.
Rights to make any design or technical modifications are reserved.
©NIBE 2010.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should observe
when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
F470 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the product meets all regula-
tions that are placed on it based on relevant EU directives. The CE mark is
obligatory for most products sold in the EU, regardless where they are made.
IP21 means that the product can be touched by hand, that objects with a
diameter larger than or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against vertically falling drops.
3NIBE™ F470Chapter 1 | Important information
Serial number
The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number when reporting a fault.
Country specific information
Great Britain
This installation is subject to building regulation approval, notify the local
Authority of intention to install.
Use only manufacturer’s recommended replacement parts.
Nibe is a licensed member of the Benchmark Scheme which aims to improve
the standards of installation and commissioning of domestic heating and hot
water systems in the UK and to encourage regular servicing to optimise safety,
efficiency and performance.
Benchmark is managed and promoted by the Heating and Hotwater Industry
Council. For more information visit www.centralheating.co.uk
Warranty information
Thank you for installing a new NIBE heat pump in your home.
NIBE heat pumps are manufactured in Sweden to the very highest standard
so we are pleased to offer our customers a comprehensive guarantee.
NIBE™ F470Chapter 1 | Important information4
The product is guaranteed for 24 months for parts and labour from the date
of installation or 33 months from the date of manufacture, whichever is the
shorter.
The NIBE guarantee is based on the unit being installed and commissioned
by a NIBE accredited installer, serviced every year and the Benchmark docu-
ments completed. Where this condition is not met, any chargeable spare
parts or components issued within the applicable guarantee period still benefit
from a 12 month warranty from the date of issue by the manufacturer.
We recommend the installer completes and returns as soon as possible, your
guarantee registration card or completes the guarantee form on the NIBE
website www.nibe.co.uk.
Please ensure that the installer has fully completed the Benchmark Checklist
in the end of the Installation Instructions supplied with the product and that
you have signed to say that you have received a full and clear explanation of
its operation. The installer is legally required to complete a commissioning
checklist as a means of complying with the appropriate Building Regulations
(England and Wales).
All installations must be notified to Local Area Building Control either directly
or through a Competent Persons Scheme. A Building Regulations Compliance
Certificate will then be issued to the customer who should, on receipt, write
the Notification Number on the Benchmark Checklist.
This product should be serviced regularly to optimise its safety, efficiency and
performance. The service engineer should complete the relevant Service Record
on the Benchmark Checklist after each service.
The Benchmark Checklist may be required in the event of any warranty work
and as supporting documentation relating to home improvements in the
optional documents section of the Home Information Pack.
5NIBE™ F470Chapter 1 | Important information
NIBE™ F470Chapter 1 | Important information6
F470 – An excellent choice
F470 is part of a new generation of heat pumps, which have been introduced
to supply your home with inexpensive and environmentally friendly heating.
Heat production is safe and economical with integrated hot water heater,
immersion heater, circulation pump and control system.
The heat pump can be connected to an optional low temperature heat distri-
bution system. e.g. radiators, convectors or under floor heating. It is also
prepared for connection to several different products and accessories, e.g.
extra water heater and climate systems with different temperatures.
F470 is equipped with a control computer for good comfort, good economy
and safe operation. Clear information about status, operation time and all
temperatures in the heat pump are shown on the large and easy to read
display. This means, for example, that external unit thermometers are not
necessary.
Excellent properties for F470:
႑Integrated water heater
There is a water heater integrated in the heat pump, which is insulated
with environmentally friendly cellular plastic for minimal heat loss.
႑Scheduling the indoor comfort and hot water
Heating and hot water as well as ventilation, can be scheduled for each
day of the week or for longer periods (vacation).
႑Large display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
႑Simple troubleshooting
In the event of a fault, the heat pump display shows what happened and
the actions to be taken.
7NIBE™ F470Chapter 1 | Important information

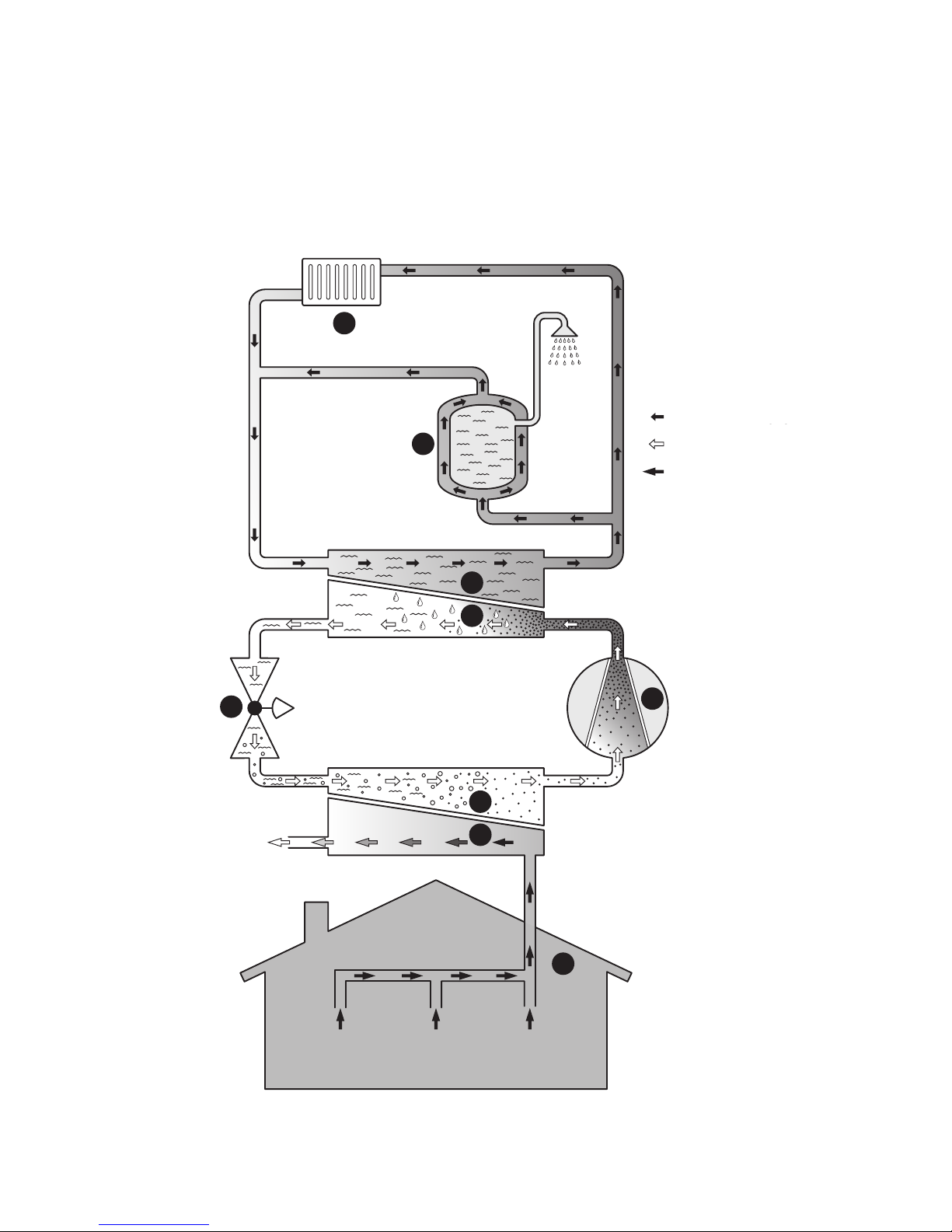

2The heat pump – the heart of
the house
Värmebärare
Köldmedium
Rumsluft
Förångare
Kondensor 80 °C
22 °C0 °C
5 °C0 °C
55 °C45 °C
Expansionsventil Kompressor
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH
The temperatures are only examples and may vary between different installations and time
of year.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house8
