Nibe F730 Guide de l'utilisateur

Installer manual

LEK

NIBE™ F730

Exhaust air heat pump

IHB GB 1617-1

M12000

Quick guide

Navigation

Ok button (confirm/select)

Back button (back/undo/exit)

Control knob (move/increase/reduce)

A detailed explanation of the button functions can be found on page 32.

How to scroll through menus and make different settings is described on page 34.

Set the indoor climate

The mode for setting the indoor temperature is accessed by pressing the OK button twice, when in the start mode

in the main menu.

Increase hot water volume

To temporarily increase the amount of hot water, first turn the control knob to mark menu 2 (water droplet) and

then press the OK button twice.

In event of disturbances in comfort

If a disturbance in comfort of any type occurs there are some measures that can be taken before you need to

contact your installer. See page 48 for instructions.

Table of Contents

41 Important information

4Safety information

4General

82 Delivery and handling

8Transport

8Assembly

9Supplied components

9Removing the covers

10Removing parts of the insulation

113 The heat pump design

134 Pipe and ventilation connections

13General pipe connections

14Dimensions and pipe connections

15Symbol key

15Cold and hot water

15Heating medium side

16Installation alternative

18General ventilation connection

18Ventilation flow

18Adjusting ventilation

195 Electrical connections

19General

21Connections

23Settings

24Optional connections

27Connecting accessories

286 Commissioning and adjusting

28Preparations

28Filling and venting

29Start-up and inspection

31Basic values for the curve setting

327 Control - Introduction

32Display unit

33Menu system

368 Control - Menus

36Menu 1 - INDOOR CLIMATE

36Menu 2 - HOT WATER

36Menu 3 - INFO

37Menu 4 - HEAT PUMP

38Menu 5 - SERVICE

449 Service

44Maintenance

44Service actions

4810 Disturbances in comfort

48Info-menu

48Manage alarm

48Troubleshooting

5011 Accessories

5212 Technical data

52Dimensions and setting-out coordinates

54Technical specifications

56Electrical circuit diagram

62Index

3Table of Contents |NIBE™ F730

Safety information

This manual describes installation and service proced-

ures for implementation by specialists.

This appliance can be used by children

aged from 8 years and above and per-

sons with reduced physical, sensory or

mental capabilities or lack of experience

and knowledge if they have been given

supervision or instruction concerning

use of the appliance in a safe way and

understand the hazards involved. Chil-

dren shall not play with the appliance.

Cleaning and user maintenance shall

not be made by children without super-

vision.

Rights to make any design or technical

modifications are reserved.

©NIBE 2016.

Symbols

NOTE

This symbol indicates danger to machine or

person.

Caution

This symbol indicates important information

about what you should observe when main-

taining your installation.

TIP

This symbol indicates tips on how to facilitate

using the product.

Marking

F730 is CE marked and fulfils IP21.

The CE marking means that NIBE ensures that the

product meets all regulations that are placed on it

based on relevant EU directives. The CE mark is obligat-

ory for most products sold in the EU, regardless where

they are made.

IP21 means that objects with a diameter larger than

or equivalent to 12.5 mm cannot penetrate and cause

damage and that the product is protected against

vertically falling drops of water.

General

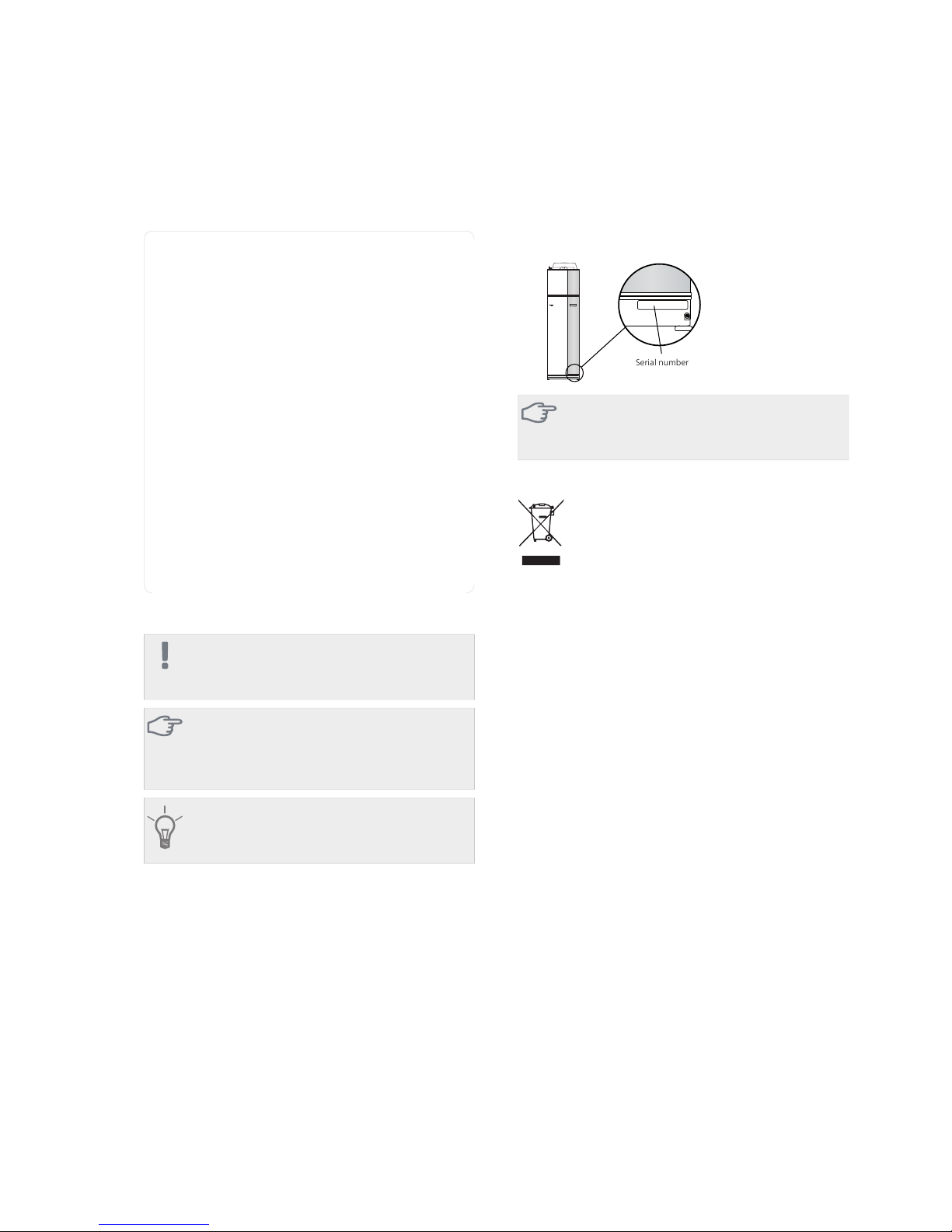

Serial number

The serial number can be found at the bottom right of

the front cover and in the info menu (menu 3.1).

Serial number

Caution

Always give the product's serial number (14

digits) when contacting your installer.

Recovery

Leave the disposal of the packaging to the in-

staller who installed the product or to special

waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a

special waste station or dealer who provides this type

of service.

Improper disposal of the product by the user results in

administrative penalties in accordance with current

legislation.

NIBE™ F730Chapter 1 | Important information4

1 Important information

5Chapter 1 | Important information

Countryspecificinformation

Installermanual

This installer manual must be left with the customer.

NIBE™F730

Inspection of the installation

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must

be carried out by a suitably qualified person. In addition, fill in the page for the installation data in the User Manual.

DateSignatureNotesDescription

✔

Ventilation (page 18)

Setting ventilation flow exhaust air

Heating medium (page 15)

System flushed

System vented

Safety valve

Boiler pressure

Mixing valve

Safety valve

Electricity (page 19)

Connections

Main voltage

Phase voltage

Fuses heat pump

Fuses property

Outside sensor

Room sensor

Current sensor

Safety breaker

Earth circuit-breaker

Miscellaneous

Guarantee submitted

Warranty

NIBE™ F730Chapter 1 | Important information6

Contact information

KNV Energietechnik GmbH, Gahberggasse 11, 4861 Schörfling

Tel: +43 (0)7662 8963-0 Fax: +43 (0)7662 8963-44 E-mail: mail@knv.at www.knv.at

NIBE Wärmetechnik c/o ait Schweiz AG, Industriepark, CH-6246 Altishofen

Tel: (52) 647 00 30 Fax: (52) 647 00 31 E-mail: inf[email protected] www.nibe.ch

Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad Jizerou

Tel: +420 326 373 801 Fax: +420 326 373 803 E-mail: [email protected] www.nibe.cz

NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 Celle

Tel: 05141/7546-0 Fax: 05141/7546-99 E-mail: inf[email protected] www.nibe.de

Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7, 6920 Videbæk

Tel: 97 17 20 33 Fax: 97 17 29 33 E-mail: inf[email protected] www.volundvt.dk

NIBE Energy Systems OY, Juurakkotie 3, 01510 Vantaa

Puh: 09-274 697 0 Fax: 09-274 697 40 E-mail: inf[email protected] www.nibe.fi

NIBE Energy Systems France Sarl, Zone industrielle RD 28, Rue du Pou du Ciel, 01600 Reyrieux

Tel : 04 74 00 92 92 Fax : 04 74 00 42 00 E-mail: inf[email protected] www.nibe.fr

NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way, Chesterfield S41 9QG

Tel: 0845 095 1200 Fax: 0845 095 1201 E-mail: inf[email protected] www.nibe.co.uk

NIBE Energietechniek B.V., Postbus 634, NL 4900 AP Oosterhout

Tel: 0168 477722 Fax: 0168 476998 E-mail: inf[email protected] www.nibenl.nl

ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk, 0516 Oslo

Tel. sentralbord: +47 23 17 05 20 E-mail: [email protected] www.nibeenergysystems.no

NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOK

Tel: 085 662 84 90 Fax: 085 662 84 14 E-mail: sekretariat@biawar.com.pl www.biawar.com.pl

Tel./fax +7 831 419 57 06 E-mail: [email protected] www.nibe-evan.ru

NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 Markaryd

Tel: +46-(0)433-73 000 Fax: +46-(0)433-73 190 E-mail: inf[email protected] www.nibe.se

For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu for more information.

7Chapter 1 | Important informationNIBE™ F730

Transport

F730 should be transported and stored vertically in a

dry place. However. the F730 may be carefully laid on

its back when being moved into a building. The centre

of gravity is in the upper part.

-2

HMflow

49(50)°C

Hotwater

51°C

-2

HMflow

49(50)°C

Hotwater

51°C

Assembly

■Position F730 on a solid foundation that tolerates

water and the weight of the heat pump. Use the

product's adjustable feet to obtain a horizontal and

stable set-up.

30 - 50 mm

15 - 40 mm

■Because water comes from F730, the area where the

heating pump is located must be equipped with floor

drainage.

■Install with its back to an outside wall, ideally in a

room where noise does not matter, in order to elim-

inate noise problems. If this is not possible, avoid

placing it against a wall behind a bedroom or other

room where noise may be a problem.

■Wherever the unit is located, walls to sound sensitive

rooms should be fitted with sound insulation.

■Route pipes so they are not fixed to an internal wall

that backs on to a bedroom or living room.

■The heat pump's installation area should always have

a temperature of at least 10 °C and max 30 °C.

Installation area

Leave free space of 800 mm in front of the product.

Approx. 50 mm free space is required on each side (see

image) in order to remove the side panels. The panels

do not need to be removed during service. All service

on F730 can be carried out from the front. Leave space

between the heat pump and the wall behind (and any

routing of supply cables and pipes), to reduce the risk

of transmission of any vibrations.

(50)* (50)*

800

* Depending on whether the panels can be removed or not.

NOTE

Ensure that there is sufficient space (300 mm)

above the heat pump for installing ventilation

hoses.

NIBE™ F730Chapter 2 | Delivery and handling8

2 Delivery and handling

Supplied components

Room sensorOutside sensor

LEK

Extra air filterVent hose

(length 4 m)

LEK

Venting connectorCurrent sensor

Location

The kit of supplied items is placed on top of the

product.

Removing the covers

Front cover

LEK

1. Remove the air treatment hatch by pulling it

straight out.

2. Remove the screws from the lower edge of the

front cover.

3. Lift the cover out at the bottom edge and up.

4. Pull the hatch towards yourself.

Side covers

LEK

The side covers can be removed to facilitate the install-

ation.

1. Remove the screws from the upper and lower

edges.

2. Twist the cover slightly outward.

3. Move the hatch backwards and slightly to the side.

4. Pull the cover to one side.

5. Pull the hatch forwards.

9Chapter 2 | Delivery and handlingNIBE™ F730

Removing parts of the

insulation

Parts of the insulation can be removed to facilitate the

installation.

Insulation, top

1. Disconnect the cable from the motor and remove

the motor from the shuttle valve as illustrated.

LEK

2. Grip the handle and pull straight out as illustrated.

LEK

Insulation, immersion heater

NOTE

Electrical installation and service must be car-

ried out under the supervision of a qualified

electrician. Electrical installation and wiring

must be carried out in accordance with the

stipulations in force.

1. Remove the cover for the junction box according

to the description on page 20.

2. Grip the handle and pull the insulation carefully

towards you as illustrated.

LEK

TIP

Remove the hatch for the immersion heater

card so that it is easier to remove the insulation

(see page 20).

NIBE™ F730Chapter 2 | Delivery and handling10

Autres manuels pour F730

Table des matières

Autres manuels Nibe Pompe à chaleur

Nibe

Nibe SMO 10 Manuel d'utilisation original

Nibe

Nibe FIGHTER 1330 Manuel utilisateur

Nibe

Nibe FIGHTER 600P Manuel utilisateur

Nibe

Nibe ClimateMaster Tranquility 30 Digital Series Mode d’emploi

Nibe

Nibe F1355 Series Guide de l'utilisateur

Nibe

Nibe MT-WH 2029-F Manuel utilisateur

Nibe

Nibe F1226 series Manuel utilisateur

Nibe

Nibe HBS 05 Guide de l'utilisateur

Nibe

Nibe VEDEX 3300 Manuel utilisateur

Nibe

Nibe F1145PC Manuel utilisateur

Nibe

Nibe F1345 Series Manuel utilisateur

Nibe

Nibe S1155PC Manuel utilisateur

Nibe

Nibe S1155PC Manuel utilisateur

Nibe

Nibe F1255 Series Manuel utilisateur

Nibe

Nibe F1255 Series Guide de l'utilisateur

Nibe

Nibe F1245 Manuel utilisateur

Nibe

Nibe F2015 Manuel utilisateur

Nibe

Nibe F370 Manuel utilisateur

Nibe

Nibe F370 Manuel utilisateur

Nibe

Nibe S1155 Instructions originales

Nibe

Nibe FIGHTER 1250 Manuel utilisateur

Nibe

Nibe VVM 500 Guide de l'utilisateur

Nibe

Nibe F730 Guide de l'utilisateur

Nibe

Nibe VVM 500 Guide de l'utilisateur

Manuels Pompe à chaleur populaires d'autres marques

MICROWELL

MICROWELL HP 1000 GREEN Manuel utilisateur

Sanyo

Sanyo SAP120FCH Manuel utilisateur

Daikin

Daikin EHYHBH05AA Manuel utilisateur

Panasonic

Panasonic WH-SDF03E3E5 Mode d’emploi

Bryant

Bryant 544B Manuel utilisateur

Airxcel

Airxcel 45000 Series Manuel

Mitsubishi Electric

Mitsubishi Electric PUZ-SWM60VAA Manuel utilisateur

Dimplex

Dimplex LI 16I-TUR Guide de l'utilisateur

Carrier

Carrier WSHP Open v3 Guide de configuration rapide

TGM

TGM CTV14CN018A Manuel utilisateur

Carrier

Carrier 38MGQ Series Manuel utilisateur

Kokido

Kokido K2O K880BX/EU Guide de dépannage

Viessmann

Viessmann VITOCAL 300-G PRO Type BW 2150 Guide rapide

Carrier

Carrier 48EZN Manuel utilisateur

Viessmann

Viessmann KWT Vitocal 350-G Pro Series Mode d'emploi

Ariston

Ariston NIMBUS Manuel utilisateur

Weishaupt

Weishaupt WWP L 7 Guide de l'utilisateur

GE Zoneline AZ85H09EAC Manuel utilisateur
