Nibe F470 Manuel utilisateur
User manual
LEK

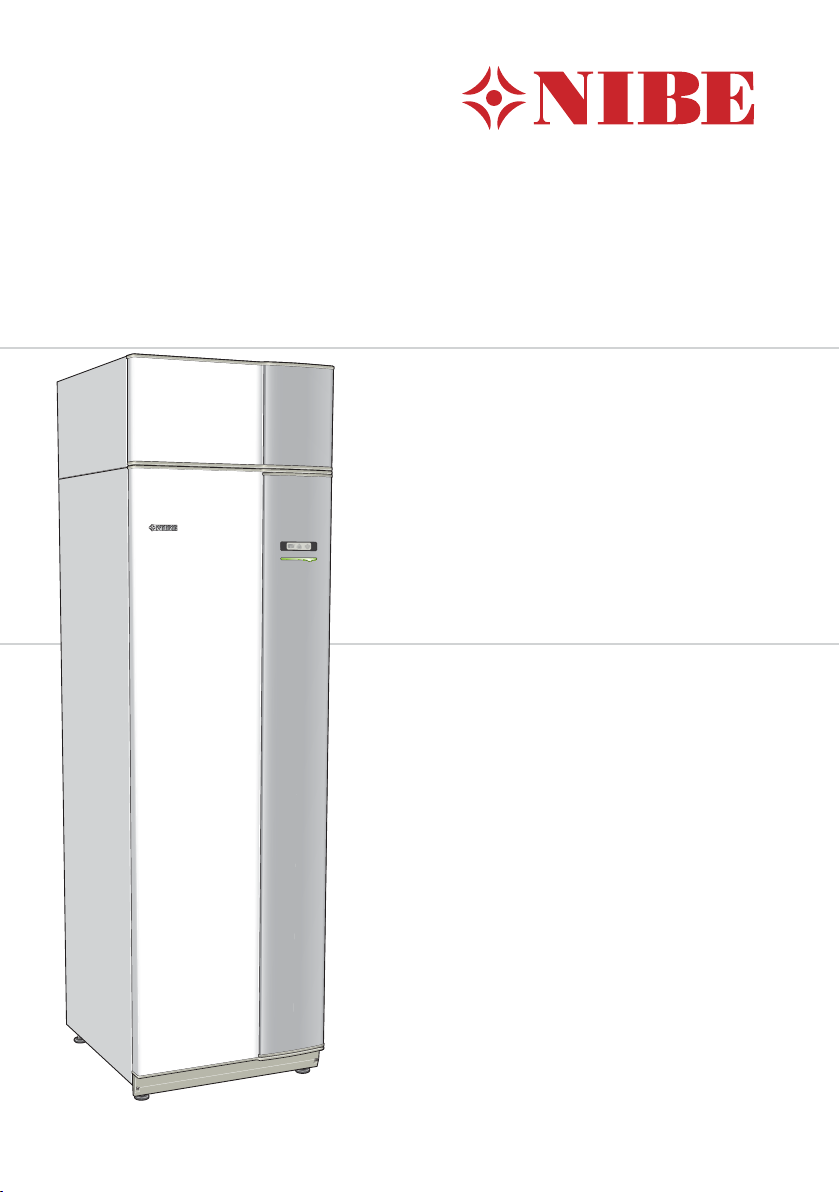

NIBE™ F470
Exhaust air heat pump
UHB GB 1202-2
031501
4XLFN JXLGH
1DYLJDWLRQ
2N EXWWRQ FRQILUPVHOHFW
%DFN EXWWRQ EDFNXQGRH[LW
&RQWURO NQRE PRYHLQFUHDVHUHGXFH
A detailed explanation of the button functions can be found on page 11.
How to scroll through menus and make different settings is described on
page 15.

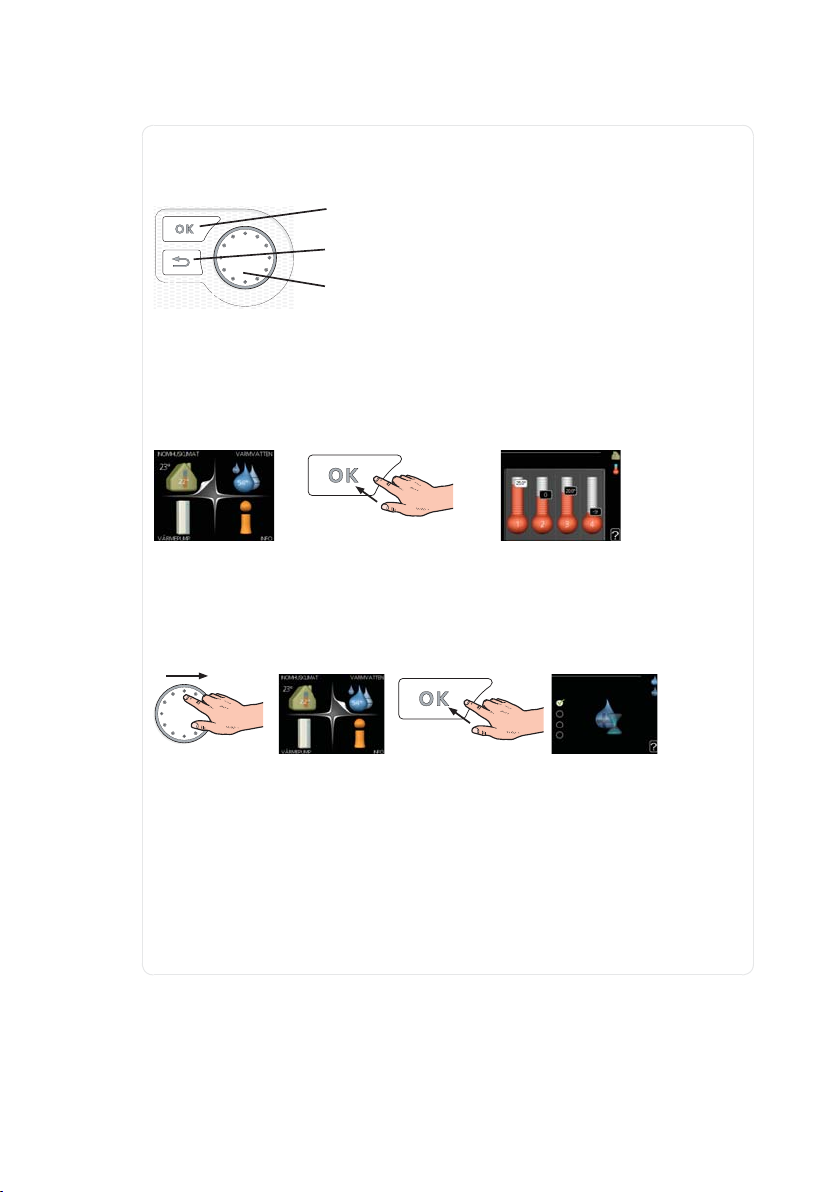

6HW WKH LQGRRU FOLPDWH
;
The mode for setting the indoor temperature is reached, when in the start
mode in the main menu, by pressing the OK button twice. Read more
about the settings on page 32.
,QFUHDVH KRW ZDWHU YROXPH
;
;
To temporarily increase the amount of hot water, first turn the control
knob to mark menu 2 (water droplet) and then press the OK button twice.
Read more about the settings on page 52.
In event of disturbances in comfort
If a disturbance in comfort of any type occurs there are some measures
that can be taken before you need to contact your installer. See page 74
for instructions.
Table of Contents
1 Important information 2
Installation data 2
Safety information 3
Serial number 4
Contact information 5
F470 – An excellent choice 7
2 The heat pump – the heart of the house 8
Heat pump function 9
Contact with F470 10
Maintenance of F470 19
3 F470 – at your service 31
Set the indoor climate 31
Set the hot water capacity 51
Get information 57
Adjust the heat pump 62
4 Disturbances in comfort 72
Info-menu 72
Manage alarm 72
Troubleshooting 74
5 Technical data 77
6 Glossary 78
Item register 83
1NIBE™ F470Table of Contents |
1Important information
Installation data
F470Product
Serial number
Installation date
Installer
Accessories
✔
SetDe-
fault
set-
tings
NameNo.
Extra shunt ECS
40/41
0temperature (heating curve
offset)
1.1
Room unit RMU 409heating curve (curve slope)1.9.1
Communications
module SMS 40
20min. flow line temp.1.9.3
Docking kits DEH
40/DEH 41
65%ventilation
exhaust air fan (fan speed,
normal mode)
5.1.5
Sun Solar 4145%Supply air fan (fan speed,
normal mode)
5.1.6
Serial number must always be given
Certification that the installation is carried out according to instructions in
NIBE's installer manual and applicable regulations.
_________________________Signed__________________Date
NIBE™ F470Chapter 1 | Important information2
Safety information
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appli-
ance.
Rights to make any design or technical modifications are reserved.
©NIBE 2012.
Symbols
NOTE
This symbol indicates danger to machine or person.
Caution
This symbol indicates important information about what you should observe
when maintaining your installation.
TIP
This symbol indicates tips on how to facilitate using the product.
Marking
F470 is CE marked and fulfils IP21.
The CE marking means that NIBE ensures that the product meets all regula-
tions that are placed on it based on relevant EU directives. The CE mark is
obligatory for most products sold in the EU, regardless where they are made.
IP21 means that the product can be touched by hand, that objects with a
diameter larger than or equivalent to 12.5 mm cannot penetrate and cause
damage and that the product is protected against vertically falling drops.
3NIBE™ F470Chapter 1 | Important information
Serial number

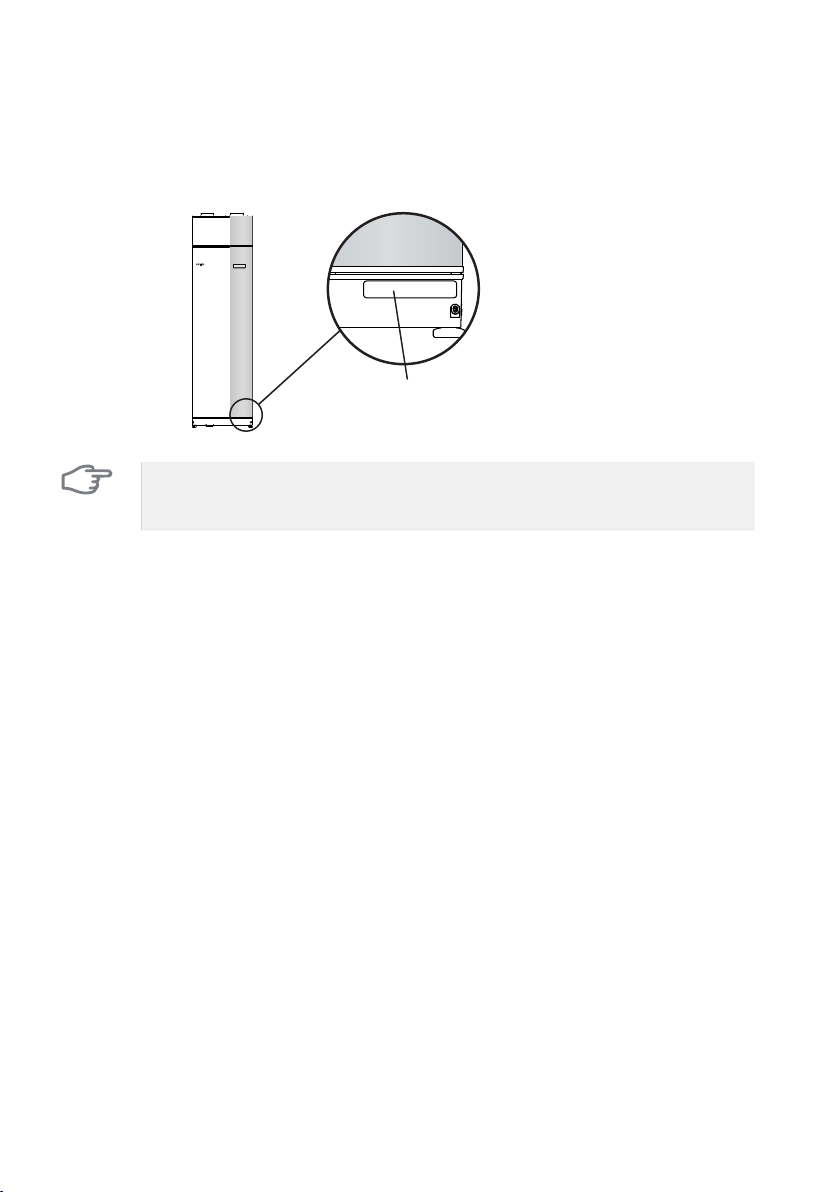

The serial number can be found at the bottom right of the front cover and
in the info menu (menu 3.1).
6HULDO QXPEHU
Caution
Always give the product's serial number (14 digits) when reporting a fault.
NIBE™ F470Chapter 1 | Important information4
Contact information
KNV Energietechnik GmbH, Gahberggasse 11, 4861 SchörflingAT
www.knv.at
NIBE Wärmetechnik AG, Winterthurerstrasse 710, CH-8247 FlurlingenCH
Druzstevni zavody Drazice s.r.o, Drazice 69, CZ - 294 71 Benatky nad
Jizerou
CZ
www.nibe.cz
NIBE Systemtechnik GmbH, Am Reiherpfahl 3, 29223 CelleDE
Vølund Varmeteknik A/S, Member of the Nibe Group, Brogårdsvej 7,
6920 Videbæk
DK
vt.dk
NIBE Energy Systems OY, Juurakkotie 3, 01510 VantaaFI
NIBE Energy Systems Ltd, 3C Broom Business Park, Bridge Way,
Chesterfield S41 9QG
GB
www.nibe.co.uk
NIBE Energietechniek B.V., Postbus 2, NL-4797 ZG WILLEMSTAD (NB)NL
ABK AS, Brobekkveien 80, 0582 Oslo, Postadresse: Postboks 64 Vollebekk,
0516 Oslo
NO
tems.no
NIBE-BIAWAR Sp. z o. o. Aleja Jana Pawła II 57, 15-703 BIAŁYSTOKPL
www.biawar.com.pl
© "EVAN" 17, per. Boynovskiy, Nizhny NovgorodRU
NIBE AB Sweden, Box 14, Hannabadsvägen 5, SE-285 21 MarkarydSE
www.nibe.se
5NIBE™ F470Chapter 1 | Important information
For countries not mention in this list, please contact Nibe Sweden or check www.nibe.eu
for more information.
NIBE™ F470Chapter 1 | Important information6
F470 – An excellent choice
F470 is part of a new generation of heat pumps, which have been introduced
to supply your home with inexpensive and environmentally friendly heating.
Heat production is safe and economical with integrated hot water heater,
immersion heater, circulation pump and control system.
The heat pump can be connected to an optional low temperature heat distri-
bution system. e.g. radiators, convectors or under floor heating. It is also
prepared for connection to several different products and accessories, e.g.
extra water heater and climate systems with different temperatures.
F470 is equipped with a control computer for good comfort, good economy
and safe operation. Clear information about status, operation time and all
temperatures in the heat pump are shown on the large and easy to read
display. This means, for example, that external unit thermometers are not
necessary.
Excellent properties for F470:
႑Integrated water heater
There is a water heater integrated in the heat pump, which is insulated
with environmentally friendly cellular plastic for minimal heat loss.
႑Scheduling the indoor comfort and hot water
Heating and hot water as well as ventilation, can be scheduled for each
day of the week or for longer periods (vacation).
႑Large display with user instructions
The heat pump has a large display with easy-to-understand menus that
facilitate setting a comfortable climate.
႑Simple troubleshooting
In the event of a fault, the heat pump display shows what happened and
the actions to be taken.
7NIBE™ F470Chapter 1 | Important information

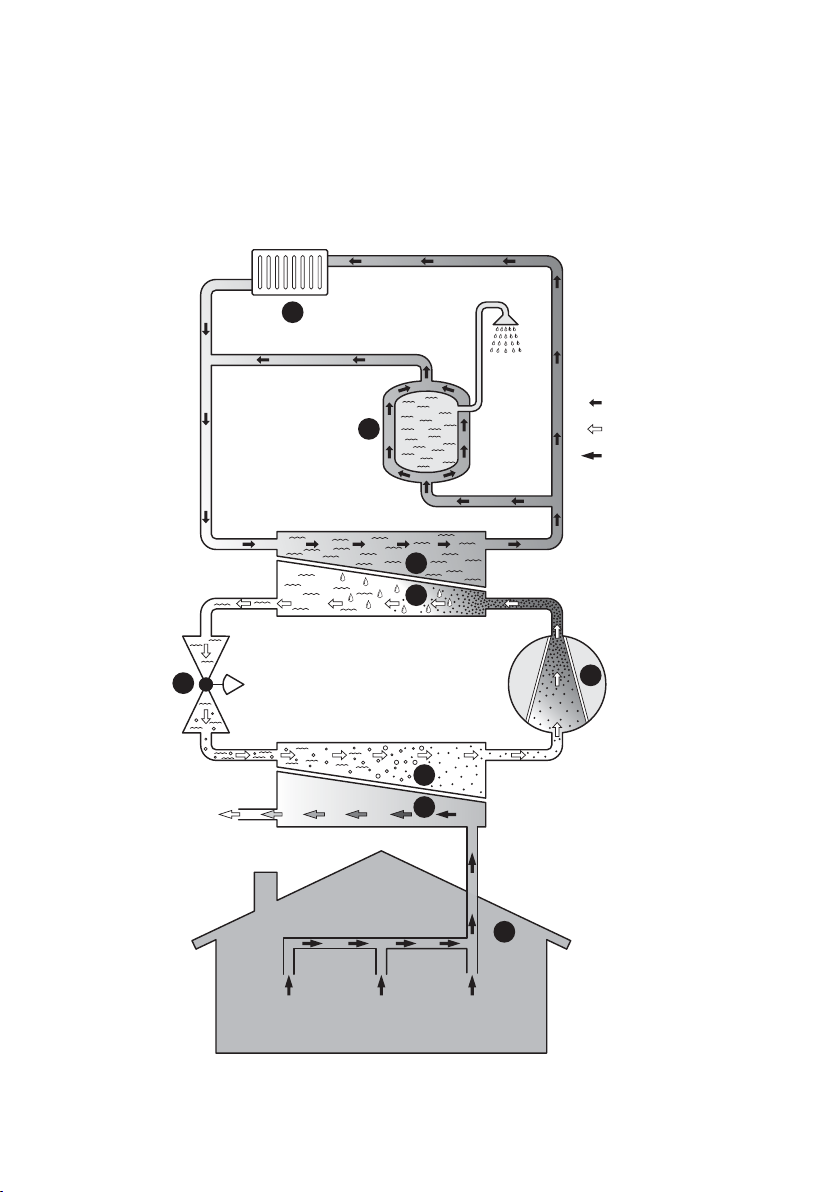

2The heat pump – the heart of
the house
Värmebärare
Köldmedium
Rumsluft
Förångare
Kondensor 80 °C
22 °C0 °C
5 °C0 °C
55 °C45 °C
ExpansionsventilKompressor
A
D
F
H
I
B
C
E
G
+HDWLQJ PHGLXP
%ULQH
5HIULJHUDQW
(YDSRUDWRU
&RQGHQVHU
([SDQVLRQ YDOYH &RPSUHVVRU
+HDW VRXUFH
The temperatures are only examples and may vary between different installations and time
of year.
NIBE™ F470Chapter 2 | The heat pump – the heart of the house8
