Nexxt Solutions - Wireless Network Adapter - Q.I.G.
1
AULUB155U2_QIG_ENG-03_03_2017.indd 1 3/03/17 17:34
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
2 3
1.1 Package contents
Installing the USB network adapter
One Mini Wireless-N Network Adapter
One CD ROM (with a digital copy of the Quick
Installation Guide, User Manual and driver
configuration tool)

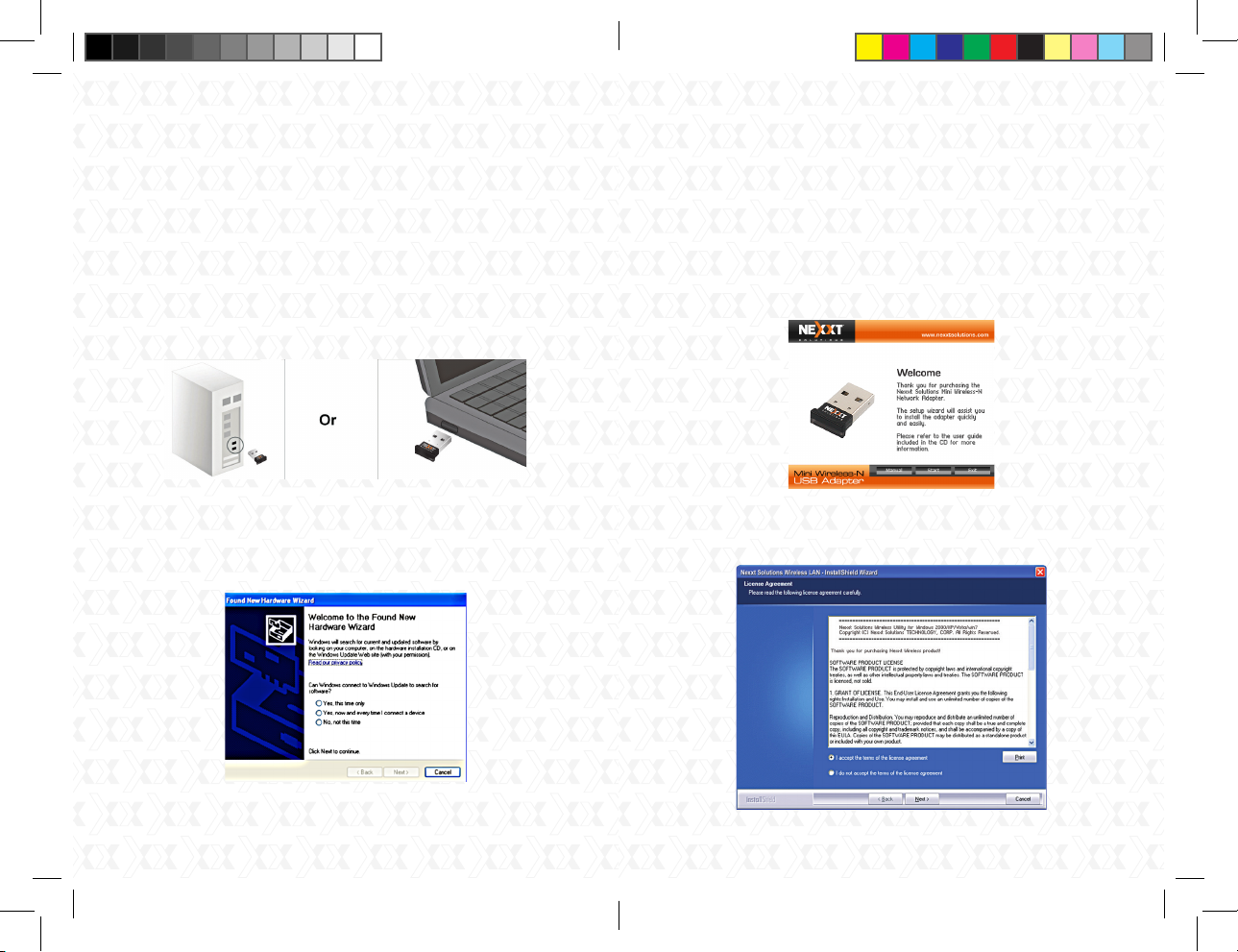

Insert the Wireless USB Adapter into the USB
port of your computer.
If the “Found New Hardware Wizard” system
dialogue appears, select ”Cancel” and use the
included Setup Wizard software CD for fast
installation
Insert the supplied software CD into the CD drive
of your computer. Click on the “RUN” button to
continue. (If the autorun fails, double click “Nexxt.
exe” in the software CD to manually install the
software).
The Welcome screen will be displayed (as shown
below) when the system detects the adapter.
Select “I accept the terms of the license
agreement” and click “Next”.
•
•
1.
2.
3.
4.
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
AULUB155U2_QIG_ENG-03_03_2017.indd 2-3 3/03/17 17:34
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
4 5
Click “Finish” to complete the installation.
Click the wireless connection icon in the lower
right corner of the computer’s desktop to view
the available networks.
Select the wireless network you wish to connect
to.
The “Install driver” option will be displayed now.
This method uses the WINDOWS built-in wireless
configuration program to complete the setup.
Click “Install” to begin the driver installation.
Wireless Network Connection in Windows 7
5.
6.
7.
1.
2.
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
AULUB155U2_QIG_ENG-03_03_2017.indd 4-5 3/03/17 17:34
7
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
6
If the wireless network you are connecting to is
encrypted, you will be prompted to enter the key.
Click “Ok” once you enter the correct security key.
The window will display the “Connected” message
once the connection has been established
successfully.
When “Connected” appears on the screen, you
will be able to start enjoying wireless access to
the Internet.
You can disconnect the network, view its status,
or modify the wireless network properties simply
by right-clicking on the wireless network icon.
FCC statement
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful in-
terference in a residential installation. This equipment
generates, uses and can radiate radio frequencyen-
ergy and, if not installed and used in accordance with
the instructions, may cause harmful interference to
radio communications. However, there is no guar-
antee that interference will not occur in a particular
installation. If this equipment does cause harmful in-
terference to radio or television reception, which can
be determined by turning the equipment off and on,
the user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
3.
4.
5.
6.
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is con-
nected.
Consult the dealer or an experienced radio/TV
technician for help.
-
-
-
-
AULUB155U2_QIG_ENG-03_03_2017.indd 6-7 3/03/17 17:34
Nexxt Solutions - Wireless Network Adapter - Q.I.G.
8
FCC radiation exposure statement
This device complies with FCC radiation exposure
limits set forth for an uncontrolled environment and
it also complies with Part 15 of the FCC RF Rules.
This equipment must not be co-located or operating
in conjunction with any other antenna or transmitter.
End-users and installers must be provided with
antenna installation instructions and consider
removing the no-collocation statement.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
Caution!
Any changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
AULUB155U2_QIG_ENG-03_03_2017.indd 8 3/03/17 17:34
