NextWave Digital PVR-3790 Manuel utilisateur

Twin Tuner SDTV

Personal Video Recorder

PVR-3790

Please read these operating instructions before using the product

Operating Instructions

Safety Instructions

Safety Tips.

Do not overload wall outlets, extension cords or integral convenience receptacles as this can result in a risk of

ﬁre or electrical shock.

Never allow liquids, spray or other materials to come into contact with the inside of the STB.

Unplug the STB from the wall outlet before cleaning.

Use a soft cloth to clean the exterior of the STB.

Allow clear space around the STB for sufﬁcient ventilation.

Do not use the STB where it is exposed to direct sunlight or near a heater.

Never stack other electronic equipment on top of the STB.

Do not place the STB outdoors. Keep out of direct sunlight.

Do not connect or modify cables when the STB is plugged in.

Do not cover the STB or place it on a unit that emits heat.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates “dangerous

voltage” inside the product that presents a

risk of electric shock or personal injury.

This symbol indicates important

instructions accompanying product.

Never stack other electronic equipment on top of the STB. The STB requires sufﬁcient

ventilation space to prevent overheating. Failure to provide adequate ventilation could

result in poor performance of the STB, may damage the hard drive or void your warranty.

Please read the following

safety instructions carefully.

Table of Contents

Welcome... 4

Included within package ...................................................................4

Optional or Recommended Accessories (Not Included) ................ 4

Important Points 5

Quick Start Guide 6

Rear Panel 8

Connection Options 9

Connecting the Antenna ..................................................................9

Basic Set Up - Standard TV ............................................................. 9

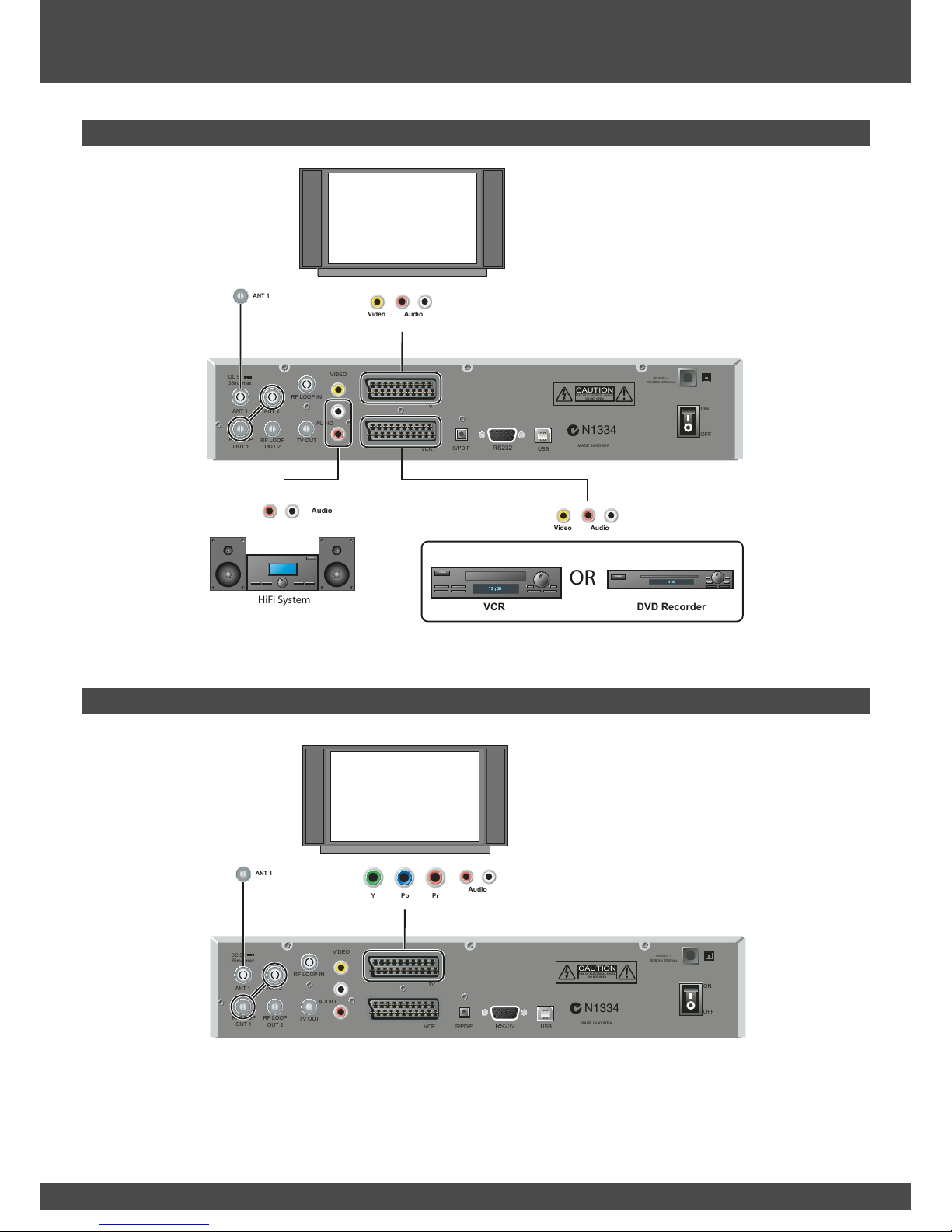

Standard TV VCR/DVD-R & HiFi .................................................... 10

Plasma / LCD / Component video capable display ........................ 10

Component video capable display & HiFi Ampliﬁer ........................ 11

Component video display & AV Processor or HiFi ......................... 11

Loop through function using VCR SCART ......................................12

Front Panel 13

Front Panel ....................................................................................... 13

Remote Control 14

Navigating Menus 16

Using Remote Control to Navigate .................................................. 16

Using Front Panel to Navigate ......................................................... 16

Main Menu 17

Menu Structure ................................................................................. 17

Installation Sub-menu ......................................................................18

Auto Search ...................................................................................... 18

Fast Search ................................................................................ 18

Manual Search ................................................................................. 19

Scan Complete Menu ......................................................................19

Antenna Power ................................................................................. 20

Initialise STB .....................................................................................20

Edit Channels ................................................................................... 21

Favourite Group ...............................................................................22

PVR Manager Sub-menu ................................................................ 23

Timer List ..........................................................................................23

Recording ......................................................................................... 24

Timeshift ........................................................................................... 24

Skip Time .......................................................................................... 25

Bookmark Image ..............................................................................25

HDD Format ..................................................................................... 25

System Settings ...............................................................................26

Video Settings .................................................................................. 26

Clock Settings ................................................................................... 27

Language Settings ........................................................................... 28

Lock Settings .................................................................................... 29

System Information .......................................................................... 30

Program Guide .................................................................................30

Utility Sub-menu ...............................................................................31

Calendar ........................................................................................... 31

Tetris .................................................................................................. 31

Captured image ................................................................................ 31

USB Manager ................................................................................... 32

On Screen Display (OSD) 33

iplate ..................................................................................................33

Function Guide 34

Changing Channels ......................................................................... 34

Volume Control ................................................................................. 34

Aspect Ratio ..................................................................................... 34

Sleep .................................................................................................34

TV / Radio .........................................................................................34

Audio Settings .................................................................................. 35

Recording TV .................................................................................... 35

Timeshifting .......................................................................................36

F.LIST (Playback) .............................................................................37

Playback Controls ............................................................................ 38

Playback iplate ................................................................................. 39

Bookmarks ........................................................................................ 40

Repeat .............................................................................................. 40

Teletext .............................................................................................. 41

Closed Captions (subtitles) .............................................................. 41

Screen Zoom .................................................................................... 41

Appendix 42

Troubleshooting ................................................................................42

Speciﬁcations ...................................................................................43

PVR Manager ................................................................................... 44

Glossary ............................................................................................ 46

Warranty certiﬁcate .......................................................................... 47

Congratulations, and thank you for purchasing a NextWave Digital PVR-3790 Standard Deﬁnition Personal Video Recorder (PVR).

The distinctive feature of this receiver is its ability to decode multiple MPEG streams simultaneously, allowing you to record

programs to a hard drive while watching other channels. This manual will guide you through a variety of representative installation

setups and describe the various features and functions required to make full use of the capabilities of this unit

Your NextWave Digital PVR should include the following items. If you are missing any of the following included items, contact your retailer.

Electronic copies of the operating instructions and quick start guide are also available for download from the support section of

www.nextwave-digital.com.

Included within package

Depending on your particular audio/visual setup, certain third party products may

need to be purchased such as:

SCART ~ Component lead, Optical Digital interconnects, USB cable, RF Flyleads.

Optional or Recommended Accessories (Not Included)

NextWave Digital recommends SignalMAX Home Theatre Interconnects

www.signalmax.com.au

to the NextWave of Technology...

Optional

SCART ~ Composite +

Audio + S-video lead.

Loop Through

Cable

Video+Audio lead

3x RCA ~ 3x RCA

RCU + 2x AAA

batteries

Operating

Instructions

PVR USB Manager

For Microsoft™ Windows®

Instructions avialable from

www.nextwave-digital.com

Typographic conventions

Several symbols are used throughout these

operating instructions to assist the user

in identifying actions, tasks and important

information.

Begin a task

This symbol indicates the beginning of a

speciﬁc task, and it is usually followed by a

step by step listing of the actions needed to

complete that task.

Information

This symbol indicates that a statement

contains explanatory or additional information

relevent to the particular task.

Caution

This symbol indicates that a statement

contains important information that has a

signiﬁcant impact on the operation of the

product.

Ignoring this type of symbol could result in

damage to the product or external equipment,

loss of recorded programs or information.

Step by Step

These symbols indicate a step by step

process required to complete a particular task

or use a speciﬁc function of the product. All

the steps of a single task are joined by a grey

bar, and other symbols such as and !

may appear within that bar.

Losing power to the PVR

Switch the PVR to standby mode prior to switching off at the mains. Doing

so minimises any chance of damaging the hard drive inside the PVR or

losing recorded programs.

Manual User Time Settings

The user time settings will need to be re-entered after a loss of mains

power, or a power cycle. The time should not need to be re-entered if the

time mode is automatic and the broadcaster supports time broadcasts.

Using Component Video (YPbPr)

Use a SCART to Component video (YPbPr) cable to connect the PVR to

your display device. Press the TV OUT button on the remote control to

activate YPbPr output.

First Time Boot Procedure

When turned on for the ﬁrst time, the PVR will boot up to standby mode.

Press the Power Button on the remote control to go from standby to run

mode. The PVR will scan for broadcasts.

Total Available Recording Time

The total recording time available to the PVR will vary as broadcasters

vary the bandwidth - and therefore space - used to transmit certain

programs. Sports and feature ﬁlms often use a greater amount of

bandwidth (and storage space). As a result the available capacity of the

PVR falls within a range depending on what has been recorded onto

it. Generally speaking the 80GB PVR3790 can record up to 35 hours

of programs, while the 120GB PVR3790 can record up to 60 hours of

programs.

Buffer length for Manual vs Continuous

Timeshifting

Activating Timeshifting by pressing the PAUSE button will store up to

a maximum of 60 minutes of programming. Continuous timeshifting,

activated via the Timeshift sub-menu; will automatically continuously

timeshift a maximum of 25 minutes of programming.

Important Points

1. Standby – Power On

2. LED Display:

2.1 run

2.2 p000

2.3 boot

2.4 succ

3. Display Device:

3.1 HDD Check

3.2 NextWave Logo

1. Channel Scan Begins

1. Power on at mains

2. LED Display:

2.1 Boot

2.2 Run

2.3 P000

2.4 - - - -

3. Standby Mode

Disclaimer:

While every care has been taken to

ensure the accuracy of these operating

instructions, neither NextWave Digital nor

any of its employees make any warranty,

expressed or implied, or assume any legal

liability or responsibility for the accuracy or

completeness of any information contained

within these operating instructions.

Please check

http://nextwave-digital.com/products.php

for the latest version of these operating

instructions.

Personal Video Recorder

PVR3690 80GB / 120GB

Quick Start Guide

Please read this quick start guide before using your NextWave PVR3690.

VCR/DVD-R (SCART)

TV (SCART)

ON / OFF

AC / DC Power

Component Video (YPbPr)

RGB

S-Video

Composite (CVBS)

Connects to:

TV, Plasma/LCD Panel,

Monitor.

Mains power supply

USB (USB 2.0)

VID File data transfer

Connects to:

Media Center or Home PC

for archiving of recorded

programs

Power Switch

AUDIO L/R (RCA)

Stereo Audio

Connect To:

Audio input V Input on

VCR, DVD-R and TV

TV OUT (RF)

RF Signal

Connect To:

Old TV with RF inputs.

Composite (CVBS) Input*

and output

Connect To:

VCR or DVD-R

*Not for recording on HDD. Signal

can be looped through to RCA or TV

SCART Output.

S/PDIF (TOSLINK)

TOSLINK Optical Digital

Audio Interface.

Connect to:

AV Processor

RS232 (15-pin)

Software Upgrade Port

VIDEO (RCA)

Composite (CVBS)

Connect to:

TV, VCR, DVD-R

Please Note

Connect supplied loop

cable from RF LOOP OUT

1 to ANT 2



 Connect to VCR with SCART to RCA

composite video & audio L/R cable.

(not supplied)

Connect to standard TV with supplied

RCA composite video & audio L/R cable.

This setup allows you to record a second channel onto the

VCR/DVD-R, so that you can record one channel to the HDD,

watch another channel and record it as well to the VCR.







Connect to VCR or DVD-R

with supplied composite video

& audio L/R cable.



Connect to AV Processor with

TOSLINK optical digital audio

interface cable.

(not supplied)

Connect to Plasma/LCD Display with

SCART to Component cable.

(not supplied)

BASIC SETUP

ADVANCED SETUP

Quick Start Guide

Personal Video Recorder

PVR3690 80GB / 120GB

Quick Start Guide

Microsoft and Windows are trademarks of Microsoft Corporation in Australia and other countries.

NextWave Digital and Catch the Next wave are registered trademarks of Nationwide Antenna Systems.

Introduction

The twin tuners and advanced chipset within the PVR-3690, provide it with the

ability to process several MPEG streams simultaneously.

This ability allows a user to:

- Watch one channel while recording another channel,

- Play back a previously recorded program while recording another program,

- Timeshift or pause live TV while recording another channel.

1. Record one channel, watch another.

a. Press the record button to begin recording current channel.

b. To view the status of recording, press record button again.

c. The screen above provides recording status, HDD space and duration of

recording.

d. Press exit to remove this screen.

e. Change channels to view another channel.

Your recording does not get interrupted

2. Record a channel, and play back a recorded program

a. Press the record button to begin recording current channel.

b. Press ‘F.LIST’ (Playback list) button to list recorded programs.

c. Select desired program from playback list.

d. Press ‘OK’ to play

Your recording does not get interrupted

3. Pause live TV (Timeshifting).

While watching live TV pressing pause will temporarily store up to 60min of live TV.

a. Press ‘PAUSE’ button to pause (timeshift)* live TV.

b. Pressing ‘PAUSE’ button again restarts the program.

c. Top right hand corner of TV screen will show duration of timeshift.

d. Pressing ‘F.FWD’ enables you to catch up to live TV.

*Timeshifting will stop if the channel is changed.

4. Record a channel, time shift another.

a. Press the record button to begin recording current channel.

b. Change channels.

c. Press ‘PAUSE’ button to pause (timeshift)* live TV.

d. Pressing ‘PAUSE’ button again restarts the program.

e. Top right hand corner of TV screen will show duration of timeshift.

f. Pressing ‘F.FWD’ enables you to catch up to live TV.

*Timeshifting will stop if the channel is changed.

5. Continuous Timeshift function (menu activated).

This function needs to be activated via the main menu (see below).

If continuous timeshift is in the ‘ON’ mode, the unit will continuously cache 30min

of whatever is being watched. The unit automatically starts storing programs

temporarily as soon as you change channel.

You will be able to rewind the program and fast forward to catch up to the live

broadcast, without having to manually use the pause button timeshift method

described in point number 3.

6. Delete Files.

a. Press ‘F.LIST’ (Playback list) button to list recorded programs.

b. Select desired program from playback list.

C. Press ‘i’ (info button)

d. Highlight ‘delete’ in ‘File Config’ sub menu.

e. Press ‘OK’ to delete.

7. Skip Function.

The skip function settings are available in the ‘PVR Manager’ sub menu. Skip time

is available in 10/20/30 sec increments and 1/2/3/5/10/15 min increments.

a. Play a recorded program.

b. Press ‘F.SKIP’ button to skip forward at configured increment.

C. Press & Hold the ‘F.SKIP’ button to skip forward at 10min increment.

8. USB 2.0 Connection to PC.

The included PVR manager software allows recorded programs to be transferred

from the PVR to a Microsoft™ Windows™ PC for archiving. Additionally, the

PVR manager software can play back recorded programs stored on a PC.

Install the software on the CD to your Windows™ PC to begin using this

functionality. Please refer to the www.nextwave-digital.com for a more detailed

tutorial about the included software.

Timeshifting

Personal Video Recorder

PVR3690 80GB / 120GB

Quick Start Guide

Please read this quick start guide before using your NextWave PVR3690.

VCR/DVD-R (SCART)

TV (SCART)

ON / OFF

AC / DC Power

Component Video (YPbPr)

RGB

S-Video

Composite (CVBS)

Connects to:

TV, Plasma/LCD Panel,

Monitor.

Mains power supply

USB (USB 2.0)

VID File data transfer

Connects to:

Media Center or Home PC

for archiving of recorded

programs

Power Switch

AUDIO L/R (RCA)

Stereo Audio

Connect To:

Audio input V Input on

VCR, DVD-R and TV

TV OUT (RF)

RF Signal

Connect To:

Old TV with RF inputs.

Composite (CVBS) Input*

and output

Connect To:

VCR or DVD-R

*Not for recording on HDD. Signal

can be looped through to RCA or TV

SCART Output.

S/PDIF (TOSLINK)

TOSLINK Optical Digital

Audio Interface.

Connect to:

AV Processor

RS232 (15-pin)

Software Upgrade Port

VIDEO (RCA)

Composite (CVBS)

Connect to:

TV, VCR, DVD-R

Please Note

Connect supplied loop

cable from RF LOOP OUT

1 to ANT 2



 Connect to VCR with SCART to RCA

composite video & audio L/R cable.

(not supplied)

Connect to standard TV with supplied

RCA composite video & audio L/R cable.

This setup allows you to record a second channel onto the

VCR/DVD-R, so that you can record one channel to the HDD,

watch another channel and record it as well to the VCR.







Connect to VCR or DVD-R

with supplied composite video

& audio L/R cable.



Connect to AV Processor with

TOSLINK optical digital audio

interface cable.

(not supplied)

Connect to Plasma/LCD Display with

SCART to Component cable.

(not supplied)

BASIC SETUP

ADVANCED SETUP

Personal Video Recorder

PVR3690 80GB / 120GB

Quick Start Guide

Please read this quick start guide before using your NextWave PVR3690.

VCR/DVD-R (SCART)

TV (SCART)

ON / OFF

AC / DC Power

Component Video (YPbPr)

RGB

S-Video

Composite (CVBS)

Connects to:

TV, Plasma/LCD Panel,

Monitor.

Mains power supply

USB (USB 2.0)

VID File data transfer

Connects to:

Media Center or Home PC

for archiving of recorded

programs

Power Switch

AUDIO L/R (RCA)

Stereo Audio

Connect To:

Audio input V Input on

VCR, DVD-R and TV

TV OUT (RF)

RF Signal

Connect To:

Old TV with RF inputs.

Composite (CVBS) Input*

and output

Connect To:

VCR or DVD-R

*Not for recording on HDD. Signal

can be looped through to RCA or TV

SCART Output.

S/PDIF (TOSLINK)

TOSLINK Optical Digital

Audio Interface.

Connect to:

AV Processor

RS232 (15-pin)

Software Upgrade Port

VIDEO (RCA)

Composite (CVBS)

Connect to:

TV, VCR, DVD-R

Please Note

Connect supplied loop

cable from RF LOOP OUT

1 to ANT 2



 Connect to VCR with SCART to RCA

composite video & audio L/R cable.

(not supplied)

Connect to standard TV with supplied

RCA composite video & audio L/R cable.

This setup allows you to record a second channel onto the

VCR/DVD-R, so that you can record one channel to the HDD,

watch another channel and record it as well to the VCR.







Connect to VCR or DVD-R

with supplied composite video

& audio L/R cable.



Connect to AV Processor with

TOSLINK optical digital audio

interface cable.

(not supplied)

Connect to Plasma/LCD Display with

SCART to Component cable.

(not supplied)

BASIC SETUP

ADVANCED SETUP

Personal Video Recorder

PVR3690 80GB / 120GB

Quick Start Guide

Please read this quick start guide before using your NextWave PVR3690.

VCR/DVD-R (SCART)

TV (SCART)

ON / OFF

AC / DC Power

Component Video (YPbPr)

RGB

S-Video

Composite (CVBS)

Connects to:

TV, Plasma/LCD Panel,

Monitor.

Mains power supply

USB (USB 2.0)

VID File data transfer

Connects to:

Media Center or Home PC

for archiving of recorded

programs

Power Switch

AUDIO L/R (RCA)

Stereo Audio

Connect To:

Audio input V Input on

VCR, DVD-R and TV

TV OUT (RF)

RF Signal

Connect To:

Old TV with RF inputs.

Composite (CVBS) Input*

and output

Connect To:

VCR or DVD-R

*Not for recording on HDD. Signal

can be looped through to RCA or TV

SCART Output.

S/PDIF (TOSLINK)

TOSLINK Optical Digital

Audio Interface.

Connect to:

AV Processor

RS232 (15-pin)

Software Upgrade Port

VIDEO (RCA)

Composite (CVBS)

Connect to:

TV, VCR, DVD-R

Please Note

Connect supplied loop

cable from RF LOOP OUT

1 to ANT 2



 Connect to VCR with SCART to RCA

composite video & audio L/R cable.

(not supplied)

Connect to standard TV with supplied

RCA composite video & audio L/R cable.

This setup allows you to record a second channel onto the

VCR/DVD-R, so that you can record one channel to the HDD,

watch another channel and record it as well to the VCR.







Connect to VCR or DVD-R

with supplied composite video

& audio L/R cable.



Connect to AV Processor with

TOSLINK optical digital audio

interface cable.

(not supplied)

Connect to Plasma/LCD Display with

SCART to Component cable.

(not supplied)

BASIC SETUP

ADVANCED SETUP

Personal Video Recorder

PVR3690 80GB / 120GB

Quick Start Guide

Please read this quick start guide before using your NextWave PVR3690.

VCR/DVD-R (SCART)

TV (SCART)

ON / OFF

AC / DC Power

Component Video (YPbPr)

RGB

S-Video

Composite (CVBS)

Connects to:

TV, Plasma/LCD Panel,

Monitor.

Mains power supply

USB (USB 2.0)

VID File data transfer

Connects to:

Media Center or Home PC

for archiving of recorded

programs

Power Switch

AUDIO L/R (RCA)

Stereo Audio

Connect To:

Audio input V Input on

VCR, DVD-R and TV

TV OUT (RF)

RF Signal

Connect To:

Old TV with RF inputs.

Composite (CVBS) Input*

and output

Connect To:

VCR or DVD-R

*Not for recording on HDD. Signal

can be looped through to RCA or TV

SCART Output.

S/PDIF (TOSLINK)

TOSLINK Optical Digital

Audio Interface.

Connect to:

AV Processor

RS232 (15-pin)

Software Upgrade Port

VIDEO (RCA)

Composite (CVBS)

Connect to:

TV, VCR, DVD-R

Please Note

Connect supplied loop

cable from RF LOOP OUT

1 to ANT 2



 Connect to VCR with SCART to RCA

composite video & audio L/R cable.

(not supplied)

Connect to standard TV with supplied

RCA composite video & audio L/R cable.

This setup allows you to record a second channel onto the

VCR/DVD-R, so that you can record one channel to the HDD,

watch another channel and record it as well to the VCR.







Connect to VCR or DVD-R

with supplied composite video

& audio L/R cable.



Connect to AV Processor with

TOSLINK optical digital audio

interface cable.

(not supplied)

Connect to Plasma/LCD Display with

SCART to Component cable.

(not supplied)

BASIC SETUP

ADVANCED SETUP

1ANT IN RF - Terrestrial (conventional) TV aerial input.

2RF LOOP OUT 1 RF - LOOP OUT to second tuner.

3ANT 2 RF - LOOP IN for second tuner.

4RF LOOP OUT 2 RF - TV Aerial output for feeding to other devices (eg: TV/VCR).

5RF LOOP IN RF - Input for signal to be looped via TV OUT.

6TV OUT RF - Connect modulated output to TV.

7VIDEO OUT RCA - CVBS (Composite) video output. Connect to TV/VCR.

8Audio Left/Right RCA - Stereo Output for connection to a Hi-Fi system or TV set.

9TV SCART - Component (YPbPr), RGB, CVBS video output for connection to

Plasma/LCD/TV.

10 VCR SCART - CVBS (Composite) video output. Connect to DVD-R/VCR.

11 S/PDIF Optical

(TOSLINK) TOSLINK - Optical Audio Output. Connect to AV Processor or Audio Ampliﬁer.

12 RS232 Data Port For Software Upgrades.

13 USB 2.0 Connector For connection to media centre or home PC .

(requires installation of transfer software to function)

14 Power Lead Connect to 240VAC mains supply.

15 Mains Power Switch

Rear Panel

10 1

11 1

12 1

The following section details some common connection options that may assist. Please note that some of these connection options may

require third party interconnects or cables beyond what is supplied in the box. Talk to your retailer about the best options for connecting

your PVR.

Connecting the Antenna

Connection Options

N1334

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

RS232

90-250V ~

50/60Hz 40Wmax

OFF

VCR S/PDIF USB

VIDEO

TV OUT

ANT 1

RF LOOP IN

ANT 2ANT 1

RF LOOP

OUT 1

RF LOOP

OUT 2

AUDIO

MADE IN KOREA

DC 5V

35mA max

L R

RCA Audio Left/Right

POWER







L R

VCR DVD Recorder

POWER

12 : 00

POWER

12 : 00



Please Note: If you would like to receive either community television channels

or original analogue programming, you may use the RF LOOP OUT 2 output

signal to connect your VCR or TV receiver to it. (This signal carries the same

signal that is received by the antenna and is not processed by the STB).

Basic Set Up - Standard TV

N1334

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

RS232

90-250V ~

50/60Hz 40Wmax

OFF

VCR S/PDIF USB

VIDEO

TV OUT

RF LOOP IN

ANT 2ANT 1

RF LOOP

OUT 1

RF LOOP

OUT 2

AUDIO

MADE IN KOREA

DC 5V

35mA max

L R

RCA Audio Left/Right

POWER







Audio

Video

VCR DVD Recorder

POWER

12 : 00

POWER

12 : 00



Y Pb Pr

Audio

Video

ANT 1

The PVR-3790 can power a 5VDC active antenna. By default this functionality is disabled

to prevent damaging standard passive antennas. To enable this feature, please refer to the

‘Antenna Power’ sub-menu on page 17.

Connect the supplied LOOP OUT cable to the ANT LOOP OUT ( 1

2) and ANT 2 ( 1

3) sockets.

The loop through connection must be in place in order to record programs to the hard drive.

Connection Options

Standard TV VCR/DVD-R & HiFi

Connecting the Antenna

Connect the coaxial cable from the VHF/UHF Antenna to the RF IN ( 1

socket on the rear panel of the STB.

N1334

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

RS232

90-250V ~

50/60Hz 40Wmax

OFF

VCR S/PDIF USB

VIDEO

TV OUT

RF LOOP IN

ANT 2ANT 1

RF LOOP

OUT 1

RF LOOP

OUT 2

AUDIO

MADE IN KOREA

DC 5V

35mA max

Audio

POWER



Audio

Video

VCR DVD Recorder

POWER

12 : 00

POWER

12 : 00



Y Pb Pr

Audio

Video

ANT 1

Plasma / LCD / Component video capable display

Connecting the Antenna

Connect the coaxial cable from the VHF/UHF Antenna to the RF IN ( 1

socket on the rear panel of the STB.

N1334

CAUTION

RISK OF ELECTRICAL SHOCK

DO NOT OPEN

RS232

90-250V ~

50/60Hz 40Wmax

OFF

VCR S/PDIF USB

VIDEO

TV OUT

RF LOOP IN

ANT 2ANT 1

RF LOOP

OUT 1

RF LOOP

OUT 2

AUDIO

MADE IN KOREA

DC 5V

35mA max

L R

RCA Audio Left/Right

POWER







Audio

Video

VCR DVD Recorder

POWER

12 : 00

POWER

12 : 00



Y Pb Pr Audio

Video

ANT 1

Please Note: Audio connection options for component capable displays are

varied. Several options for connecting to audio devices are provided in the next

few diagrams.

Table des matières

Autres manuels NextWave Digital DVR

NextWave Digital

NextWave Digital PVR-3690 Manuel utilisateur

Manuels DVR populaires d'autres marques

FLIR

FLIR M3100E Series Manuel utilisateur

VTRACKPRO

VTRACKPRO FPRO300 Manuel utilisateur

Swann

Swann NVR-7085 models Manuel utilisateur

XtendLan

XtendLan DVR-1670C Manuel utilisateur

urmet domus

urmet domus 1093/004AHD Manuel utilisateur

Holux

Holux M1 Manuel utilisateur

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manuel utilisateur

Whistler

Whistler D16VRS Manuel utilisateur

Defender Security

Defender Security 82-20235 Manuel utilisateur

MISUMI

MISUMI MP-WF100M Manuel utilisateur

Speco

Speco D8HU Manuel utilisateur

UST

UST DDR-E04AA Instructions d'utilisation

Consolidated

Consolidated Digital Video Recorder Manuel utilisateur

Mace

Mace DVR0404RW Guide de démarrage rapide

RCA

RCA RTD315W Manuel utilisateur

FSM

FSM Colibri Grande PRO Manuel utilisateur

Hauppauge

Hauppauge HD PVR 2 Manuel utilisateur

Identivision

Identivision ICR-PH161i PIONEER Manuel utilisateur
