Nextek 4-Blade Vari-Fan Manuel utilisateur

Models:

4-Blade Vari-Fan

5-Blade Vari-Fan*

Rev 010713

Please contact Customer Support at 1-800-24VOLTS for further information.

Vari-Cyclone Ceiling Fan

Installation and Userʼs Manual

United States and in other countries throughout the world.

ABOUT N XT K POW R SYST MS 3

PRODUCT INTRODUCTION 4

1.0 SAF TY 5

2.0 STANDARDS & R QUIR M NTS 6

3.0 INSTALLATION QUALIFICATIONS 6

4.0 SP CIFICATIONS 7

5.0 NOT S AND WARNINGS 8

6.0 PARTS INFORMATION 9

7.0 INSTALLATION PROC DUR 10

7.1 Pre-Installation Instructions 10

7.2 Inspection of Fan 10

7.3 Installation of Outlet Box and Rough-In Wiring 10

7.4 Fan Assembly Close Mount Version 11

7.5 Fan Assembly Down Rod Version 13

8.0 PAINTING INSTRUCTIONS 16

9.0 TROUBL SHOOTING 17

Rev. 010713

TABLE OF CONTENTS

For more information: Nextek Power Systems Tel: 313-887-1321 www.nextekpower.com

461 Burroughs Street Toll free: 1 (877) 24-VOLTS

Detroit, Michigan 48202 Fax: 313-887-9433 info@nextekpower.com

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

Nextek Power Systems AC/DC integration technology represents a breakthrough in on-

site electrical management, combining the availability of AC power with the quality and

efficiency of a DC supply.

N XT K PRODUCT B N FITS

•asy conversion of AC lighting fixtures to DC-powered units

•asy conversion of AC grid power into DC power for commercial building

applications

•Highly efficient management of peak loads

•Future-proof lighting and other systems to be developed

•Nextek Power Systems Direct Coupling® Technology, directly connects clean

power generated at a building to its electronic loads inside cutting down on over-

all power consumption, boosts electricity generated and stored on-site, and

delivers a robust renewable energy ready network.

DISCLAIM R

Nextek Power Systems has made every reasonable effort to ensure the accuracy of the

information in this catalog. Nextek Power Systems does not guarantee that the

information is error free, nor do we make any other representation, warranty or

guarantee that the information is accurate, correct, reliable or current. Nextek Power

Systems, Inc. reserves the right to make any adjustments to the information contained

herein at any time without notice. The specifications in this catalog are for reference

purposes only and are subject to change without notice. Consult Nextek Power Systems

for the latest design specifications. All trademarks are either the exclusive property of

Systems, Inc. in the United States and other countries throughout the world.

ABOUT NEXTEK POWE SYSTEMS

Rev. 010713

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

Nextek Vari-Cyclone DC Powered Ceiling Fans

Features:

• Can be mounted 10" to 48" from

ceiling (16" down rod included, custom

rods can be made)

• Can be ordered with either 3 or 4

blades

• Can be ordered in solid white or

unpainted (black body with white

blades and arms)

• Body parts are made from injection

molded, glass filled ABS plastic

• Blade arms are stamped steel with a

white enamel finish

• Blades are injection molded white ABS

plastic

• Maximum ambient operating

temperature of 104°F/40°C

The Vari-Cyclone DC Powered Ceiling Fan is the perfect choice for a variety of

indoor/outdoor applications, including workplaces, warehouses, businesses and many

rooms in the home. The Vari-Cyclone’s 60" diameter blades, designed by the Florida

Solar nergy Center in cooperation with a major fan manufacturer, utilize “Gossamer

Wind Technology” found only in AC powered fans until now. We are the only DC fan

company allowed to use these revolutionary new fan blades. The “Gossamer Wind

Technology” blades allow the fan to produce up to 40% more air flow with no increase in

power consumption, making the Vari-Cyclone the most energy efficient DC powered

ceiling fan available.

The Vari-Cyclone is powered by a permanent magnet, T NV (totally enclosed non-

ventilated) motor with long life brushes. The Vari-Cyclone draws 0.5 amps @ 12 VDC

and 0.78 amps at 24 VDC. At 12 VDC the 3-blade fan will have approximately 102 rpm

moving 1,476 CFM when mounted at least 8 feet above the floor in an open room. At 24

VDC the 3-blade fan will have approximately 138 rpm moving 3,925 CFM when

mounted at least 8 feet above the floor in an open room.

For maximum efficiency use the Nextek Power Systems Speed Control in conjunction

with the Vari-Fan DC Powered Ceiling Fans. The Speed Control makes clockwise and

counter-clockwise rotation possible.

INT ODUCTION

Rev. 010713

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

1.1 SAV TH S INSTRUCTIONS– This manual contains important safety and

operating instructions for the Nextek Vari-Cyclone Ceiling Fan.

The following symbols are used throughout this manual to indicate potentially

dangerous conditions or mark important safety instructions:

DANGE :

Indicates an imminently hazardous situation which, if not avoided, will

result in death or serious injury.

WA NING:

Indicates a potentially dangerous condition. Use extreme caution when

performing this task.

CAUTION:

Indicates a critical procedure for safe and proper operation of the

controller.

NOTE:

Indicates a procedure or function that is important for the safe and

proper operation of the controller.

1.2 Before using the fan, read all instructions and cautionary markings.

1.3 lectrical hazards are probably the most common hazards throughout the

industry. Virtually all workplaces have electrical installations and use electricity.

1.4 It is very important that all industry employees be familiar with electrical hazards

and know how to protect themselves when working on, near, or with electricity.

In most cases, industry electrical and electronic equipment is designed for both

maximum safety and efficiency. However, potentially hazardous conditions such

as inadvertent contact with hazardous voltages may exist while performing

servicing and maintenance, handling materials, or cleaning.

1.5 The improper use of electrical extension cords and portable electrical

equipment can result in hazardous exposure.

1.6 WA NING - ISK OF ELECT ICAL SHOCK

Read all of the instructions and cautions in the manual before beginning

installation.

1.7 DANGE – TO EDUCE THE ISK OF FI E O ELECT IC

SHOCK, CA EFULLY FOLLOW THESE INST UCTIONS

Rev. 010713

1.0 SAFETY



Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

1.7.1 Do not disassemble or attempt to repair the fan other than the

troubleshooting procedures listed in this manual.

1.7.2 Disconnect power to the unit before installing, removing, cleaning or

otherwise maintaining the unit.

1.8 INSTALLATION SAF TY PR CAUTIONS

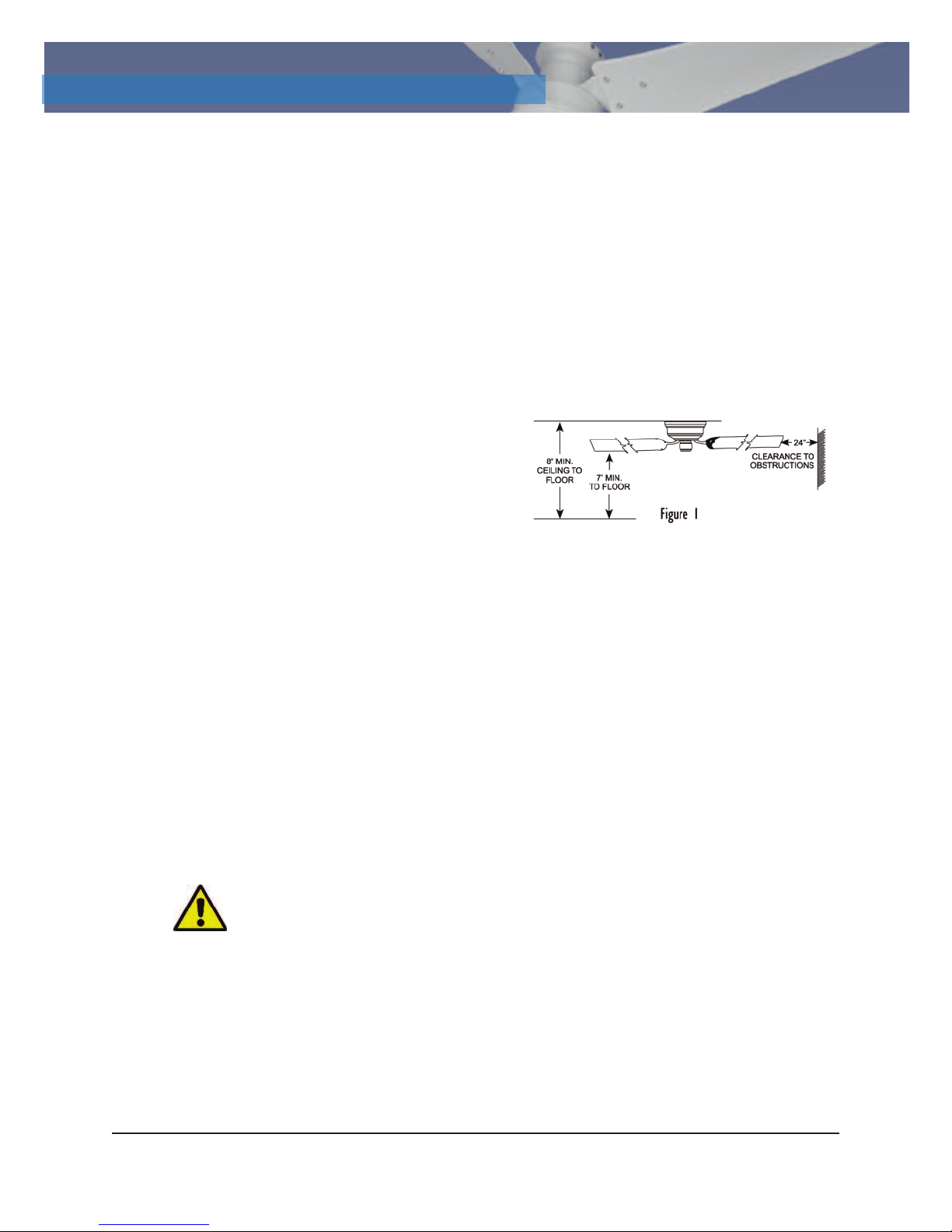

1.8.1 Mount the fan indoors. Prevent exposure to the elements and do not

allow water to enter the fan.

1.8.2 The Vari-Cyclone is to be connected to DC circuits only

2.0 STANDA DS AND EQUI EMENTS

2.1 All DC cable types must meet all local and national codes

2.2 Shut off all DC circuit breakers or fuses before installing any unit into the field

3.0 INSTALLATION QUALIFICATIONS

3.1 Installation work and electrical wiring of permanently-connected power units

must be performed only by qualified service personnel in accordance with all

applicable codes and standards, including fire-rated construction.

Rev. 010713

1.0 SAFETY

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

Rev. 010713

4.0 SPECIFICATIONS

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

For maximum efficiency use 20-Watt Solar Panel and the Nextek Power Systems Speed Control

in conjunction with the Vari-Cyclone DC Powered Ceiling Fans. The Speed Control makes

clockwise and counter-clockwise rotation possible.

The Vari-Cyclone is powered by a permanent magnet, T NV (totally enclosed non-ventilated) motor with

long life brushes. The motor draws 0.5 amps at 12 VDC and 0.78 amps at 24 VDC. At 12 VDC the 3-

blade fan will run at approximately 102 rpm, moving 1,476 CFM when mounted at least 8 feet above the

floor in an open room. At 24 VDC the 3-blade fan will run at approximately 138 rpm, moving 3,925 CFM

when mounted at least 8 feet above the floor in an open room.

20 WATT SOLA PANEL:

These panels are glass laminated with aluminum frames with junction boxes on the back.

Peak power (watts) 20 Peak power (volts) 17.3 Peak power (amps) 1.2 Nominal voltage 21.7

Length: 24.4 inches (62.1cm) Width: 11.1 inches (28.2cm) Weight: 5.5 lbs. (2.5kg) Shipping weight: 8.5 lbs. (4.2kg)

SPEED CONTROL:

This unit provides an adjustable 12 to 30 VDC from an input of 11 to 24 VDC. It has a voltage

control POT with an On\Off switch to change the fan’s direction. It is overload protected by input

and output self resetting fuses. This unit will fit in a single gang electrical box.

3-Blade Vari-C clone 4-Blade Vari-C clone

MECHANICAL

Diameter of blade swing 60 inches (1.52 m) 60 inches (1.52 m)

Weight of fan 14 lbs. (6.35 kg) 15 lbs. (6.80 kg)

Shipping weight 17 lbs. (7.7 kg) 18 lbs. (8.2 kg)

ELECTRICAL

Amps 0.5 @ 12 VDC

0.78 @ 24 VDC

0.5 @ 12 VDC

0.78 @ 24 VDC

Watts 2 @ 9 VDC

4 @ 12 VDC

13 @ 24 VDC

2 @ 9 VDC

4 @ 12 VDC

15 @ 24 VDC

RPM 75 @ 9 VDC

102 @ 12 VDC

138 @ 24 VDC

66 @ 9 VDC

83 @ 12 VDC

117 @ 24 VDC

CFM 852 @ 9 VDC

1,476 @12 VDC

3,925 @ 24 VDC

1,221 @ 9 VDC

1,820 @12 VDC

3,600 @ 24 VDC

Rev. 010713

Models: 3/4-Blade Vari-Cyclone

5.0 NOTES AND WA NINGS

5.1 NOTES:

5.1.1 It is recommended that all Nextek Fanworks DC ceiling fans be used in

conjunction with the Nextek 12/24V Speed Controller.

5.1.2 If operating in a 12V environment, the 12/24V speed control is required.

5.1.3 The Nextek DC ceiling fans can be operated above 24VDC, but not to

exceed 48VDC. A 48VDC Speed Controller can be special ordered. The

12/24V speed control is designed to work only between 12V and 24V.

5.1.4 A Nextek 12.6 watt solar panel is available and perfectly matched for this

DC powered ceiling fan and speed control.

5.1.5 For new installations: This is a low-voltage 12/24V DC-powered device.

Appropriate sizing of a solar panel, battery and battery charge controller

are essential for proper operation. Consult a qualified installer of DC

devices to insure correct configuration.

5.1.6 For installation in existing DC power environment: Great care must be

taken to ensure fan is wired properly in existing DC power environment.

Warranty may be violated if attempting to operate in anything other than

12/24V DC. Please consult a qualified technician.

5.1.7 Failure to wire correctly or install in a non-recommended power

environment may violate your warranty.

5.2 WA NINGS:

5.2.1 To reduce the risk of fire or electrical shock use Nextek 12/24V speed

controls only.

5.2.2 To reduce the risk of personal injury, do not bend the blade brackets

when installing the brackets or cleaning the fan. Do not insert foreign

objects in between rotating fan blades.

5.2.3 To reduce the risk of personal injury, install the fan only to the building

structure according to these instructions, and use only the hardware

supplied.

5.3 CAUTIONS:

5.3.1 Read entire instructions carefully before beginning installation.

5.3.2 To avoid possible electrical shock, be certain electricity is shut off at main

panel before wiring.

5.3.3 All wiring must be in accordance with national and local electrical codes.

If you are unfamiliar with wiring, you should use a qualified electrician.



Vari-Cyclone Ceiling Fan Installation Manual

6.0 PA TS INFO MATION

Rev. 010713

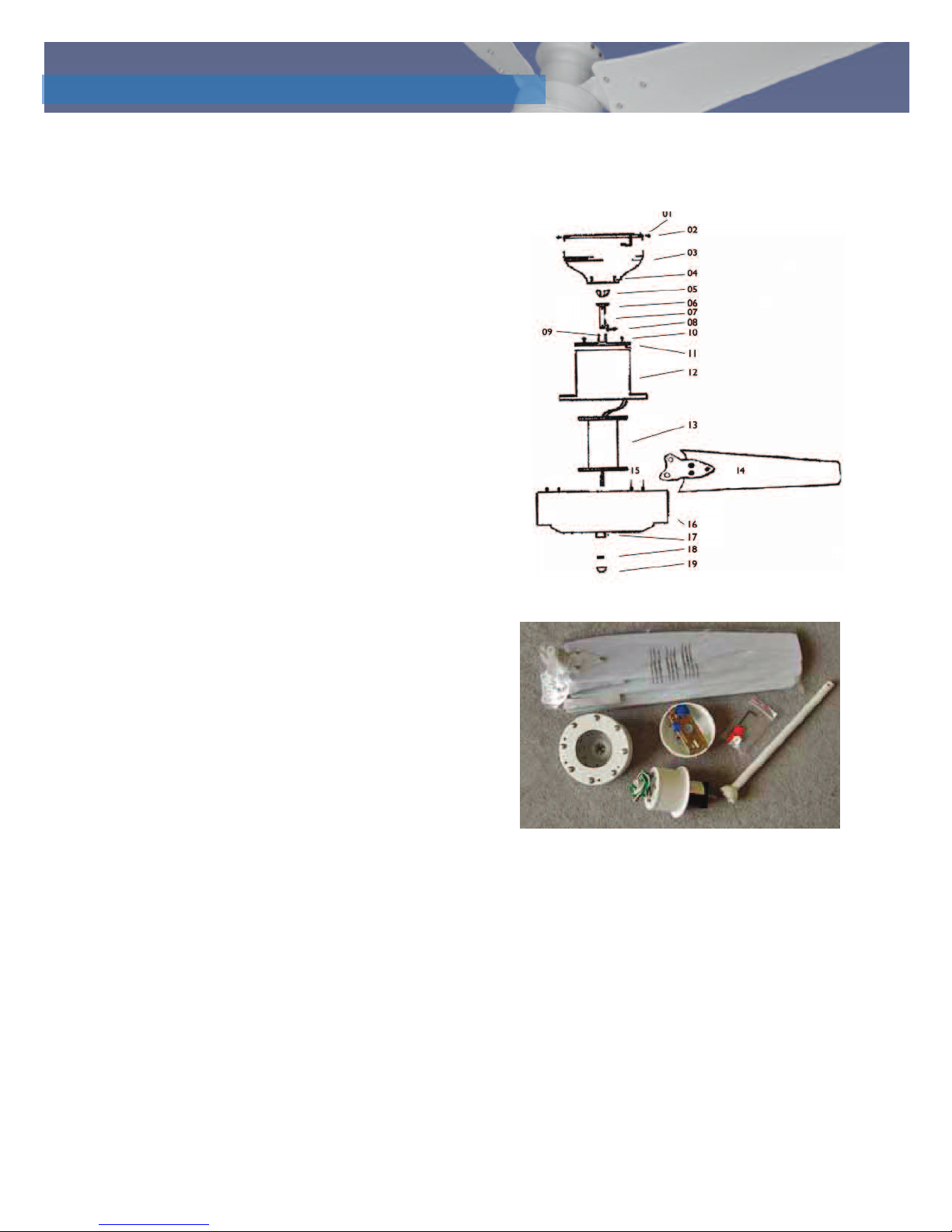

6.1 Parts List

01 1 x Mounting Bracket

02 4 x 10/32" x 3/8" Pan Head

Phillips

03 1 x Mounting cone

04 4 x 10/32" x 3/8" Pan Head

Phillips

05 1 x Pivot Ball

06 1 x Retaining Pin

07 1 x Down Rod

08 1 x Pin & Clip

09 1 x 10/32" x 3/8" Pan Head

Phillips

10 4 x 8/32" x 1/2" Flat Head Phillips

11 1 x Receptacle

12 1 x Motor Housing

13 1 x Fan Motor

14 Pre-assembled fan blade & arm

15 6 or 8 1/4" x 1/2" Truss Head

Screw

16 1 x Hub

17 1 x 1/4" 20 set Screw

18 1 x Retaining Clip

19 1 x Retaining Knob

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

Rev. 010713

7.0 INSTALLATION P OCEDU E

7.1 Pre-Installation Instructions

7.1.1 Select installation site. Check to see that in normal use no object can

come in contact with the rotating fan blades. The mounting site should

also meet the precautions listed in Step 7.3 below.

7.1.2 Installation hardware is included for a standard drywall or plaster ceiling.

You will need a 4" x 1-1/2" or a 4" x 1/2" outlet box and wire nuts (2),

which can be purchased from any hardware store or electrical supply

house.

7.1.3 The fan blades must be mounted

at least 7' above the floor. For

maximum efficiency, they should

not have any obstruction (walls,

posts, etc.) within 24" of the blade

tips. See Figure 1 for mounting

distances.

7.2 Inspection of Fan

7.2.1 Unpack the fan carefully to avoid any damage to the components.

7.2.2 Check for any shipping damage to the motor and the fan blades. If more

than one fan is being installed, keep the matched and balanced fan

blades in sets, as they were shipped. Should one of the fan blades

become damaged during shipment, return all blades in the set for

replacement.

7.2.3 Check contents to be certain it contains a bag of parts.

7.3 Installation of Outlet Box and ough-In Wiring

CAUTIONS:

Your ceiling fan, when operating, can have a weight plus downdraft of up

to 35 lbs. The following precautions must be taken for safety and to

ensure that your fan is securely mounted to the ceiling.

Be certain electricity is “off” at fuse panel when inspecting or repairing

installation site.

All wiring must meet local and national electrical codes.

Do not mount directly to an unsupported ceiling or to an electrical outlet

box. Mounting must support a total weight of 35 lbs.

Models: 3/4-Blade Vari-Cyclone

Vari-Cyclone Ceiling Fan Installation Manual

Autres manuels pour 4-Blade Vari-Fan

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Nextek Ventilateur

Nextek

Nextek Vari-Fan Manuel utilisateur

Nextek

Nextek 4-Blade Vari-Fan Manuel utilisateur

Nextek

Nextek 4-Blade Vari-Fan Manuel utilisateur

Manuels Ventilateur populaires d'autres marques

ELTA FANS

ELTA FANS H03VV-F Manuel utilisateur

Hunter

Hunter 20714 Manuel d'instructions

Emerson

Emerson CARRERA VERANDA CF542ORB00 Manuel utilisateur

Hunter

Hunter Caraway Manuel d'instructions

Panasonic

Panasonic FV-15NLFS1 Manuel utilisateur

Kompernass

Kompernass KH 1150 Manuel utilisateur

VES

VES FALA100/12V/TR Manuel utilisateur

Vertiv

Vertiv Liebert DCD Manuel utilisateur

Westinghouse

Westinghouse GFP Series Manuel utilisateur

Venmar

Venmar KUBIX HRV PLUS Series Manuel utilisateur

Maico

Maico ECR 31 Manuel utilisateur

Sonnenkonig

Sonnenkonig Dinky Manuel utilisateur

S&P

S&P ECOWATT HXBR Manuel utilisateur

Wider

Wider IMP03369BH Manuel utilisateur

Panasonic

Panasonic F-60DHN Manuel utilisateur

Hinkley

Hinkley HIGHLAND Manuel utilisateur

Broan

Broan 766BN Manuel utilisateur

Premium

Premium PFS16022 Instructions de montage
