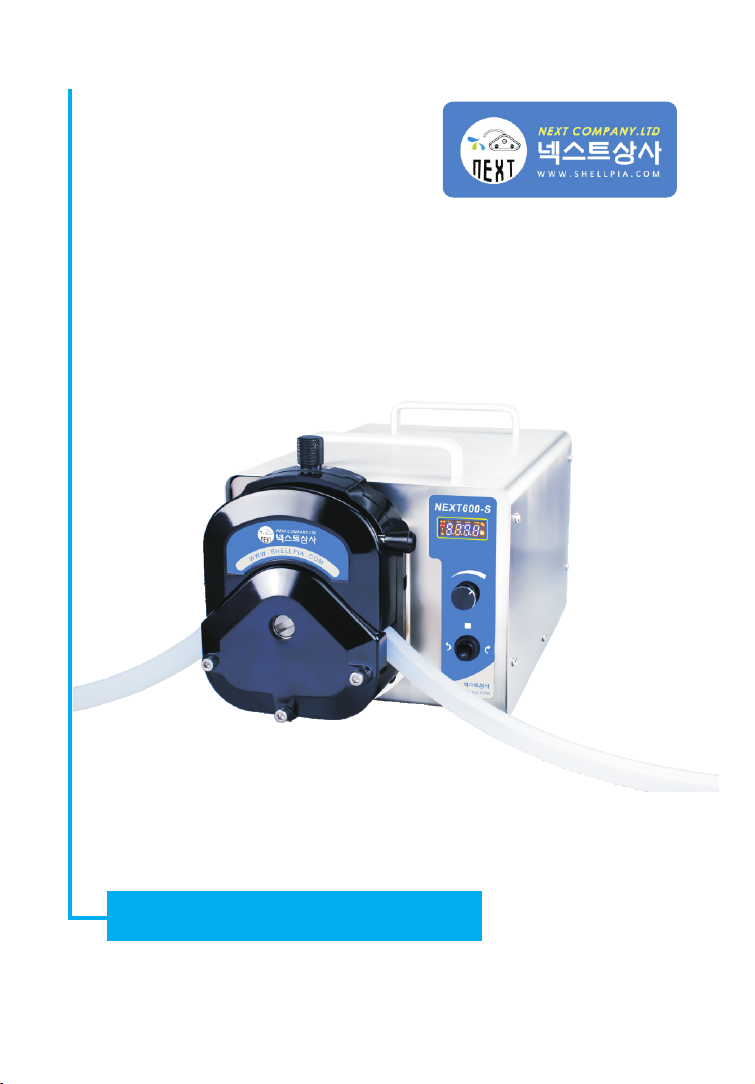

NEXT600-S

peristaltic pump User Manual

NOTED：

Warning：

Due to the wear, may cause the tube cracks. If it happened,

the liquid will overflow from the tube, then may damage the human

body and equipment, so please often check and timely replace the

tube!

Please ensure plug the power cord directly into a wall outlet,

and to avoid the use of extension cords

If the power cord or plug became frayed or have other

damaged, please unplug the power plug (pull out the plug but not

the power cord)

If the following condition occurs, turn off the power and pull

out the plug (pull out the plug but not the power cord):

1. The liquid is spilled on the unit.

2. When you think the machine needs maintenance or repair.

Customer's power outlet must have a reliable earth ground

Please ensure the power was off, when you want to load or

unload the foot switches and other external controllers, to avoid the

external control interface's burning.

Before operating, please read this User Manual carefully.

Product Introductions

Operation Panel

Menu Descriptions

Operating instructions

Technical Parameters

Suitable Pump Heads & Tubes

External Interface

Functions & Features

Flow Rate Descriptions

Pump Tubes Descriptions

Pump Tubes Parameters

Maintenance, Warranty & Service

TABLE OF CONTENTS

Two kinds of operating modes, transferring and dispensing, can be switched

freely, to ensure the quantitative distribution of the fluid.

Applicable pump heads: YZ35, YZ35-13.

With both-way large torque, low power motor. It can be connected with

several pump heads to satisfy the different demands of the flow rates.

FULL SPEED button available for filling in & emptying out the tubing quickly.

Long life, digital rotary knob; the revolving speed can be continuously

adjusted by hand, or to preset distribution frequency, time, interval and back

suction angle.

Memory function available in case of power off and it will continue the work

once the power was restarted.

Supports MODBUS communication protocol through the DB15 interface of

the drive. And communication protocols customized is available.

Good cost performance.

With liquid calibration, flow rates dispensing displaying function.

Digital dispensing type pumps

PRODUCT INTRODUCTION

▲

1 . 3 ~ 1 2 0 0 0 m l / m i n

Digital distribution type pump--NEXT600-S

Velocity range

Typical applications:

◆Glue dispensing ◆Water sampling

◆For liquid chromatography

◆Multi channel transmission is widely used in bulk liquid

HOT

Products

▲

High-precision

Digital type

A drive B pump head

C power switch D control

interface

E built-in fuse F power socket

Note: the use of external control and see page 8

LED DISPLAY INTERFACE

4-LED DISPLAY

SPEED

DIRECTION LITER/ ML/ MIN/ SEC/

EXTERNAL

CONTROL

ml/ sec

min

rpm

FILLING NUMBERS

WO RK S TA TE

Peristaltic pump operating panel

The peristaltic pump is composed of three parts: driver, pump head, pump assembly is simple,

easy to understand.

This manual will provide various parameters of peristaltic pump value and operation method for

you.

To provide comprehensive services in all aspects for you

SCHEMA T I C D I A G R A M O F P U M P

一二三

Peristaltic pump characteristics

NO POLLUTION / WITHOUT CLEANING / LOW SHEAR / EASY

MAINTENANCE / WIDE APPLICATION RANGE

NE X T6 0 0- SNE X T6 0 0- S

4 color LED display

Speed, velocity

Speed / full speed knob

Left / right / stop switch

CHOOSE THE DISPLAY MODE

C0-0 0-5 v

C0-1 0-1 0 v

C0-2 4-20MA

C0-3 0-10KHz

C0-4

I N T E R N A L C O N T R O L

( D E F A U L T )

E-CONTROL AND SYSTEM SETTING

SP E E D

FLOWRATE

SPEED CONTROL MODE

START /STOP CONTROL MODE

C1-0

INTERNAL CONTROL

(DEFAULT)

C2-0 EXTERNAL CONTRA

C1-1 EXTERNAL CONTROL

C2-1

I N T E R N A L C O N T R O L

( D E F A U L T )

DIRECTION MODE

START/STOP SIGNAL MODE

BOOT DISPLAY：DEVICE ADDRESS

(1～32)

ESC (EXIT)

Pump menu function definition

When choosing (speed display mode) can

open the options menu (set, external control

system)

When choosing (flow) model can open the

options menu (set, external control system),

(pump head pump set), (calibration)

A0-0

A0-1

A2 E0

Remarks Explain

Operating instructions

Start-stop direction control

Speed 󰾬󰾬function

Menu Operation function

Full speed function

Reversible left - stop - right switch place in the "left", the pump running at

setting speed counterclockwise; place in the "right", the pump running at

setting speed clockwise; place in "stop" the pump stop running.

Speed 󰾬󰾬control knob turn clockwise, LED speed/flow display increase;

counterclockwise rotation speed control knob, LED speed/flow display

decrease.

Press the knob to enter the menu operation when the pump stops; turn the

knob to select the appropriate options, and then press the knob to confirm.

When the pump running at speed mode, press the button at full speed, pump

will run at maximum speed 100rpm, displaying "100", to complete the quick

emptying, filling or cleaning operations; release the full speed button, the

pump will back to the previous state.

◆

Co-0

RS485 DISALE

(DEFAULT )

C o -1485 ENABLE

R s 4 8 5 E N A B L E

Cb-0 （0-5v）(DEFAULT)

Cb-1

Cb-2

（0-10v）

（0-10KHz）

EXTERNAL CONTROL OUTPUT

Cb-3

（4-20MA）

Cb-4 N O O U T P U T

Cc-0

（RETURN TO FACTORY SETTING）

RETURN TO FACTORY SETTING

PUMP HEAD & TUBE SETTING

（NOTE: THIS MENU IN THE FLOW MODE DISPLAY）

PUMP HEAD SETTING

A200 （Yz1515x ）DEFAULT

A201

A202

（Bz15）

（313D）

A203 （）Yz2515x

A204

（Bz25）

A205 Dg（6）

C4-0

C4-1

10～300（10 RPM DEFAULT ）

SUCTION SPEED

( RESOLUTION 1 RPM)

C5-1 S T A R T

INITIAL STATUS

C5-0 STOP (DEFAULT)

Device address

24 0 0

9600(DE F A ULT)

BA U D R A TE

12 0 0

48 0 0

SUCTION ANGLE

( RESOLUTION 1 .)

NO SUCTION(DEFAULT)

10-720 CAN CHOOSE

-01-CHOOSE THE ADDRESS IS NO.1

-30- CHOOSE THE ADDRESS IS NO.30

.. . .. .. ..

C3-0 LE V E L ( DE F A U L T )

C 3 -1 P U L S E

SIGNAL FUNCTION MODE

Cd-0

Cd-1

（）

ESC (EXIT)

EXTERNAL START/

STOP CONTROL CHOOSE

external start/stop control

cable No. 1 is avaible

external start/stop control

cable No. 2 is avaible

ESC (EXIT)

FALLING /SHORT CONNECT ADGE

RISING ADGE/DISCONNECT

Pump parameter table

Input calibration：0.001ml～999L

Range units

0.001-9.99 9 0 .001

10 -99.9 9 0 .0 1

Resolution

10 0 -999.9 0 .1

100.0-999.9 0.1

10 .00-99.9 9 0 .0 1

10 0 0 -9 999 1

Measured liquid input：0.001ml～999L

Range units

0.001-9.99 9 0 .001

10 -99.9 9 0 .0 1

Resolution

100-99 9 .9 0 .1

100.0-999.9 0.1

10 .00-99.9 9 0 .0 1

1000-99 9 9 1

CALIBRATION FUNCTION

E S C E E X I T

VOLUME CALIBRATION( ESC IS EXIT )

ENTER THE ACTUAL VOLUME (ESC IS EXIT )

PRESS THE KNOB TO CONFIRM

DIRECTION (REPEATED OPERATION)

Tube and calibration parameter

are on the Parameter table.

-0.5- 0 5（ . ID）

-13- 13（ #）

ESCE （EXIT）

TUBE SETTING

Dg（10）

A206

A207

KZ25

A208 Yz35

A209

ESCE （EXIT）

Kz35

sec

⑸Rotate the knob to the

⑷To rotate and press the knob (return to the main interface).

⑵Press the knob to enter (and rotate speed display mode).

sec

⑴Press the button to enter the (display of choice).

sec

⑹The According to the operation of the peristaltic pump 80rpm/min

Application one: speed mode transmission

Transmission fluid to rotate speed of 80rpm/min.

⑶Press the knob to determine the current model for the speed display mode.

Application three: calibration fluid

Application two: flow mode transmission

Transmission fluid to rotate speed of 80ml/min.

sec

⑸Rotate the knob to the

⑷To rotate and press the knob (return to the main interface).

sec

⑹The peristaltic pump according to the 80ml/min operation

⑶Press the knob to determine the current model for the flow pattern.

⑴Press the button to enter the (display of choice).

⑵Press the knob and rotate to enter (flow).

sec

With 8 ml/min speed transmission fluid.

(1)Turn the oeristaltic pump to flowrate mode

(2)Customers can choose right pump head and tube. For

example, user choose YZ1515X pump head and 13# tube, need

to enter choose A200, then enter choose -13-

(3)Return main interface,adjust the flowrate as 8ml/min.

if the flowrate not precise, user can use calibration

function to adjust.

(4)Enter to displaying 8ml

(5)Pull ,peristaltic pump will transfer liquid and auto

stop when reach the set time, and metering and store the

liquid volume.

(6)Pull to stop position,displaying 8.000.Use the digital

knob to input the actual calibrtation volume .

(7)Then press the knob to the mian interface.

Technical specifications

Technical guidance

NE X T 6 00-S

Driver

Model

Technical

parameters

Part of the pump head and pump

Optional pump head, pump type

SUITABLE PUMP HEAD & FLOWRATE REFERENCE

TU B E

MO D E

DRIVE

MODE

NEXT600-S

Note: the use of the pump head to see the pump head vser manual.

-15- -7 3 -

-24- -8 2 -

15# DEFAULT 73# DEFAULT

24 # 82#

A204 A208

（BZ25）（YZ35）

-0.5- -0.5-

-1.0- -1.0-

-2.0- -2.0-

0.5*0.8 DEFAULT 0.5*0.8 DEFAULT

1*1 1 *1

2*1 2 *1

A205 A206

（DG6）（Dg10）

-2.4- -2.4-

-3.0- -3.0-

-4.8- -4.8-

2.4*0.8 2 .4*0.8

3*1 3 *1

4.8*1 4 .8*1

Pump Head Tube Corresponding To The Table

-13- -1 3 -

-14- -1 4 -

13# DEFAULT 13# DEFAULT

14 # 14 #

A200 A201

（YZ1515x）（BZ15）

-16- -1 6 -

-18- -1 8 -

-17- -1 7 -

-19- -1 9 -

-25- -2 5 -

16 # 16 #

18 # 18 #

17 # 17 #

19 # 19 #

25 # 25 #

-13- -1 5 -

-14- -2 4 -

13# DEFAULT 15# DEFAULT

14 # 24 #

A202

（KZ3D）

-16- -3 5 -

-18-

-17- -3 6 -

-19-

-25-

16 # 35 #

18 #

17 # 36 #

19 #

25 #

A203

（YZ2515x）

The pursuit of excellence

The creation of customer value

PUMP HEAD MODE PUMP HEAD MODE

TUBE NO TUBE NO

TUBE MODE TUBE MODE

The pursuit of excellence

The creation of customer value
