Next OPUS Manuel utilisateur

Tools Needed

Helpline

If you have any problems with this product or require any replacement

fittings please contact Customer Services Tel:0333 777 8999

by-step instructions.

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

ASSEMBLY INSTRUCTIONS.

Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be faulty. Should you need to return

the unassembled product, please repack in the original packaging.

IMPORTANT

• We suggest you spend a short time reading through this leaflet and then follow the simple step-

• Carefully check that you have all parts before beginning assembly.

• Keep fittings out of children's reach and keep children well away from the construction area.

• We recommend that the packaging is used to protect the surfaces during assembly.

• A minimum of two persons is required to assemble this product.

OPUS GLOSS STORAGE COFFEE TABLE

• Made from hollow board, honeycomb board ,partical board & MDF with PVC foil finish

PRODUCT INFORMATION

• For general cleaning, periodically dust with a soft cloth.

• Do not use furniture polish.

CARE INSTRUCTIONS

• Made in China

•Gloss finishes are prone to light surface scratch and it is therefore very imporant that you care for this item correctly.

•For general cleaning, periodically dust with a soft clean lint-free cloth or a soft micro fibre cloth Please note soft cloths (including yellow dusters) contain

abrasive fibres which can lightly scratch the surface, if in doubt please try your cloth in an inconspicuous area of the furniture first to assess its suitability.

• Do not rub or scrub the surface when cleaning.

• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.

• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching or damage.

• Never drag pieces of furniture across the floor as this will cause damage to the joints.

• Do not put hot dishes directly on the surfaces of the item.

• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or warping.

Page 1 of 3

Please remove the protective clear film on the gloss panels when required in the

steps (5) & (6) as this will prevent any accidental scratches which may occur during assembly.

1. Insert 10× cambolts (D) into panels (1) & (3)

by a screwdriver until tight.

STEP ONE

FITTINGS

PARTS

1. Insert and glue 2×wooden dowels (A) into

panel (3) and attach panel (2) to panel (3).

2. Insert 3×camlocks ( C ) into panel (2).

Ensuring the arrow indicator is pointing

towards the panel edge and turn camlocks

clockwise until tight by a screwdriver.

STEP TWO

Page 2 of 3

1. Insert and glue 2× wooden dowels (A) into

panel (2) and attach panel (3) to panel (2).

2. Insert 3×camlocks ( C ) into panel (2).

Ensuring the arrow indicator is pointing

towards the panel edge and turn camlocks

clockwise until tight by a screwdriver.

1.Insert and glue 4×wooden dowels (A) into

panels (2)& (3) , and attach panel (1) to

panels (2) & (3).

2. Insert 7×camlocks ( C ) into panels (2) & (3) .

Ensuring the arrow indicator is pointing

towards the panel edge and turn camlocks

clockwise until tight by a screwdriver.

1.Insert and glue 4×wooden dowels (A) into

panels (2)& (3) , and attach panel (1) to

STEP THREE

STEP FOUR

STEP FIVE

panels (2)& (3) , and attach panel (1) to

panels (2) & (3).

2. Insert 7×camlocks ( C ) into panels (2) & (3) .

Ensuring the arrow indicator is pointing

towards the panel edge and turn camlocks

clockwise until tight by a screwdriver.

Please note remove the protective film from

panels (1) & (3).

1,Use the 8× stickers (E) to cover the camlock

holes.

2,Insert the panels (4) & (5) to the assembled

unit.

Please note two people are required to insert

each panel at one time.

Should you need to disassemble the product ,

to remove the top panels (4) & (5) please flick

the catches up on the runner as shown in

diagram .Please note two people are required

to remove the panels one at a time

3, Remove the protective film from panels

(4) & (5).

Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT

STEP SIX

Page 3 of 3

Table des matières

Autres manuels Next Mobilier d'intérieur

Next 879410 Manuel utilisateur

Next LEAMINGTON NICKEL 988724 Manuel utilisateur

Next PRIYA BAR STOOL Manuel utilisateur

Next 669285 Manuel utilisateur

Next MODE 282790 Manuel utilisateur

Next BRONX 513013 Manuel utilisateur

Next CAMBRIDGE 877915 Manuel utilisateur

Next BRONX A03912 Manuel utilisateur

Next GRAYSON U66407 Manuel utilisateur

Next WALNUT STORAGE BED-DOUBLE Manuel utilisateur

Next HUXLEY NEST SO3 Manuel utilisateur

Next 997214 Manuel utilisateur

Next 869523 OM Manuel utilisateur

Next 656241 Manuel utilisateur

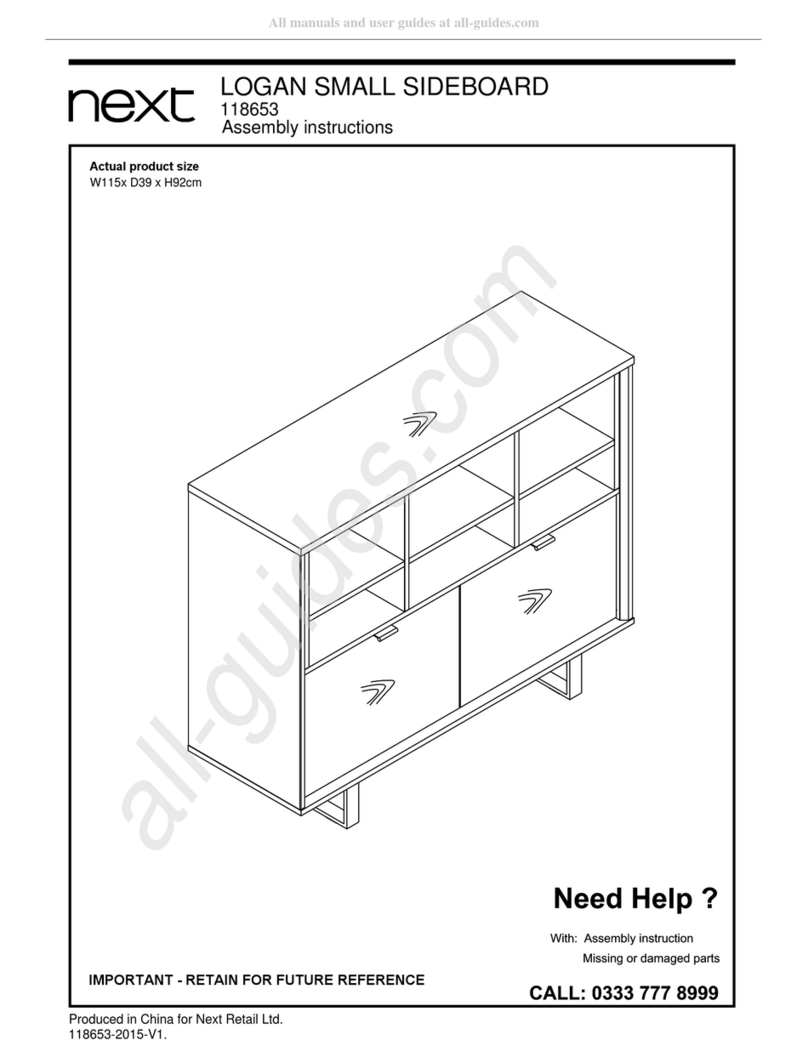

Next LOGAN 118653 Manuel utilisateur
