Next OPUS Manuel utilisateur

Tools Needed

Helpline

If you have any problems with this product or require any

replacement fittings please contact Customer Services Tel:

0844 844 8999

by-step instructions.

ASSEMBLY INSTRUCTIONS.

Regrettably self assembly items cannot be returned once assembly is part or fully completed unless the item is found to be

faulty. Should you need to return the unassembled product, please repack in the original packaging.

IMPORTANT

• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if necessary.

• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration or warping.

• Never drag pieces of furniture across the floor as this will cause damage to the joints.

• Do not rub or scrub the surface when cleaning.

• We suggest you spend a short time reading through this leaflet and then follow the simple step-

• Made in China

• For general cleaning, periodically dust with a soft cloth.

• Do not use furniture polish.

• Made from honeycomb board,particle board & MDF with a wood effect finish.

• Carefully check that you have all parts before beginning assembly.

• Keep fittings out of children's reach and keep children well away from the construction area.

IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY.

• We recommend that the packaging is used to protect the surfaces during assembly.

• A minimum of two persons is required to assemble this product.

PRODUCT INFORMATION

CARE INSTRUCTIONS

FITTINGS

• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.

• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent scratching or

damage.

• Do not put hot dishes directly on the surfaces of the item.

OPUS SQUARE TO RECTANGLE TABLE

Page 1 of 4

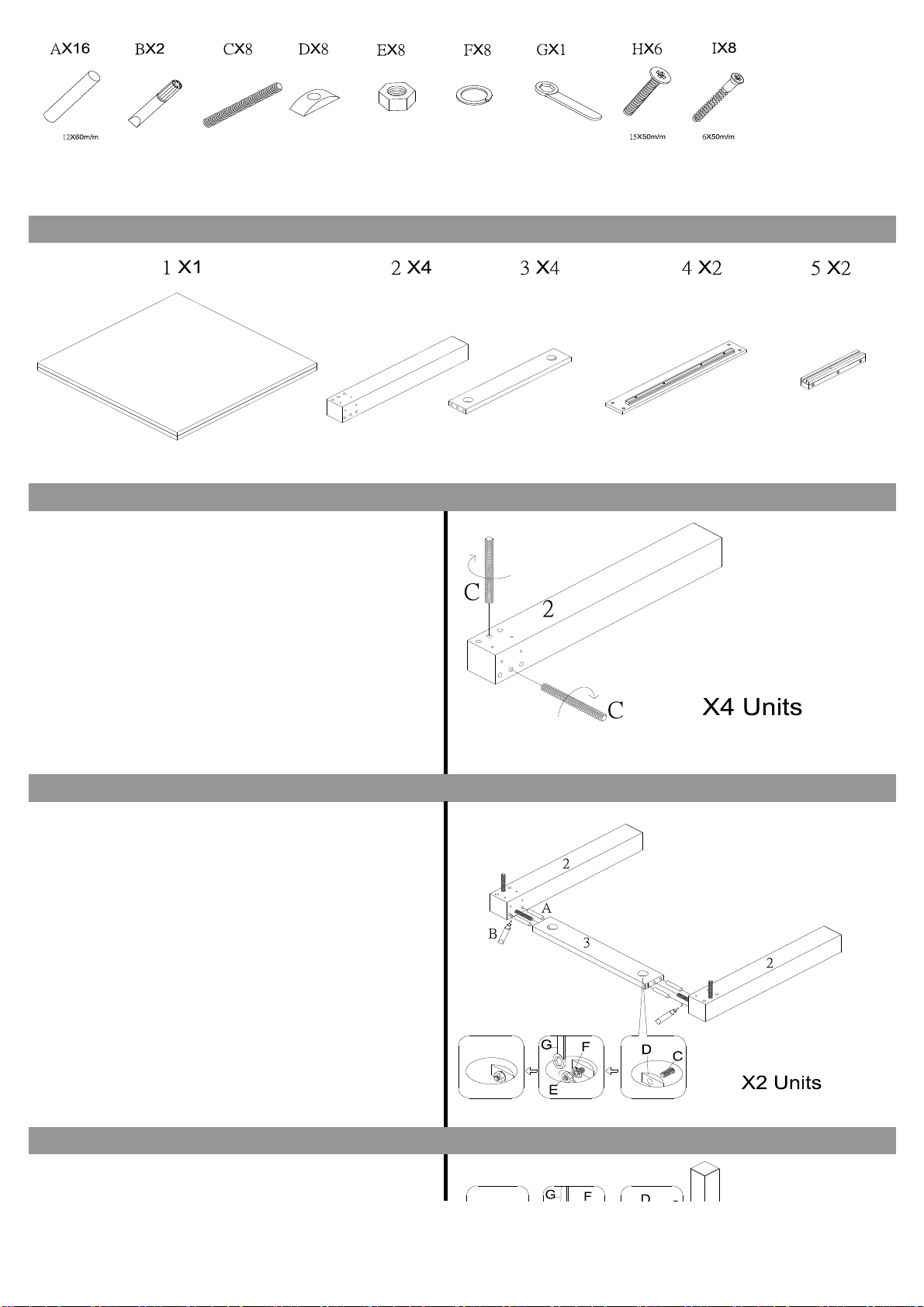

1.Insert 8 x bolts (C) into nuts fixed on panels 2 (x4) and turn

bolts (C) clockwise until tight by hands.

1.Glue and insert 8 x wooden dowels (A) into panels 3 (x2).

2.Attach panels 2 (x4) to panels 3 (x2）.

3.Slot 4 X metal pieces (D) onto bolts (C),and thread

4 X springs (F) onto blots (C),then screw 4 X metal

nuts (E) with spanner (G) until tight.

1.Glue and insert 8 x wooden dowels (A) into panels 3 (x2).

2.Attach the assembled leg frames to panels 3 (x2).

STEP THREE

PARTS

STEP ONE

STEP TWO

Page 2 of 4

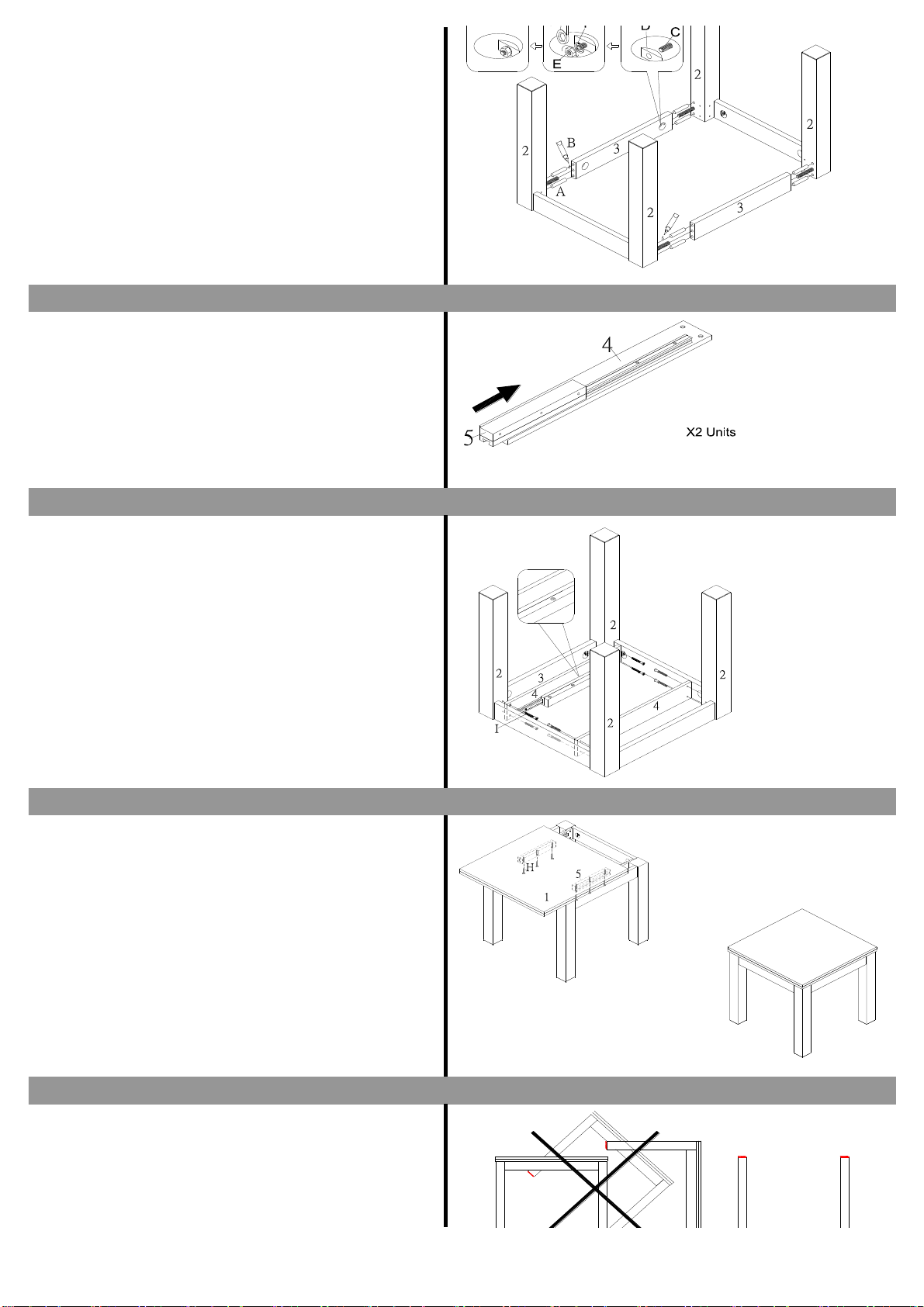

3.Slot 4 X metal pieces (D) onto bolts (C),and thread

4 X springs (F) onto blots (C),then screw 4 X metal

nuts (E) with spanner (G) until tight.

1.Attach panels 5 (x2) to panels 4 (x2).

1.Attach panels 4 (x2) to panels 2 (X4) with 8 x screws (I)

using a screwdriver until tight.

1.Carefully lift the unit upright.

2.Attach panels 5 (x2) to panel 1 with 6 x screws (H)

using a screwdriver until tight as shown in diagrm.

1.Turn the table over,two persons are required.

2.Ensure to hold the table by the apron and not the

table top. Take care that the top does not flip open

whilst lifting.

STEP FOUR

STEP FIVE

STEP SEVEN

STEP SIX

Page 3 of 4

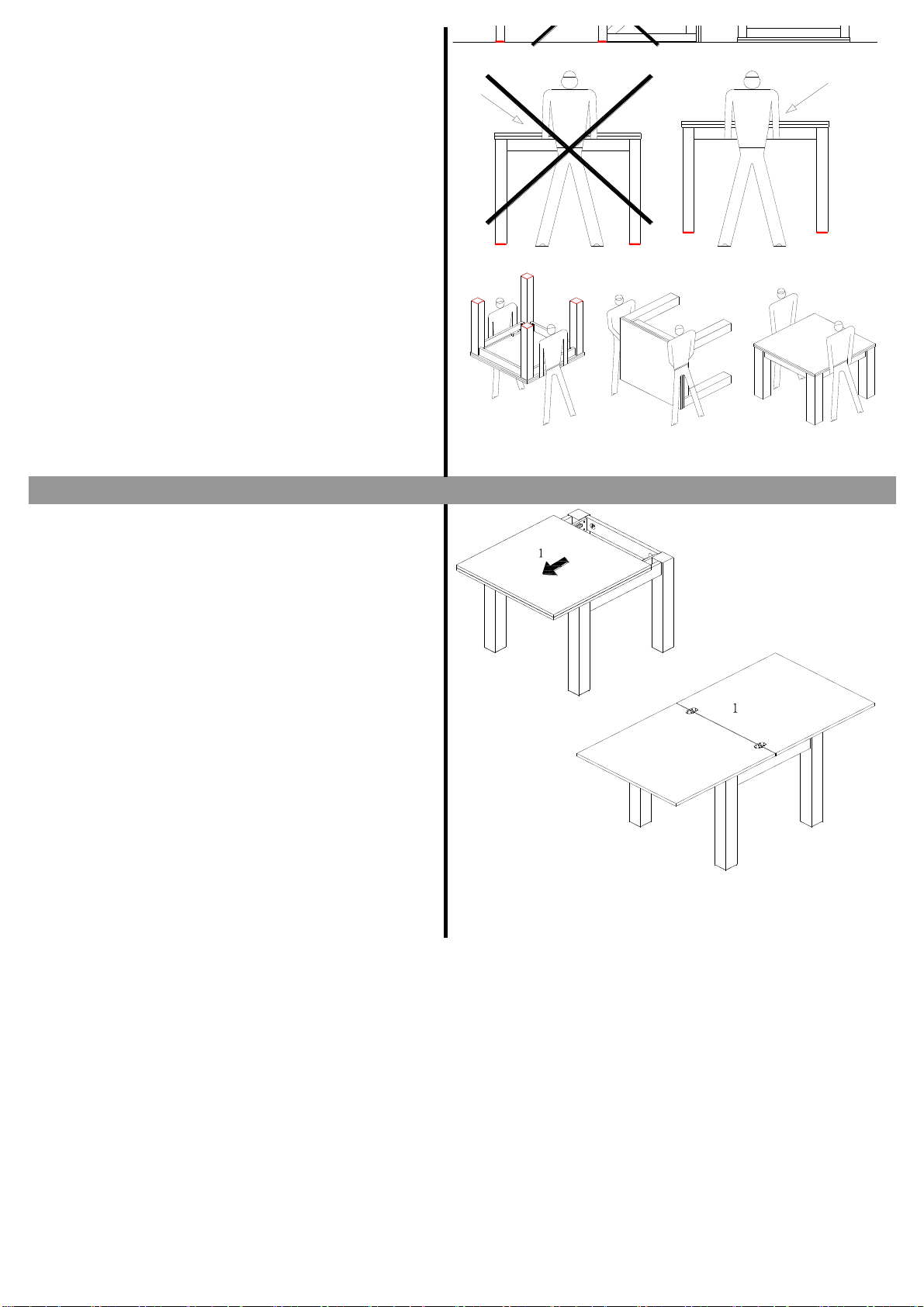

1.To open the table push/pull the table top across

and flip over the top

2.Do not allow the tops to slam together when open

and closing as this way cause damage to the panels.

STEP EIGHT

Next Retail Ltd, Desford Road, Enderby, Leicester, LE19 4AT

Page 4 of 4
