Next MALVERN SIDE TABLE Manuel utilisateur

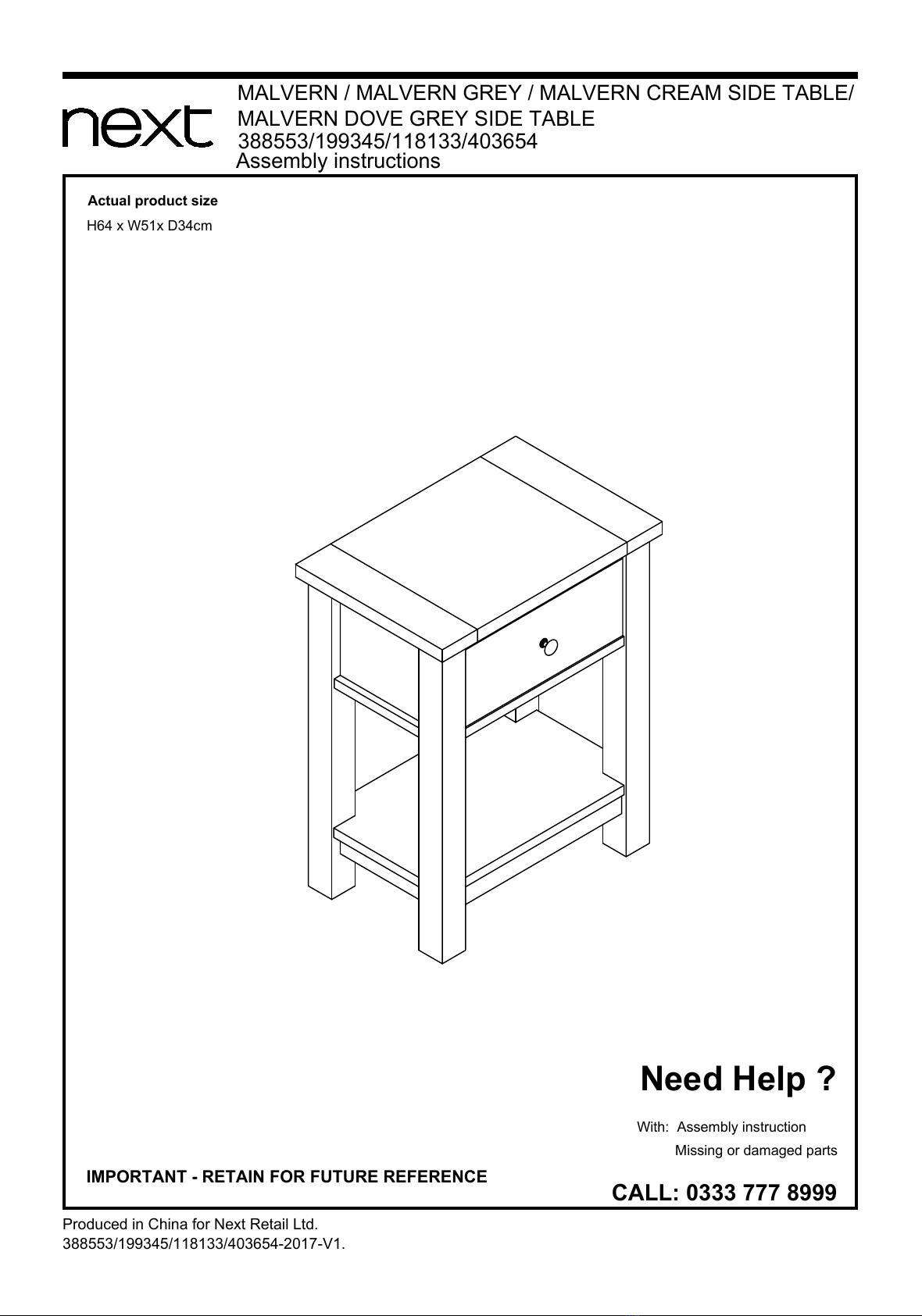

H64 x W51x D34cm
Actual product size
Assembly instructions
IMPORTANT - RETAIN FOR FUTURE REFERENCE
Produced in China for Next Retail Ltd.
Need Help ?
With: Assembly instruction
Missing or damaged parts
CALL: 0333 777 8999
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
30min
TO NO TIME

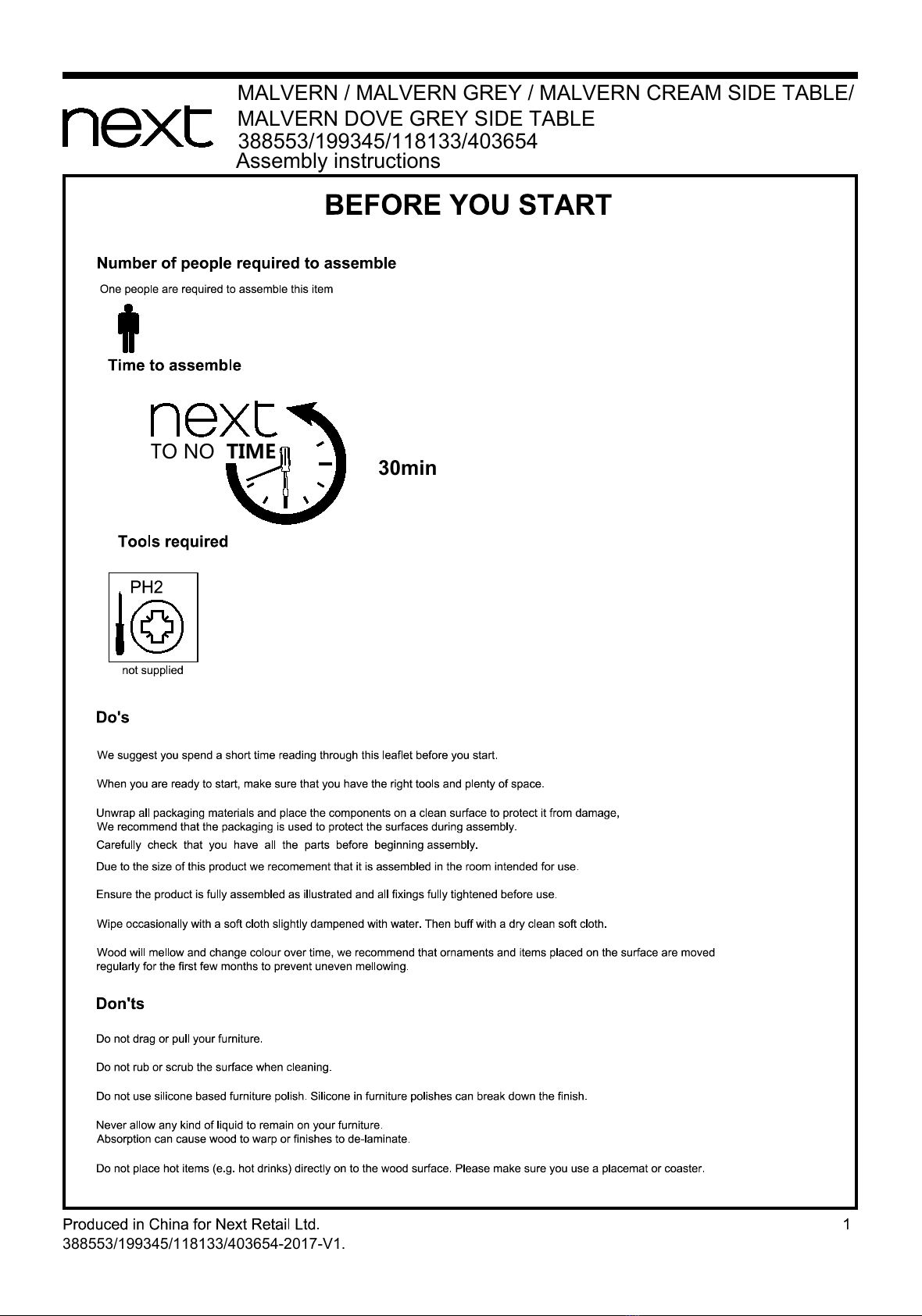

Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
1
2

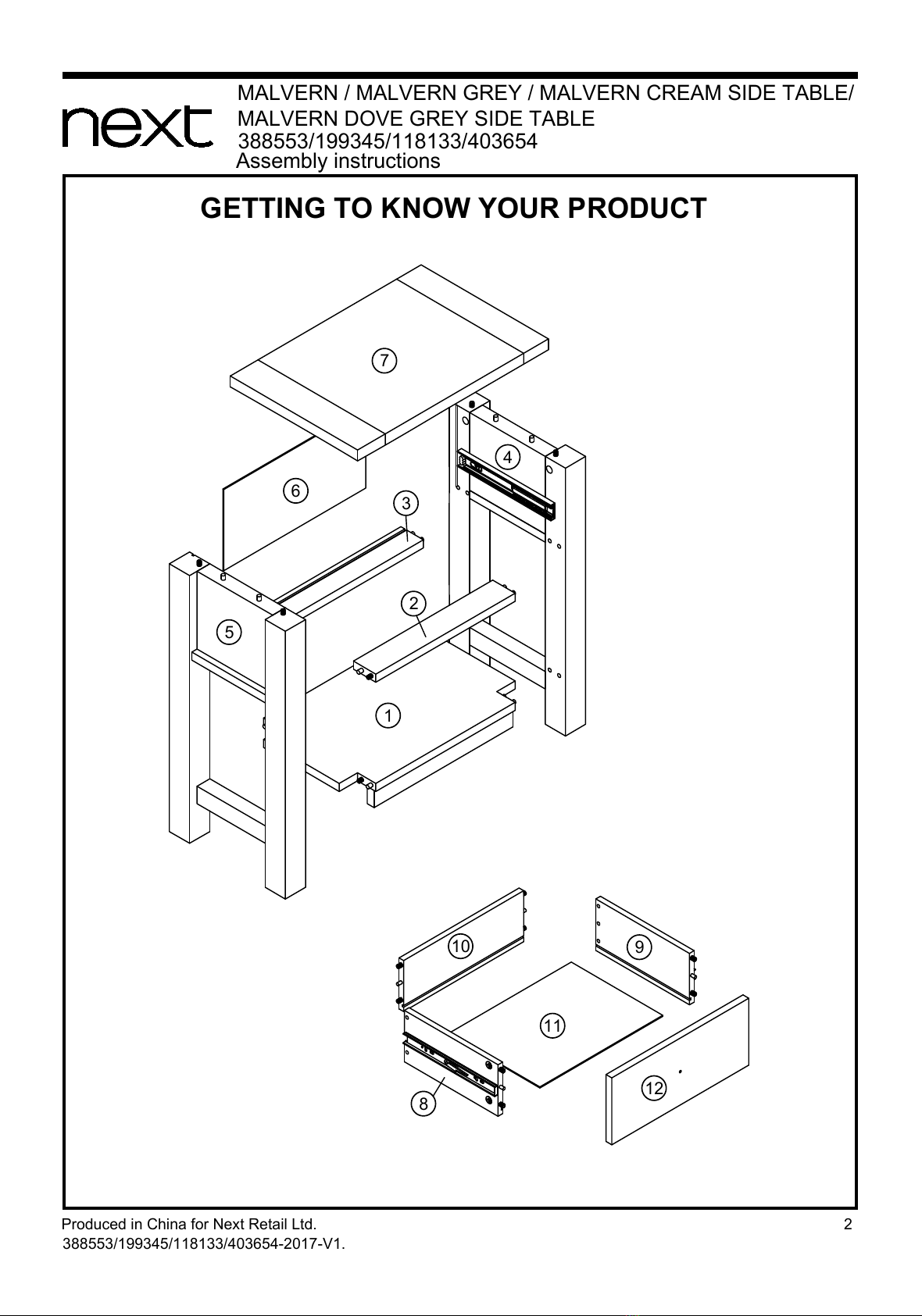

GETTING TO KNOW YOUR PRODUCT
Produced in China for Next Retail Ltd.
2
3
4
6
5
7
8
9
10
11
12
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
3

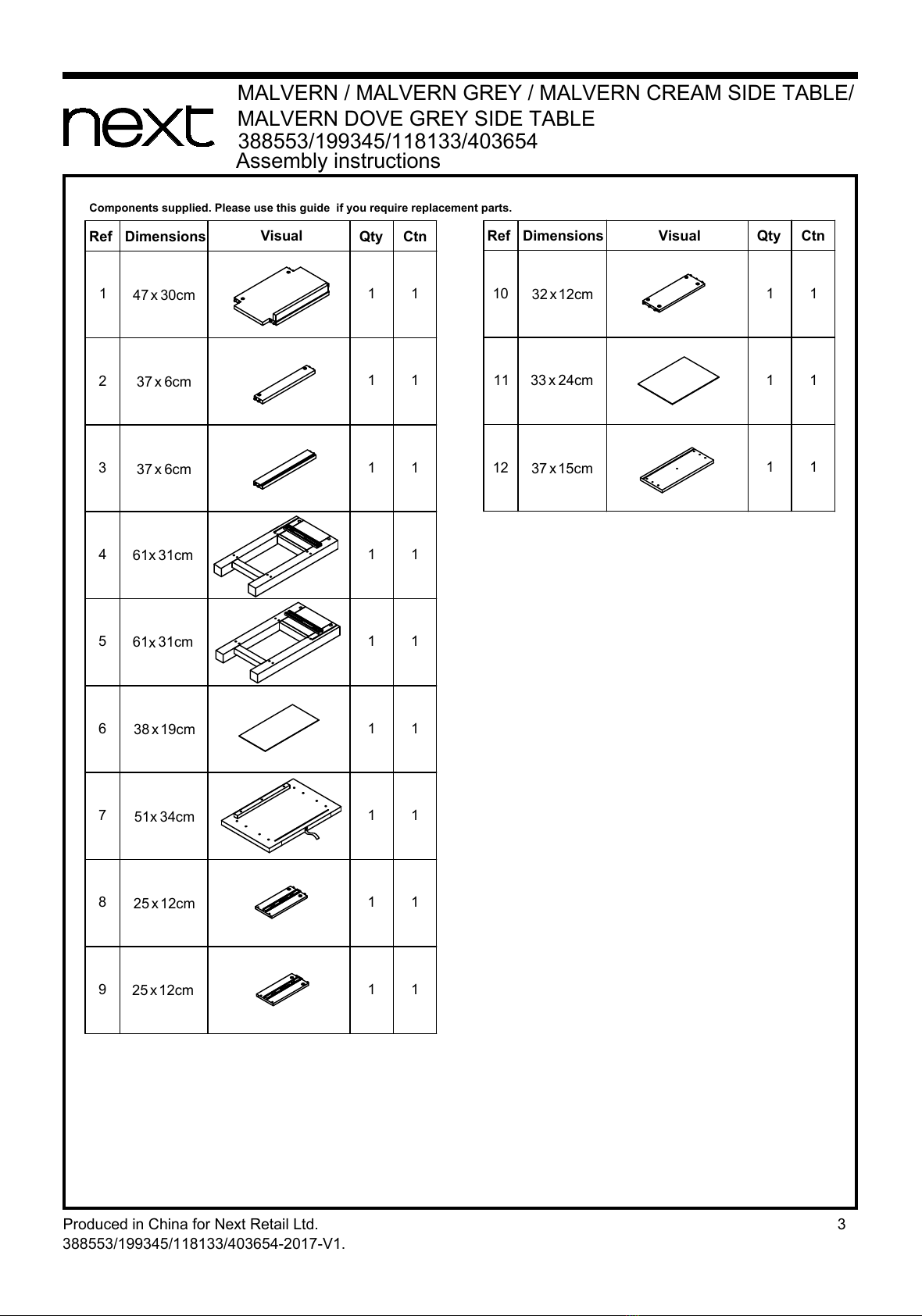

Components supplied. Please use this guide if you require replacement parts.
Produced in China for Next Retail Ltd.
Ref Dimensions Visual Qty Ctn Ref Dimensions Visual Qty Ctn
51x 34cm
38 x19cm
47 x 30cm
37 x15cm
25 x12cm
32 x 12cm
33 x24cm
25 x12cm
61x31cm
37 x 6cm
110
2
3
4
5
6
7
8
9
11
12
1 1
1 1
37 x 6cm 1 1
61x31cm
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
1 1
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
1
N/A
Ø15 x 10mm 1
N/A
Ø8 x 38mm 2
Z23 Ø4 x 25mm N/A
D14 N/A 1N/A
N/A
D3 Ø6 x 30mm 1
N/A
D6 Ø8 x 30mm 2
N/A
B8
B2

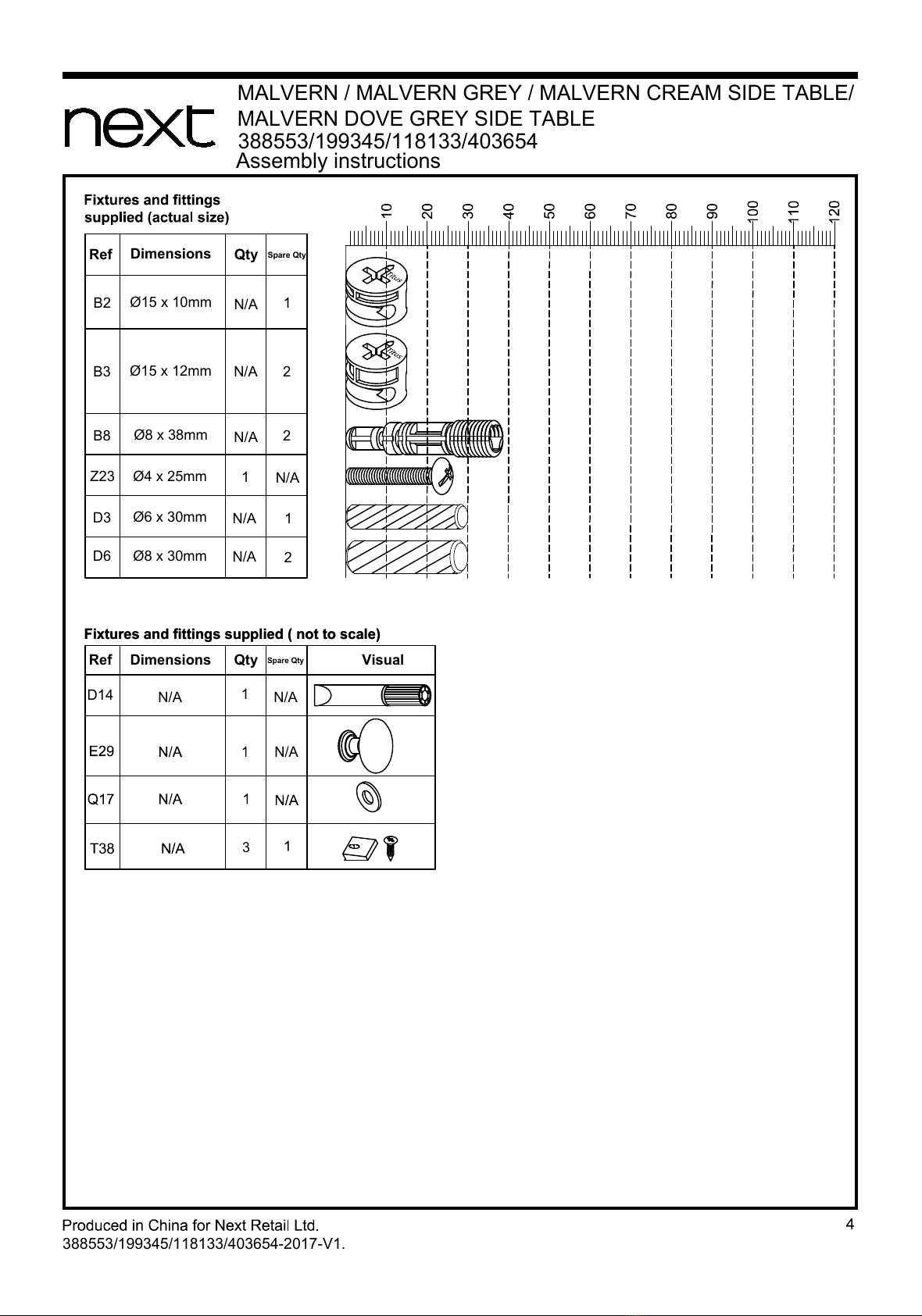

Fixtures and fittings supplied ( not to scale)
Ref Dimensions Visual
Qty
Fixtures and fittings supplied ( not to scale)
Spare Qty
Ref Dimensions Qty Spare Qty
N/A
Ø15 x 12mm 2B3
3
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
5

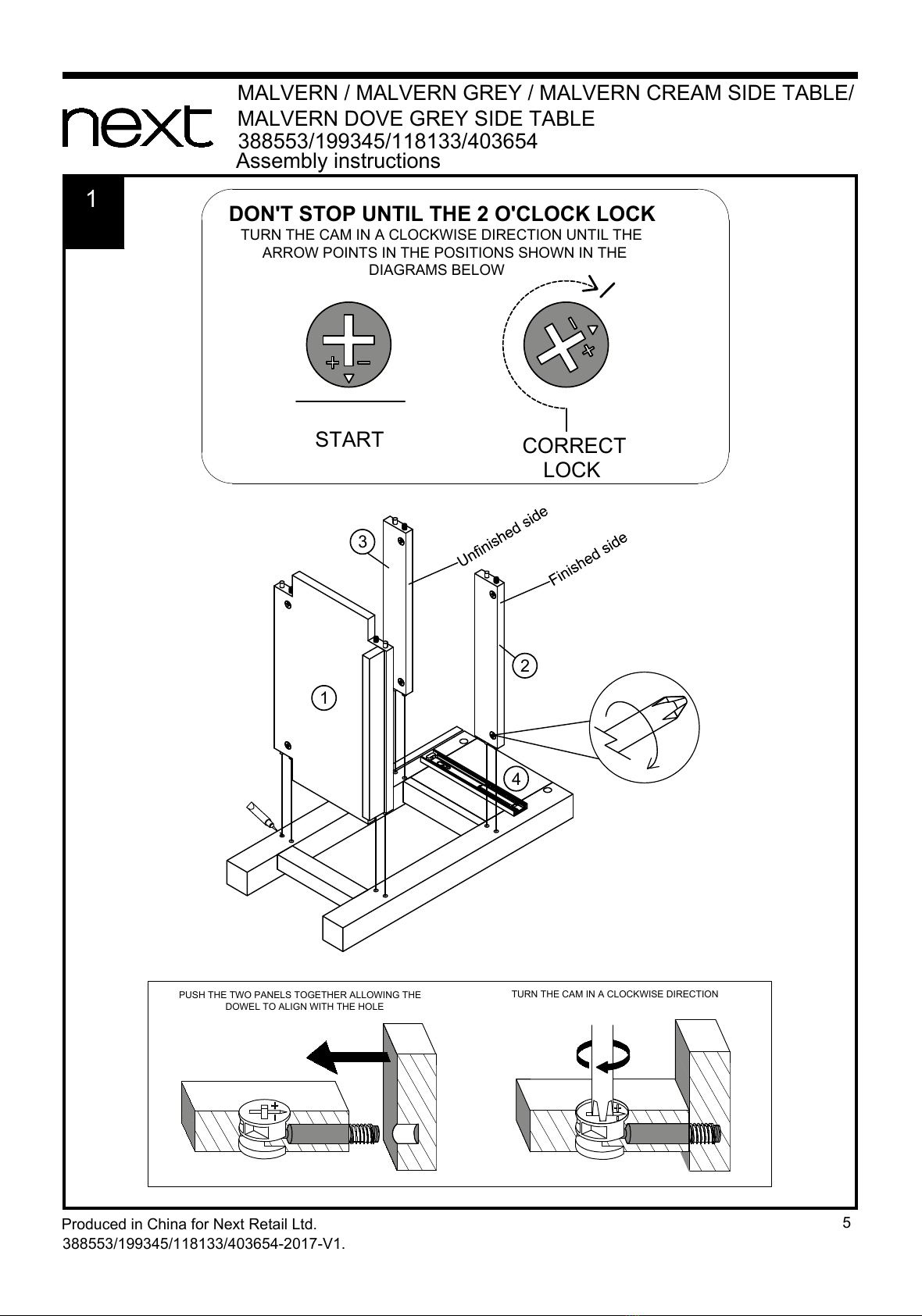

TURN THE CAM IN A CLOCKWISE DIRECTION
PUSH THE TWO PANELS TOGETHER ALLOWING THE
DOWEL TO ALIGN WITH THE HOLE
1
1
Produced in China for Next Retail Ltd.
3
2
4
DON'T STOP UNTIL THE 2 O'CLOCK LOCK
TURN THE CAM IN A CLOCKWISE DIRECTION UNTIL THE
ARROW POINTS IN THE POSITIONS SHOWN IN THE
DIAGRAMS BELOW
START CORRECT
LOCK
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
3

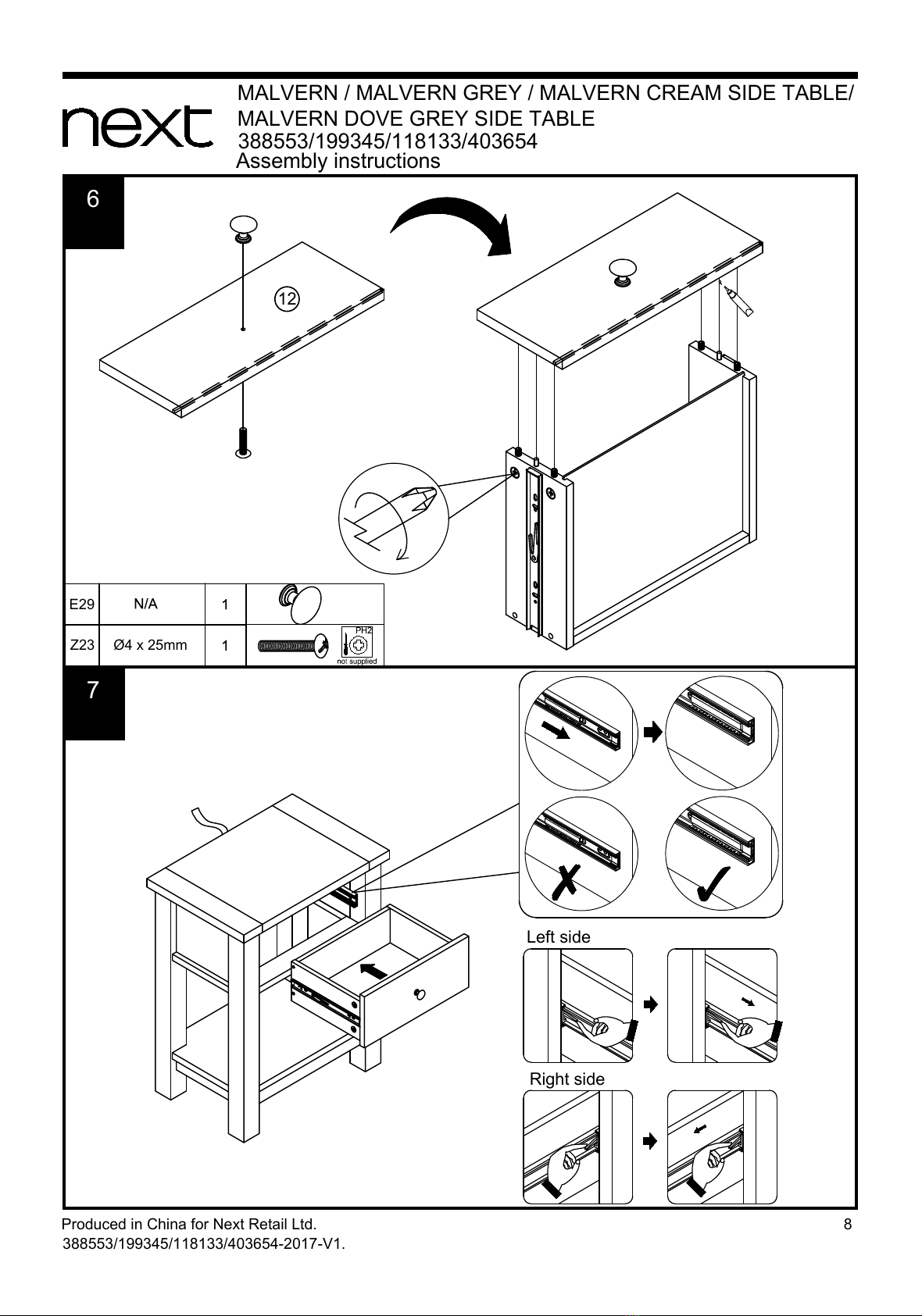

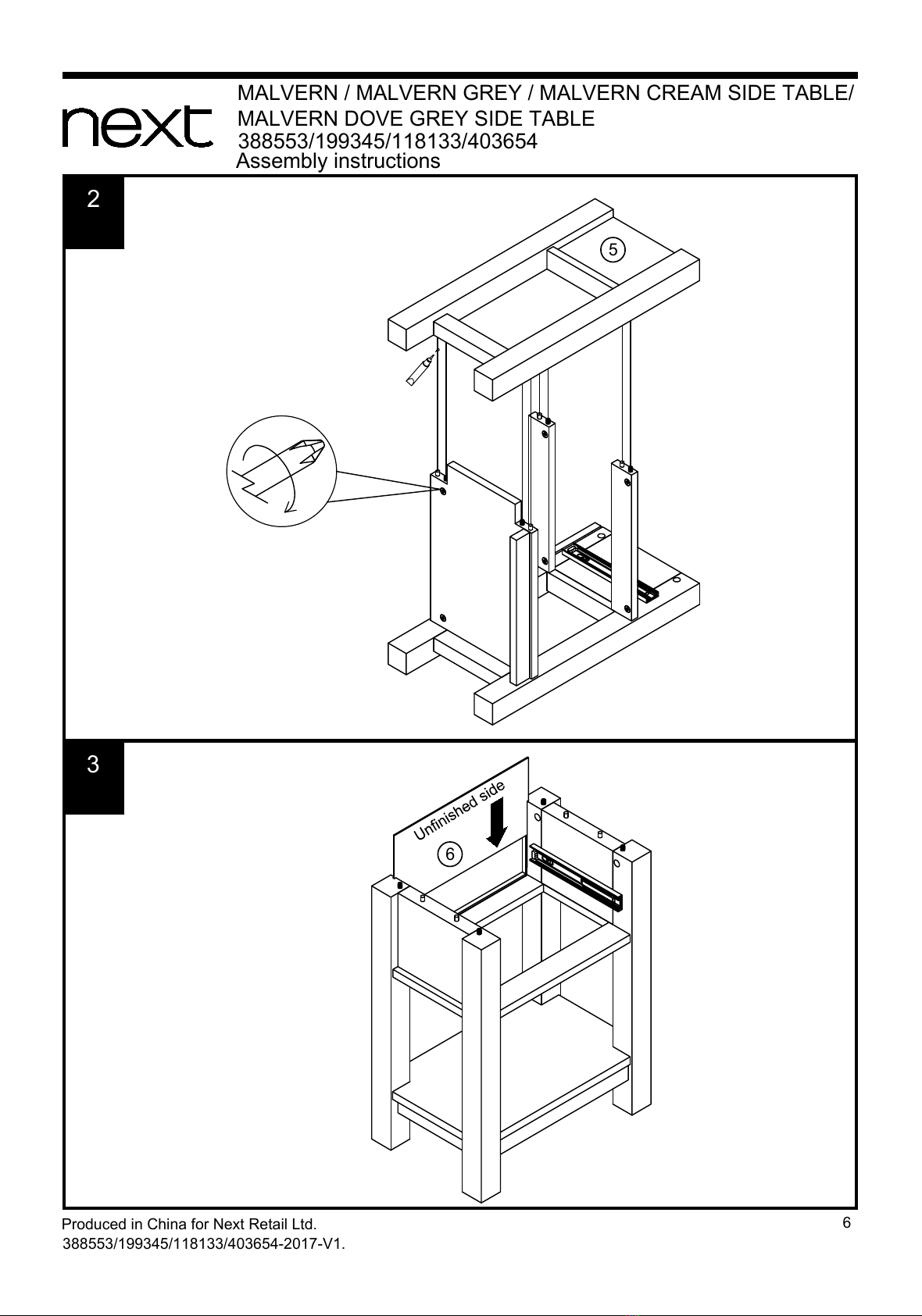

6
2
Produced in China for Next Retail Ltd.
5
6
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com

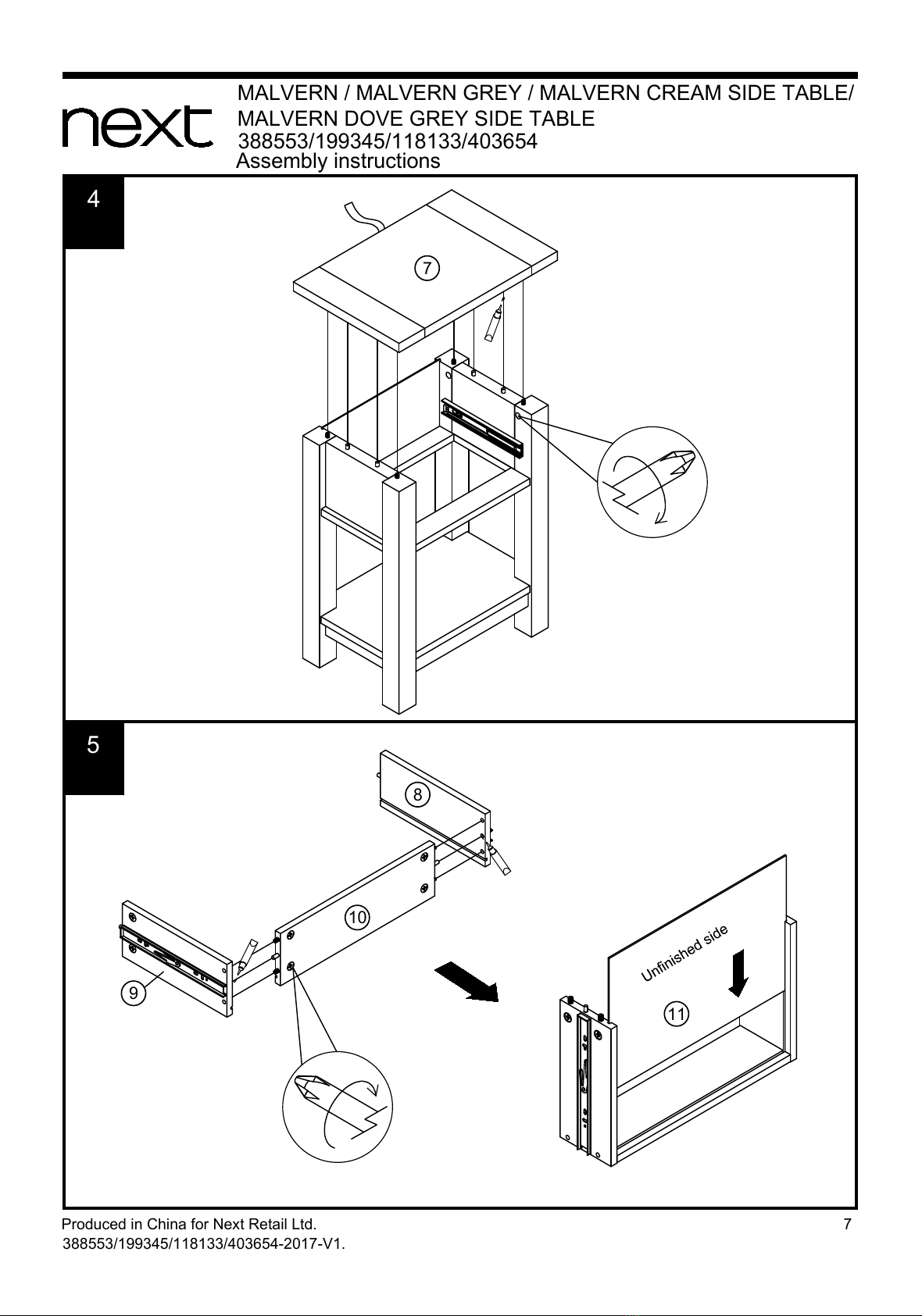

4
7
5
Produced in China for Next Retail Ltd.
7
8
9
10
11
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
8
6
Produced in China for Next Retail Ltd.
12
7
E29
Z23 Ø4 x 25mm
Right side
Left side
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
9
8
Produced in China for Next Retail Ltd.

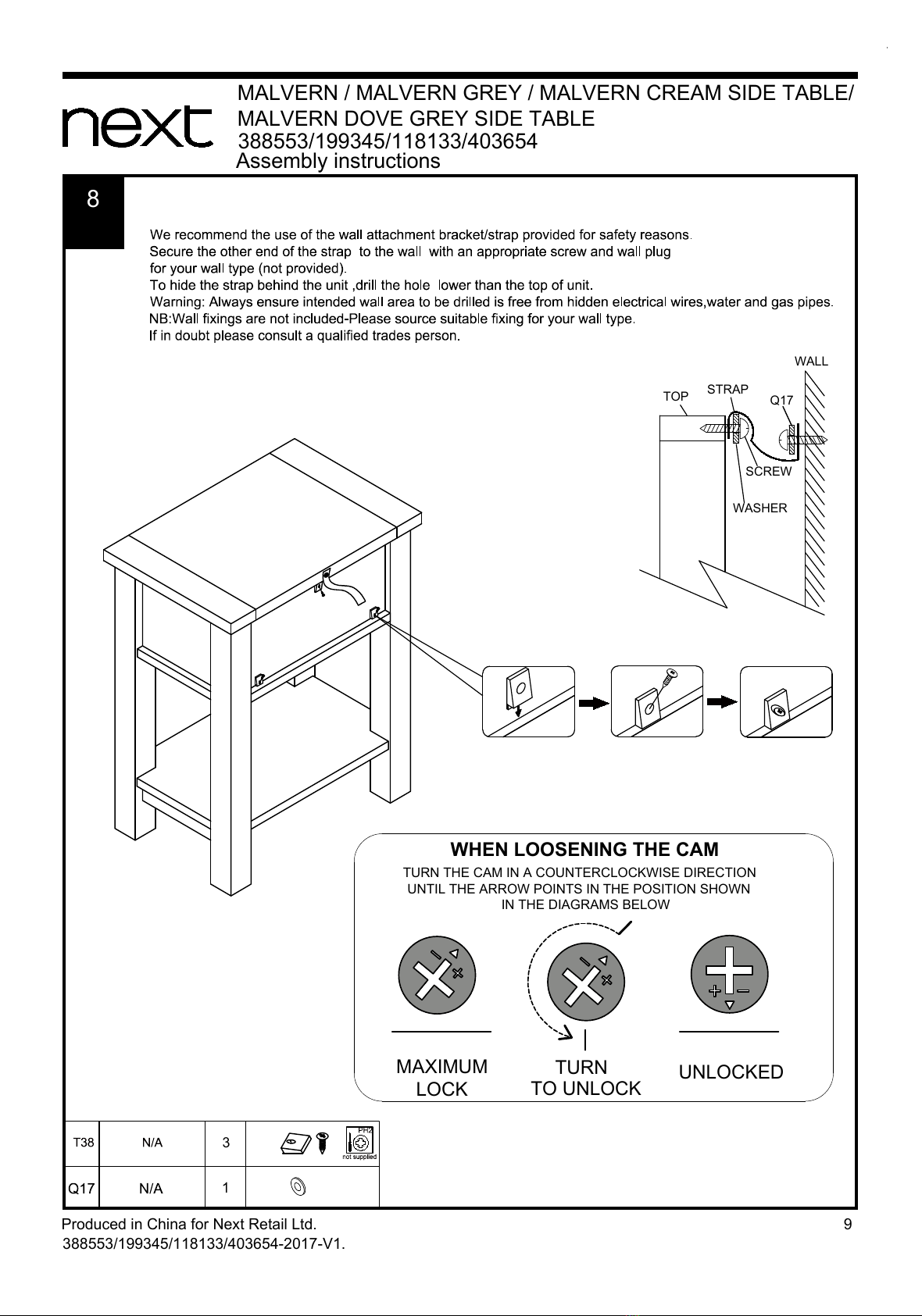

WHEN LOOSENING THE CAM
TURN THE CAM IN A COUNTERCLOCKWISE DIRECTION
UNTIL THE ARROW POINTS IN THE POSITION SHOWN
IN THE DIAGRAMS BELOW
TURN UNLOCKED
MAXIMUM
LOCK TO UNLOCK
TOP
WALL
STRAP
SCREW
WASHER
1
Q17
3
Assembly instructions
388553/199345/118133/403654
MALVERN / MALVERN GREY / MALVERN CREAM SIDE TABLE/
MALVERN DOVE GREY SIDE TABLE
388553/199345/118133/403654-2017-V1.
All manuals and user guides at all-guides.com
