Tools Needed
Helpline
If you have any problems with this product or require
any replacement fittings plase contact Customer
Services Tel: 0844 844 8999
• Do not put hot dishes directly on the surfaces of the item.
• Avoid keeping furniture in direct sunlight or close to any heat sources as this can cause cracking, discolouration
or warping.
• Never drag pieces of furniture across the floor as this will cause damage to the joints.
ASSEMBLY INSTRUCTIONS
Regrettably self assembly items cannot be returned once assembly is part or fully completed unless theitem is
found to be faulty. Should you need to return the unassembled product, please repack in the original packaging.
IMPORTANT
IMPORTANT - RETAIN FOR FUTURE REFERENCE - READ CAREFULLY
• Made in China.
• Natural features ensure that each piece is individual. Every effort is made to ensure colour continuity between
pieces, however this is a natural product, slight colour variations and natural grain markings may occur.
• Made from pine & plywood with a lacquer finish.
• Do not rub or scrub the surface when cleaning.
• Any spills should be removed immediately with a soft clean damp cloth and dried immediately.
CARE INSTRUCTIONS
• Do not use furniture polish.
• For general cleaning, periodically dust with a soft cloth.
• All assembly fixings should always be tightened properly and periodically check all fixings and tighten if
necessary.
• Ensure the product is protected with mats and coasters when items are placed on the surfaces, to prevent
scratching or damage.
• We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instruction
s
PRODUCT INFORMATION
• We recommend that the packaging is used to protect the surfaces during assembly.
• A minimum of 2 persons is required to assemble this product.
• Carefully check that you have all parts before beginning assembly.
• Keep fittings out of children's reach and keep children well away from the construction area.
873166 ARGYLL WARDROBE
3DJHRI
3DJHRI
FITTINGS
PARTS
&[ )[
7[
PP
3DJHRI
STEP 1
1.Attach 2 x magnetic door stoppers (M) to
top 1 and using 4 x screws (F).
1.Insert 3 x cambolts (A) and 2 x dowels (C)
into side panel of the inner box 11.
1.Insert 5 x cambolts (A) and 6 x dowels (C)
into side panel 2.
2.Attach 3 x hinges (L) to side panel 2
using 12 x screws (F).
3.Attach 1 x hanging rail support (H) to
side panel 2 and using 1 x screw (T).
STEP 2
STEP 3
3DJHRI
STEP 4
1.Attach 11 x cambolts (A) and 10 X wood
dowel (C) into side panel (3).
1.Insert 3 x cambolts (A) and 2 x dowels (C)
into bottom panel 5.
2.Attach 3 x hinges (L) to side panel 3 using
12 X screws (F).
3.Attach 1 x hang rail support (H) to side panel
3 using 1 x screw (T).
STEP 5
2.Attach 2 x magnetic stoppers (M) to bottom
(5) using 4 x screws (F)
STEP 6
1.Insert 3 x cambolts (A) and 2 x dowels (C)
into panel 13.
3DJHRI
STEP 7
1.Attach 2 x metal plate (N) to door 6 using
4 x screws (F).
2.Attach 3 x hinges (K) to door 6 using
6 X screws (F).
3.Insert 4 x cambolts (E) and 2 x wood dowels
(C) into door 6 .
STEP 8
2.Attach 3 x hinges (K) to door 7 using
6 X screws (F).
1.Attach 2 x metal plate (N) to door 7 using
4 x screws (F).
3DJHRI
STEP 9
1.Attach side panel (2) to bottom panel 5 and
insert 3 x camlocks (B) into bottom panel 5
with screwdriver.
STEP 10
1.Insert 3 x confirmat screws (I) into bottom
panel and tighten it with 1 x allen key (L).
3DJHRI

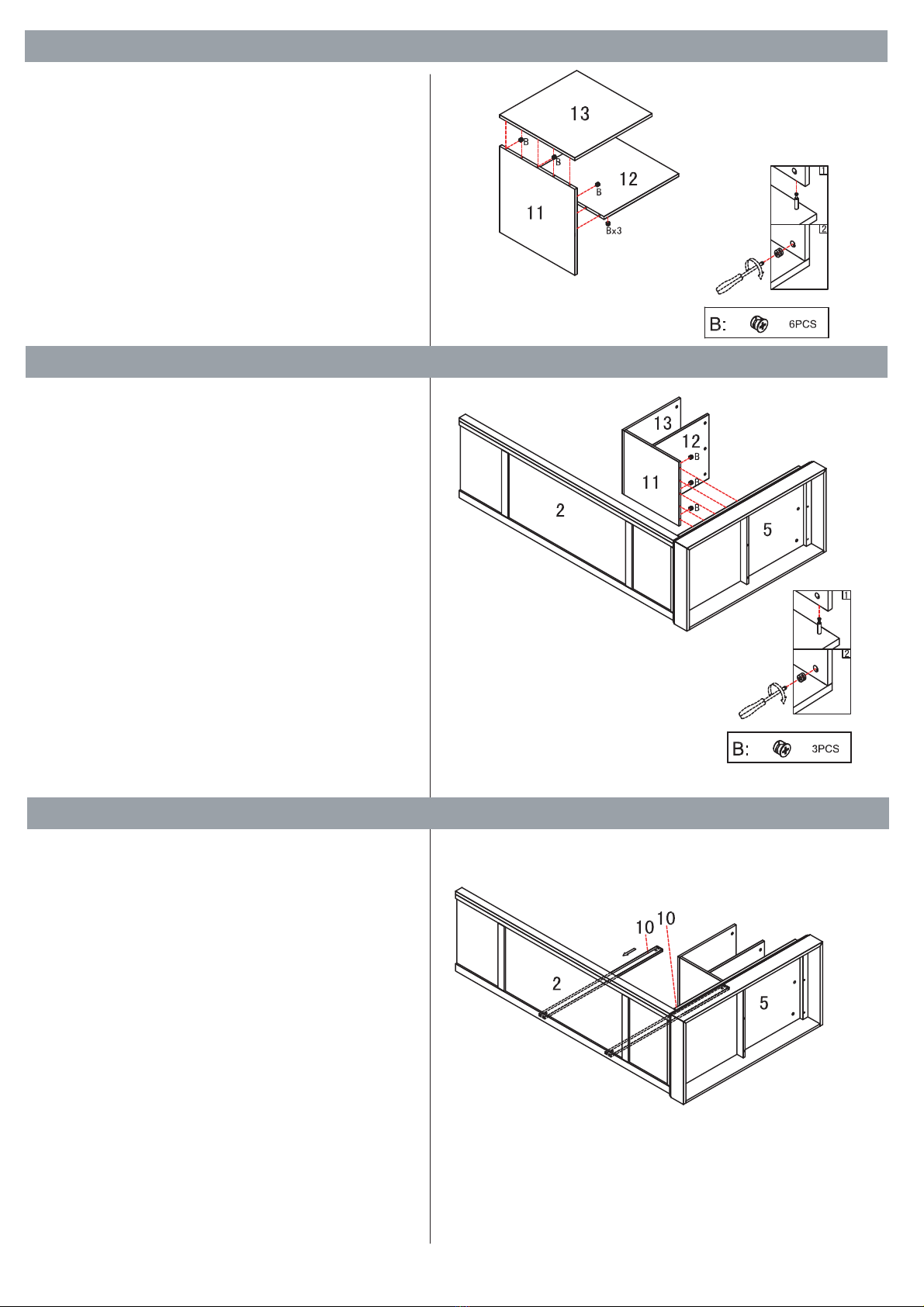

STEP 11
1.Attach panel 13 and panel 12 to panel 11
and insert 6 x camlocks (B) into panel 11 and
12 and tighten it with screwdriver.
STEP 12
1.Attach the assembled unit to bottom
panel 5 and insert 3 x camlocks (B) into panel
11 with screwdriver.
STEP 13
1.Attach 2 x back rail (10) to side panel (2)
3DJHRI
STEP 14
1.Attach side panel 3 to assembled unit then
insert 3 x camlocks (B) into bottom panel 5,
3 x camlocks (B) into panel (12),3 x camlocks
(B) into panel (13) and 4 x camlocks (B) into 2
x back rail with screwdriver.
STEP 15
1.Insert the shelf (4) to the assembled unit
from back then insert 6 x screws (D) from
bottom of the shelf and tighten it with
screwdriver.
3
12
13
2.Insert 3 x confirmat screws (I) into bottom
panel 5 and tightem it with allen key.
3DJHRI
STEP 16
1.Insert 6 x confirmat screws (I) into
assembled unit and tighten it with allen key.
STEP 17
1.Attach the door 7 to side panel 3 and
tighten screws on hinges with a scwerdriver.
1.Attach 1 x handle (O) to door (7) using a
screw (P)
,
3DJHRI

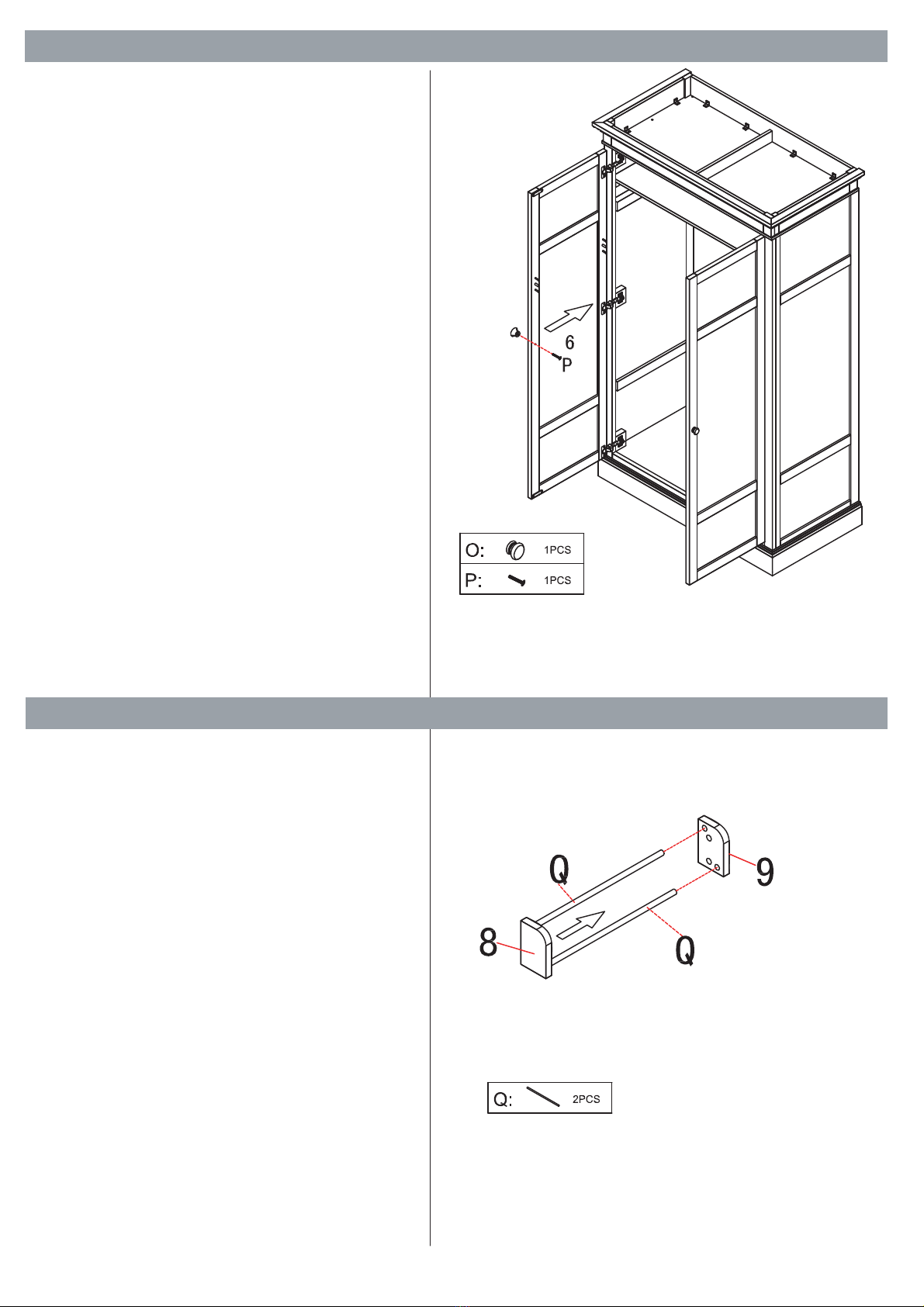

STEP 18
STEP 19
1.Insert 2 x hang rail (Q) into small block (8)
and (9).
O
1.Attach the door 6 to side panel 2 and
tighten screws on hinges with a scwerdriver.
1.Attach 1 x handle (O) to door (6) using a
screw (P)
2
