NEXIQ Technologies USB-Link Guide de l'utilisateur

USB-Link™

Installation and

Setup Manual

USB-Link™

IDSC Holdings LLC retains all ownership rights to USB-Link and its documentation. The USB-Link source code is

a confidential trade secret of IDSC Holdings LLC. You may not decipher or de-compile USB-Link, develop source

code for USB-Link, or knowingly allow others to do so. USB-Link and its documentation may not be sublicensed or

transferred without the prior written consent of IDSC Holdings LLC.

This manual, as well as the software it describes, is furnished under license and may only be used or copied in

accordance with the terms of such license. The content of this manual is furnished for informational use only, is

subject to change without notice, and should not be construed as a commitment by IDSC Holdings LLC. IDSC

Holdings LLC assumes no responsibility or liability for any errors or inaccuracies that may appear in this book.

Except as permitted by such license, no part of this publication may be reproduced, or transmitted, in any form or by

any means, electronic, mechanical, or otherwise, without the prior written permission of IDSC Holdings LLC.

NEXIQ Technologies is a trademark of IDSC Holdings LLC.

respective holders. Pictures for illustration purposes only. Specifications are subject to change without notice.

www.nexiq.com

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this

device may not cause harmful interference, and (2) this device must accept any interference received, including

interference that may cause undesired operation. This device contains FCC-ID POOWML-C30XX.

Approved in accordance to R&TTE directive transmitter module marked by “ CE product label”, manufactured by

MITSUMI incorporated to OEM product.

Part No. 1400-358 Revised 12/20/2011

USB-Link™ Installation and Setup Manual iii

Chapter 1:

Introducing the USB-Link™ ....................................1

Product Specifications ...................................................................2

System Requirements ...................................................................3

USB-Link™ Components ..............................................................4

Communication Options: Wireless or Wired? ................................5

Wireless Connection .............................................................................5

Wired Connection .................................................................................7

Chapter 2:

Installation and Bluetooth Configuration ..................9

Installation Process Flowchart .....................................................10

Outline of Installation Process .....................................................11

Step 1: Install the USB-Link™ Drivers and Utilities .....................12

Step 2: Choose Your Connection ................................................20

Wired Connection ...............................................................................20

Wireless Connection ...........................................................................21

Step 3: Install the Bluetooth Drivers ............................................22

Instructions for Windows XP Users ....................................................22

Instructions for Windows 7 Users .......................................................29

Configure the Bluetooth Environment ..........................................30

Chapter 3:

Preparing to Use the USB-Link™ ...........................33

Step 4: Connect the USB-Link™ to a Vehicle .............................34

Making the Connection .......................................................................35

Wired Connection Using a USB Cable ............................................35

Wireless Connection .......................................................................36

Step 5: Pair the Device ................................................................37

Instructions for Windows XP Users ....................................................37

Instructions for Windows 7 Users .......................................................41

iv USB-Link™ Installation and Setup Manual

Step 6: Test the Connection to the Vehicle .................................48

Step 7: Setting Up Diagnostic PC Applications ...........................51

Allison DOC™ for Fleets (1000/2000) ................................................51

Allison DOC™ for Fleets (3000/4000) ................................................52

Allison DOC™ for PC (update) ...........................................................52

Bendix Acom™ Diagnostics ...............................................................53

Caterpillar Electronic Technician ........................................................55

Cummins INSITE™ ............................................................................58

Detroit Diesel Diagnostic Link (DDDL)™ ............................................61

DDEC 7.0 ........................................................................................... 62

Eaton Service Ranger ........................................................................63

HINO Diagnostic eXplorer ..................................................................65

International® ABS .............................................................................67

International® INTUNE .......................................................................69

International® Three, Single, and Dual Box .......................................69

Meritor WABCO® Toolbox .................................................................71

Chapter 4:

USB-Link™ Troubleshooting Information ...............73

LED Issues ..................................................................................74

Configuration Issues ....................................................................76

Wireless Communication Issues .................................................76

Appendix A:

USB-Link™ Adapter and Cable Guide ....................77

Choosing the Right Cable Adapter ..............................................78

Adapter Drawings ...............................................................................79

USB-Link™ Installation and Setup Manual 1

Introducing the USB-

Link™



Product Specifications, page 2



System Requirements, page 3



USB-Link™ Components, page 4



Communication Options: Wireless or Wired?, page 5

The USB-Link™ is a hardware device that enables service bay personal computers

(PCs) to retrieve vehicle information using either wireless Bluetooth®technology or a

more traditional cable connection. Once configured, the USB-Link™ interfaces with your

PC, enabling you to use specific PC applications to perform vehicle diagnostics.

This chapter introduces the USB-Link™ and provides details regarding the communication

modes available to you to interface with your PC.

2 USB-Link™ Installation and Setup Manual

Chapter 1• Introducing the USB-Link™

Product Specifications

The USB-Link™ is configured with the following specifications:

Feature Data

Physical Dimensions 5.86" x 3.02" x 1.78"

(149 mm x 77 mm x 45 mm)

Weight 4.6 oz. (0.13 kg)

Power Requirements 10 - 32 VDC @ 350 mA maximum

Operating Temperature 0 to +70 °C

API Driver TMC RP1210A and RP1210B compliant

SAE J2534 compliant

Vehicle Protocols Supported • J1708/J1587

• J1939 (250K, 500K, or 1 MB)

• CAN (125K, 250K, 500K, 1 MB)

(Dual CAN supported)

• J2284 CAN (125K, 250K, or 500K)

• ATEC-160 Baud

• ALDL Pass-through

• ALDL 8192

• ALDL 9600

•OBDII

• ISO 9141

• ISO 14230 (KWP2000)

• ISO 15765

• J1850 (PWM, VPM, or Allison)

• J1939 Auto Baud

• IESCAN (required for Allison)

USB Communication USB Device, version 1.1

Wireless Communication Bluetooth® Class 1 adapter (up to 100 m

range)

Wired Communication USB cable 15 ft. (5 m) maximum

Vehicle Connector DB15F

USB Connector Type B jack

- System Requirements

USB-Link™ Installation and Setup Manual 3

System Requirements

Be aware of the following system requirements:

Component Requirement

IBMPC-compatible

computer • 1GHz processor or more

• RAM: 256MB or more (512MB recommended)

• USB port, version 1.1 or higher

Operating system • Windows®XP

• Windows®7

Note: USB-Link™ drivers support the Windows®

7 operating system. However, not all OEM PC

applications work with Windows®7.

Bluetooth®adapter

(sold separately)

• Bluetooth®serial port capability

• Must support WIDCOMM®drivers, 1.4x and

higher

The USB-Link™ has been qualified with the follow-

ing Class 1 adapter:

- IOGEAR®GBU321

4 USB-Link™ Installation and Setup Manual

Chapter 1• Introducing the USB-Link™

USB-Link™ Components

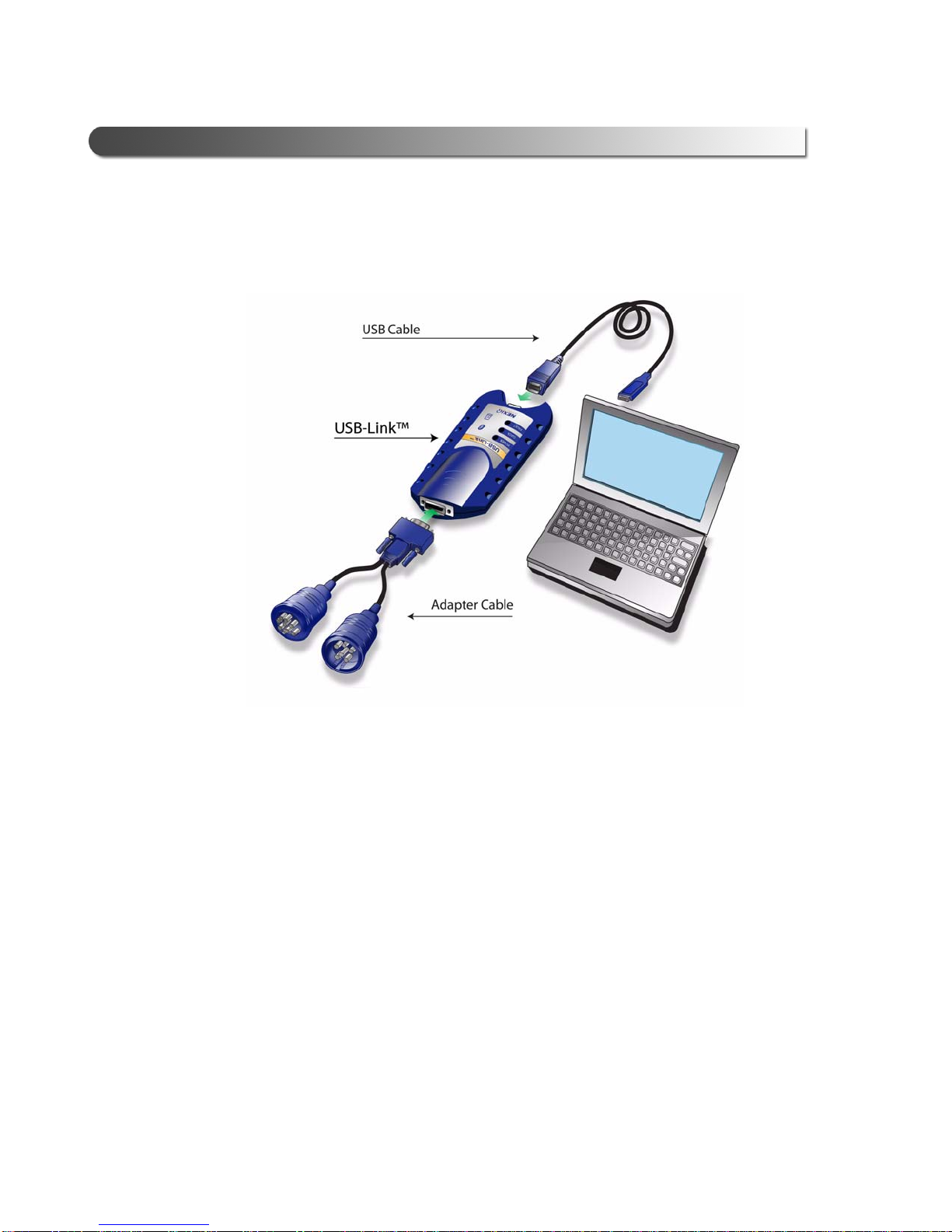

The following illustration details each of the USB-Link™ components:

Figure 1.1 USB-Link™ Components

- Communication Options: Wireless or Wired?

USB-Link™ Installation and Setup Manual 5

Communication Options: Wireless or Wired?

Prior to using the USB-Link™, you need to decide how you want the unit to

communicate with your PC. There are two options:

• Wireless connection to the PC using Buletooth® (pg. 5)

• Wired connection to the PC using a USB cable (pg. 7)

Wireless Connection

A wireless connection provides the advantage of untethered communication.

Wireless connectivity provides untethered operation, and that’s a bonus in a

busy service bay. USB-Link™ uses Bluetooth®wireless technology to provide

this wireless communication between the USB-Link™ and your PC.

NOTE:

iThe USB-Link™ does not support Integrated Bluetooth. If your PC has

Integrated Bluetooth, your system has Bluetooth®drivers installed and a

built-in Bluetooth®transceiver. You must uninstall Integrated Bluetooth

and its Bluetooth®drivers prior to proceeding with the USB-Link™ installa-

tion process.

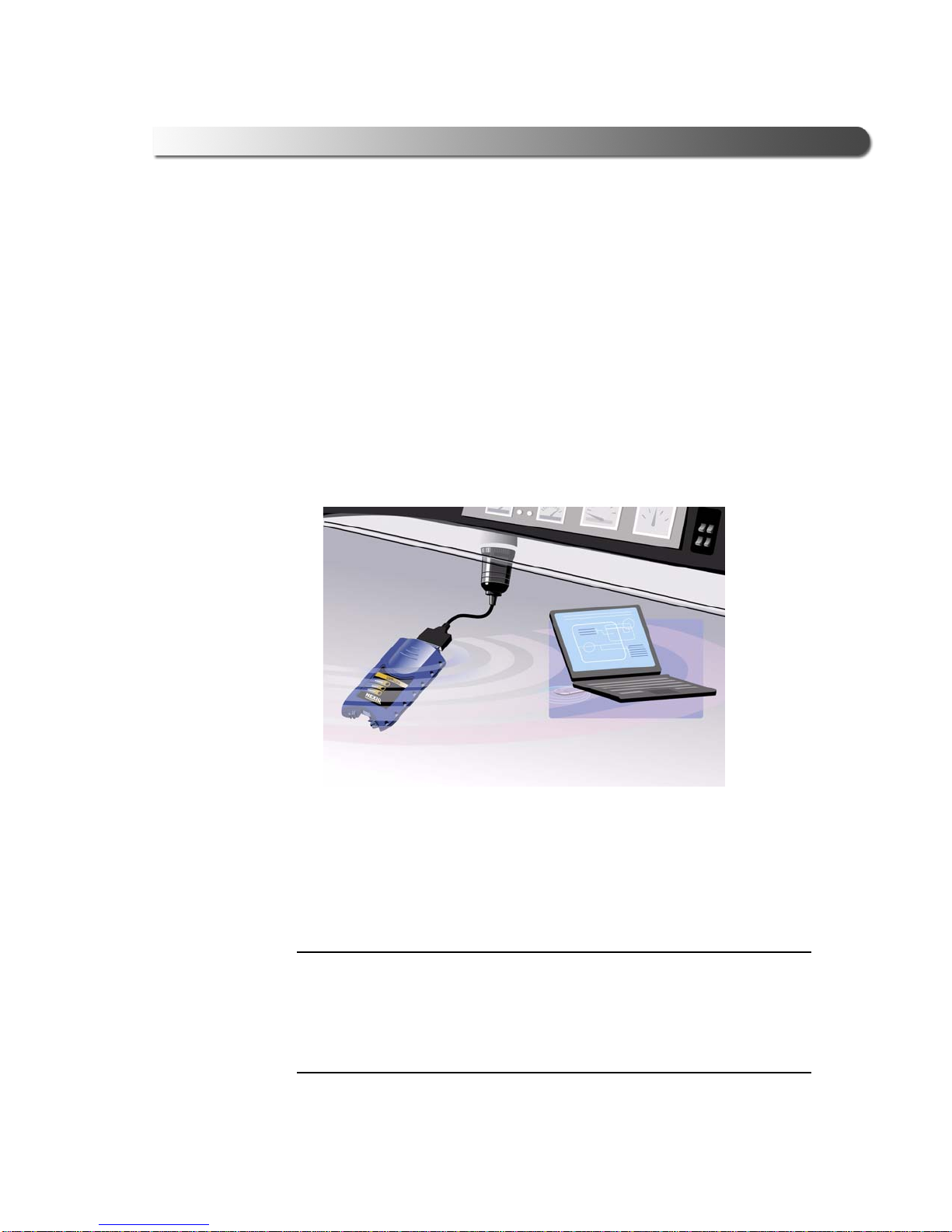

Figure 1.2 Wireless Connection

6 USB-Link™ Installation and Setup Manual

Chapter 1• Introducing the USB-Link™

If your PC does not have Integrated Bluetooth, then you are clear to proceed

with the USB-Link™ installation process as documented in this manual:

• Install Bluetooth®drivers

• Install an external Bluetooth®adapter

NOTE:

iFor detailed information on installing Bluetooth®drivers and configuring a

basic Bluetooth®environment, refer to Chapter 2: Installation and Blue-

tooth Configuration, later in this manual.

• Pair the device

— Instructions for Windows XP Users

(using the NEXIQ™ Bluetooth Connection Utility, refer to Chapter 3:

Preparing to Use the USB-Link™, later in this manual.)

— Instructions for Windows 7 Users

NOTE:

iThe USB-Link™ is intended for diagnostic use, for example, retrieving

trouble codes. By nature, Bluetooth®wireless technology has limited

bandwidth and latency when compared to wired solutions. This may result

in dropped messages in situations requiring high bandwidth
