Ultra Compact Embedded System

NICE 3150 Series

Installation Guide

NICE 3150 installation guide 1

Handling Precautions

1. Always disconnect the unit from the power outlet whenever you are installing or fixing a

component inside the chassis.

2. If possible, always wear a grounded wrist strap when you are installing or fixing a

component inside the chassis. Alternatively, discharge any static electricity by touching

the bare metal chassis of the unit case, or the bare metal body of any other grounded

appliance.

3. Hold electronic circuit boards (such as the EBC575 board) by the edges only. Do not

touch the components on the board unless it is necessary to do so. Do not flex or stress

the circuit board.

4. Use the correct screws and do not overly tighten them.

5. Keep the original packaging and static-protective bag in case the unit has to be returned.

Packing List

Assemblages

* EBC573-FL embedded CPU board x 1

* NICE3150 Chassis set x 1

* IDE Cable x 1

* CD-RW+DVD Combo x 1

* SILMCDROMDB board x 1

* Print Cable x 1

* COM Port Cable x 1

Accessories

* Quick reference guide x 1

* PS2 keyboard/mouse cable x 1

* CD driver x 1

* 120W Power Adapter x 1

Specifications

Construction:

* Aluminum Chassis with FANless Design

Dimensions:

* 195mm (W) x 268mm (D) x 80mm (H)

Mainboard:

*EBC573FL

* Support Intel Pentium M or Celeron M

* Chipset : Intel 852 GM(E) chipsets

NICE 3150 installation guide 2

Device:

*Two 184-pin DDR DIMM Support Max up to 2GB

*On board Compact Flash socket x 1

*Internal 2.5”HDD Drive bay x 1

Slim DVD Combo:

*CD-RW+DVD Combo 24W/10E/24R + 8D

Front I/O Ports:

* Optional customized logo

* HDD access/Power/LAN status LED

*USB 2.0 x 2 ports

Rear I/O Ports:

* PS/2 keyboard/mouse x 1

* USB 2.0 x 4 ports

* Serial port x 4

* Audio Mic-in x1 and Speaker out x1

* Dual pixel LVDS interface x 1

* 10/100 Ethernet LAN x 2

* VGA connector x 1

* S-Video TV-out x 1

* DC power input x 1

* Power On/Off switch x 1

*Parallel Port x 1

Power Source:

* DC to DC power design on board support 12VDC ~ 30V DC (Max. 120W)

* External 120W AC adapter x 1.

* Power input: 100~240V AC 2A 50/60Hz

* Power output: 24V DC

Environments:

* Operating temperature on Tcase: 5°C ~ 45°C with HDD or -10°C ~ 50°C with CF

* Storage temperatures: -20°C to 80°C

* Relative humidity: 10% to 90% (Non-condensing)

Certification:

* CE/FCC Approved

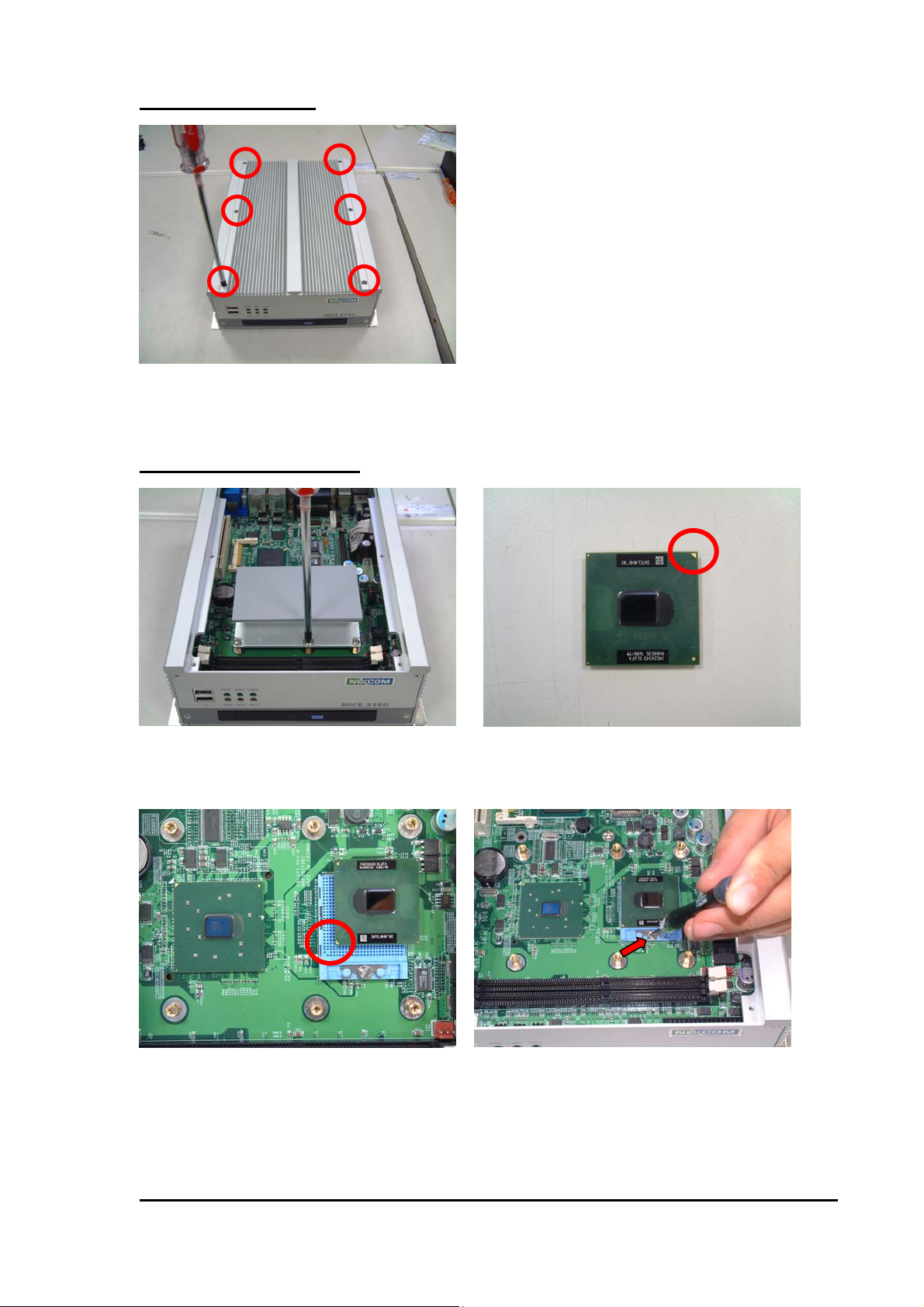

Opening Top Cover

Step 1: Remove 6 screws from the top.

Installing/Removing CPU

Step 2: Unscrew 6 screws on heat sink Step 2.1: Pay attentions to CPU installation

Step 2.2: Be aware that the beveled Step 2.3: Secure the CPU

corner of the CPU as shown in the

picture is aligned to the direction of

the socket.

NICE 3150 installation guide 3

Step 2.4: Insert heat sink silicon Step 2.5: Lock the heat sink with screw

compound

Installing/Removing RAM Card Closing Top Cover

Step 3: Insert either 1 or 2 DDR Step 4: Secure the top cover with screws

Open Bottom Cover

Step 5: Remove the screws on the bottom side

NICE 3150 installation guide 4

Installing HDD

Step 6: Unscrew HDD stand Step 6.1: Secure 2.5” HDD

Step 6.2: Place finished stand with HDD back to the chassis and make sure it is

properly secured. Plug HDD cable and pay attention to pin1 of cable (pin1 is indicated

in red).

Closing Bottom Cover

Step7: Lock bottom cover with screws

NICE 3150 installation guide 5
