Newtons4th PSM3750 NumetriQ Guide de l'utilisateur

PSM3750

START UP GUIDE

Firmware v1_27

23rd February 2016

PSM3750 Quick User Guide

Page 1

CONTENTS

Contents...........................................................

Page.1

Getting Started.................................................

Page.2

1.1

Unpacking and Contents.......................................

Page.2

1.2

PSM3750 Handle Fitment Instructions....................

Pages.3-4

Safety...............................................................

Page.5

2.1

Safety Instructions...............................................

Page.5

2.2

Cautions.............................................................

Page.6

Warranty Terms................................................

Page.7

Front Panel Layout Diagram..............................

Page.8

4.1

Front Panel Display Key Functions..........................

Pages.9-20

Rear Panel Layout Diagram...............................

Page.21

Basic Key Operation..........................................

Page.22-24

6.1

Set up to start.....................................................

Page.22

6.2

Setting the Time..................................................

Page.22

6.3

Setting the Date..................................................

Page.23

6.4

Adjusting the Display Font....................................

Page.23

6.5

Adjusting Keyboard Beep......................................

Page.24

6.6

Setting User Data................................................

Page.24

Quick User Guide..............................................

Page.25

7.1

Getting Started....................................................

Pages.26-27

7.2

Zoom Functions...................................................

Pages.28-29

7.3

7.4

Measurement Options...........................................

Acquisition..........................................................

Page.30

Pages.30-33

7.5

Sweep................................................................

Pages.34-37

7.6

FRA....................................................................

Pages.38-39

7.7

7.8

8.1

8.2

8.3

8.4

8.5

8.6

8.7

8.8

Trim...................................................................

Comms...............................................................

PSM3750 Measurement Functions.....................

FRA –Frequency Response Analyzer.......................

PAV –Phase Angle Voltmeter.................................

LCR –Impedance Analysis....................................

RMS –True RMS Voltmeter...................................

POWER –Power Meter..........................................

Scope –Oscilloscope............................................

Harmonics - Harmonic Analyzer.............................

EIS - Electrochemical Impedance Spectroscopy.......

Pages.40-41

Pages.42-44

Page.45

Pages.45-47

Pages.48-51

Pages.52-68

Pages.69-70

Page.71

Page. 72

Page. 75

Page. 78-79

COMMS Settings................................................

Pages.80-82

9.1

9.2

10.

11.

12.

13.

Saving Sweep Results to USB memory stick............

Program: Store/Recall/Delete................................

PSMComm2 –PSM3750 Software......................

Basic Functionality Checks................................

Repair & Recalibration Process.........................

PSM3750 Specifications....................................

Pages.83-87

Pages.88-91

Page.92

Pages.93-97

Page.98

Pages.99-102

PSM3750 Quick User Guide

Page 2

1. Getting Started

1.1 Unpacking

When you receive your product, check that the following items are included for

the appropriate PSM Instrument. Refer to the contents list below for each model.

If any item is missing or damaged during transportation, immediately contact

your local sales distributor or N4L office

MODEL

Mains

Lead

Voltage

Probe

4mm

Black

Lead

4mm

Red

Lead

Black

Croc

Clip

Red

Croc

Clip

N4L

2GB

Memory

Stick

Start

Guide

Manual

Comms

Manual

PSM3750 -2C

PSM3750 -3C

PSM3750

Communication Cables

RS232

9 pin null modem cable

USB

2.0 A male to B male 2m lead

IEEE

IEEE Extender Cable 1m long

CONTENTS

PSM3750 Quick User Guide

Page 3

1.2 Fitment of the PSM3750 Carry/Tilt handle

The PSM3750 Phase Sensitive Multimeter is supplied with a Carry/Tilt Handle

that is located within the accessory pack.

The handle allows a user to position the instrument upwards at one of two angles

for easier viewing when the instrument is positioned below the line of sight. The

design also allows storage under the unit without obstruction of the rubber feet

so that instruments can be stacked and is easily removed to allow the connection

of rack mounting brackets without the need to remove instrument covers.

Correct installation of the handle is important to ensure the correct operation

and long life the handle.

The following pictures illustrate correct and incorrect handle fitment:

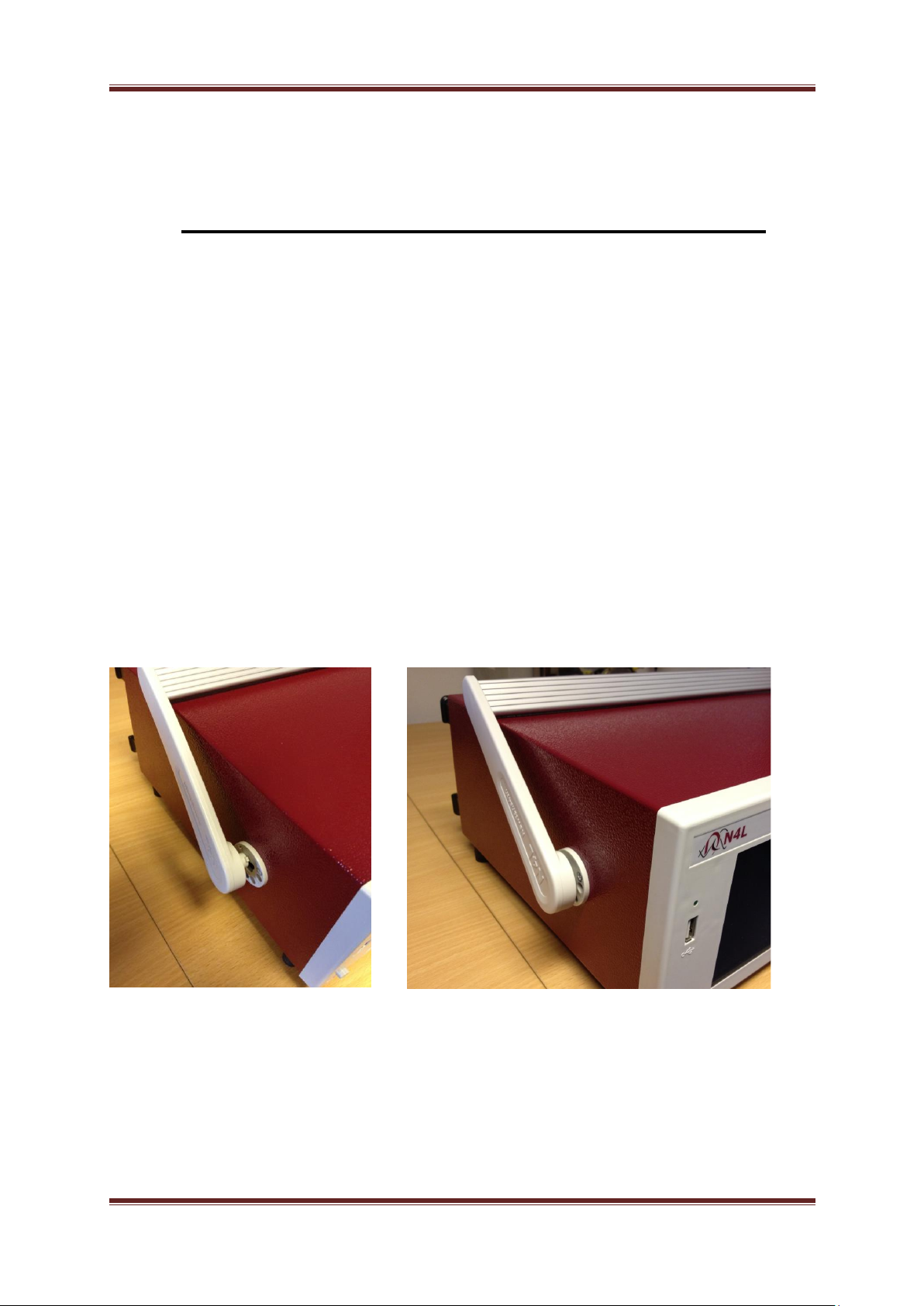

Correct 1 Correct 2

Correct 1/2 –Correct fitting is from the top of the unit as shown here

PSM3750 Quick User Guide

Page 4

Correct 3 Correct 4

A correctly fitted handle will have the ‘N4L Newtons4th’ wording in the correct

reading plane when the handle is to the front of the instrument (Pic. 3)

Also, a correctly fitted handle will allow storage under the unit (Pic. 4)

Incorrect 1 Incorrect 2

Fitting the handle from the bottom of the unit as shown here is wrong

(Incorrect 1)

Incorrect fitting can be seen because the handle does not fit correctly under the

unit and handle sides do not fit flush with the registration washer (Incorrect 2)

PSM3750 Quick User Guide

Page 5

2. Safety

2.1 IMPORTANT SAFETY INSTRUCTIONS

This equipment is designed to comply with BSEN 61010-1 (Safety requirements

for electrical equipment for measurement, control, and laboratory use) –observe

the following precautions:

Ensure that the supply voltage agrees with the rating of the instrument

printed on the back panel before connecting the mains cord to the supply.

This appliance must be earthed. Ensure that the instrument is powered from

a properly grounded supply.

The inputs and outputs must not be connected to common mode signals

greater than 500V peak.

The inputs must not be connected to signals greater than 500V peak.

Keep the ventilation holes on the underneath and sides free from obstruction.

Do not operate or store under conditions where condensation may occur or

where conducting debris may enter the case.

There are no user serviceable parts inside the instrument –do not attempt to

open the instrument, refer service to the manufacturer or his appointed

agent.

Note: Newtons4th Ltd. shall not be liable for any consequential

damages, losses, costs or expenses arising from the use or misuse of

this product however caused.

PSM3750 Quick User Guide

Page 6

2.2 CAUTIONS

Do not use a damaged power cord or cables

Doing so may cause an electric shock or a fire

Do not place any object on this instrument

Do not use this instrument if faulty

If you suspect the instrument to be faulty, contact your local N4L office or

representative for repair (see section 12)

PSM3750 Quick User Guide

Page 7

3. Warranty

This product is guaranteed to be free from defects in materials and workmanship

for a period of 36 months from the date of purchase

In the unlikely event of a problem within this guarantee period, first contact

Newtons4th Ltd or your local representative to give a description of the problem.

Please have as much relative information to hand as possible –particularly the

serial number and release number these can be found by pressing the SYSTEM

button then the “Left Arrow”

If the problem cannot be resolved directly then you will be given an RMA number

and asked to return the unit. The instrument will be repaired or replaced at the

sole discretion of Newtons4th Ltd

This guarantee is limited to the cost of the PSM3750 itself and does not extend

to any consequential damage or losses whatsoever including, but not limited to,

any loss of earnings arising from a failure of the product or software

In the event of any problem with the instrument outside of the guarantee period,

Newtons4th Ltd offers a full repair and re-calibration service. Contact your local

representative. It is recommended that the PSM3750 be re-calibrated annually

PSM3750 Quick User Guide

Page 8

4. Front Panel Layout

1. Display Screen

2. Screen Display Function Buttons

3. PSM Function Mode Buttons

4. Handle

5. Measurement Control Function Keys

6. Rubber Feet

7. Menu Selection and Cursor Controls

8. Measurement Settings Buttons

9. Front USB Port

10. Power On / Off Button

1 2 3

10 9 8 7 6
