Newcon Optik LRB 4000CI Manuel utilisateur
Operation Manual
LRB 4000CI
LASER RANGE FINDER
BINOCULARS
NSN: 1240-20-001-9644
105 Sparks Ave., Toronto, ON M2H 2S5, Canada
IMPORTANT INFORMATION
READ PRIOR TO ACTIVATION
You have just purchased a sophisticated electro-optical
device that emits invisible laser radiation. To operate it
properly, please read this manual carefully.
NEVER direct laser beam at the eyes of people or
animals
NEVER aim the unit at the Sun or bright sources of
light
NEVER subject the unit to impacts
NEVER transport the unit without its case
NEVER disassemble the unit. This may be hazardous
for you due to high voltage currents in the system
NEVER aim the unit at highly reflective objects like
mirrors and retroreflective surfaces, which are in close
proximity to the laser rangefinder. This can lead to the
permanent damage of the photoreceiver incorporated
into the device.
2
ALWAYS keep the unit out of children’s reach
ALWAYS remove the battery when the device is not
in use for a long period
ALWAYS store in a dry place
CAUTION - use of controls or adjustments, or
performance of procedures other than those specified
herein may result in hazardous radiation exposure
CAUTION - use of optical instruments such as
binoculars, loupes, mirrors, lenses, etc. with this
product increases eye hazard
NOTE: Avoid eye exposure to direct laser beam or its
close reflection
NOTE: Prevent bright light from focusing through the
eyepieces
WARNING!
CAREFULLY READ ALL THE
INSTRUCTIONS PRIOR TO USE!
FAILURE TO OBEY THE INSTRUCTIONS
WILL VOID THE WARRANTY AND MAY
CAUSE INJURY!
3
TABLE OF CONTENTS
1.BRIEF DESCRIPTION..................................... 4
2.DEVICE APPEARANCE ................................. 6
3.DELIVERY SET............................................... 9
4.SPECIFICATIONS ......................................... 10
5.OPERATION INSTRUCTIONS .................... 13
5.1Installing the battery.............................. 13
5.2Using the Device................................... 14
5.3Factors affecting measuring distance .... 15
5.4Target selection logic ............................ 16
5.5Operation and service modes ................ 18
5.6Compass calibration.............................. 20
5.7Distance accuracy correction ................ 25
5.8Setting interface format......................... 26
5.9Gating mode.......................................... 26
5.10Data Recall mode .................................. 27
5.11Computer interconnectivity................... 29
5.12GPS interconnectivity ........................... 30
6.BEST MEASURING TECHNIQUE............... 32
7.STORAGE AND MAINTENANCE............... 34
8.TROUBLESHOOTING .................................. 35
9.WARRANTY.................................................. 36
10.CUSTOMER SUPPORT................................. 37
11.QUALITY CERTIFICATE............................. 38
4
1. BRIEF DESCRIPTION
LRB 4000CI Laser Rangefinder Binoculars (System) is
an advanced laser range finder system that enables instant
distance, speed, vertical and horizontal angular
measurements. An outstanding optics provides a sharp,
clear image under any observation conditions.
The unit utilises time-of-flight method of distance and
speed measurement. The System sends invisible, eye
safe laser pulses to the target. The returned pulses are
captured by the digital circuitry. The time difference is
used to calculate the distance to the target. A built-in
digital compass measures an angle between the optical
axis and direction to the magnetic North Pole.
The unit complies with CFR 21, Part 1040.10 and Part
1040.11.
A built-in inclinometer allows elevation angle
measurements and height (depth) calculations.
5
Key Features of the LRB 4000CI Laser Rangefinder
Binoculars
Modern digital circuitry allows targeting through
most types of glass
First, last or the most reflective target acquisition
Meters/Yards/Mils/Degrees/KMH/MPH display
Last 10 measurements recall
Selectable reticle shape (+ or )
Gating capability
Speed detector
Accurate digital compass
Accurate digital inclinometer
RS-232 bidirectional communication
GPS interoperability (PLGR/DAGR protocol)
The unit has a built in auto-shutoff feature which will
turn off the device after 16 seconds of idle time
6
2. DEVICE APPEARANCE

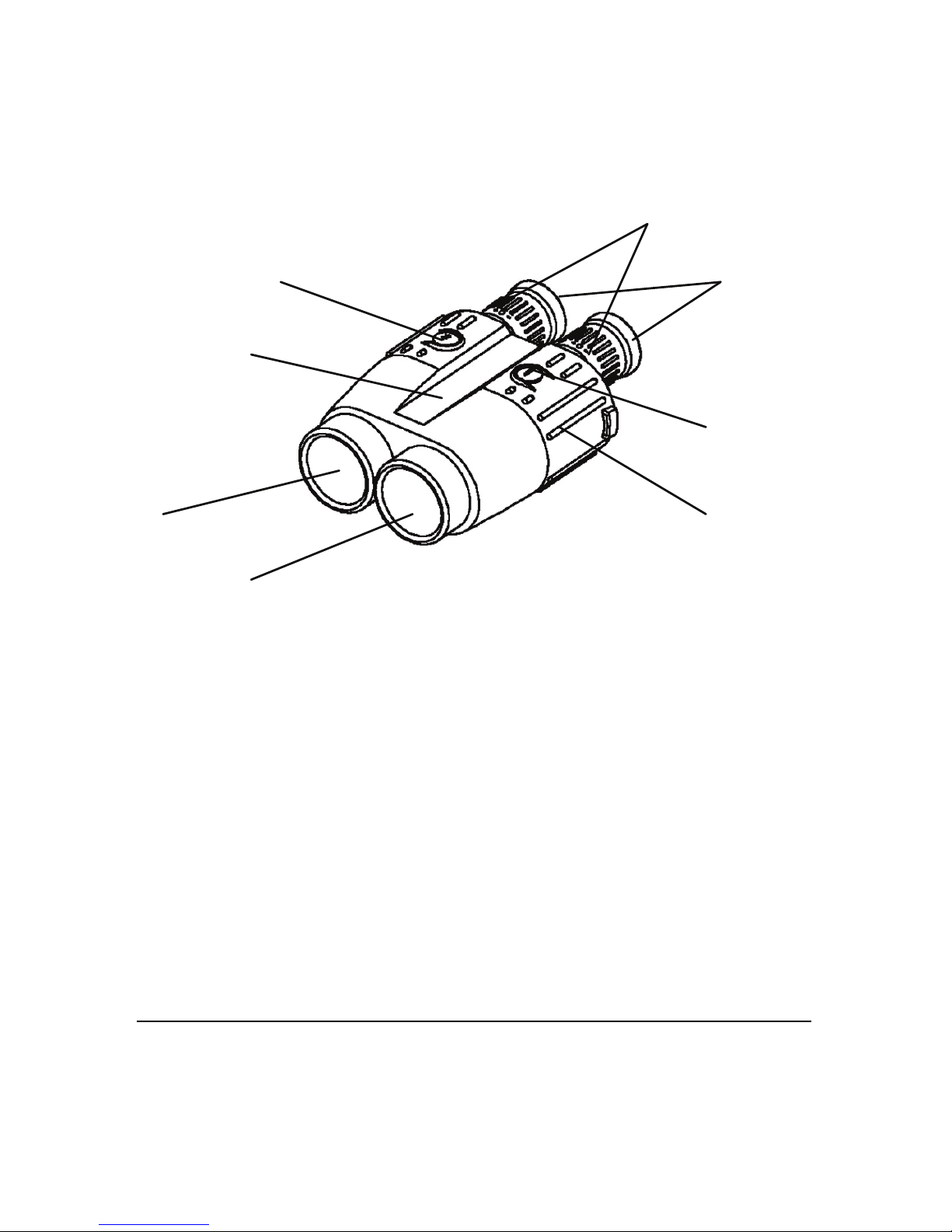

1 – Eyepieces 2 – Objective / receiving lens
3 – Objective / emitting lens 4 – Dioptric adjustment rings
5 – Mode button 6 – Action button
7 – Body of the device 8 – Rubber grip
2
3
4
5
6
7
1
8
Fig. 1. Front view
7

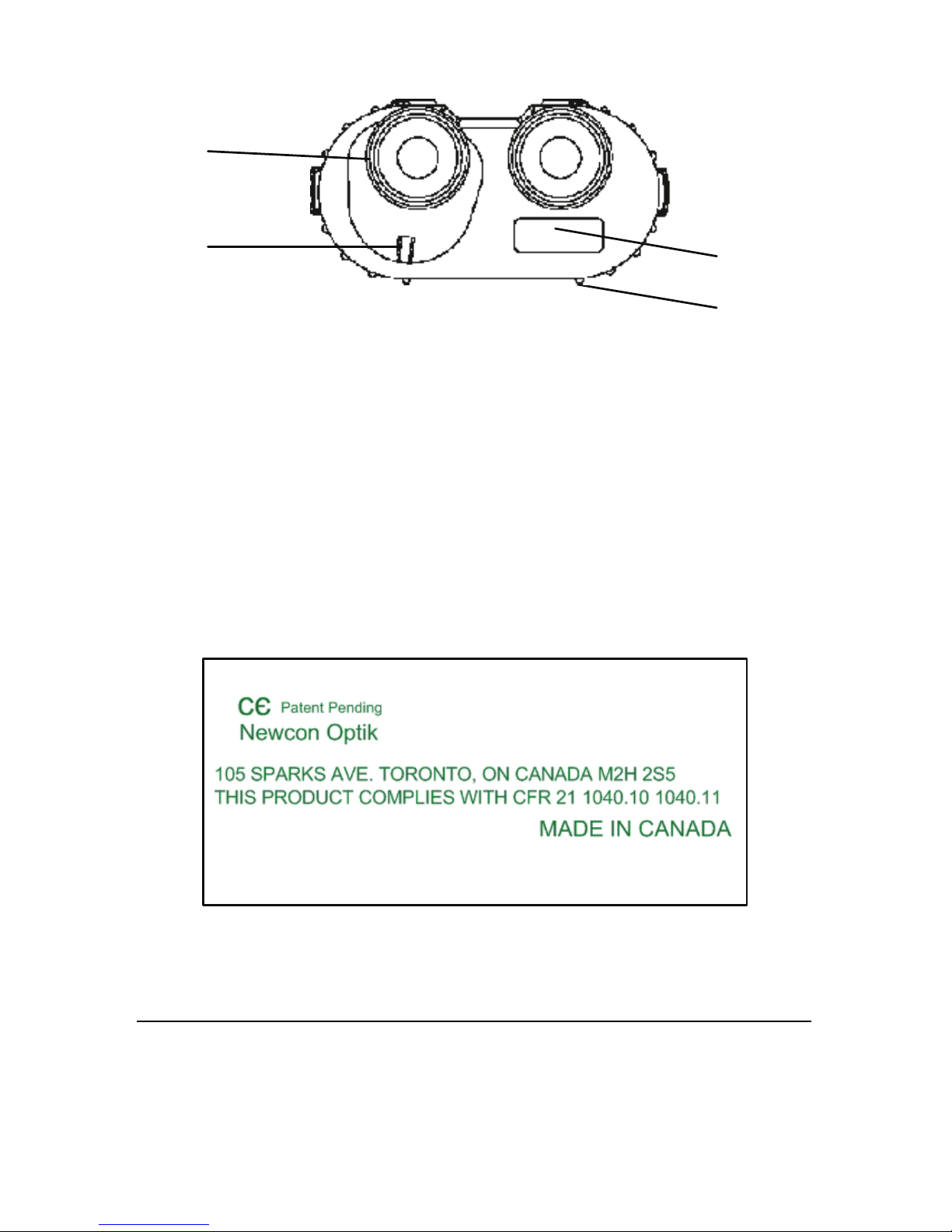

1 – Eyepiece
9 – Interpupillary distance adjustment lever
10 – Model Identification label
11 – Identification and certification label (on the bottom)
Fig. 3 Label
Fig. 2 Rear view
11
10
9
1
8

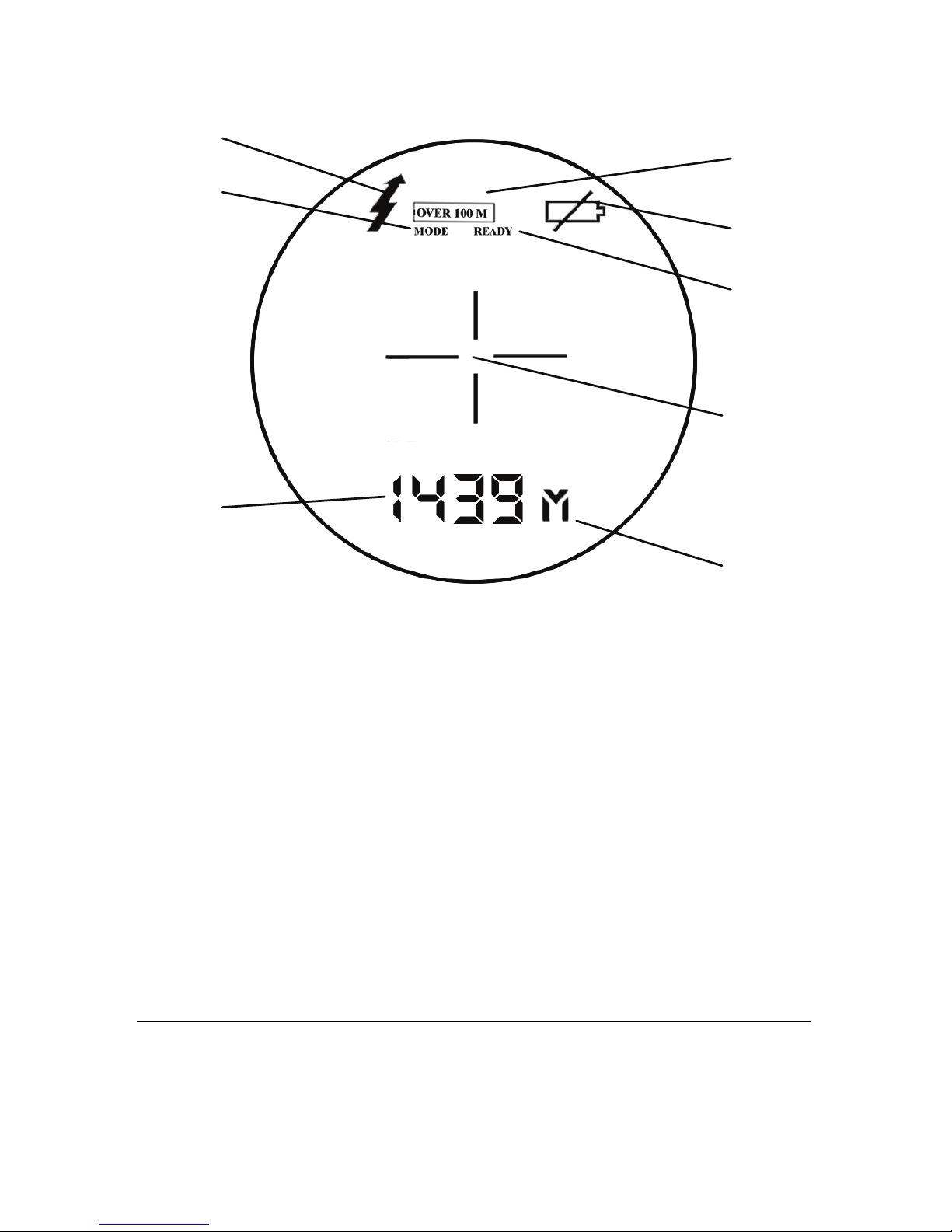

1 – Low battery indicator 2 – Reticle (either -¦- or )
3 – Units of measurement 4 – Measurement result
5 – Gating indicator 6 – Laser active indicator
7 – Ready mode indicator 8 – Setup mode indicator
4
6
2
1
3
10
8
Fig. 4 Display
5
2
9
3. DELIVERY SET
LRB 4000CI
Carrying case
Neck strap
User’s manual
Warranty card
Computer cable
CD with communication software
Hard case
9V non-magnetic Lithium battery
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
1 pc.
Optional items:
GPS cable
Exact delivery set depends on details of a contract or
purchase order.
