Nevco MPCX2 Football Caractéristiques techniques

Rev. 8/27/2015 135-0254

Scoreboard Operator’s Instructions

MPCX2 Baseball Control

Since 1934

Retain this manual in your permanent files

These Instructions are for the Following Models:

LED models:

Incandescent models:

1000*

1003

1006

1010*

1020

1025

1030

1035

1415

1500

1503

1506

1508

1510

1515

1520

1525

1530

1535

1540

1550

9505

9515

1600

1603

1604

1606

1608

1609

1610

1615

1620

1625

1630

1632

1635

1640

1650

3656

3680

3685

3688

7616

7680

7685

8601

8602

9605

9715

Thank You

Thank You for choosing NEVCO. We appreciate your business.

The following instructions will help you become familiar with the operation and features of the scoreboard

system.

Please take a few minutes to study this manual, and to practice with the control.

If you ever have any questions or comments, please call or email us.

NEVCO GUARANTEE

To view or receive the most recent copy of the Guarantee, please visit our website, www.nevco.com

or call 1-618-664-0360

NEVCO, Inc.

301 East Harris Avenue

Greenville, IL 62246-2151 USA

USA TOLL-FREE 800-851-4040

CANADA TOLL-FREE 800-461-8550

International Telephone: +1-618-664-0360

Website: www.nevco.com

Email: [email protected]

Note: Some features may not be available

on some models.

*Not compatible with certain older scoreboards

STRIKE (adds 1)

(hold to clear Balls and Strikes)

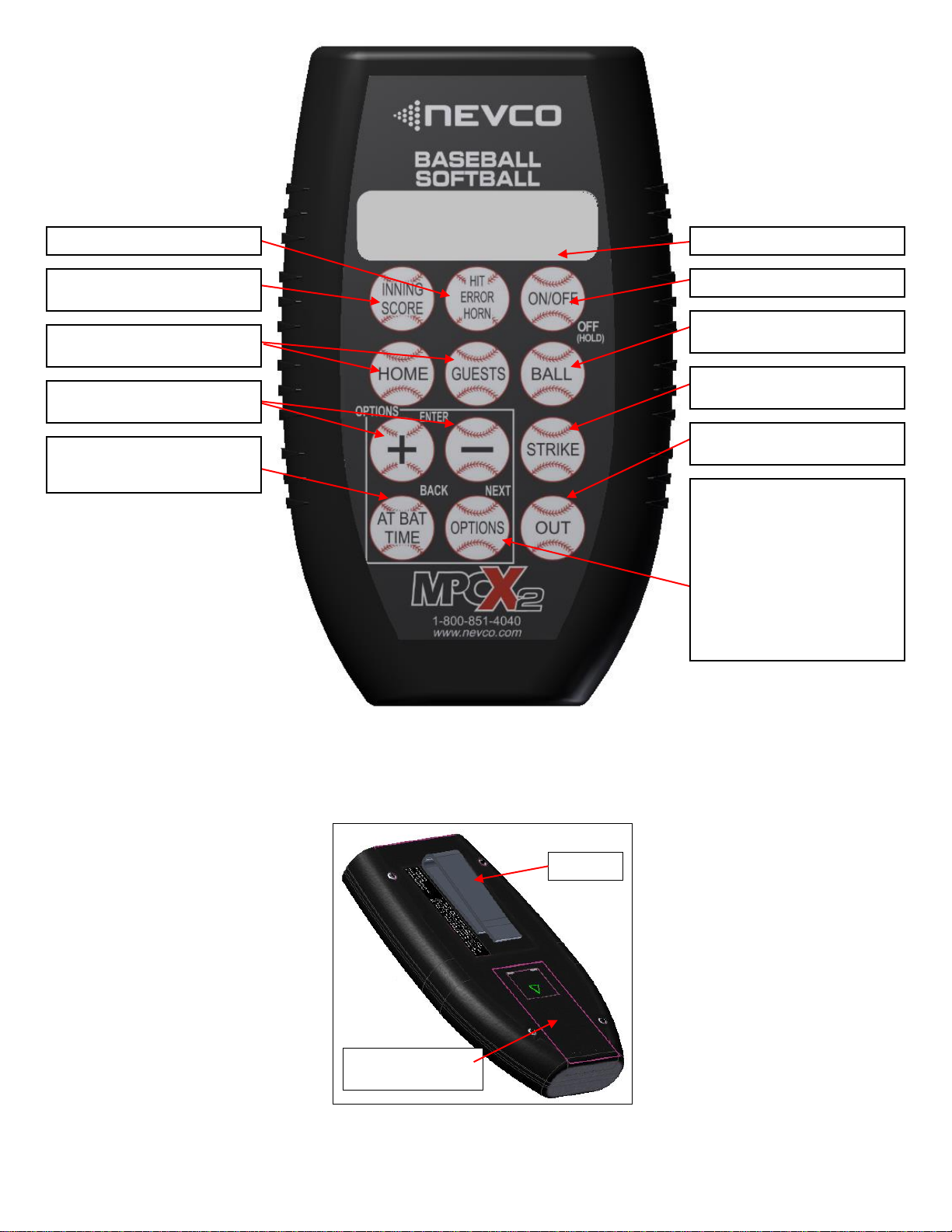

MPCX2 BASEBALL CONTROL (front view)

BALL (adds 1)

(hold to clear Balls and Strikes)

OUT (adds 1)

(hold to clear Balls, Strikes, and Outs)

HIT / ERROR / HORN

INNING / SCORE (also functions as

Escape)

Selects HOME or GUESTS

(for scoring and hit & error)

Add to or Subtract from the selected

feature

AT BAT / TIME

(Batter Number) /

(Timer Control / Time Settings)

LCD Display (16 characters x 2 lines)

Power ON / OFF Switch

OPTIONS key

Allows you to:

Clear Scoreboard

Edit Electronic Team Names

Set Brightness of Scoreboard

Check Battery Level

Check Signal Strength

Link Control to Receiver Network

Select Scoreboard Model Type

MPCX2 CONTROL (rear view)

Belt Clip

Battery Compartment

Cover (2 x AA)

MPCX2 Receiver for use with outdoor x6xx

and indoor x7xx scoreboards.

MPCX2 Receiver for use with scoreboards

that pre-date x6xx outdoor and x7xx indoor

scoreboards. (Boards that have coax input

only)

NOTE: This version can also be used in addition (but

not simultaneous operation) to a W6 system for dual

operation by connecting the W6 receiver or wired

coax of the MPC-5/6 connection to the coax input of

the X2 receiver.

TABLE OF CONTENTS

QUICK START GUIDE................................................................................................................ 1

KEYBOARD FUNCTIONS .......................................................................................................... 4

GREETING SCREEN.................................................................................................................. 4

MAIN SCREEN ............................................................................................................................ 5

BALL, STRIKE OUT SCREEN .................................................................................................. 6

HIT /ERROR /HORN SCREEN ................................................................................................ 7

AT BAT SCREEN......................................................................................................................... 8

TIME SCREEN............................................................................................................................. 9

OPTIONS MENU......................................................................................................................... 10

TROUBLESHOOTING CHART .............................................................................................. 17

STARTUP GUIDE

Note: It is assumed here that the control has been configured for the correct scoreboard type and the control has

been linked to the desired receiver(s). Both functions are explained in the setup guide that comes with a new

control. (See the MPCX2 Control / Receiver setup procedure below for more information). It is assumed that

the receiver is powered ON.

To Start a New Game

Press

The control will display a greeting while it establishes

communications with its receiver(s). (Up to 20 seconds).

Note: v01.00 for example, indicates the software version of

the control

Next the display will show the inning and the score.

Note: The cursor indicates the active function.

Press

The control will display

Press to clear the scoreboard data.

Press To go to the main screen. The control will display

Note: The inning is automatically set to 1.

You are now ready for the game to begin.

ON/OFF

Inn: 1

Home: 0 Guest: 0

Strikes:0

OPTIONS

Clear Scoreboard

Press (+)

MPCX2 v01.00

2.4 GHz

Scanning

Inn: 1

Home: 0 Guest: 0

Strikes:0

INNING

SCORE

To add a run to the score

Press then or then

To increment Balls, Strikes and Outs

The BALL, STRIKE and OUT keys are all additive (adds one with each press of the key).

Press and hold the BALL or STRIKE key to reset the Balls and Strikes.

Press and hold the OUT key to reset the Balls, Strikes, and Outs.

To enter the At Bat information (for scoreboards that support At Bat)

Press

The control will display

Use the keys to enter the player’s number.

Note: Hold the key down for fast advance.

Inn: 1

Home: 1 Guest: 0

Strikes:0

INNING

SCORE

HOME

GUESTS

At Bat: _

AT BAT

TIME

At Bat: 45

To Set the Time (for scoreboards that support a Clock)

Note: To display Time on scoreboard models 1520, 1020,

or 1620 (Inning and Time are displayed in the same digits),

set the Inning to Zero. Otherwise it will display the inning.

Press

The control will display

Note: Pressing the “+” key after a time has been

entered will start the clock.

Press

The control will display

Use the “+” and “-” keys to enter the minutes.

Note: Hold the key down for fast advance.

Press The control will display

Use the “+” and “-” keys to enter the seconds.

Note: Hold the key down for fast advance.

Press The control will display

Select the timer Direction.

Press The control will display

Use the “+” and “-” keys to enable or disable

the Auto Horn.

Press AT BAT / TIME to return to the first timer screen.

Press INNING / SCORE to return to the main screen.

To start the timer

Press

The control will display

Press to start the timer.

The control will display

To stop the timer

Press

The control will display

Please consult the following sections of this manual for more details, functions, and features

Inn: 1 Time: ON

Home: 0 Guest: 0

Strikes:0

AT BAT

TIME

Timer

Press(+)

AT BAT

TIME

Inn: 1 Time: OFF

Home: 0 Guest: 0

Strikes:0

AT BAT

TIME

Timer

Press(+)

Time Direction

(+)UP (-)Down

Set Time:

0:00

Set Time:

0:00

AT BAT

TIME

AT BAT

TIME

AT BAT

TIME

Auto Horn

(+)On (-)Off

AT BAT

TIME

KEYBOARD FUNCTIONS

GREETING screen

When you are done using the control turn it OFF to conserve

batteries by holding down the OFF key for 2 seconds.

Note: Always power ON the receiver(s) (scoreboard(s)) first, and wait a few seconds for the

receiver(s) to initialize (red LED illuminates) before powering ON the control. If the control is

already ON, turn it OFF, wait a few seconds, and then turn it back ON.

Note: If the scoreboard fails to respond to the control, power the control OFF, wait a few

seconds, and then try again. Please allow time for each control to complete its powering ON

process (main screen appears) before turning ON another control.

ON/OFF

GREETING

When the control is Powered ON, the greeting showing the

type of control and the sport is displayed. This greeting

continues to be displayed while the control establishes

communications with its receiver(s). (May take up to 20

seconds)

Accessed

pressing

MPCX2 v01.00

2.4 GHz

Scanning

MAIN screen

Allows you to set the inning.

Use the “+” or “-”keys to set the inning.

Note: With an Inning by Inning board, when the game goes

past 10 innings the scoreboard will continue to keep score.

Advancing to the 11th inning will blank the line score and the

11th inning will be in the 1st inning spot. With 9 inning

scoreboards, the 10th inning will not be displayed.

Incrementing or decrementing inning to a value 1 through

10 will display innings 1-10.

Use the “Home”or “Guests”keys to select the team whose

data you want to change.

Note: Inning by Inning boards will display blanks in the line

score until “Home” or “Guests” is incremented. If the guest

line score is blank and “Home” is selected, then the guest

line score will be set to 0. Advancing to the next inning while

the current home line score is blank will set the home line

score to 0.

Note: If the overall score somehow does not match the line

score, then the inning can be set to 0 and the overall score

can be adjusted to match.

Use the “+” or “-”keys to change the data

for the selected feature.

Note: If, when the main screen appears, it shows Inning 0 and the

scoreboard remains dark and will not respond to the control, then the

receiver was not found. Power the control OFF, make sure all associated

receivers are powered ON, and try the control again. Please allow time for

each control to complete its powering ON process (main screen appears)

before turning ON another control.

Inn: 1

Home: 0 Guest: 0

Strikes:0

HOME

GUESTS

INNING

SCORE

Inn: 1 Time: OFF

Home: 0 Guest: 0

Accessed

pressing

MAIN

The main screen shows the Inning, the Timer Status (for

boards with timers), and the Scores. You must use this screen if

you want to change the Inning or Scores. Press INNING /

SCORE any time to return to this screen. The cursor indicates

the currently selected function. Use the HOME, GUESTS, or

INNING / SCORE keys to select the function, then, use the “+”

or “-” keys to change its value and send it to the scoreboard.

You should keep this screen displayed during the game.

INNING

SCORE

Inn: 1

Home: 0 Guest: 0

Strikes:0

Inn: 1

Home: 0 Guest: 0

Strikes:0

Inn: 1

Home: 0 Guest: 0

Strikes:0

Inn: 1

Home: 1 Guest: 0

Strikes:0

Inn: 0

Home: 0 Guest: 0

Inn: 0 Time:OFF

Home: 0 Guest: 0
