NetVu KBC2/U
Joystick & Keypad
Installation and Operation Manual
Version History
Issue
Number
Date
Comments
DRAFT
Version 1.0
7th October, 2019.
Author –P Ridgeon
DRAFT
Version 1.1
7th October, 2019.
Author –P Ridgeon. Checker –R.S. Hawes.
Page 2 of 13.
7/10/2019
Title NetVu KBC2/U Joystick Keypad Installation and Operation Manual
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Contents
Version History ...............................................................................................................................1
Contents.........................................................................................................................................2
Important Safeguards .....................................................................................................................3
Read Instructions ........................................................................................................................3
Power Sources............................................................................................................................3
Servicing .....................................................................................................................................3
Ventilation ...................................................................................................................................3
RF Interference warning..............................................................................................................4
Regulatory Notes and FCC and DOC Information.......................................................................4
CE Mark......................................................................................................................................4
Installing the Unit ............................................................................................................................5
Before you start check the contents of the box............................................................................5
Installation...................................................................................................................................5
Connection..................................................................................................................................6
Using the Keyboard ........................................................................................................................6
Glossary .......................................................................................................................................11
Page 3 of 13.
7/10/2019
Title NetVu KBC2/U Joystick Keypad Installation and Operation Manual
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Important Safeguards
Read Instructions
All the safety and operating instructions should be read before the unit is operated.
Power Sources
This unit should be operated only from the type of power source indicated on the manufacturer’s
label.
Servicing
Do not attempt to service this unit yourself as opening or removing covers may expose you to
dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
Ventilation
Ensure unit is properly ventilated to protect from overheating.
All the safety and operating instructions should be read before the unit is operated.
To prevent fire or shock hazard, do not expose this equipment to rain or moisture. The lightning
flash with arrowhead symbol within an equilateral triangle is intended to alert the user of this
equipment that there are dangerous voltages within the enclosure which may be of sufficient
magnitude to constitute a risk of electric shock.
This is a class A product. In a domestic environment this product may cause radio interference in
which case the user may be required to take adequate measures.
This section contains the regulatory declarations for the EU for the Camera.
This product is marked with the CE symbol and indicates compliance with all applicable Directives.
A “Declaration of Conformity” is held at NetVu Ltd, No 1 Thellow Heath Park, Northwich Road,
Northwich, Cheshire, CW9 6JB.
Hereby, Dedicated Micros LTD, declares that this Unit Camera is in compliance with the essential
requirements and other relevant provisions of Directive 95/5/EC.
Marking by the symbol CE indicates compliance of this Dedicated Micros product to the
Page 4 of 13.
7/10/2019
Title NetVu KBC2/U Joystick Keypad Installation and Operation Manual
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Electromagnetic Compatibility Directive 89/336/EEC, and the Low Voltage Directive 73/23/EEC of
the European Union. Such marking is indicative that this system meets the following technical
standards
• EN 62000-3-3 Limitations of voltage changes, fluctuations and flicker in public low-voltage supply
systems for equipment with rated current up to 16A.
• EN 61000-3-2 Limits for harmonic current emissions for equipment with rated current up to 16A.
• EN 55024:2010.
Further details about these applicable standards can be obtained from NetVu Ltd, No 1 Thellow
Heath Park, Northwich Road, Northwich, Cheshire, CW9 6JB.
RF Interference warning
This is a class A product. In a domestic environment this product may cause radio frequency
interference, in which case the user may be required to take adequate measures.
Regulatory Notes and FCC and DOC Information
(USA and Canadian Models Only)
Warning: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at their own expense.
If necessary, the user should consult the dealer or an experienced radio/television technician for
corrective action. The user may find the following booklet prepared by the Federal
Communications Commission helpful: “How to Identify and Resolve Radio-TV Interference
Problems”.
This booklet is available from the US Government Printing Office, Washington, DC20402, Stock No.
004-000-00345-4.
This reminder is provided to call the CCTV system installer’s attention to Art. 820-40 of the NEC
that provides guidelines for proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close to the point of cable entry as
practical.
CE Mark
If this product is marked with the CE symbol it indicates compliance with all applicable directives.
Directive 89/336/EEC. A ‘Declaration of Conformity’ is held at NetVu Ltd, No 1 Thellow Heath Park,
Northwich Road, Northwich, Cheshire, CW9 6JB.
Page 5 of 13.
7/10/2019
Title NetVu KBC2/U Joystick Keypad Installation and Operation Manual
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Installing the Unit
Before you start check the contents of the box
The box should contain the following items:
KBC2/U Joystick Keypad
Installation Accessories;
•Mains: Power Adaptor,
•Mains Power Cable,
•USB.
Installation
The KBC2/U Joystick keyboard is specially developed by NetVu for use with its Digital Video
Recorders (DVRs) and Enterprise Observer Software.
Consequently, it offers optimal ergonomic performance as part of a NetVu Closed IPTV system.
The KBC2/U uses a USB connection and is supplied with a separate dedicated power supply.
Consequently, the keyboard should be installed in a clean, dry and stable location, where the
monitors being controlled can be easily seen.
The KBC2/U keyboard is equipped with a USB interface. This means that in practice, the USB
specification limits the length of a cable between the keyboard and the DVR or PC to 5 meters
maximum. For longer distances some form of USB extension device must be used.
Page 6 of 13.
7/10/2019
Title NetVu KBC2/U Joystick Keypad Installation and Operation Manual
NetVu Ltd. www.netvu.org.uk
No 1 Thellow Heath Park, Northwich Road, Northwich, Cheshire. CW9 6JB
Connection
The supplied USB cable should be used to connect the keyboard to the DVR (or PC) to be
controlled.
Cables up to 5 metres in length compliant to USB standard may also be used. For longer distances
some form of USB extension device must be used.

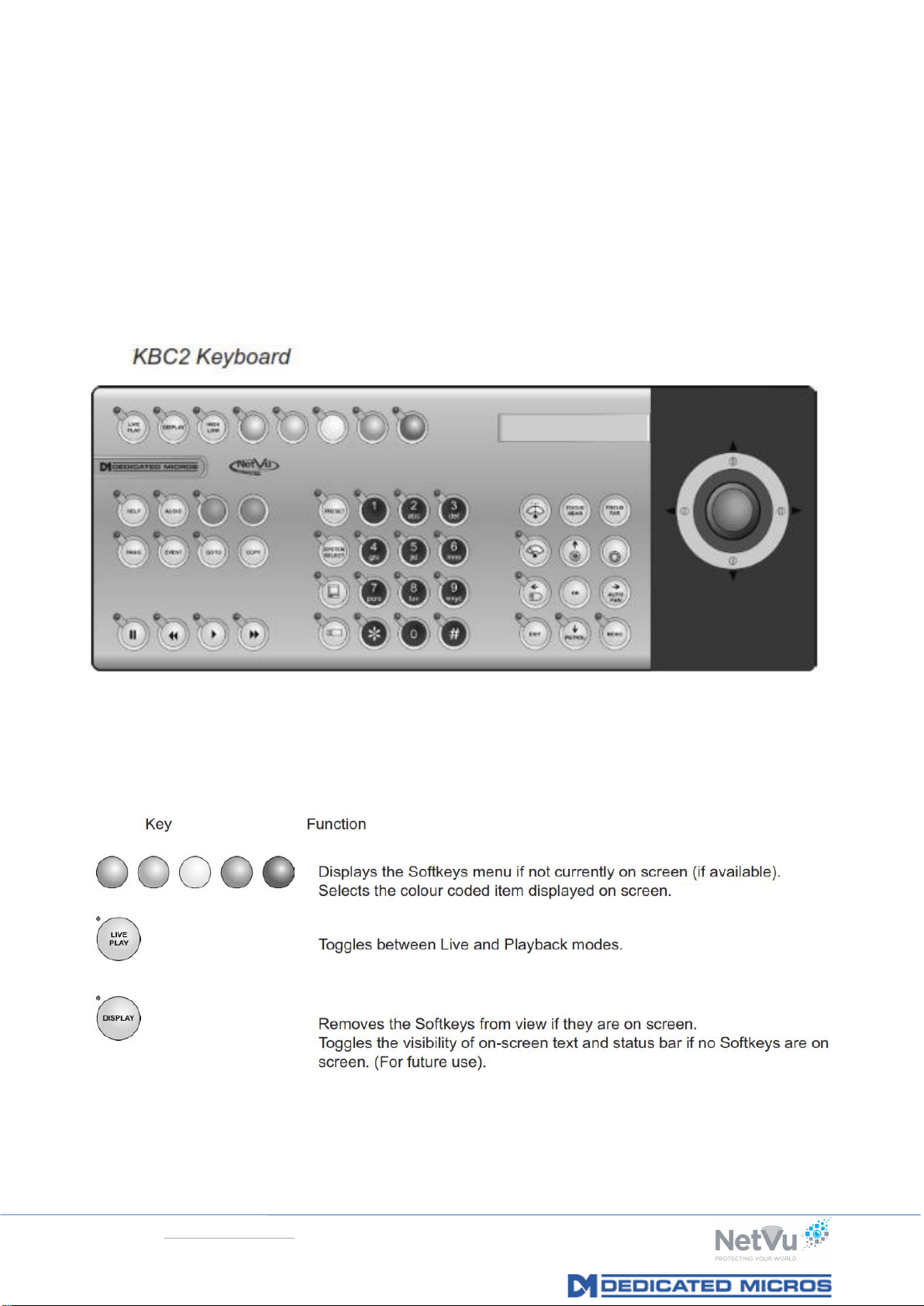

Using the Keyboard
A brief description of the function of each of the keyboard keys is as follows :
Note: not all of the keyboard functions will apply, depending on whether a DVR or PC is connected
to the keyboard
