Netio PowerBOX 3PF Manuel utilisateur

PowerBOX 3Px

PowerBOX 4Kx

MANUAL

FIRMWARE 3.1.0

and later

7.4.2021



Table of Contents
Introduction.............................................................................................................4
1Safety notices ....................................................................................................4
2General characteristics .........................................................................................5
3Specifications.....................................................................................................7
1 Features .............................................................................................8
2 Drawings ........................................................................................... 10
3 Device description ............................................................................... 12
4 LED and button functions....................................................................... 13
5 Minimum system requirements (for configuration) ........................................ 13
6 Package contents ................................................................................ 14
7 Optional accessories............................................................................. 14
4Configuration and control .................................................................................... 15
1 Connectiong PowerBOX ......................................................................... 15
2 Detecting and configuring the IP address.................................................... 15
3 Login to device web ............................................................................. 17
4 NETIO Mobile2 for Android ..................................................................... 18
5 Restoring factory defaults...................................................................... 19
6 Controlling the output manually .............................................................. 19
5Web interface .................................................................................................. 20
1 Outputs ............................................................................................ 20
1.1 Outputs - Energy measurements –PowerBOX 4Kx only ....................... 22
1.2 Outputs - General ................................................................... 24
1.3 Outputs - Schedule .................................................................. 26
2 Open API: M2M Protocols ....................................................................... 27
2.1 M2M API Protocol –XML over HTTP............................................... 28
2.2 M2M API Protocol –JSON over HTTP ............................................. 33
2.3 M2M API Protocol –URL API (http get)........................................... 37
2.4 M2M API Protocol –Telnet ......................................................... 40
2.5 M2M API Protocol –Modbus/TCP .................................................. 45
2.6 M2M API Protocol –MQTT-flex..................................................... 49
2.7 M2M API Protocol –Netio Push .................................................... 53
2.8 M2M API Protocol –SNMP........................................................... 55
3 Cloud ............................................................................................... 59
4 Users ............................................................................................... 62
5 Schedules.......................................................................................... 64
6 Settings ............................................................................................ 66
6.1 Network Configuration ............................................................. 66
6.2 Date / Time .......................................................................... 68
6.3 Firmware.............................................................................. 69
6.4 System................................................................................. 71
7 Log.................................................................................................. 73
6DECLARATION OF CONFORMITY.............................................................................. 75
7Products overview ............................................................................................. 77




Introduction

Thank you for purchasing this product of NETIO products a.s. Before using your product, please read

this User Manual (MAN) and the included Quick Installation Guide (QIG) to avoid problems with incorrect

installation or use.

Caution:

The product works with mains voltage. Mishandling may damage it or result in injury or death.

1Safety notices

1. The manufacturer is not liable for any damage caused by incorrect use of the device or by

operating it in an unsuitable environment.

2. The device is not rated for outdoor use.

3. Do not expose the device to strong vibrations.

4. Unauthorized modifications may damage the device or cause a fire.

5. Protect the device from liquids and excessive temperatures.

6. Make sure the device does not fall.

7. Only electrical appliances approved for use with the electrical network may be connected to the

device.

8. Do not connect multiple devices in series.

9. The cable plug must be easily accessible.

10. The device is completely switched off only when unplugged.

11. If the device malfunctions, disconnect it from the electrical outlet and contact your vendor.

12. Do not cover the device.

13. Do not use the device if it appears to be mechanically damaged.

14. Make sure that the input and output cables are rated for the respective current.

2General characteristics

PowerBOX 3Px

Switched Power Outputs: 3

Output Switching: ZVS (Zero Voltage Switching)

Metered channels: 0

PowerBOX 4Kx

Switched Power Outputs: 4

Output Switching: ZCS (Zero Current Switching)

Metered channels: 4

Electricity consumption metering: [V, Hz, A, W, Wh, TPF, °]

Measurement accuracy <1%

Common

LAN interface 10/100 Mbps (RJ-45)

Built-in web server for device configuration and control

Password-protected login into device configuration

IOC (Independent Output Control)

PowerUp state - (ON / OFF / LAST)

Overvoltage protection

Operating temperature range: -20°C to +65°C

Supported protocols: DNS, NTP, DHCP, HTTP, uPNP

Supported M2M protocols: Modbus/TCP, Telnet, SNMP, MQTT-flex, Http Push, XML, JSON, URL

API

Overview of PowerBOX 3Px and PowerBOX 4Kx variants according to the electrical socket type

e.g. PowerBOX 4KF use Euro input plug (CEE 7/7) and Type F (Schuko) output sockets

“x”

Variant

Output socket

Input plug

Voltage

Max.

current

Max.

load

Type F

E/F (CEE 7/7)

230V ~

16A

3600W

Type E

E/F (CEE 7/7)

230V ~

16A

3600W

Type G

230V ~

13A

3000W

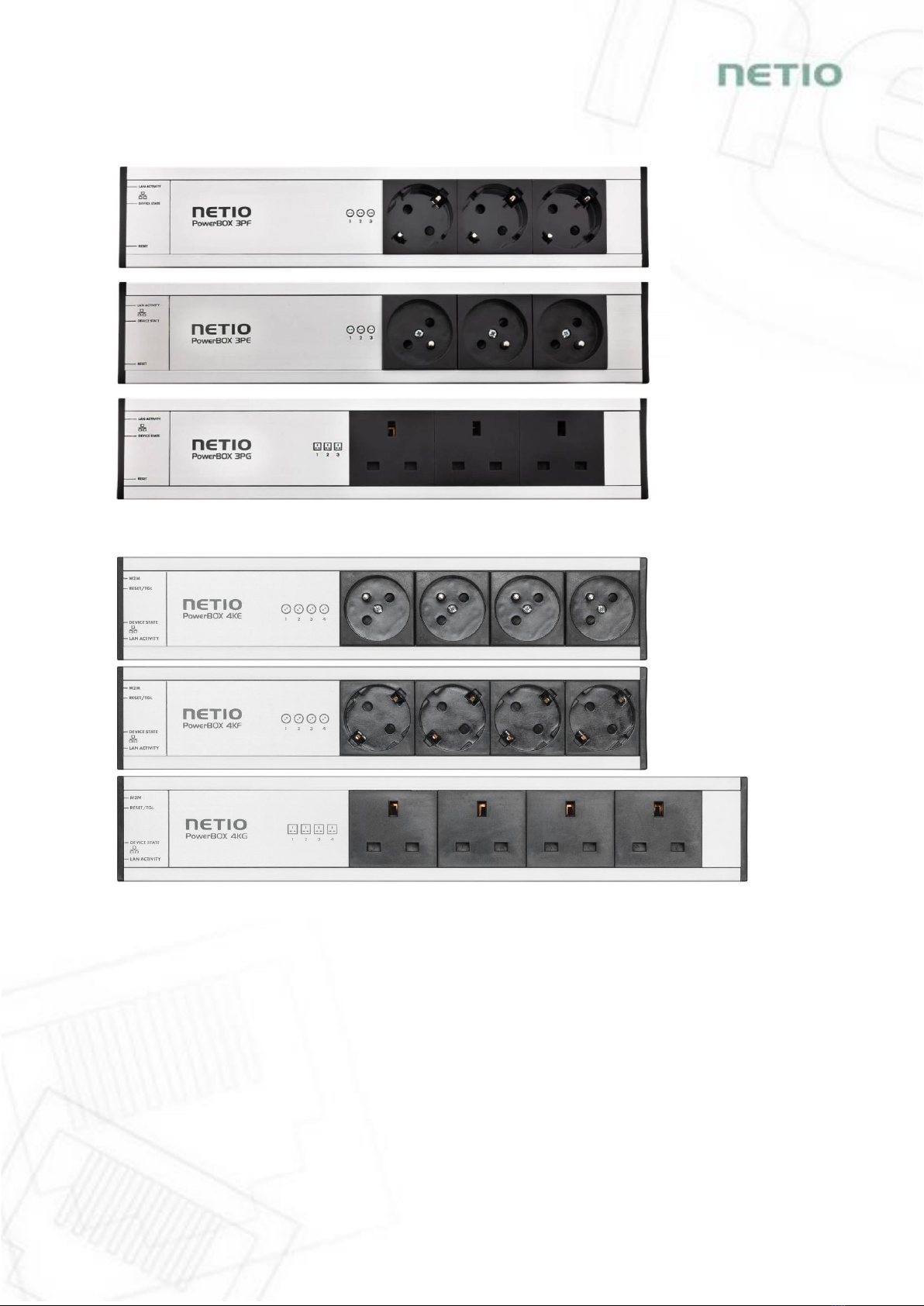

Figure 1 –PowerBOX variants

3PF

3PE

3PG

4KE

4KF

4KG

3Specifications

Power

100-240 V; 50/60 Hz; 16 A - PowerBOX 3PE, PowerBOX 4KE

100-240 V; 50/60 Hz; 16 A - PowerBOX 3PF, PowerBOX 4KF

100-240 V; 50/60 Hz; 13 A - PowerBOX 3PG, PowerBOX 4KG

Switched outputs

16 A in total / 16 A each output - PowerBOX 3PE, PowerBOX 4KE

16 A in total / 16 A each output - PowerBOX 3PF, PowerBOX 4KF

13 A in total / 13 A each output - PowerBOX 3PG, PowerBOX 4KG

Maximum line breaker

capacity

C16A –PowerBOX 3PE, PowerBOX 4KE

C16A –PowerBOX 3PF, PowerBOX 4KF

C13A –PowerBOX 3PG, PowerBOX 4KG

Fuse

Integrated, non-resettable

Surge protection

Type 3 (CAT III)

Power Output relays

Micro-disconnection (µ) (resistive load), SPST-NO

1E5 switching cycles, max. 1.5 kV pulse voltage

Switch heat and fire resistance class 1

Electrical load

PowerBOX 3Px: ZVS (Zero Voltage Switching)

- most load types, such as switching power supplies compatible

PowerBOX 4Kx: ZCS (Zero Current Switching)

- Resistance load compatible

- Capacitive load compatible

- Inductive load compatible

Network interfaces

1x Ethernet RJ-45 10/100 Mbit/s

Attention! Device connected over LAN must be connected in

network with same earth potential (PE).

Internal consumption

Max 2W

Environment

IP30, protection rating = class 1

Operating temperature -20°C to 65°C / 10A

-20°C to 50°C / 16A

Device rated for pollution degree 2.

Designed for continuous operation in altitudes up to 2000 m.

Does not require additional cooling

3.1 Features

ZCS (Zero Current Switching) –PowerBOX 4Kx

ZCS (Zero Current Switching) function ensures that the relay contact is closed

at the moment of zero voltage and opened at the moment when zero current

flows through it.

Closing and opening at these exact moments has a number of advantages:

The negative effects of inrush current on the lifetime of the relay in the

NETIO device are significantly reduced.

Reduced probability of a circuit breaker tripping in the circuit branch

where the appliance with a high inrush current is connected.

Significantly improved lifetime of switching supplies in appliances that are connected to the

socket (especially in case of frequent switching on and off).

Significantly reduced electromagnetic interference caused by repeated switching on and off.

Zero current switching (ZCS) significantly improves the lifetime of the NETIO device and the

connected end devices. This function is particularly important in case of frequent switching.

ZVS (Zero Voltage Switching) –PowerBOX 3Px

ZVS (Zero Voltage Switching) means switching the 110/230VAC output when

the immediate voltage is zero.

ZVS is a good solution for switching on/off devices such as switching power

supplies.

ZVS is not suitable for controlling inductive loads (transformers or motors), as

it increases the probability of relay damage when such types of loads are

frequently switched on/off.

NETIO products without energy metering support ZVS (Zero Voltage Switching) when switching

110/230V relay outputs.

ZVS is sufficient relay switching technology for most load types, such as switching power supplies in

IT solutions.

IOC (Independent Output Control)

Independent Output Control function of the NETIO device uses an independent

system that ensures a stable operation of the output even if the main system

is being restarted, updated, or is booting.

Thanks to IOC, the controlled output can power devices that, for technical

reasons, must be powered without interruption (such as servers). The output

control is completely independent from the WiFi or LAN communication

subsystem.

ZCS

Zero Current

IOC

Independent IO

ZVS

Zero Voltage

PowerUp State

The PowerUp State parameter (sometimes also called Cold start) defines the

behavior of the 110/230V power output during the first milliseconds to seconds

after powering up the device, before the LAN/WiFi communication with a

master system is established.

For some applications, it is important to set the correct state of a power

output immediately after power is turned on (or restored). With servers in

particular it is important to avoid undesired momentary switching.

Possible settings for NETIO device

- On

- Off

- LAST state restores the last state before the power was disconnected

Electrical measurements –only PowerBOX 4Kx

PowerBOX 4Kx measures relevant electrical parameters.

Parameter

Range

Units

Resolution

Accuracy

Voltage

90,0 –250,0

0,1

<1%

Frequency

45,0 –65,0

0,1

<1%

Current

0,005 –16,000

0,001

<1%

TPF

(True Power Factor)

0,00 –1,00

0,01

<1%

Phase

0 –360

0,01°

<1%

Output power

0 –3600

<1%

Energy

0 - 4294967296

<1%

Reverse Energy

0 - 4294967296

<1%

PowerUp

state

3.2 Drawings

PowerBOX 3Px

Figure 2 –PoweBOX 3Px front and side view [mm]

Figure 3 –PoweBOX 3Px - overall dimensions in mm with MK1 kit installed (MK1 sold separately)

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Netio Accessoires

Netio

Netio PowerBOX 3PE Manuel utilisateur

Manuels Accessoires populaires d'autres marques

Hillco

Hillco 2810 Manuel utilisateur

Siemens

Siemens QSA2700D Manuel de l'opérateur

Contours

Contours ZY024 Manuel utilisateur

Saivod

Saivod VS621 Manuel utilisateur

Virtuox

Virtuox VirtuCLEAN 2.0 Manuel utilisateur

SCE

SCE ENVIRO-THERM SCE-TE170B24VSS Manuel utilisateur

Z-Wave

Z-Wave HSD-200Z Manuel utilisateur

turck

turck FMX-IM-2UPLI63FX Manuel utilisateur

Decagon Devices

Decagon Devices 10HS Manuel utilisateur

UPPAbaby

UPPAbaby Cup Holder Manuel utilisateur

Elko

Elko SmartSensor Leakage Wireless Manuel utilisateur

Grizzly

Grizzly H8371 Manuel utilisateur

Panasonic

Panasonic HG-T Series Manuel utilisateur

IFM Electronic

IFM Electronic Efector 250 Series Guide de référence

DigiDesign

DigiDesign 888/24 I/O Manuel utilisateur

PROZIS

PROZIS QUAY Manuel utilisateur

patagonia

patagonia PSI Vest Manuel utilisateur

SFC Energy

SFC Energy EFOY GO! Manuel utilisateur
